Model Image
Manufacturer

Whirlpool

Model Number

EH150FXMQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4356622 4356622 ACCESS PANEL
W11663505 W11663505 ADPTR-HOSE
WP72107 WP72107 ALMOND
W11553315 W11553315 BASKET
3-81556-001 3-81556-001 BRACE
4-35011-004 4-35011-004 BREAKER STRIP, FRONT
4-35010-004 4-35010-004 BREAKER STRIP, REAR
100000 100000 CABINET (NOT A SERVICEABLE PART)
WPW10662129 WPW10662129 CAPACITOR
488946 488946 CLAMP, TUBING
3-24059-024 3-24059-024 CLIP
4356406 4356406 CLIP, COVER
4356703 4356703 CLIP, GASKET
1-26359 1-26359 CLIP, SPRING

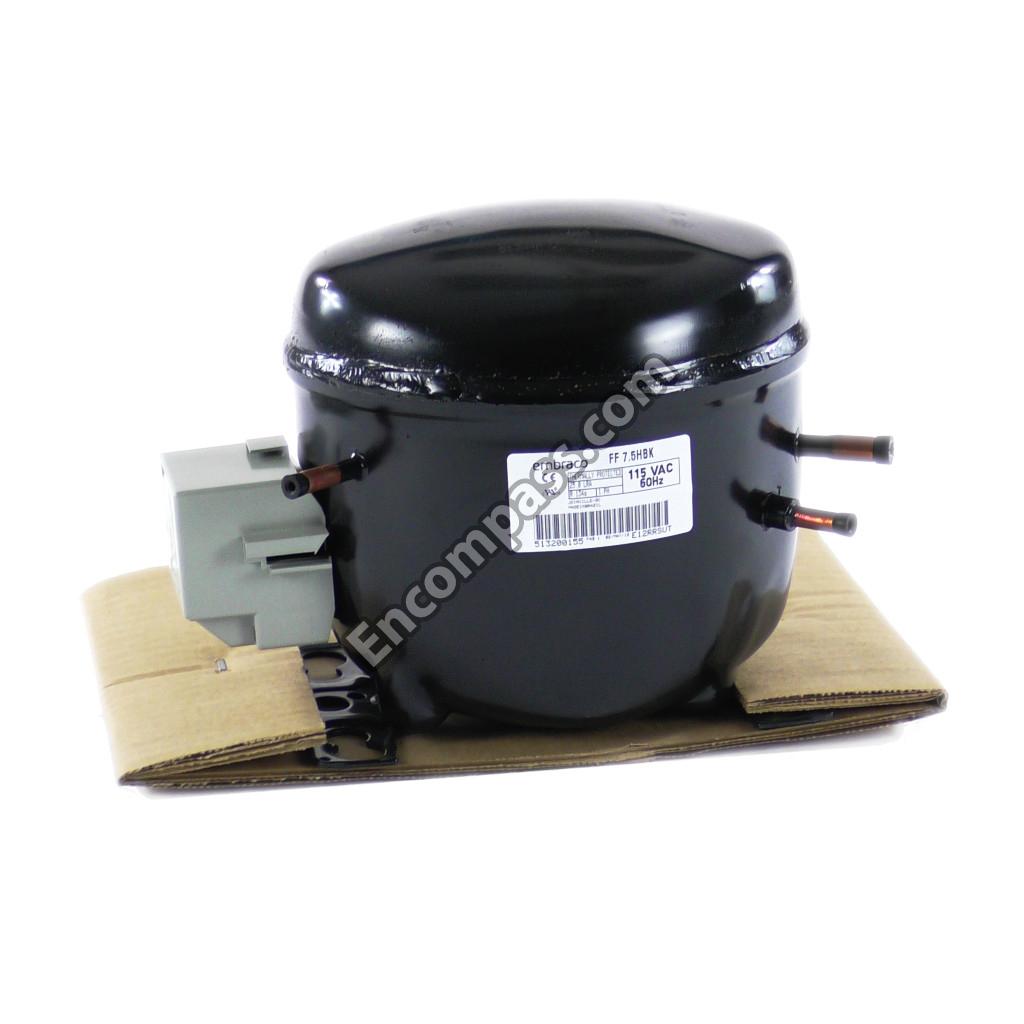

W10473567 W10473567 COMPRESSOR
4356590 4356590 COMPRESSOR, BASE
4356336 4356336 COMPRESSOR, HITCH PIN
4356335 4356335 COMPRESSOR, MOUNTING GROMMET
W10682894 W10682894 CONTROL BOX
4356587 4356587 COVER
4356477 4356477 DIVIDER (OPTIONAL)

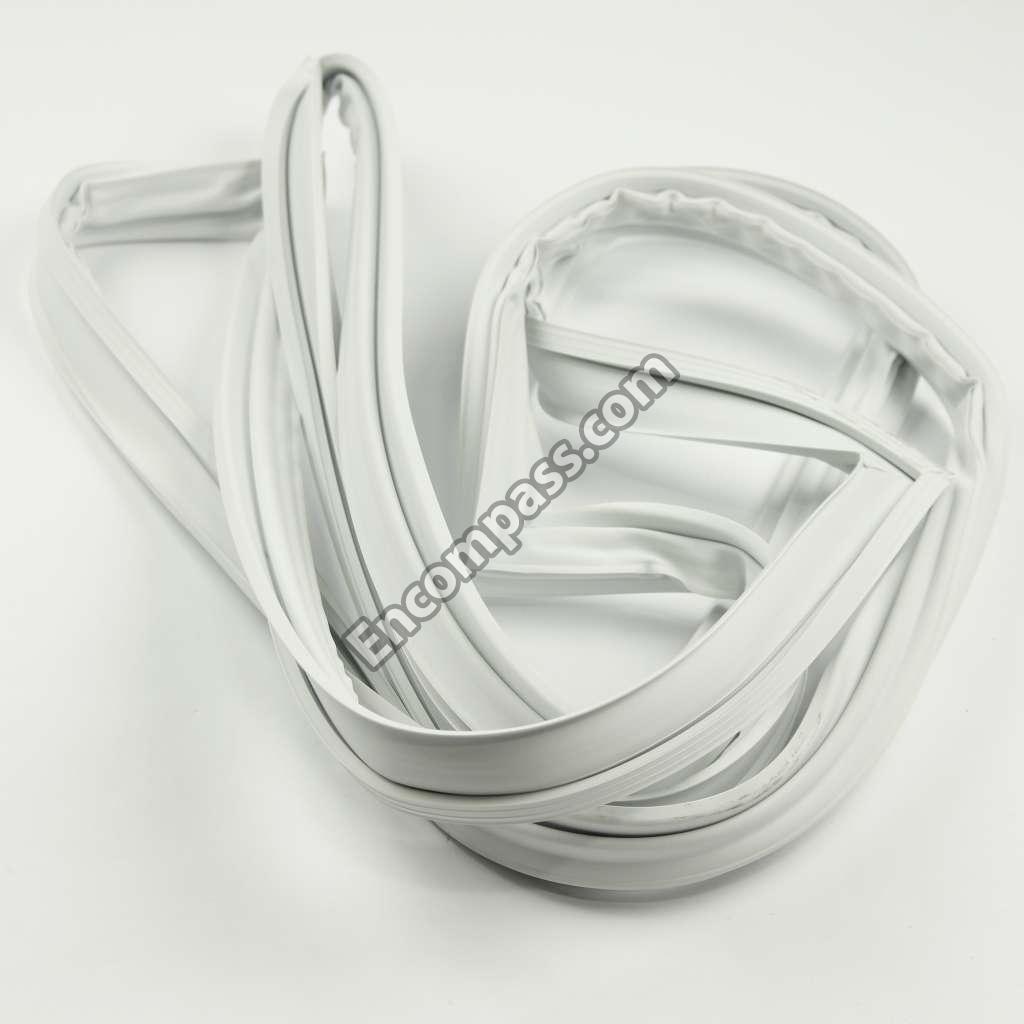

WP4-35260-005 WP4-35260-005 DOOR GASKET
3-33211-001 3-33211-001 DRAIN PLUG
W10843121 W10843121 DRIER-TUBE
4356761 4356761 ENERGY GUIDE
4356657 4356657 HANDLE
WP4356723 WP4356723 HINGE, ASSEMBLY
2-35195-002 2-35195-002 HOOK
4356584 4356584 INSERT, CONTROL
4356536 4356536 INTERIOR, DOOR PANEL
WP1-26356 WP1-26356 KEY

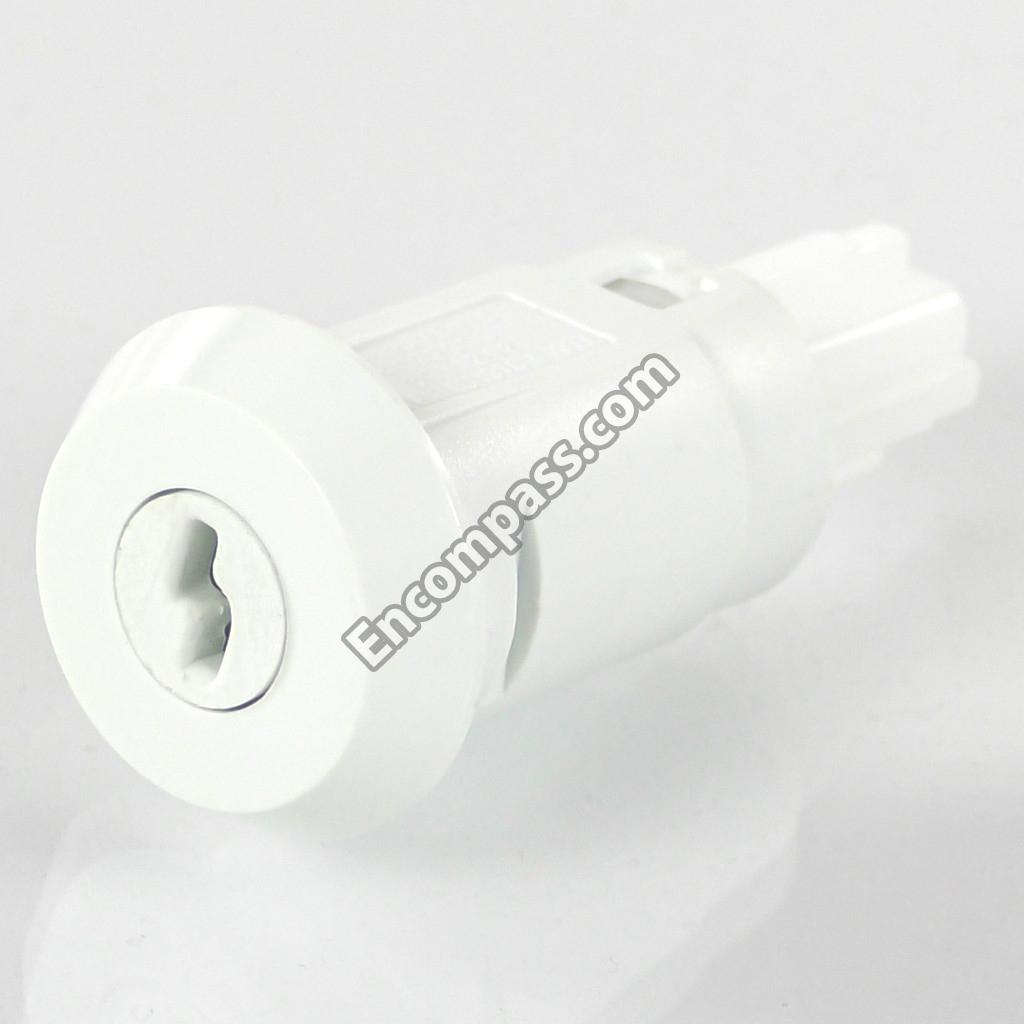

3-35284-001 3-35284-001 LOCK KIT
8210283 8210283 OVERLOAD
2300216 2300216 OWNER`S MANUAL
799344 799344 PAINT
WP4390902 WP4390902 PANEL-EXT
4356321 4356321 PLASTIC, GROMMET
WP4356738 WP4356738 RELAY-STRT
3-24004-049 3-24004-049 SCREW
4356491 4356491 SCREW
W11233072 W11233072 SCREW

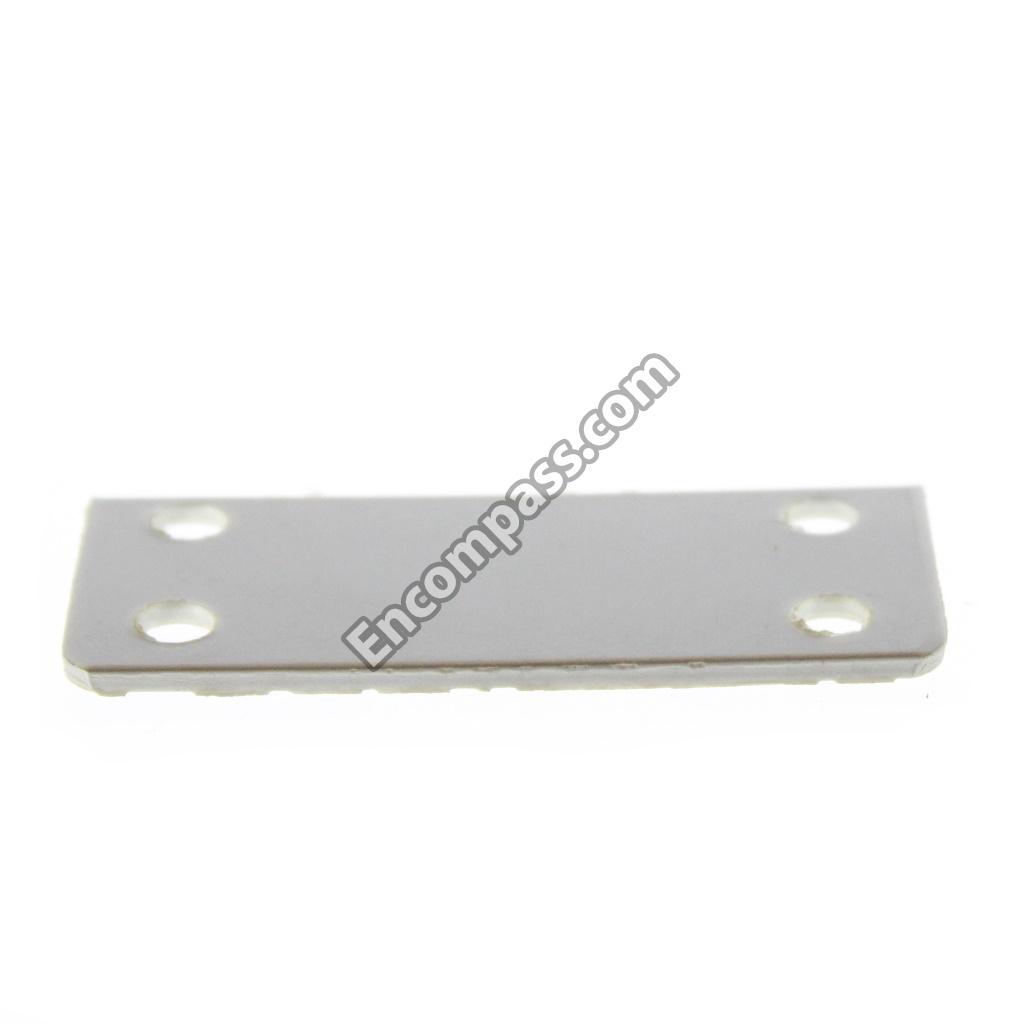

1-17548-006 1-17548-006 SPACER, HINGE
350930 350930 SPRAY (13 OZ.) (WHITE)

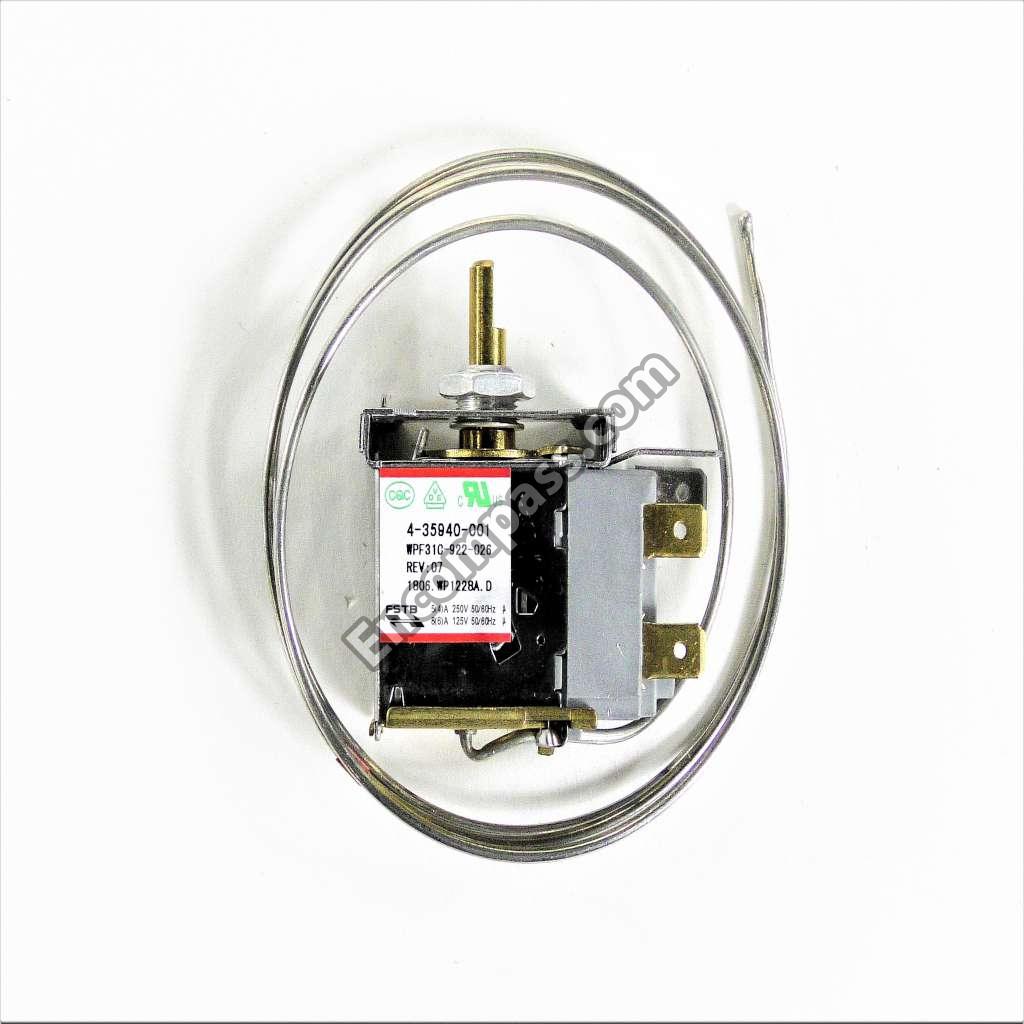

WP4-35940-001 WP4-35940-001 THERMOSTAT
4356769 4356769 THERMOSTAT, KNOB
W11045300 W11045300 TRIM-BRKR
4356770 4356770 WIRE BASKET (LOWER, STANDARD (2))
4356733 4356733 WIRING, HARNESS EXTERNAL
