Model Image
Manufacturer

Whirlpool

Model Number

EH221FXRQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4356622 4356622 ACCESS PANEL
W11663505 W11663505 ADPTR-HOSE
2-32304 2-32304 ALARM-FZR
W11553315 W11553315 BASKET
8210318A 8210318A BASKET (LOWER (2))
3-81556-001 3-81556-001 BRACE
100000 100000 CABINET, (NOT A SERVICEABLE PART)
1185344 1185344 CAPACITOR
488946 488946 CLAMP, TUBING
4356703 4356703 CLIP, GASKET
3-24059-024 3-24059-024 CLIP, OBLONG
1-26359 1-26359 CLIP, SPRING
W10309994 W10309994 COMPRESSOR
4356590 4356590 COMPRESSOR, BASE
4356336 4356336 COMPRESSOR, HITCH PIN
4356335 4356335 COMPRESSOR, MOUNTING GROMMET
W10682894 W10682894 CONTRL-BOX
2217635 2217635 COVER
4356477 4356477 DIVIDER (OPTIONAL)

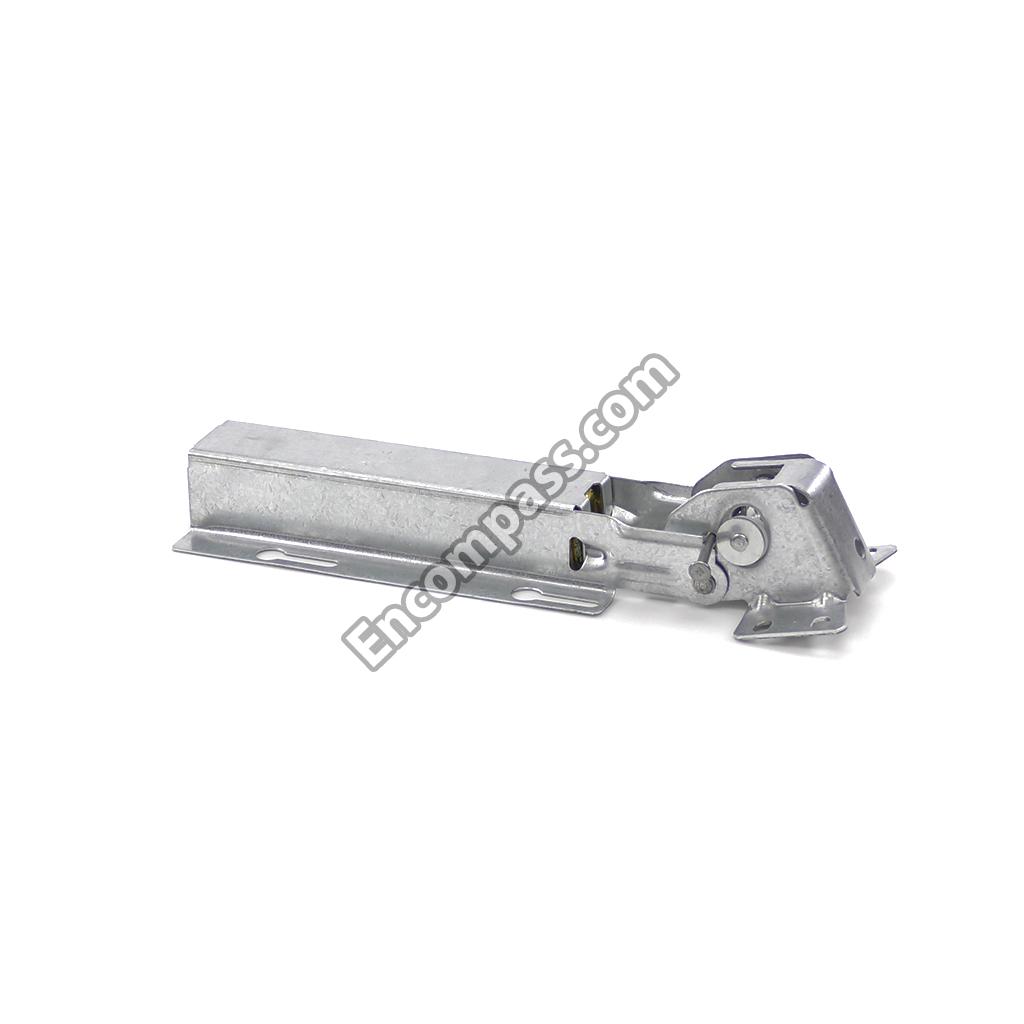

W11192185 W11192185 DOOR HINGE
3-33211-001 3-33211-001 DRAIN PLUG
W10843121 W10843121 DRIER-TUBE
8210232 8210232 ENERGY GUIDE/TAG
4390903 4390903 EXTERIOR DOOR PANEL
4356641 4356641 FRONT, BREAKER STRIP
4-35260-006 4-35260-006 GASKET
4-35663-149 4-35663-149 HANDLE
W10620417 W10620417 HARNESS, CABINET
4-35521-002 4-35521-002 HARNESS, WIRING
2-30045-001 2-30045-001 HEAT SHIELD
2-35195-002 2-35195-002 HOOK
4390658 4390658 INTERIOR DOOR PANEL
WP1-26356 WP1-26356 KEY
4356769 4356769 KNOB, THERMOSTAT
2005042 2005042 LAMP SOCKET
W10873798 W10873798 LIGHT BULB
3-35284-001 3-35284-001 LOCK KIT
2-34286-021 2-34286-021 OVERLOAD
8210431 8210431 OWNERS MANUAL
978883 978883 PAINT
4356321 4356321 PLASTIC, GROMMET
3-25693-001 3-25693-001 REFLECTOR, LIGHT
WP4356738 WP4356738 RELAY-STRT
3-24004-049 3-24004-049 SCREW
4356491 4356491 SCREW
W11233072 W11233072 SCREW
WP488787 WP488787 SCREW
4356453 4356453 SIGNAL LIGHT
1-17548-006 1-17548-006 SPACER, HINGE
350956 350956 SPRAY
W10917237 W10917237 SWITCH
2-32307 2-32307 SWITCH, ALARM

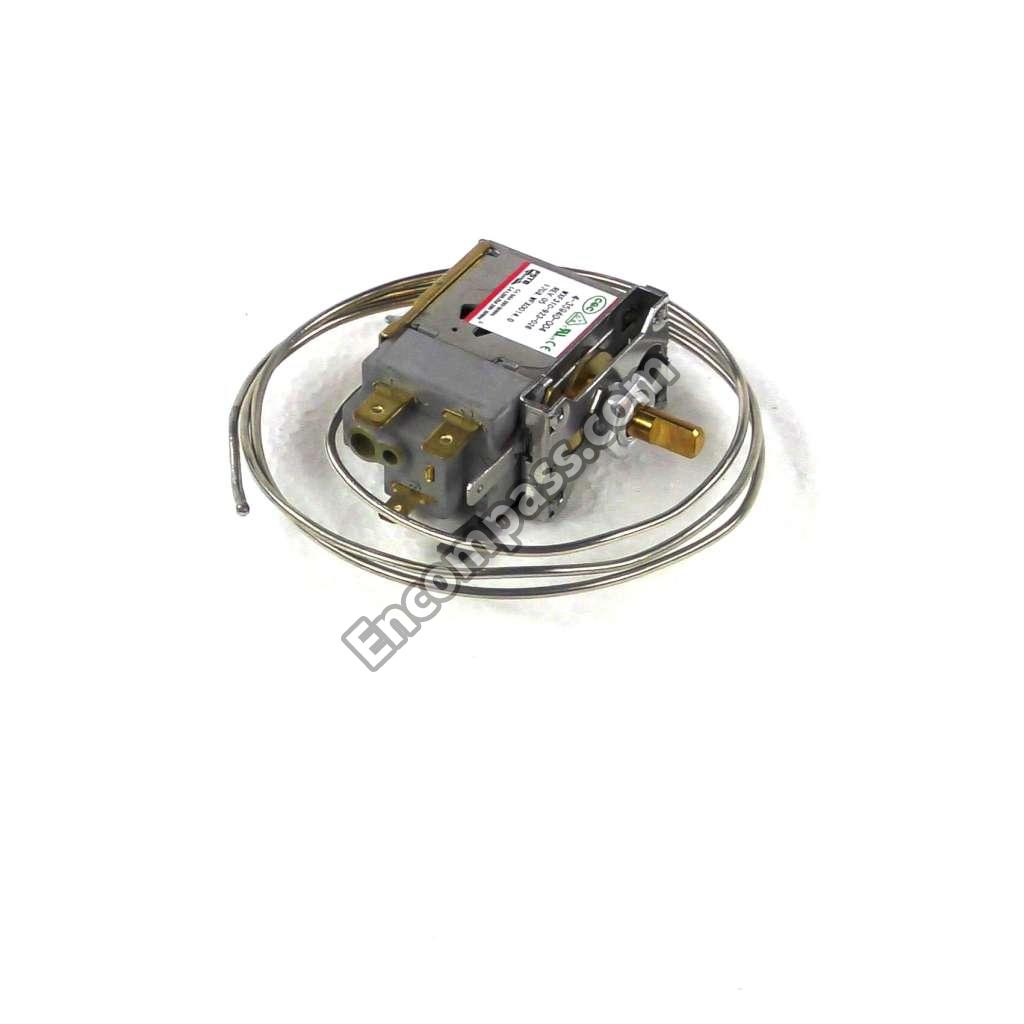

4-35940-004 4-35940-004 THERMOSTAT
W11045298 W11045298 TRIM-BRKR
W11045300 W11045300 TRIM-BRKR
WP72107 WP72107 TUCHUP
8210324 8210324 WIRE
