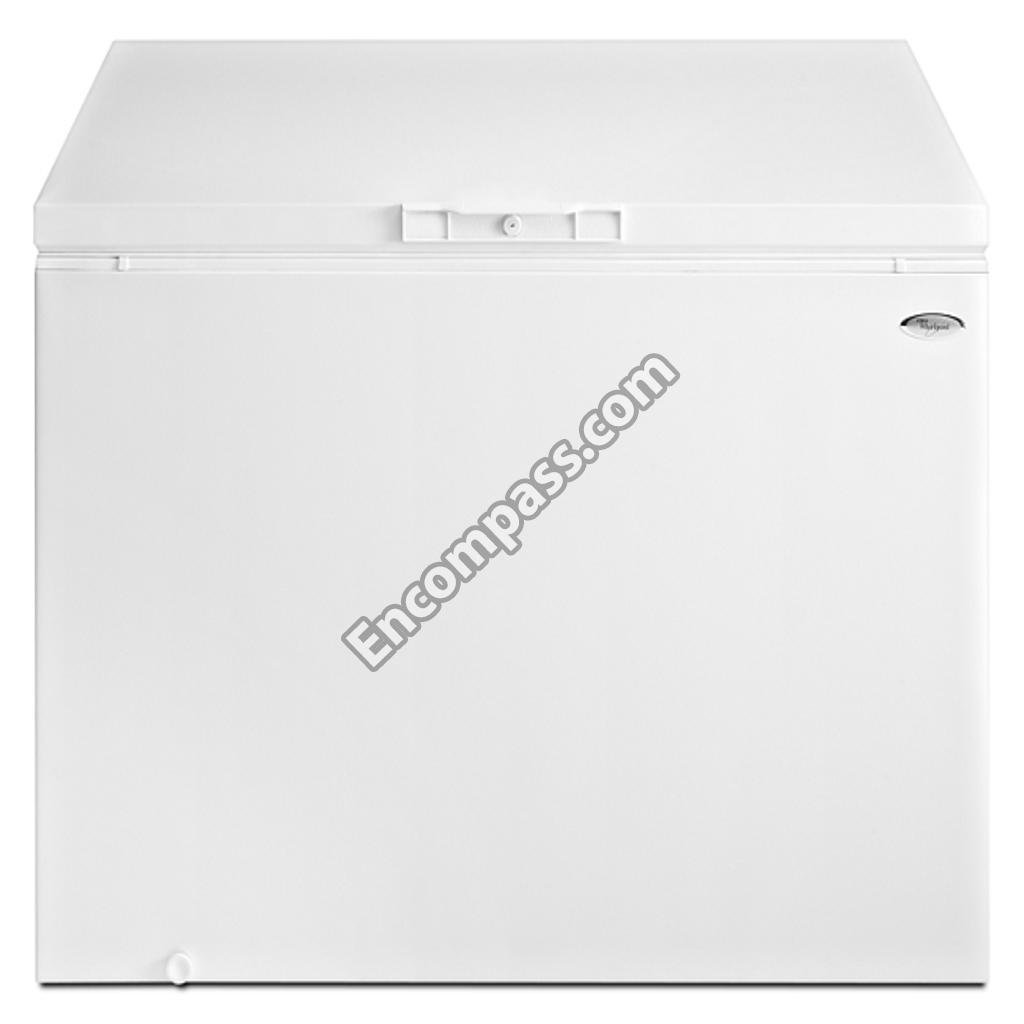

Model Image
Manufacturer

Whirlpool

Model Number

EHL151FXRQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4356622 4356622 ACCESS PANEL
W11663505 W11663505 ADPTR-HOSE
W11553315 W11553315 BASKET
8210318A 8210318A BASKET (LOWER (2))
3-81556-001 3-81556-001 BRACE
4-35011-004 4-35011-004 BREAKER STRIP, FRONT
4-35010-004 4-35010-004 BREAKER STRIP, REAR
100000 100000 CABINET, (NOT A SERVICEABLE PART)
8210284 8210284 CAPACITOR
488946 488946 CLAMP, TUBING
3-24059-024 3-24059-024 CLIP, OBLONG
1-26359 1-26359 CLIP, SPRING
W10473567 W10473567 COMPRESSOR
4356590 4356590 COMPRESSOR, BASE
4356336 4356336 COMPRESSOR, HITCH PIN
4356335 4356335 COMPRESSOR, MOUNTING GROMMET
W10682894 W10682894 CONTROL BOX
2217635 2217635 COVER
4356477 4356477 DIVIDER (OPTIONAL)
WP4-35260-005 WP4-35260-005 DOOR GASKET
3-33211-001 3-33211-001 DRAIN PLUG
W10843121 W10843121 DRIER-TUBE
8210315 8210315 ENERGY GUIDE
4356703 4356703 GASKET, CLIP
4356657 4356657 HANDLE
4-35641-001 4-35641-001 HARNESS
4-35129-002 4-35129-002 HARNESS, MAIN
2-30045-001 2-30045-001 HEAT SHIELD
WP4356723 WP4356723 HINGE, ASSEMBLY
2-35195-002 2-35195-002 HOOK
WP1-26356 WP1-26356 KEY
4356769 4356769 KNOB, THERMOSTAT
W10873798 W10873798 LIGHT BULB
4356453 4356453 LIGHT, INDICATOR
3-35284-001 3-35284-001 LOCK KIT
2152334 2152334 NAMEPLATE
WP2214067 WP2214067 OVERLOAD
8210431 8210431 OWNERS MANUAL
799344 799344 PAINT
WP4390902 WP4390902 PANEL-EXT
8210230 8210230 PANEL-INT
4356321 4356321 PLASTIC, GROMMET
3-25693-001 3-25693-001 REFLECTOR, LIGHT
WP4356738 WP4356738 RELAY-STRT
3-24004-049 3-24004-049 SCREW
4356491 4356491 SCREW
W11233072 W11233072 SCREW
2005042 2005042 SOCKET, LIGHT
1-17548-006 1-17548-006 SPACER, HINGE
350930 350930 SPRAY
W10917237 W10917237 SWITCH
WP4-35940-001 WP4-35940-001 THERMOSTAT
W11045300 W11045300 TRIM-BRKR
WP72107 WP72107 TUCHUP
