Model Image
Manufacturer

Whirlpool

Model Number

EL5030VL0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP691581 WP691581 ACTUATOR
279264 279264 AIR CHANNEL BOX
WP72107 WP72107 ALMOND
350956 350956 ALMOND
WP342847 WP342847 BAFFLE, DRUM
WP348780 WP348780 BASE, MOTOR
WP3394508 WP3394508 BEARNG-RNG
341241 341241 BELT, DRIVE
279320 279320 BLOCK-TERM
3400500 3400500 BOLT
695547 695547 BOX, HEATER
3396009 3396009 BRACKET, CONTROL
3976435 3976435 BRACKET, SUPPORT
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
279793 279793 BULKHEAD
3399581 3399581 CABINET (INCLUDES ILLUS. NO.`S 5,7,16,41, & 57) (ALMOND)
3399580 3399580 CABINET (INCLUDES ILLUS. NO.`S 5,7,16,41, & 57) (WHITE)
WP230131 WP230131 CABLE, DOOR (2)
3352243 3352243 CAP, END (L.H.)
279505 279505 CHUTE
WP660658 WP660658 CLAMP, MOTOR
279220 279220 CLIP
W10854425 W10854425 CLIP
WP98997 WP98997 CLIP
353253 353253 CLIP
279771 279771 CLIP
WP98234 WP98234 CLIP (2)
3352169 3352169 CONTROL KNOB, TEMPERATURE
697368 697368 COVER
W11736322 W11736322 COVER
WP697367 WP697367 COVER, LINT SCREEN (WHITE)
279570 279570 DOOR LATCH
689485 689485 DOOR, FRONT (ALMOND)
348737 348737 DOOR, FRONT (WHITE)
280078 280078 DOOR, REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3396775 3396775 DRUM ASSEMBLY

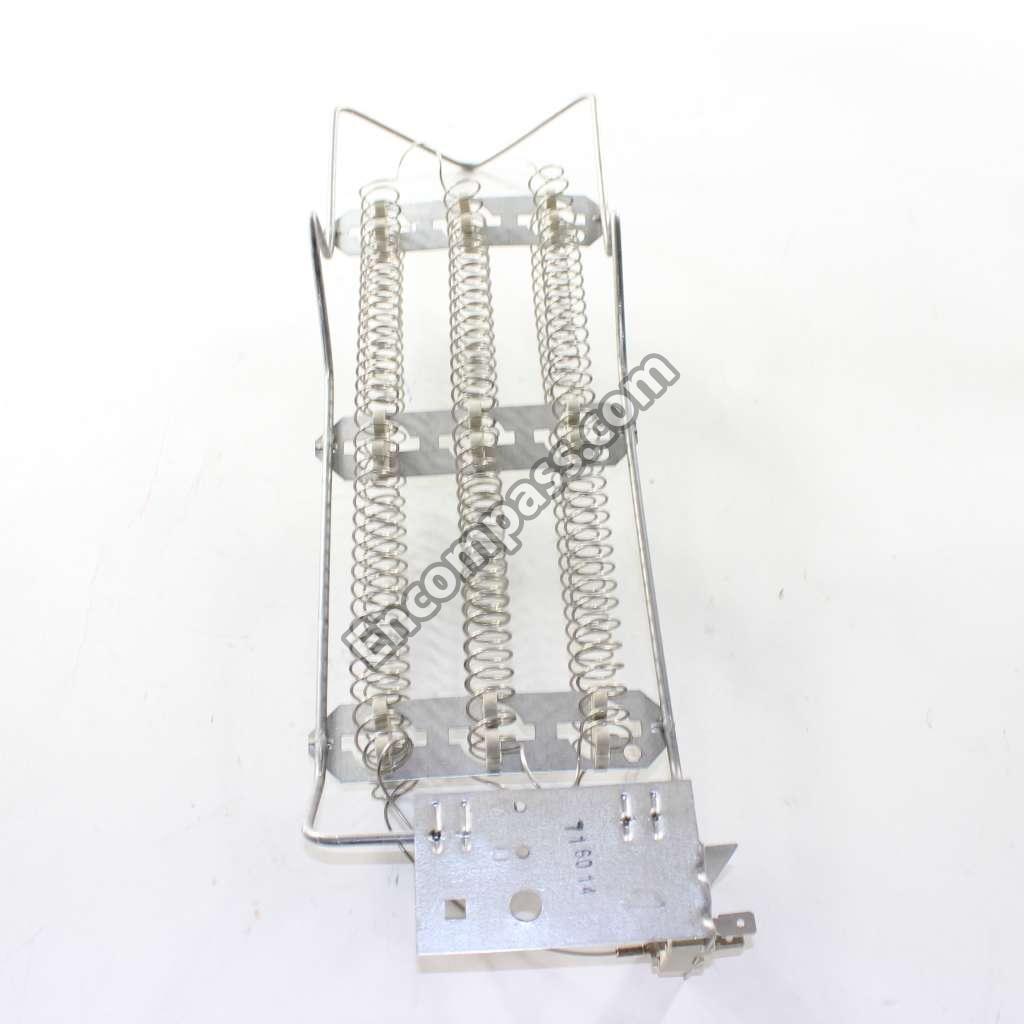

WP4391960 WP4391960 ELEMENT
3352238 3352238 ENDCAP
WP90296 WP90296 FASTENER, FLAT (2)
49621 49621 FEET-LVLNG
WP3392519 WP3392519 FUSE-THRML
261890 261890 GOLDEN HARVEST
261891 261891 GOLDEN HARVEST (UNCUT)
WP337182 WP337182 GUIDE, CABLE (L.H)
WP337183 WP337183 GUIDE, CABLE (R.H.)
339392 339392 HANDLE & LINT SCREEN ASSEMBLY
WP3977746 WP3977746 HANDLE, DOOR (ALMOND)
WP348721 WP348721 HANDLE, DOOR (WHITE)
3391745 3391745 HARNESS, WIRING
WP61894 WP61894 HEATER, THERMOSTAT (NOTE: USED WITH 660039 THERMOSTAT ONLY)
WPW10044480 WPW10044480 HINGE
WPW10044470 WPW10044470 HINGE
WP238460 WP238460 HINGE, DOOR (L.H.)
WP238456 WP238456 HINGE, DOOR (R.H.)
WP8066217 WP8066217 HINGE, TOP (2))
WP8577230 WP8577230 HOUSING
WP691366 WP691366 IDLER PULLEY ASSEMBLY
LIT3391815 LIT3391815 INSTRUCTIONS, INSTALLATION
279769 279769 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
3391829 3391829 KNOB, PUSH-TO-START
350941 350941 LEVELER (THINNER)
LIT3390375 LIT3390375 LIST, SERVICE PARTS
WP18776 WP18776 LOCK
98460 98460 NUT
WP358473 WP358473 NUT
WP689559 WP689559 NUT
WP358160 WP358160 NUT
978883 978883 PAINT
799344 799344 PAINT
285367 285367 PAINT
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
280068 280068 PANEL
280066 280066 PANEL
3391777 3391777 PANEL, CONTROL
347736 347736 PANEL, REAR
8066156 8066156 PANEL, REAR CONSOLE
285368 285368 PLATINUM (UNCUT)
WP660975 WP660975 PLUG, TOP TO CABINET 689587 (ALT.) 694010 (ALT.)
350938 350938 PRIMER, GRAY
WP8066184 WP8066184 PULLEY-MTR
WP694674 WP694674 RANGE THERMOSTAT
279872 279872 RESISTOR
WP681414 WP681414 SCREW
WP3390631 WP3390631 SCREW
WP388326 WP388326 SCREW
W11693756 W11693756 SCREW
WP489069 WP489069 SCREW
WP693995 WP693995 SCREW
WP308685 WP308685 SCREW
WP488627 WP488627 SCREW
WP694091 WP694091 SCREW
WP98129 WP98129 SCREW
WP488729 WP488729 SCREW
690372 690372 SCREW, 11-16 X 7/8
WP90767 WP90767 SCREW, 8 A X 3/8
WP3394196 WP3394196 SEAL
239087 239087 SEAL
WP339956 WP339956 SEAL FOAM
W11415783 W11415783 SEAL, LINT CHUTE
W11613302 W11613302 SEAL-DOOR
WPW10359270 WPW10359270 SHAFT
WPW10359269 WPW10359269 SHAFT, DRUM ROLLER (R.H.)
W11233063 W11233063 SHIELD
285365 285365 SPRAY
350930 350930 SPRAY (13 OZ.) (WHITE)
WP337186 WP337186 SPRING, DOOR (2)
358472 358472 STOP, PUSH-IN
349241T 349241T SUPPORT
686770 686770 SUPPORT PROTECTOR
279827 279827 SWITCH, MOTOR START (USE W/3391886 MOTOR)
279173 279173 SWITCH, PUSH-TO-START
694720 694720 SWITCH, TEMPERATURE
W10820036 W10820036 SWITCH-LID
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
WP3390291 WP3390291 THERMOSTAT (250 F) (121C)
69688-1 69688-1 TIMER & RESISTOR (60 HZ.)
3391823 3391823 TIMER KNOB ASSEMBLY
3393386 3393386 TOP (ALMOND)
3393385 3393385 TOP (WHITE)
WPW10512946 WPW10512946 TRI-RING (4)
LIT3391353 LIT3391353 USE & CARE GUIDE
WP3388703 WP3388703 WASHER
WP348197 WP348197 WASHER
WP694089 WP694089 WHEEL
69085-3 69085-3 WIRE, GROUND
690236 690236 WIRE, GROUND (MOTOR)
696098 696098 WIRE, JUMPER
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
