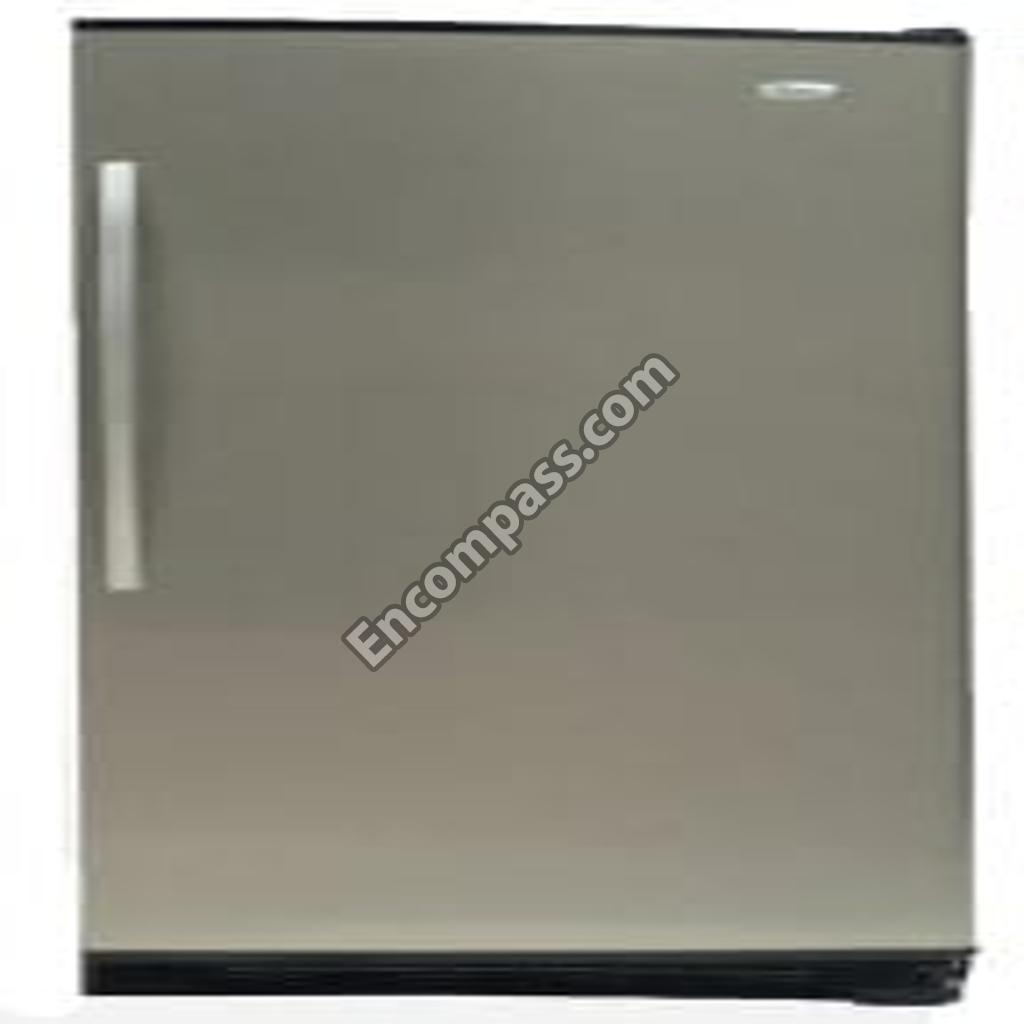

Model Image
Manufacturer

Whirlpool

Model Number

EL87TRRRV00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "INSULATION (2 PIECES, 3"" X 24"" X 48"")"
WP1-81801-001 WP1-81801-001 BIMETL-DEF
WP4-65454-001 WP4-65454-001 BIN-CNTLVR
W11100462 W11100462 BLADE-FAN
1-80252-101 1-80252-101 BLOCK, FOAM
8210220 8210220 BOLT
WP8204624 WP8204624 BOLT
8210265 8210265 BRACKET
2-80028-101 2-80028-101 BRACKET, FAN
4390744 4390744 BRACKET, LIGHT
4390869 4390869 BUSHING, HINGE (BLACK)
4390731 4390731 BUSHING, HINGE (WHITE)
100000 100000 CABINET, (NOT A SERVICEABLE PART)
8210239 8210239 CAPACITOR
2-33516-003 2-33516-003 CHANNEL, CRISPER COVER SUPPORT
1-80247-101 1-80247-101 CLIP
WP2255411 WP2255411 CLIP
4356952 4356952 CLIP
W10237328 W10237328 COMPRESSOR
4390753 4390753 COMPRESSOR PAN (WHITE)
8210300 8210300 CONDENSER
8210302 8210302 CORD-POWER
WP4390662 WP4390662 COVER, EVAPORATOR
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
8210242 8210242 COVER-TERM
WP4-65151-002 WP4-65151-002 DOOR GASKET
WP4-65429-001 WP4-65429-001 DOOR-COMP
8210353 8210353 DOR-FIP SS
8210352 8210352 DOR-FIP WH
4390932 4390932 DRAIN PAN
W10843121 W10843121 DRIER-TUBE
W10136387A W10136387A EGG-CONTNR
8210378 8210378 ENERGY GUIDE/TAG
WP4-81546-002 WP4-81546-002 EVAPORATOR
WP3-80411-103 WP3-80411-103 EVAPORATOR MOTOR
WP4357245 WP4357245 EXCHANGER
WP8210354 WP8210354 EXTERIOR DOOR (INCLUDES INTERIOR LINER) (SATINA)
8210228 8210228 FILLER
8210227 8210227 FILLER
4390664 4390664 GASKET, EVAPORATOR COVER (LEFT)
4390663 4390663 GASKET, EVAPORATOR COVER (RIGHT)
8210343 8210343 GASKET-DOR
8210294 8210294 GRILLE
WP4-60461-005 WP4-60461-005 GRILLE
4357020 4357020 GROMMET
4356335 4356335 GROMMET, COMPRESSOR
W10862416 W10862416 GROMMET, DRAIN
2313345W 2313345W HANDLE
WP2254600S WP2254600S HANDLE
W10187086 W10187086 HANDLE
8210301 8210301 HARNS-WIRE
W11175809 W11175809 HEATER
4390763 4390763 HINGE COVER (BLACK)
8210268 8210268 HINGE-DOOR
8210251 8210251 HINGE-DOOR
8210238 8210238 HINGE-DOOR
WP4-65430-001 WP4-65430-001 HOUSING
4357292 4357292 KNOB, THERMOSTAT
4390466 4390466 LAMP, SOCKET
W11117769 W11117769 LEVELER
W11679940 W11679940 LIGHT BULB
WP2213265 WP2213265 NAMEPLATE
2157907 2157907 NAMEPLATE (WHITE)
8210241 8210241 OVERLOAD
8210433 8210433 OWNERS MANUAL
799344 799344 PAINT
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP4-60650-002 WP4-60650-002 PAN, CRISPER
8210202 8210202 PAN-COMPRS
WP4-60040-004 WP4-60040-004 PAN-MEAT
8210211 8210211 PIN-ROLLER
4-80504-101 4-80504-101 PLATE, EVAPORATOR MOUNT
1-81154 1-81154 PLATE, THERMOSTAT
3-34715-004 3-34715-004 RAIL, DOOR SHELF
WP4356738 WP4356738 RELAY-STRT
3-60315-001 3-60315-001 ROLLER, FRONT
8210210 8210210 ROLLER-CAB
8210262 8210262 SCREW
WP3-24838-048 WP3-24838-048 SCREW
WP489478 WP489478 SCREW
4358067 4358067 SCREW
WPW10068250 WPW10068250 SCREW
WP8533976 WP8533976 SCREW
WP488163 WP488163 SCREW
WP489491 WP489491 SCREW
60001022 60001022 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP3400094 WP3400094 SCREW
681390 681390 SCREW, 8-32 X 3/8
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
WP4390772 WP4390772 SHELF, CRISPER (LOWER)
4390770 4390770 SHELF, CRISPER (UPPER)
WPW10597052 WPW10597052 SHELF, TOP
WPW10581521 WPW10581521 SHELF-CANT
4357128 4357128 SHIELD, MOTOR
WP3-60197-001 WP3-60197-001 SHIELD-HT
4357284 4357284 SHIELD-HT
4390489 4390489 SHIM, BOTTOM
4356846 4356846 SLEEVE
350930 350930 SPRAY
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
8210402 8210402 STOP-DOOR
WPW10170540 WPW10170540 STUD-HNDLE
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WPW10424991 WPW10424991 THERMOSTAT
WP3-81329 WP3-81329 TIMER-DEF
4390673 4390673 TOP, HINGE (WHITE)
4-65449-001 4-65449-001 TRIM-DOOR
3-24898-007 3-24898-007 VENT PLUG
WP3-80414-103 WP3-80414-103 VENT-PLUG
W10851331 W10851331 WASHER
4356847 4356847 WASHER
