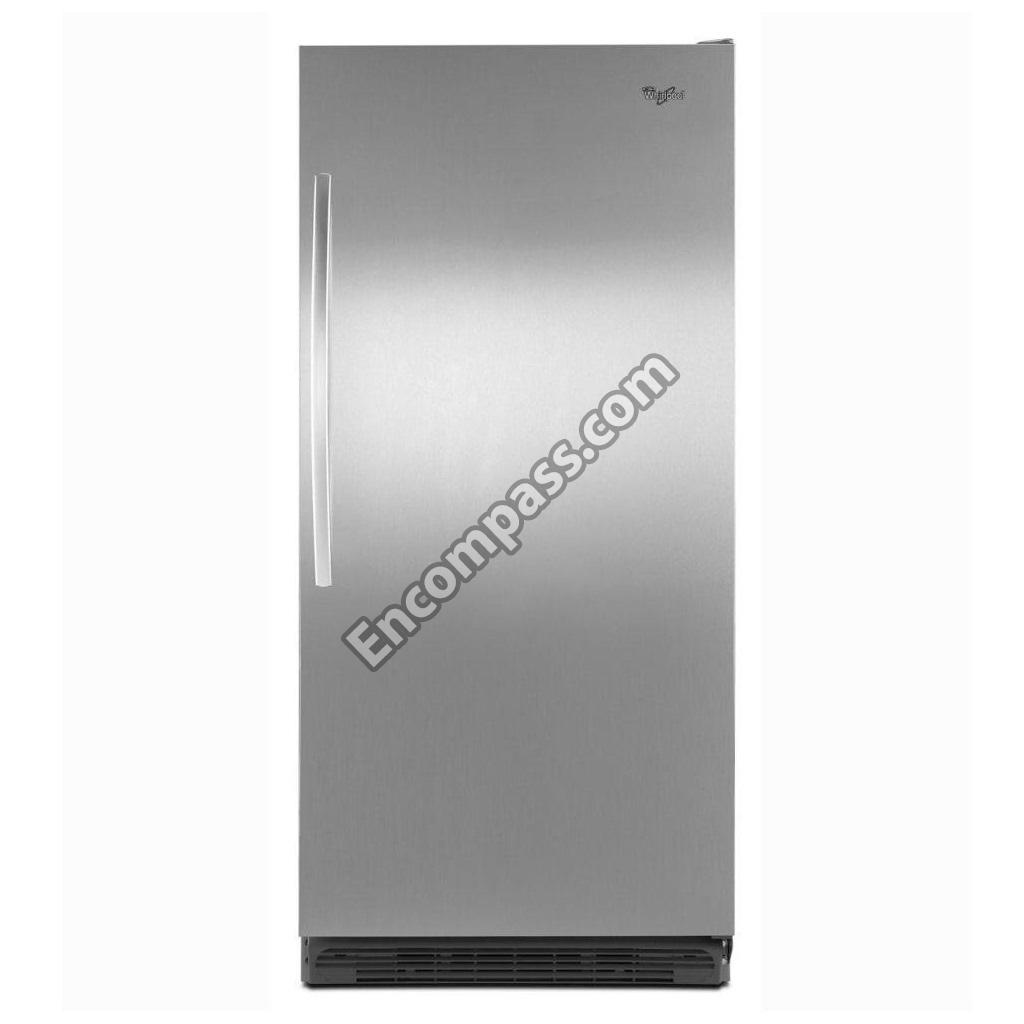

Model Image
Manufacturer

Whirlpool

Model Number

EL88TRRWS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "INSULATION (2 PIECES, 3"" X 24"" X 48"")"
4390755 4390755 AXLE
WP1-81801-001 WP1-81801-001 BIMETL-DEF
W11100462 W11100462 BLADE-FAN
1-80252-101 1-80252-101 BLOCK, FOAM
8210220 8210220 BOLT
WP8204624 WP8204624 BOLT
4357250 4357250 BOTTOM HINGE (WHITE)
8210265 8210265 BRACKET
2-80028-101 2-80028-101 BRACKET, FAN
4390744 4390744 BRACKET, LIGHT
3-60199-004 3-60199-004 BUSHING
4390731 4390731 BUSHING, HINGE (WHITE)
N_P N_P CABINET (NOT A SERVICEABLE PART)
8210239 8210239 CAPACITOR
2-33516-003 2-33516-003 CHANNEL, CRISPER COVER SUPPORT
3-25095-011 3-25095-011 CLAMP, TUBE
1-80247-101 1-80247-101 CLIP
WP2255411 WP2255411 CLIP
4356952 4356952 CLIP
8201727 8201727 COMPRESSOR
3-80838-007 3-80838-007 COVER
WP4-65454-001 WP4-65454-001 COVER
WP4390662 WP4390662 COVER, EVAPORATOR
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
WP2162358 WP2162358 COVER-TERM
4-82573-002 4-82573-002 DIFFUSER
WP4-65151-010 WP4-65151-010 DOOR GASKET
WP4-65151-002 WP4-65151-002 DOOR GASKET
WP4-65429-001 WP4-65429-001 DOOR-COMP
W10296809 W10296809 DOR-FIP WH
W10289597 W10289597 DOR-FMD SS
W10843121 W10843121 DRIER-TUBE
W10136387A W10136387A EGG-CONTNR
W10296808 W10296808 ENERGY GUIDE/TAG
WP4-81546-002 WP4-81546-002 EVAPORATOR
WP3-80411-103 WP3-80411-103 EVAPORATOR MOTOR
WP4357245 WP4357245 EXCHANGER
8210228 8210228 FILLER
8210227 8210227 FILLER
4390664 4390664 GASKET, COVER EVAPORATOR (LEFT)
4390663 4390663 GASKET, COVER EVAPORATOR (RIGHT)
WP4-60461-010 WP4-60461-010 GRILLE
WP4-60461-005 WP4-60461-005 GRILLE
4357020 4357020 GROMMET
4356335 4356335 GROMMET, COMPRESSOR
W10862416 W10862416 GROMMET, DRAIN
W10202711 W10202711 HANDLE
3-82596-002 3-82596-002 HANDLE (WHITE)
8210301 8210301 HARNS-WIRE
W11175809 W11175809 HEATER
4-82693-008 4-82693-008 HINGE-DOOR
W10260541 W10260541 HINGE-DOOR
WP4-65430-001 WP4-65430-001 HOUSING
4357292 4357292 KNOB, THERMOSTAT
W10277676 W10277676 LEG, LEVELLER (BLACK)
W10277675 W10277675 LEG, LEVELLER (WHITE)
W11679940 W11679940 LIGHT BULB
WP4-82691-001 WP4-82691-001 MOTOR-COND
WP2213265 WP2213265 NAMEPLATE
2264602 2264602 OVERLOAD
8210433 8210433 OWNERS MANUAL
799344 799344 PAINT
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP4-60650-002 WP4-60650-002 PAN, CRISPER
WPW10470129 WPW10470129 PAN-COMPRS
8210202 8210202 PAN-COMPRS
4-82689-001 4-82689-001 PAN-DRIP
WP4-60040-004 WP4-60040-004 PAN-MEAT
1-81154 1-81154 PLATE, THERMOSTAT
4-82858-001 4-82858-001 POWER CORD
3-34715-004 3-34715-004 RAIL, DOOR SHELF
4356716 4356716 RELAY
3-60315-001 3-60315-001 ROLLER, FRONT
WP3-24838-048 WP3-24838-048 SCREW
WP489478 WP489478 SCREW
4358067 4358067 SCREW
WPW10068250 WPW10068250 SCREW
WP489491 WP489491 SCREW
60001022 60001022 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP3400094 WP3400094 SCREW
681390 681390 SCREW, 8-32 X 3/8
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
WP4390772 WP4390772 SHELF, CRISPER (LOWER)
4390770 4390770 SHELF, CRISPER (UPPER)
WPW10597052 WPW10597052 SHELF, TOP
WPW10581521 WPW10581521 SHELF-CANT
4357128 4357128 SHIELD, MOTOR
4-82854-001 4-82854-001 SHIELD-HT
W10164624 W10164624 SHIELD-HT
WP3-60197-001 WP3-60197-001 SHIELD-HT
4390489 4390489 SHIM, BOTTOM
4356846 4356846 SLEEVE
WP3-82393-001 WP3-82393-001 SOCKET
350930 350930 SPRAY
W10206524 W10206524 STOP, DOOR (TOP) (WHITE)
2-81124-004 2-81124-004 STOP-DOOR
8210402 8210402 STOP-DOOR
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WPW10424991 WPW10424991 THERMOSTAT
WP3-81329 WP3-81329 TIMER-DEF
2-81016-105 2-81016-105 TOP HINGE (WHITE)
4-65449-001 4-65449-001 TRIM-DOOR
3-24898-007 3-24898-007 VENT PLUG
WP3-80414-103 WP3-80414-103 VENT-PLUG
W10851331 W10851331 WASHER
4356847 4356847 WASHER
