Model Image
Manufacturer

Whirlpool

Model Number

EMT8002S00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
9790408 9790408 AIR-TOWER
606755 606755 BAG
WP2196003 WP2196003 BARRIER
WP4387490 WP4387490 BIMETL-DEF
WP4387500 WP4387500 BIMETL-DEF
2324026 2324026 BINCNTLVR
WP1100939 WP1100939 BLADE-FAN
WP2212446 WP2212446 BODY-CNTRL
WP2197405 WP2197405 BRACKET
WPW10180172 WPW10180172 BRACKET
W11745278 W11745278 BRACKET
WP941839 WP941839 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
WP2212651 WP2212651 BUTTON-PLG
WP2151652 WP2151652 BUTTON-PLG
WP2183998 WP2183998 BUTTON-PLG
WP2201147 WP2201147 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
24364001 24364001 CILP, COMPRESSOR
489348 489348 CLAMP-TUBE
4386951 4386951 CLIP
WP2255411 WP2255411 CLIP
2325605W 2325605W CLIP
2325605B 2325605B CLIP
2325607B 2325607B CLIP
2325607W 2325607W CLIP
2263628 2263628 CLIP
W10812038 W10812038 CLIP
9791833 9791833 CLIP
W10170300 W10170300 COMPRESSOR
WP2252730 WP2252730 CONDENSER
2266382 2266382 CONTROL BOX
WP2222031 WP2222031 COVER
WP2217784 WP2217784 COVER
WP2183061 WP2183061 COVER
WP2213363 WP2213363 COVER
WP2213360 WP2213360 COVER
2261978 2261978 COVER
2264669 2264669 COVER-EVAPORATOR
2213762 2213762 COVER-UNIT
WP2256704 WP2256704 CRISPER PAN
WP2221992 WP2221992 DIFFUSER
677969 677969 DIY MANUAL
WP2166037 WP2166037 DOOR HINGE
WP2261963 WP2261963 DOOR HINGE
2324037 2324037 DOORCOMP
2325621S 2325621S DOR-FIP SS
2325620S 2325620S DORFIP SS
2325621W 2325621W DORFIP WH
2325620W 2325620W DORFIP WH
W10843121 W10843121 DRIER-TUBE
WPW10143759 WPW10143759 DRIER-UV

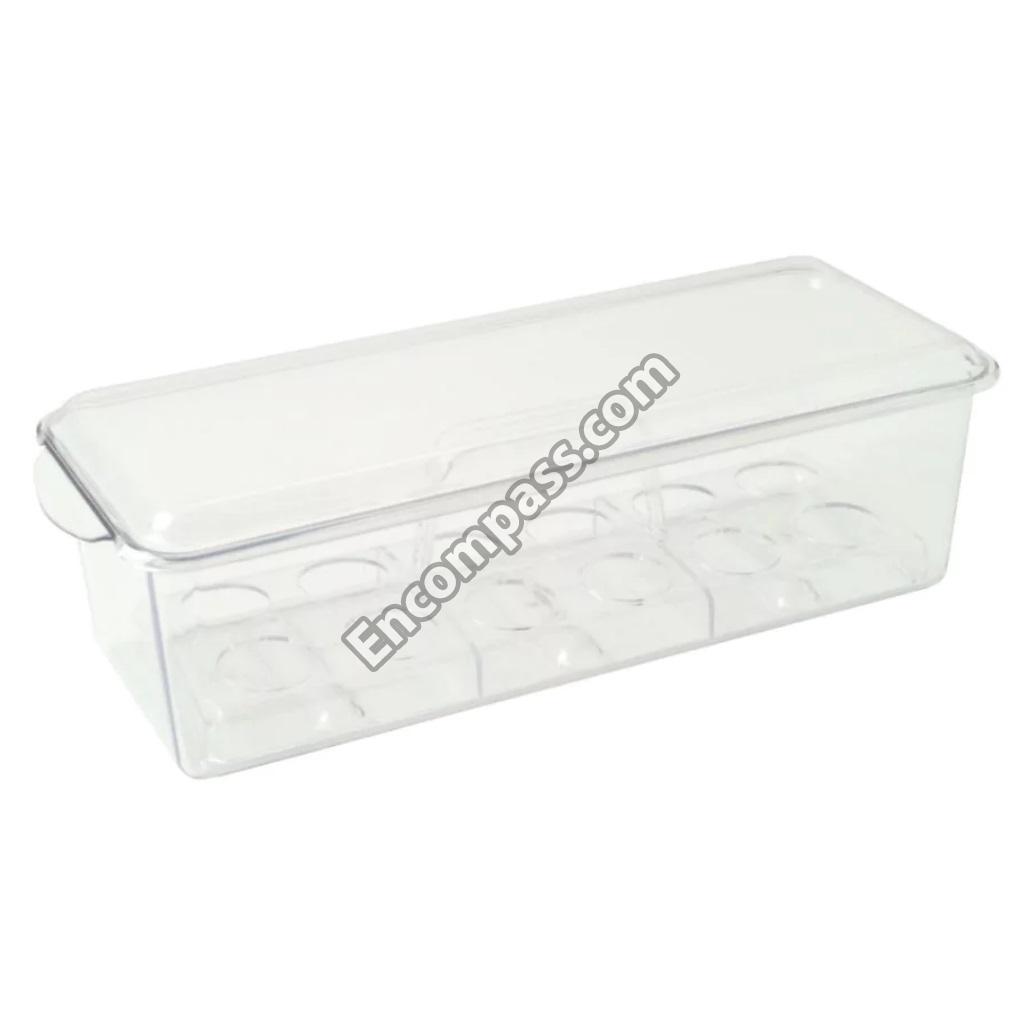

4378484 4378484 EGG-CONTNR
2263292B 2263292B END CAP-HANDLE-FC (BLACK)
2263293B 2263293B END CAP-HANDLE-RC (BLACK)
WP2156007 WP2156007 ENDCAP-TRM
WP2263920 WP2263920 EVAPORATOR
WP2201215 WP2201215 EVAPORATOR MOTOR
W11500943 W11500943 FILLER
W10859322 W10859322 FILLER
WP2319263B WP2319263B GASKET ASSEMBLY
WP2319263W WP2319263W GASKET ASSEMBLY
WP2319264B WP2319264B GASKET ASSEMBLY
WP2319264W WP2319264W GASKET ASSEMBLY
WPW10283860 WPW10283860 GLASS SHELF
WP542638 WP542638 GREASE
WP4387558 WP4387558 GROMMET
WP2264462 WP2264462 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2319200W 2319200W HANDLE
2319201W 2319201W HANDLE
2325603W 2325603W HANDLE
2325603B 2325603B HANDLE
2266642 2266642 HARNS-WIRE
W10183887 W10183887 HARNS-WIRE
WP2167357 WP2167357 HEATER
WP2325482 WP2325482 HINGE
WP2325483 WP2325483 HINGE-PIN
WP2256601 WP2256601 HOLDER
WP2316186 WP2316186 HOOD&FOIL
2264477 2264477 HOUSING, COMPARTMENT
WPW10190943 WPW10190943 ICEMAKER
876029 876029 INSULATION
876370 876370 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP2202885 WP2202885 KNOB-THERM
W11034434 W11034434 LENS-LIGHT
WP67002552 WP67002552 LIGHT BULB
2324038 2324038 NAMEPLATE
285002 285002 NUT
511873 511873 PAINT
4392900 4392900 PAINT
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
W10216493 W10216493 PAN, ICE TRAY
WP2261934 WP2261934 PAN-MEAT
350942 350942 PRIMER
2165773 2165773 RETAINER
WP2264756 WP2264756 RIVET
939962 939962 RIVET
WPW10475495 WPW10475495 ROLLER-CAB
WPW10142530 WPW10142530 ROLLER-CAB
8533892 8533892 SCREW
WP487353 WP487353 SCREW
WP489474 WP489474 SCREW
WP489478 WP489478 SCREW
WP489399 WP489399 SCREW
WP489174 WP489174 SCREW
WP4449746 WP4449746 SCREW
WP489497 WP489497 SCREW
WP489442 WP489442 SCREW
WPW10133299 WPW10133299 SCREW
2256637 2256637 SCREW
8534058 8534058 SCREW
W10122125 W10122125 SCREW
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
WP2262441 WP2262441 SHELF-GLAS
2324065 2324065 SHELFGLAS
2319224 2319224 SHIELD
WP2258681W WP2258681W SHIM
WP2201567 WP2201567 SHIM
2215385 2215385 SHIM
W11169703 W11169703 SHIM
2166043 2166043 SHIM, HINGE CENTER (WHITE)
WP2175210 WP2175210 SHROUD
WP2176222 WP2176222 SLIDE
2258452 2258452 SPACER
4392901 4392901 SPRAY
350930 350930 SPRAY
2265629 2265629 SPRING, TWIST ICE
2321301 2321301 START-DEV
WPW10222451 WPW10222451 SUPPORT
8201619 8201619 SUPPORT-EV
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WPW10511937 WPW10511937 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
WP2188379 WP2188379 TIMER-DEF
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W10225160 W10225160 TRAY
WP2201801 WP2201801 TRAY-EVAP
2252863 2252863 TRIM-DOOR
2265644W 2265644W TRIM-DOOR
2265647W 2265647W TRIM-DOOR
2264480 2264480 TRIM-DOOR
2222048 2222048 TRIM-DOOR
2324028 2324028 TRIMDOOR
2324034 2324034 TRIMPAN
2324031 2324031 TRIMPAN
2324027 2324027 TRIVET (RC)
W11661102 W11661102 TUBE
W10164849 W10164849 TUBE
4392899 4392899 TUCHUP
72032 72032 TUCHUP
72017 72017 TUCHUP
2265367 2265367 TWIST ICE SUPPORT
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
8526417 8526417 WASHER
WP487802 WP487802 WASHER
WP489467 WP489467 WASHER
WP487576 WP487576 WASHER
2265965 2265965 WIRE ASSEMBLY CONTROL BOX
