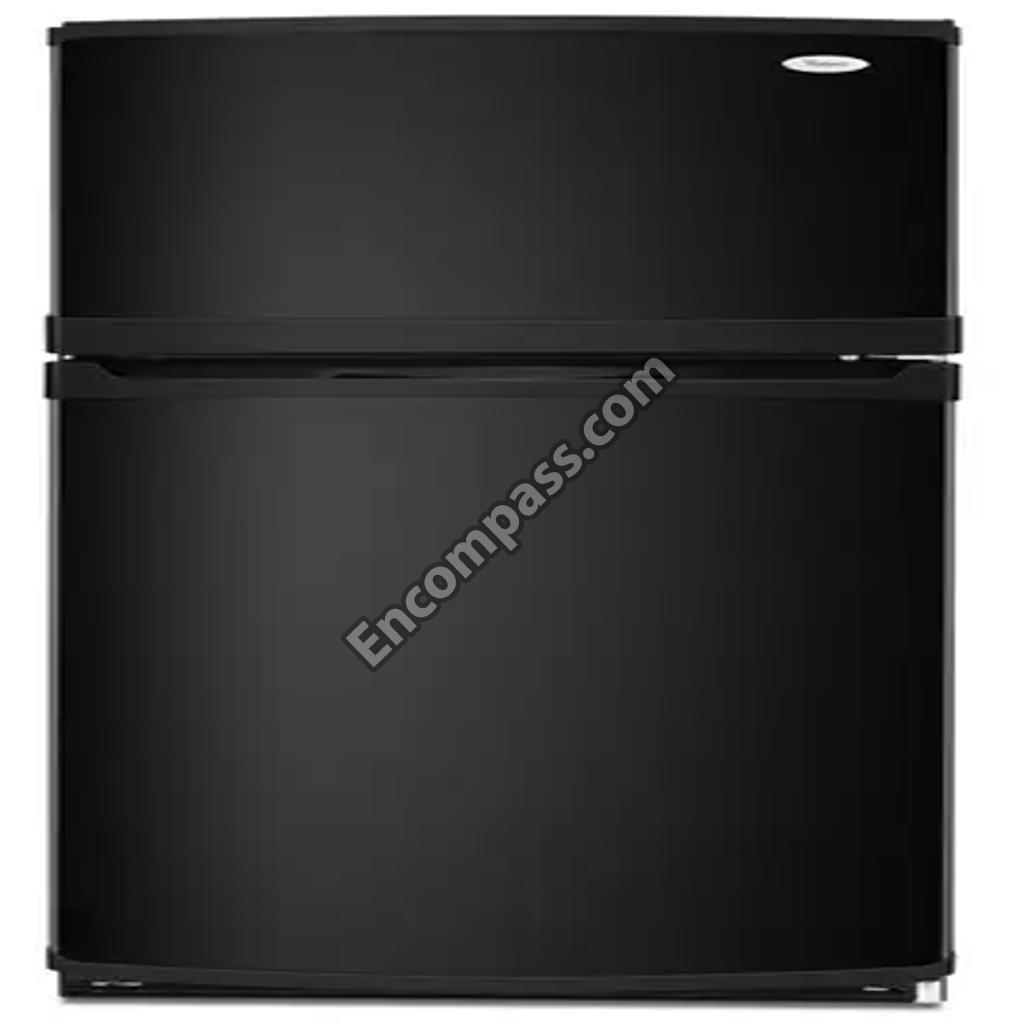

Model Image
Manufacturer

Whirlpool

Model Number

ER2CHMXPL00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
WP2189452 WP2189452 AIR DIFFUSER, BOTTOM
WP2204690 WP2204690 AIR DIFFUSER, TOP
WP2254354 WP2254354 AIR TOWER
WP627843 WP627843 ARM-EJECTR
WP2198921 WP2198921 BAFFLE-AIR
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
2212996 2212996 BALE STRAP
WP4387503 WP4387503 BIMETL-DEF
WP2204813 WP2204813 BIN, DOOR SHELF
72032 72032 BLACK
W11458267 W11458267 BLADE-FAN
WP2212446 WP2212446 BODY, HUMIDITY CONTROL
W11745278 W11745278 BRACKET
W11500948 W11500948 BRACKET
2163810 2163810 BRACKET, DAMPER KNOB
WP2214979 WP2214979 BRACKET, EVAP. FAN, FRONT
WP2214976 WP2214976 BRACKET, EVAP. FAN, REAR
2218696 2218696 BRACKET, FAN MOTOR
2176301 2176301 BRACKET, HEATER
WP2212651 WP2212651 BUTTON-PLG
WP2183998 WP2183998 BUTTON-PLG
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP488366 WP488366 CLAMP
549193 549193 CLAMP, CORD
WP628379 WP628379 CLIP
WP2189356 WP2189356 CLIP
2210495 2210495 CLIP
2182338 2182338 CLIP
2176341 2176341 CLIP
4317943 4317943 COMPLETE ICEMAKER ASSEMBLY
W10309988 W10309988 COMPRESSOR
WP2214960 WP2214960 CONDENSER
2200820 2200820 CONTRL-BOX
WP2314549 WP2314549 COVER
WP2176281 WP2176281 COVER, AIR DIFFUSER
2320194 2320194 COVER, EVAPORATOR
WP2254576 WP2254576 COVER, UNIT
WPW10289690 WPW10289690 COVER-FRNT
WP2213363 WP2213363 COVER-HINGE (BLACK)
WP2162358 WP2162358 COVER-TERM
2163762 2163762 CUP, SHELF MTG.
WP628356 WP628356 CUP-WATER FILL
4387121 4387121 DAMPER, AIR
677969 677969 DO-IT-YOURSELF MANUAL REF./FZR.
2177310 2177310 DOOR GASKET, MAGNETIC (BLACK)
2177311 2177311 DOOR GASKET, MAGNETIC (BLACK)
WP2254473 WP2254473 DOOR HINGE
WP2254618 WP2254618 DOOR HINGE
WP2261963 WP2261963 DOOR HINGE
WP2218109 WP2218109 DOOR-COMP
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER ((SERVICE))
W10136387A W10136387A EGG-CONTNR
WP2195916K WP2195916K ENDCAP
WP2225108 WP2225108 ENDCAP, HANDLE (BLACK)
WP2221644 WP2221644 ENDCAP, HANDLE (BLACK)
WP2254249 WP2254249 EVAPORATOR ASSY
WP2254295 WP2254295 EVAPORATOR ASSY.
2300638 2300638 EXTENSION, AIR BAFFLE
WP2163777 WP2163777 FAN BLADE
WPW10189703 WPW10189703 FAN MOTOR
W11252732 W11252732 FILLER
WP2201102 WP2201102 FRAME-SHLF
L2218508 L2218508 FREEZER DOOR (INCLUDES 22 & 23) (SATINA)
WP2254360 WP2254360 GASKET
WP2204908 WP2204908 GLASS, SHELF
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
WP2254315 WP2254315 GRILLE (BLACK)
WP531933 WP531933 GROMMET
WP4387558 WP4387558 GROMMET
WP2264462 WP2264462 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
WP2187464 WP2187464 HARNESS, WIRING
2187690 2187690 HARNS-WIRE
2187306 2187306 HARNS-WIRE
2187382 2187382 HARNS-WIRE

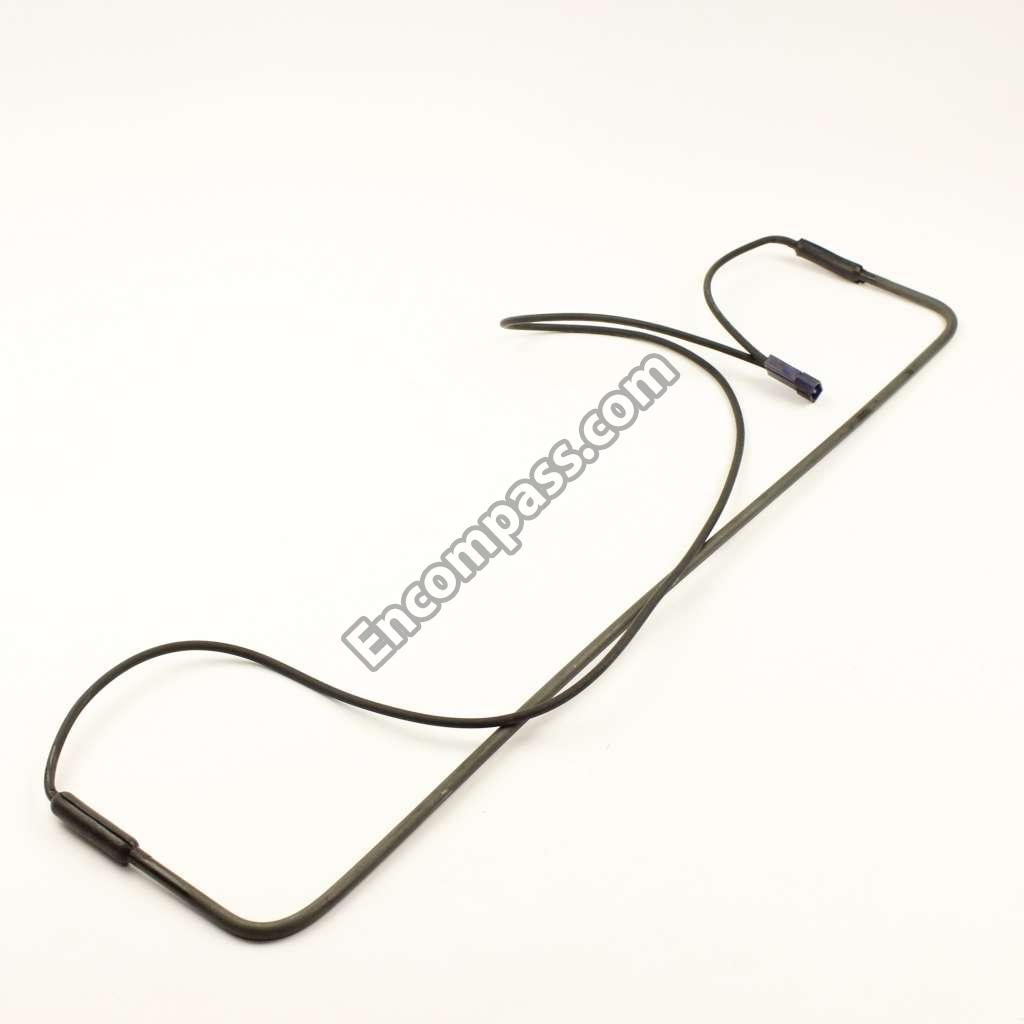

WP2315530 WP2315530 HEATER
2254518 2254518 HINGE, CENTER
WP941839 WP941839 HOLE COVER, EVAPORATOR
940014 940014 HOLE PLUG, CONTROL BOX
WP2210566 WP2210566 HOUSING
WP2195914 WP2195914 HOUSING-IM
2254352A 2254352A ICE CUBE PAN
WP2182124 WP2182124 ICE STRIPER
WP2315576 WP2315576 INLET VALVE
WP2176225 WP2176225 INSERT, CRISPER COVER
4387491 4387491 INSERT, TUBE
876370 876370 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
2302536 2302536 KNOB, DAMPER
W10829461 W10829461 KNOB-THERM
8009 8009 LIGHT BULB
WPW10190929 WPW10190929 MOLD & HEATER ASSEMBLY (ALSO ORDER) 542638 SILICONE GREASE
W10124096 W10124096 MOTOR, FAN
W10190935 W10190935 MOTOR-MODL
WP2213265 WP2213265 NAMEPLATE
WP627018 WP627018 NUT, COMPRESSION 1/4``
WP2214067 WP2214067 OVERLOAD
LIT2225411 LIT2225411 OWNERS MANUAL
799344 799344 PAINT
786032 786032 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP2201106 WP2201106 PAN SHELF, CANTILEVER
W10854037 W10854037 PAN, CRISPER (INCLUDES ILLUS. 21 & 26)
WP2218132K WP2218132K PAN, MEAT
2301979 2301979 PLATE
2320187 2320187 PLATE, UNIT MOUNTING
WP2156006 WP2156006 PLUG TRIM (2)
2204840 2204840 PLUG-HNDLE
WP2177340 WP2177340 PLUG-TRIM
350942 350942 PRIMER
WP2183003 WP2183003 PROTECTOR
L2218505 L2218505 REFRIGERATOR DOOR (INCLUDES 9 & 22) (SATINA)

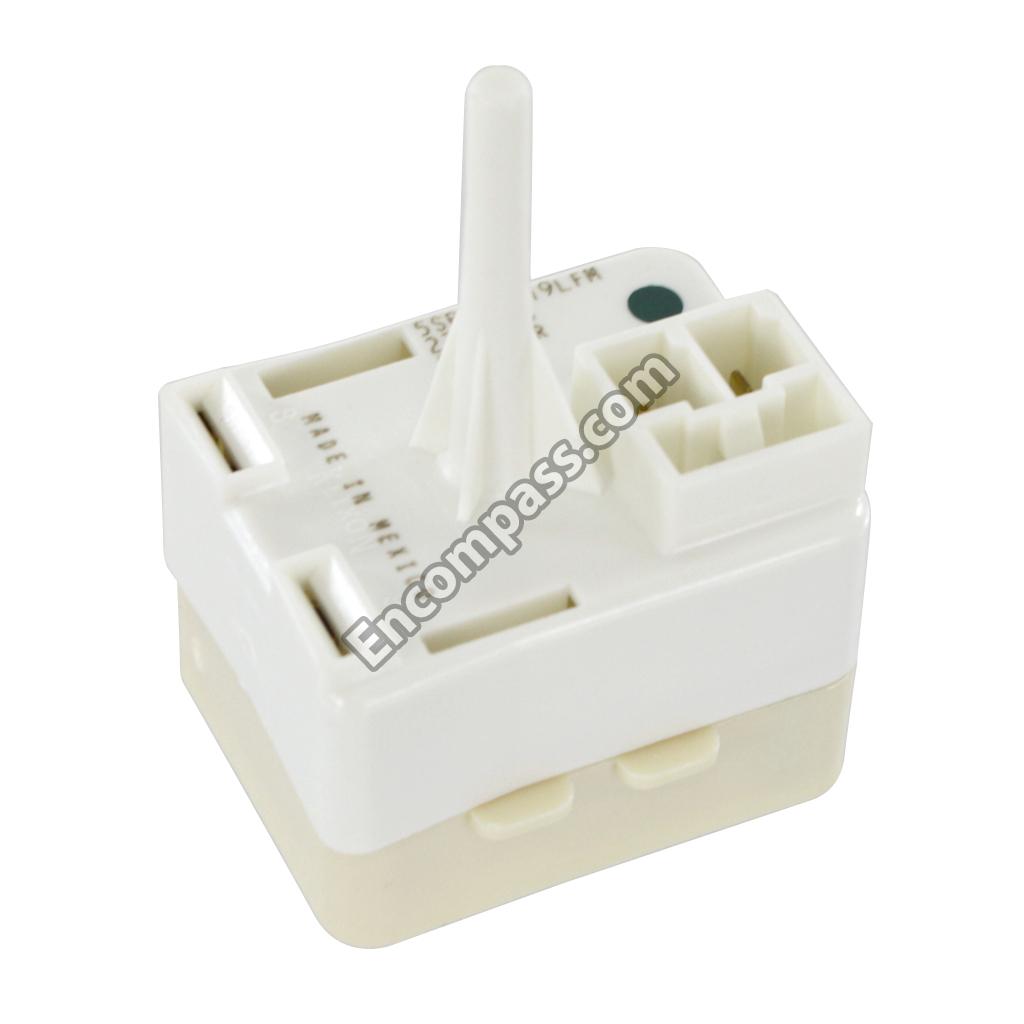

W10920279 W10920279 RELAY-STRT
WP2210509 WP2210509 RELEAS-VAC
WP2315522 WP2315522 RETAINER THERMOSTAT
W11594405 W11594405 RIVET
WP2166108 WP2166108 ROLLER, FRONT (2)
WPW10475495 WPW10475495 ROLLER-CAB
WP488787 WP488787 SCREW
WP488163 WP488163 SCREW
WP8281196 WP8281196 SCREW
WP489128 WP489128 SCREW
WP3400504 WP3400504 SCREW
3400518 3400518 SCREW
WP681249 WP681249 SCREW
8281197 8281197 SCREW
8533917 8533917 SCREW
WP489497 WP489497 SCREW (8)
489136 489136 SCREW 3-24 X 23/64
WP489464 WP489464 SCREW, 1/4-28 X 1
WP489478 WP489478 SCREW, 8-18 X .50
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP2205079 WP2205079 SEAL
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
2184667 2184667 SHELF, FREEZER
WP2210522 WP2210522 SHELF, LADDER (2)
2300520 2300520 SHELF, LADDER CENTER
2204639 2204639 SHIELD
2172743 2172743 SHIM, BOTTOM HINGE
WP2183854 WP2183854 SHIM, HINGE CENTER
WP627792 WP627792 SHUT OFF ARM
WP2176222 WP2176222 SLIDE, HUMIDITY CONTROL
350930 350930 SPRAY (13 OZ.) (WHITE)
WP2225785 WP2225785 START-DEVICE COMBINATION START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY)
WP2172748 WP2172748 SUPPORT
2201185 2201185 SUPPORT-EV
W11384469 W11384469 SWITCH, ROCKER ARM (REFRIGERATOR DOOR SIDE)
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WP627985 WP627985 THERMOSTAT
WP2200859 WP2200859 THERMOSTAT ASSEMBLY (INCLUDES ITEMS 5, 18, & 36)
2212485 2212485 THERMOSTAT TUBE BARRIER
2200831 2200831 THRML WGHT
WPW10339879 WPW10339879 TIE-WIRE
W10822278 W10822278 TIMER-DEF
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 TORX KE
2159302 2159302 TRAY-DOOR
8201826 8201826 TRAY-EVAP
WPW10421486 WPW10421486 TRIM, DOOR
WP2195947 WP2195947 TRIM, DOOR
WP2188691 WP2188691 TRIM, SHELF FRONT
2188517 2188517 TRIM, SHELF SIDE
WP2159306 WP2159306 TRIM-DOOR SHELF
WP2188689 WP2188689 TRIM-SHELF
2225564 2225564 TUBE
2225565 2225565 TUBE
2154109 2154109 TUBE, PROCESS
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
876764 876764 VALVE,ACCESS (3/16)
WP489467 WP489467 WASHER
WP487576 WP487576 WASHER, NYLON 1/16
W10823511 W10823511 WATER TUBE
WP488878 WP488878 XXTUBE CLAMP
