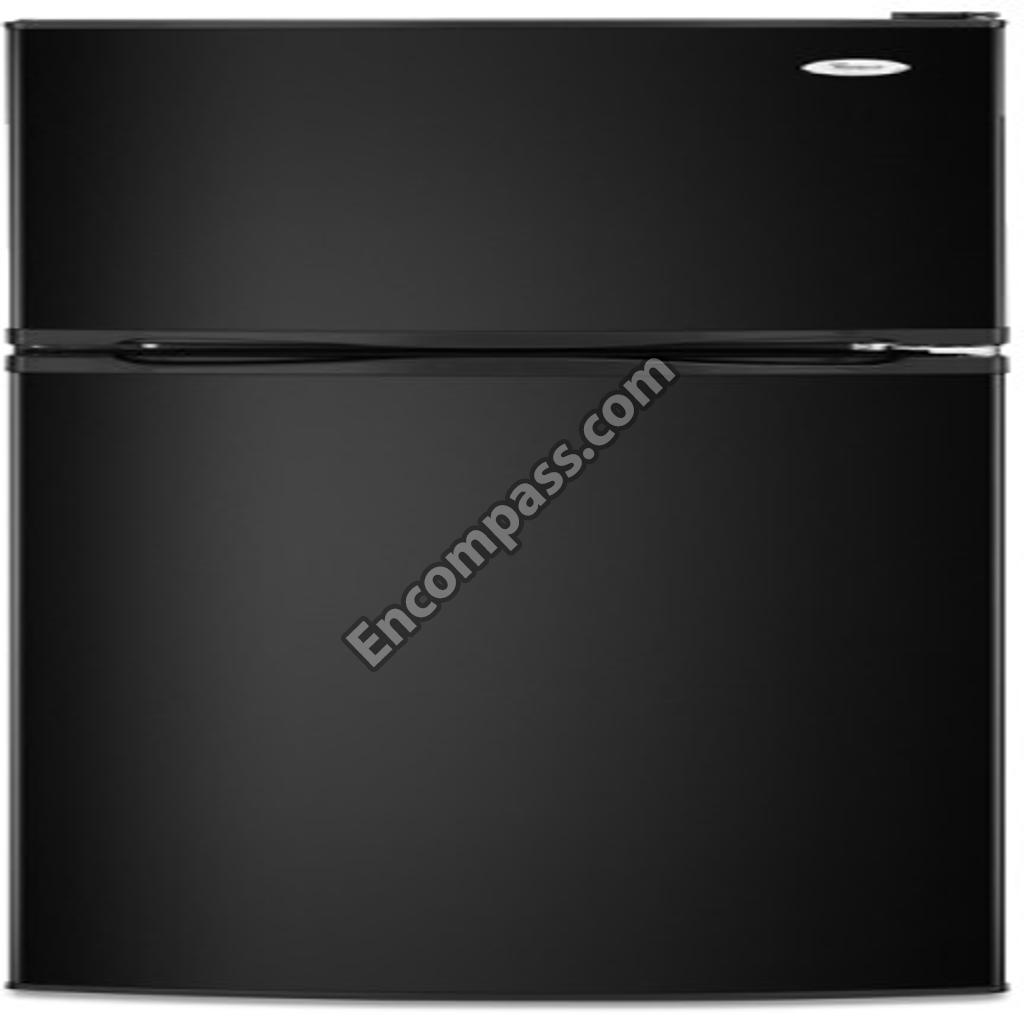

Model Image
Manufacturer

Whirlpool

Model Number

ET0MSRXTB01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2219263 2219263 AIR-TOWER
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 BARRIER
WPW10225581 WPW10225581 BIMETL-DEF
WP2163777 WP2163777 BLADE-FAN
2211075 2211075 BRACKET
WP2197405 WP2197405 BRACKET
WPW10180172 WPW10180172 BRACKET
2258451 2258451 BRACKET, CONDENSER
2211124 2211124 BRACKET, DOOR STOP
WP2151652 WP2151652 BUTTON-PLG
WP2183998 WP2183998 BUTTON-PLG
WP2262343 WP2262343 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
4386951 4386951 CLIP
2219077 2219077 CLIP
W10812038 W10812038 CLIP
24364001 24364001 CLIP, COMPRESSOR
W10237328 W10237328 COMPRESSOR
W10219451 W10219451 CONDENSER
2219266 2219266 CONTRL-BOX
WPW10348339 WPW10348339 COVER
2263365 2263365 COVER-EVAP
WPW10166209 WPW10166209 CRISPER PAN
2211236 2211236 CUP
4392899 4392899 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (BISCUIT))
72032 72032 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (BLACK))
72017 72017 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (WHITE))
2211238 2211238 DAMPER, FREEZER CONTROL
2211026 2211026 DIFFUSER
2210844 2210844 DIFFUSER
677969 677969 DO-IT-YOURSELF MANUAL, REF./ FZR.
W10165896 W10165896 DOOR ASSEMBLY US
W11240745 W11240745 DOOR TRIM
WPW10304911 WPW10304911 DOOR TRIM
WPW10304909 WPW10304909 DOOR TRIM
L2262201B-9 L2262201B-9 DOR-FIP BL
2262201S-9 2262201S-9 DOR-FIP SA
2262200S 2262200S DOR-FIP SA
LW10165897 LW10165897 DOR-FIP US
LW10163941 LW10163941 DOR-FIP WH
W10843121 W10843121 DRIER-TUBE
WPW10143759 WPW10143759 DRIER-UV
W10187750 W10187750 ENERGY GUIDE
WP2211094 WP2211094 EVAPORATOR ASSEMBLY.
W11196330 W11196330 EVAPORATOR MOTOR
2219294 2219294 FILLER, CORNER (BLACK)
2191595 2191595 FILLER, CORNER (WHITE)
WPW10190030 WPW10190030 GASKET ASSEMBLY
WP2265773 WP2265773 GASKET ASSEMBLY
WP2265771 WP2265771 GASKET ASSEMBLY
WPW10190029 WPW10190029 GASKET ASSEMBLY
WPW10289626 WPW10289626 GLASS SHELF
WP542638 WP542638 GREASE
WP2163786 WP2163786 GROMMET
WP2264462 WP2264462 GROMMET
2265867 2265867 HARNS-WIRE
W10164677 W10164677 HARNS-WIRE
W10216731 W10216731 HARNS-WIRE
WP2210895 WP2210895 HEATER
2155938 2155938 HINGE COVER (BLACK)
1119787 1119787 HINGE COVER (WHITE)
W10215063 W10215063 HINGE-DOOR
2211158 2211158 HINGE-DOOR
2211114 2211114 HINGE-DOOR
2211109 2211109 HINGE-DOOR
2211250B 2211250B HOLE PLUG (4) (BLACK)
2211250W 2211250W HOLE PLUG (4) (WHITE)
876029 876029 INSULATION
876370 876370 INSULATION
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
2211237 2211237 KNOB-THERM
2211234 2211234 KNOB-THERM
2211074 2211074 LENS-LIGHT
W11117769 W11117769 LEVELER
W11679940 W11679940 LIGHT BULB
2210832 2210832 LIGHT SHIELD
2252895 2252895 LIT U C
WP2213265 WP2213265 NAMEPLATE
285002 285002 NUT
2211239 2211239 NUT
799344 799344 PAINT
978883 978883 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
2265095 2265095 PAN-DRIP
N_P N_P RAIL, CENTER (NOT SERVICED)
4392900 4392900 REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. UNCUT))
L2262200B L2262200B REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (BLACK)
LW10163940 LW10163940 REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (WHITE)
WP2264424 WP2264424 RELAY-STRT
2212996 2212996 RETAINER
WP2264756 WP2264756 RIVET
WPW10475495 WPW10475495 ROLLER-CAB
8533892 8533892 SCREW
WP965173 WP965173 SCREW
WP489478 WP489478 SCREW
WP489399 WP489399 SCREW
WP489442 WP489442 SCREW
WP487353 WP487353 SCREW
WP488921 WP488921 SCREW
WP3428970 WP3428970 SCREW
WP489497 WP489497 SCREW
3400112 3400112 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
W10216729 W10216729 SERVICE & WIRING SHEET
WP2256540 WP2256540 SHELF, WIRE
2210879 2210879 SHIELD
2264655 2264655 SHIELD
2215385 2215385 SHIM
W11169703 W11169703 SHIM
2211299 2211299 SHIM, HINGE BOTTOM
2166043 2166043 SHIM, HINGE CENTER (WHITE)
2222288 2222288 SHIM, HINGE TOP (BLACK)
WP2175210 WP2175210 SHROUD
2211185 2211185 SLIDE
2211011 2211011 SUPPORT PLATE, COMPRESSOR
2210813 2210813 SUPPORT-EV
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WP2211031 WP2211031 THERMOSTAT
2210973 2210973 THIMBLE
2200831 2200831 THRML WGHT
WPW10339879 WPW10339879 TIE-WIRE
W10822278 W10822278 TIMER-DEF
WP1117510 WP1117510 TORX KEY
511873 511873 TOUCH-UP, WHITE PORCELAIN (2 OZ.)
2217957 2217957 TRAY-EVAP
WP2219148 WP2219148 TRIM, DOOR SHELF (TOP)
2219149 2219149 TRIM-DOOR
2219150 2219150 TRIM-DOOR
2262342 2262342 TUBE
2202074 2202074 TUBE, PROCESS
WP72107 WP72107 TUCHUP
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
8526417 8526417 WASHER
WP487802 WP487802 WASHER
WP487576 WP487576 WASHER
