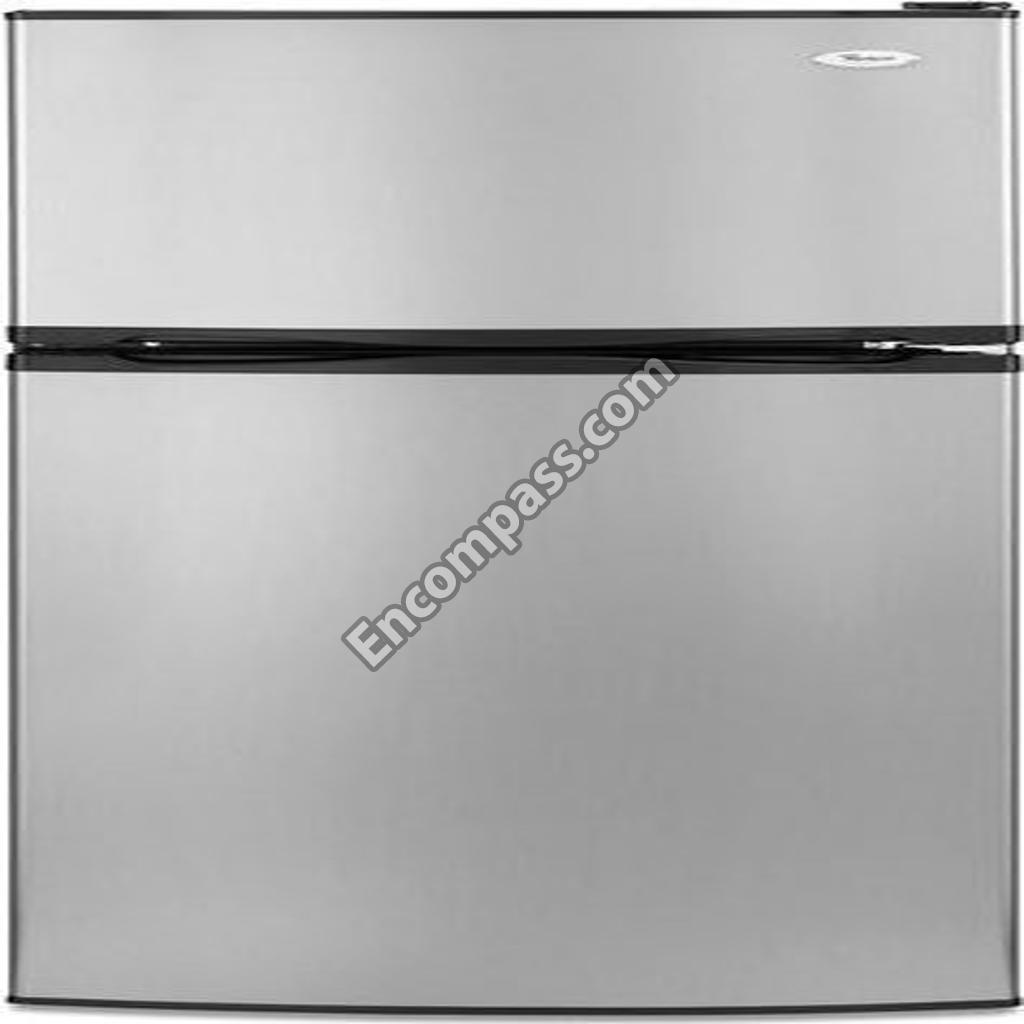

Model Image
Manufacturer

Whirlpool

Model Number

ET0MSRXTL00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2219263 2219263 AIR-TOWER
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 BARRIER
WP2211224 WP2211224 BIMETL-DEF
WP2163777 WP2163777 BLADE-FAN
2211075 2211075 BRACKET
WP2197405 WP2197405 BRACKET
WPW10180172 WPW10180172 BRACKET
2258451 2258451 BRACKET, CONDENSER
2211124 2211124 BRACKET, DOOR STOP
4392899 4392899 BRUSH TOUCH-UP KIT (BISCUIT
WP2151652 WP2151652 BUTTON-PLG
WP2183998 WP2183998 BUTTON-PLG
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
4386951 4386951 CLIP
2219077 2219077 CLIP
W10812038 W10812038 CLIP
9791833 9791833 CLIP
24364001 24364001 CLIP, COMPRESSOR
8201727 8201727 COMPRESSOR
W10219451 W10219451 CONDENSER
2219266 2219266 CONTRL-BOX
WPW10348339 WPW10348339 COVER
2263365 2263365 COVER-EVAP
WP2162358 WP2162358 COVER-TERM
WPW10166209 WPW10166209 CRISPER PAN
2211236 2211236 CUP
2211238 2211238 DAMPER, FREEZER CONTROL
2211026 2211026 DIFFUSER
2210844 2210844 DIFFUSER
677969 677969 DO-IT-YOURSELF MANUAL, REF./ FZR.
W11240745 W11240745 DOOR TRIM
WPW10304911 WPW10304911 DOOR TRIM
WPW10304909 WPW10304909 DOOR TRIM
2262204G 2262204G DOR-FIP
W10135732 W10135732 DOR-FIP
L2262201B-9 L2262201B-9 DOR-FIP BL
2262200S 2262200S DOR-FIP SA
2262201S-9 2262201S-9 DOR-FIP SA
2262204W 2262204W DOR-FIP WH
2262205W-9 2262205W-9 DOR-FIP WH
W10843121 W10843121 DRIER-TUBE
2325717 2325717 ENERGY GUIDE
WP2211094 WP2211094 EVAPORATOR ASSEMBLY.
WPW10189703 WPW10189703 EVAPORATOR MOTOR
2219294 2219294 FILLER, CORNER (BLACK)
2191595 2191595 FILLER, CORNER (WHITE)
100000 100000 FOLLOWING MAY BE PURCHASED DO-IT-YOURSELF REPAIR MANUALS
WPW10190030 WPW10190030 GASKET ASSEMBLY
WP2265773 WP2265773 GASKET ASSEMBLY
WP2265771 WP2265771 GASKET ASSEMBLY
WPW10190029 WPW10190029 GASKET ASSEMBLY
WP542638 WP542638 GREASE
WP2163786 WP2163786 GROMMET
WP2264462 WP2264462 GROMMET
2264421 2264421 HARNS-WIRE
2265867 2265867 HARNS-WIRE
WP2210895 WP2210895 HEATER
2155938 2155938 HINGE COVER (BLACK)
1119787 1119787 HINGE COVER (WHITE)
W10215063 W10215063 HINGE-DOOR
2211158 2211158 HINGE-DOOR
2211114 2211114 HINGE-DOOR
2211109 2211109 HINGE-DOOR
2211250B 2211250B HOLE PLUG (4) (BLACK)
2211250W 2211250W HOLE PLUG (4) (WHITE)
876029 876029 INSULATION
876370 876370 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
2211237 2211237 KNOB-THERM
2211234 2211234 KNOB-THERM
2211074 2211074 LENS-LIGHT
W11117769 W11117769 LEVELER
W11679940 W11679940 LIGHT BULB
2210832 2210832 LIGHT SHIELD
2252895 2252895 LIT U C
WP2213265 WP2213265 NAMEPLATE
285002 285002 NUT
2211239 2211239 NUT
2264602 2264602 OVERLOAD
799344 799344 PAINT
978883 978883 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
2265095 2265095 PAN-DRIP
WP2189000 WP2189000 PLUG-HNDLE
350942 350942 PRIMER
L2262200B L2262200B REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (BLACK)
2264603 2264603 RELAY-STRT
WP2264756 WP2264756 RIVET
WPW10475495 WPW10475495 ROLLER-CAB
8533892 8533892 SCREW
WP965173 WP965173 SCREW
WP489442 WP489442 SCREW
WP487353 WP487353 SCREW
WP489478 WP489478 SCREW
WP489399 WP489399 SCREW
WP488921 WP488921 SCREW
WP3428970 WP3428970 SCREW
WP489497 WP489497 SCREW
3400112 3400112 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
2264458 2264458 SERVICE & WIRING SHEET
WPW10191331 WPW10191331 SHELF ASSEMBLY.(GLASS)
WP2256540 WP2256540 SHELF, WIRE
2210879 2210879 SHIELD
2264655 2264655 SHIELD
W11169703 W11169703 SHIM
2215385 2215385 SHIM
2211299 2211299 SHIM, HINGE BOTTOM
2166043 2166043 SHIM, HINGE CENTER (WHITE)
2222288 2222288 SHIM, HINGE TOP (BLACK)
WP2175210 WP2175210 SHROUD
2211185 2211185 SLIDE
350956 350956 SPRAY
350930 350930 SPRAY
2211011 2211011 SUPPORT
2210813 2210813 SUPPORT-EV
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WP2211031 WP2211031 THERMOSTAT
2210973 2210973 THIMBLE
2200831 2200831 THRML WGHT
WPW10339879 WPW10339879 TIE-WIRE
W10822278 W10822278 TIMER-DEF
WP1117510 WP1117510 TORX KEY
2217957 2217957 TRAY-EVAP
WP2219148 WP2219148 TRIM, DOOR SHELF (TOP)
2219150 2219150 TRIM-DOOR
2219149 2219149 TRIM-DOOR
2262248 2262248 TUBE
2219285 2219285 TUBE, PROCESS
WP72107 WP72107 TUCHUP
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
8526417 8526417 WASHER
WP487802 WP487802 WASHER
WP487576 WP487576 WASHER
2264422 2264422 WIRING, FREEZER (INCLUDES ILLUS. 46)
