Model Image
Manufacturer

Whirlpool

Model Number

ET17HKXMWR0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
836487 836487 AIR DIFFUSER
WP72107 WP72107 ALMOND
350956 350956 ALMOND
850764 850764 BAFFLE
981736 981736 BAFFLE, AIR
984147 984147 BAFFLE, LINER TOP
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP4387489 WP4387489 BIMETL-DEF
72032 72032 BLACK
WP1108179 WP1108179 BLADE-FAN
WP1100938 WP1100938 BLADE-FAN
799351 799351 BLEND, THINNER (1 GAL.)
489340 489340 BOLT
850482 850482 BOX, JUNCTION
W11745278 W11745278 BRACKET
548695 548695 BRACKET
848446 848446 BRACKET, THERMOSTAT
836027 836027 BREAKER, FREEZER (R.S.)
940921 940921 BREAKER, FREEZER (TOP)
836025 836025 BREAKER, MULLION (BOTTOM)
836026 836026 BREAKER, REFRIGERATOR (BOTTOM)
836032 836032 BREAKER, REFRIGERATOR L.S.
836028 836028 BREAKER, REFRIGERATOR R.S.
1114428 1114428 BREAKER, TRIM CLIP
547272 547272 BUMPER
546131 546131 BUMPER, GRILLE (2)
WP2151651 WP2151651 BUTTERTRAY
835974 835974 BUTTON PLG
WP2212648 WP2212648 BUTTON-PLG
511849 511849 BUTTON-PLG
100000 100000 CABINET (NOT A SERVICEABLE PART)
859444 859444 CABLE, APPLIANCE
983910 983910 CAMERA LENS, LIGHT
934182 934182 CAP, HANDLE
850738 850738 CAP, RECEPTACLE
WP487996 WP487996 CAP-TUBE
4387478 4387478 CAPACITOR (SERVICE)
549945 549945 CASE, RELAY
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
548508 548508 CLAMP
513584 513584 CLAMP
549193 549193 CLAMP
836077 836077 CLAMP
510716 510716 CLAMP (2)
548738 548738 CLAMP (4)
845807 845807 CLIP
548744 548744 CLIP (2)
836090 836090 CLIP (2)
850721 850721 CLIP, HEATER (2)
935663 935663 CLIP, HEATER (6)
941876 941876 CLIP, LINER
843213 843213 CLIP, MEDALLION
548745 548745 CLIP, WIRE (2)
464081 464081 COMPRESSOR
481846 481846 CONDENSER & PRECOOLER
227991 227991 CONNECTOR
945241 945241 CONSUMER BUY GUIDE
WP982704 WP982704 CONTAINER
983079 983079 CONTAINER TIMER
WP1101634 WP1101634 COVER
944484 944484 COVER
986628 986628 COVER, EVAPORATOR
989895 989895 COVER, HINGE (COFFEE)
989897 989897 COVER, HINGE (NEW AVOCADO)
935385 935385 COVER, MEAT PAN
989896 989896 COVER-HNGE NLA
850745 850745 COVER-UNIT
935150 935150 CRISPER PAN
943918 943918 CUP, DRAIN
1108064 1108064 DAMPENER
984658 984658 DAMPER, AIR

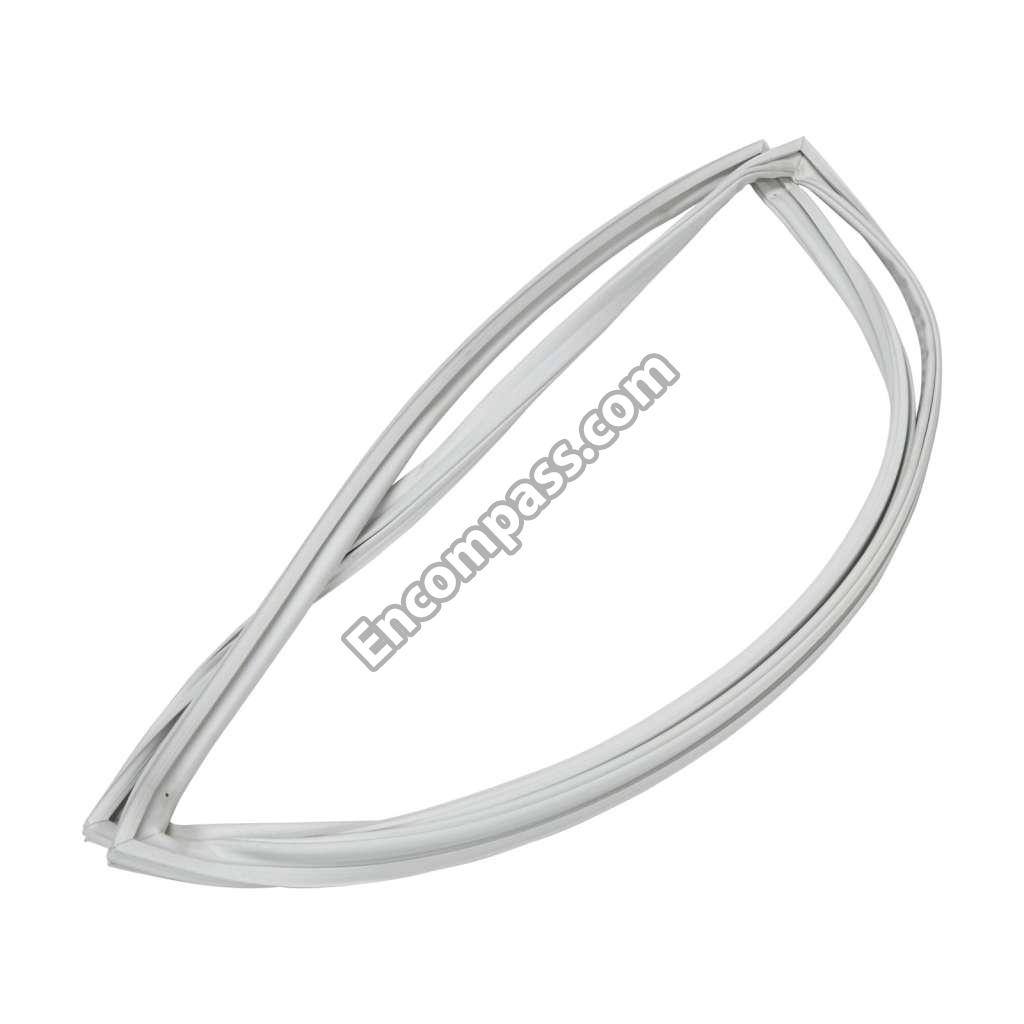

2188450A 2188450A DOOR GASKET

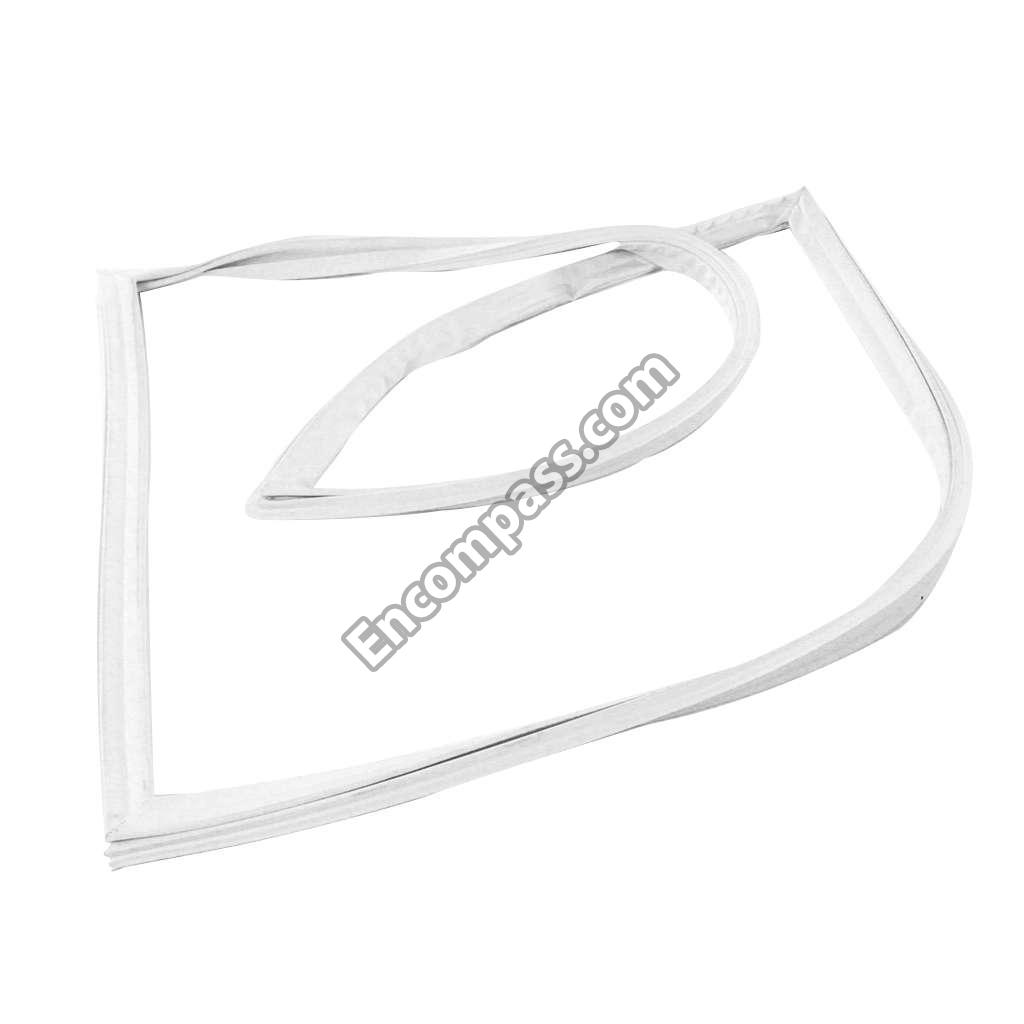

2188460A 2188460A DOOR GASKET
W10851192 W10851192 DOOR HINGE
833850 833850 DOOR HINGE
988847 988847 DOOR TRIM
984904 984904 DOOR TRIM
1109021 1109021 DOOR, BUTTER
943176 943176 DOOR, FREEZER (ALSO ORDER ITEM 46) (COFFEE)
943177 943177 DOOR, FREEZER (ALSO ORDER ITEM 46) (GOLDEN HARVEST)
943178 943178 DOOR, FREEZER (ALSO ORDER ITEM 46) (NEW AVOCADO)
943175 943175 DOOR, FREEZER (ALSO ORDER ITEM 46) (WHITE)
943173 943173 DOOR, REFRIGERATOR (ALSO ORDER ITEM 46) (ALMOND)
943170 943170 DOOR, REFRIGERATOR (ALSO ORDER ITEM 46) (COFFEE)
943171 943171 DOOR, REFRIGERATOR (ALSO ORDER ITEM 46) (GOLDEN HARVEST)
943172 943172 DOOR, REFRIGERATOR (ALSO ORDER ITEM 46) (NEW AVOCADO)
943169 943169 DOOR, REFRIGERATOR (ALSO ORDER ITEM 46) (WHITE)
1109022 1109022 DOOR, UTILITY
2172811 2172811 DRAIN FITTING
943920 943920 DRAIN FITTING GROMMET
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER-TUBE
983520 983520 DUCT, AIR
261887 261887 ENAMEL, COFFEE (1 QT. UNCUT)
261891 261891 ENAMEL, GOLDEN HARVEST (1 QT. UNCUT)
261889 261889 ENAMEL, NEW AVOCADO (1 QT. UNCUT)
WP2183139 WP2183139 ENDCAP-HDL
WP2191882 WP2191882 ENDCAP-HDL
WP839975 WP839975 ENDCAP-TRM
WP839904 WP839904 ENDCAP-TRM
943004 943004 ENERGY GUIDE
482791 482791 EVAPORATOR
482731 482731 EVAPORATOR MOTOR
941612 941612 EXCHANGER, HEAT
839178 839178 FILLER, CORNER
WP2196157 WP2196157 FITTING
942546 942546 FITTING, DRAIN
548654 548654 FRAME
4386774 4386774 FRONT ROLLER (2)
978502 978502 GASKET
981725 981725 GASKET, AIR RETURN (2)
1125706 1125706 GASKET, COVER (REAR)
843290 843290 GASKET, DRAIN PAN
940121 940121 GASKET, SEAL
986018 986018 GASKET, SEALING
985418 985418 GASKET-PAN
942182 942182 GLASS, SHELF
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
978248 978248 GRILLE
538449 538449 GROMMET
WP531933 WP531933 GROMMET
836409 836409 GROMMET
2172803 2172803 GROMMET (2)
845722 845722 GROMMET (2)
548737 548737 GROMMET (4)
547283 547283 GROMMET (4)
937252 937252 GROMMET (4)
942935 942935 GUIDE, USE & CARE
W10373956 W10373956 HANDLE
851788 851788 HEATER
945416 945416 HEATER
876581 876581 HEATER
1119787 1119787 HINGE COVER (WHITE)
WP654366 WP654366 HINGE PIN, BOTTOM
836159 836159 HINGE, BOTTOM
659776 659776 HOLE, PLUG
WP841180A WP841180A ICE TRAY (FOR PLATINUM MODEL ONLY)
836372 836372 INSERT, AIR BAFFLE
876370 876370 INSULATION
991172 991172 INSULATION, SEPARATOR
482374 482374 INTERIOR, DOOR PANEL
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
837445 837445 KNOB, CONTROL (INCLUDES ILLUS. 50)
836482 836482 KNOB, THERMOSTAT
8009 8009 LIGHT BULB
937264 937264 LINER WIRING (ICE MAKER)
877462 877462 LIST, PARTS
989904 989904 MEDALLION (ALMOND)
989901 989901 MEDALLION (COFFEE)
989903 989903 MEDALLION (GOLDEN HARVEST)
989902 989902 MEDALLION (NEW AVOCADO)
848382 848382 MEDALLION (WHITE)
833697 833697 MOTOR-COND
2152334 2152334 NAMEPLATE
850156 850156 NLAGUARD-FAN
303776 303776 NO DESCRIPTION AVALIABLE
984747 984747 OVERLAY PAN
819099 819099 OVERLOAD
978883 978883 PAINT
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72109 72109 PAINT, TOUCH-UP 1/2 OZ. (AVOCADO)
72108 72108 PAINT, TOUCH-UP 1/2 OZ. (COFFEE)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
936284 936284 PAN CANTILEVER, SHELF
989269 989269 PAN, DRIP
836199 836199 PAN, EVAPORATOR DRAIN
983809 983809 PAN, MEAT
942214 942214 PANEL, CONTROL
943126 943126 PANEL, INTERIOR
943179 943179 PANEL-AL NLA
W10833053 W10833053 PLATE
983604 983604 PLATE
534927 534927 PLUG, HOLE
659598 659598 PLUG, HOLE (2)
989193 989193 PLUG, HOLE (2) (ALMOND)
989881 989881 PLUG, HOLE (2) (COFFEE)
989882 989882 PLUG, HOLE (2) (GOLDEN HARVEST)
989883 989883 PLUG, HOLE (2) (NEW AVOCADO)
989195 989195 PLUG, HOLE (3) (ALMOND)
989875 989875 PLUG, HOLE (3) (COFFEE)
989876 989876 PLUG, HOLE (3) (GOLDEN HARVEST)
989877 989877 PLUG, HOLE (3) (NEW AVOCADO)
842031 842031 PLUG, HOLE (3) (WHITE)
989196 989196 PLUG, HOLE (ALMOND)
989892 989892 PLUG, HOLE (COFFEE)
989894 989894 PLUG, HOLE (NEW AVOCADO)
WP836410 WP836410 POST CRISPER COVER
350942 350942 PRIMER
989911 989911 RAIL, CENTER (ALMOND)
989908 989908 RAIL, CENTER (COFFEE)
989909 989909 RAIL, CENTER (GOLDEN HARVEST)
989910 989910 RAIL, CENTER (NEW AVOCADO)
836067 836067 RAIL, CENTER (WHITE)
548662 548662 RAIL, FRONT
989662 989662 RELAY
989661 989661 RELAY (ALTERNATE)
836493 836493 RETAINER
837444 837444 RETAINER
836119 836119 RETAINER
942183 942183 RETAINER, GLASS SHELF
836117 836117 RETAINER, SIDE (2)
836118 836118 RETAINER, TOP & BOTTOM (2)
WPW10250570 WPW10250570 ROLLER-CAB
1118133 1118133 SADDLE STUD (RIGHT SIDE)
WP681414 WP681414 SCREW
488474 488474 SCREW
WPW10141625 WPW10141625 SCREW
W11693756 W11693756 SCREW
WP489069 WP489069 SCREW
WP489128 WP489128 SCREW
WP965173 WP965173 SCREW
WP487887 WP487887 SCREW
WPW10141645 WPW10141645 SCREW
WP488729 WP488729 SCREW
WP98165 WP98165 SCREW
WP488488 WP488488 SCREW
W11624204 W11624204 SCREW
WP999367 WP999367 SCREW
798639 798639 SCREW
WP488921 WP488921 SCREW
488923 488923 SCREW (REPAIR)
488930 488930 SCREW (REPAIR)
489023 489023 SCREW (REPAIR)
488980 488980 SCREW (REPAIR)
WP488714 WP488714 SCREW (REPAIR)
WP488868 WP488868 SCREW (USE WITH MOTOR) (3)
486214 486214 SCREW 8-15 X 1/2
488400 488400 SCREW, 1/4-2 X 1 (4)
488454 488454 SCREW, 1/4-28 X 1/2
254217 254217 SCREW, 10A X 3/8 (2)
488681 488681 SCREW, 5/16-24 X 1-1/4
488357 488357 SCREW, 8 X 1-1/4
488678 488678 SCREW, 8 X 1-3/8
WP939101 WP939101 SCREW, 8 X 1/2
WP488920 WP488920 SCREW, 8 X 5/8
489050 489050 SCREW, 8-32 X 1/2
4159456 4159456 SCREW, NO.8-18 X 3/8``, HWHTCS
935067 935067 SCROLL, FAN
985316 985316 SEAL, STRIP
WP503695 WP503695 SEALER
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
981727 981727 SEPARATOR
848422 848422 SEPARATOR (TOP)
936794 936794 SHELF, CANTILEVER (3)
981496 981496 SHELF, FREEZER
936652 936652 SHELF, LADDER
936651 936651 SHELF, LADDER (2)
WP536475 WP536475 SHELF, STUD
836155 836155 SHIM (.030)
836196 836196 SHIM (BOTTOM) (.030)
992872 992872 SHIM, BOTTOM
943187 943187 SHIM, HANDLE END
836151 836151 SHIM, TOP HINGE (.030)
836667 836667 SPACER
987210 987210 SPACER CONDENSER (4)
984565 984565 SPACER, AIR DUCT
WP943188 WP943188 SPACER, DOOR HANDLE
WP486692 WP486692 SPEED NUT (1/4-20)
261888 261888 SPRAY
350930 350930 SPRAY (13 OZ.) (WHITE)
531318 531318 SPRING, CASE
836412 836412 STUD
836423 836423 STUD (2)
836374 836374 STUD, RETAINER (4)
1100113 1100113 STUD, SADDLE (L.S.)
650704 650704 STUD-SHELF
532484 532484 STUD-SHELF
938459 938459 SUPPORT
978288 978288 SUPPORT
848562 848562 SUPPORT, COVER
851358 851358 SUPPORT, HEATER
520965 520965 SUPPORT, LADDER (4)
W11384469 W11384469 SWITCH
WP938213 WP938213 SWITCH-PM
2147310 2147310 TAP PLATE (2)
W11238399 W11238399 TAPE
978601 978601 TAPE
943387 943387 TECH SHEET
851285 851285 THERMOSTAT & BARRIER
W10822278 W10822278 TIMER-DEF
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP842041 WP842041 TRAY, EVAPORATING
981454 981454 TRIM, SHELF FRONT
836031 836031 TRIM-BRKR
836223 836223 TRIM-BRKR **NLA*
8316810 8316810 TUBE-DRAIN
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
WP487802 WP487802 WASHER
WP488296 WP488296 WASHER 11/64
548734 548734 WIRING ASSEMBLY (WATER VALVE)
481782 481782 WIRING, LINER (DEFROST TIMER)
261886 261886 XENAMEL, COFFEE (13 OZ. SPRAY CAN)
261890 261890 XENAMEL, GOLDEN HARVEST (13 OZ. SPRAY CAN)
350941 350941 XLEVELER, ENAMEL (13 OZ. SPRAY CAN)
