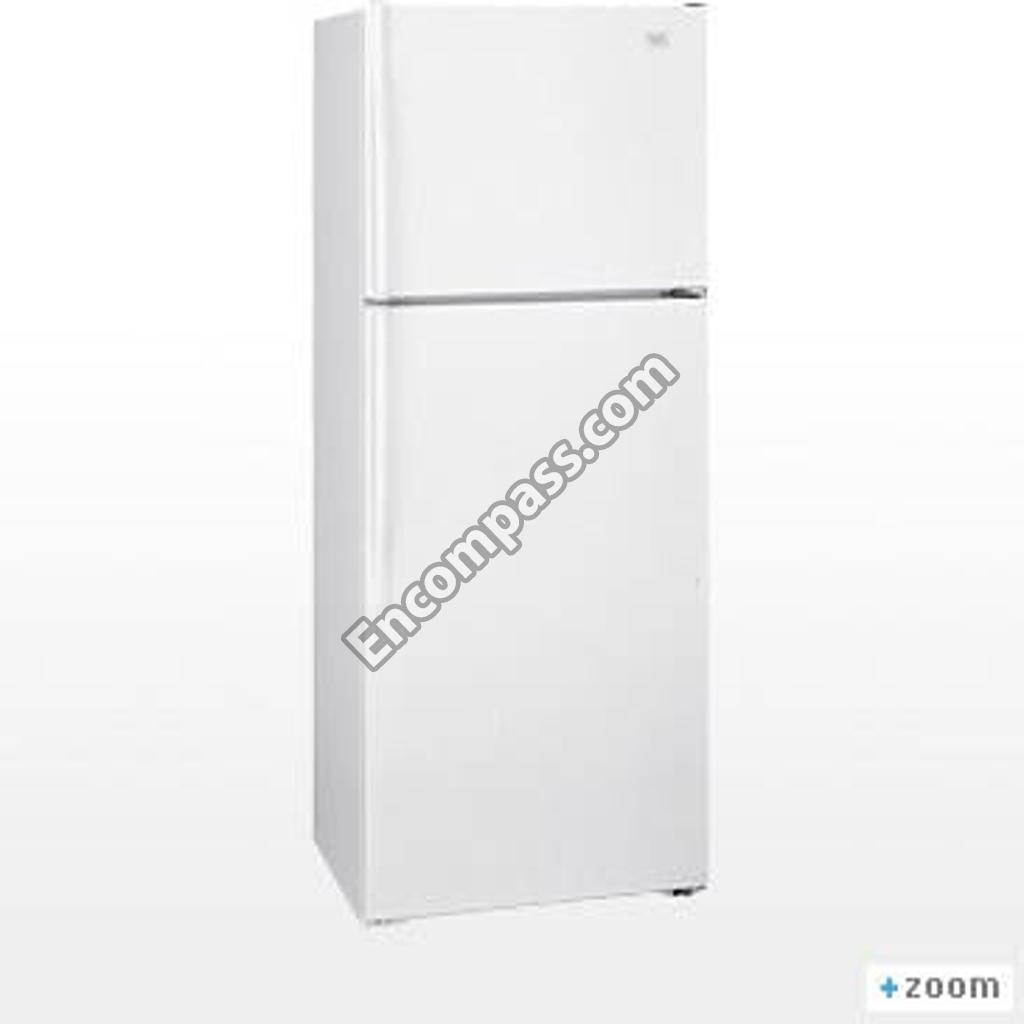

Model Image
Manufacturer

Whirlpool

Model Number

ET4WSKXKQ01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8281146 WP8281146 Whirlpool 6CREW 8-15 X 1/2
978030 978030 Whirlpool ACCESS VALVE (3/4``)
9790408 9790408 Whirlpool AIR TOWER
350956 350956 Whirlpool ALMOND
WP72107 WP72107 Whirlpool ALMOND
482801 482801 Whirlpool ALSO ORDER INSTALLATION KIT
606755 606755 Whirlpool BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 Whirlpool BARRIER
72032 72032 Whirlpool BLACK
WP1100939 WP1100939 Whirlpool BLADE-FAN
WP2197405 WP2197405 Whirlpool BRACKET
WPW10180172 WPW10180172 Whirlpool BRACKET
2217944 2217944 Whirlpool BRACKET
944791 944791 Whirlpool BRACKET, CONDENSER
WP2151652 WP2151652 Whirlpool BUTTON-PLG
WP2200924 WP2200924 Whirlpool BUTTON-PLG
100000 100000 Whirlpool CABINET (NOT A SERVICEABLE PART)
WP487996 WP487996 Whirlpool CAP-TUBE
WP4387764 WP4387764 Whirlpool CAPACITOR ((PRODUCTION))
WPW10662129 WPW10662129 Whirlpool CAPACITOR (PRODUCTION)
4387478 4387478 Whirlpool CAPACITOR (SERVICE)
WP4317852 WP4317852 Whirlpool CEMENT, ALUMILASTIC (1 1/4 OZ.)
549193 549193 Whirlpool CLAMP, CORD
4386951 4386951 Whirlpool CLIP
W10812038 W10812038 Whirlpool CLIP
9791833 9791833 Whirlpool CLIP
24364001 24364001 Whirlpool CLIP, COMPRESSOR
510414 510414 Whirlpool CLIP, TUBE (4)
W10309988 W10309988 Whirlpool COMPRESSOR
WP2252730 WP2252730 Whirlpool CONDENSER
2215213 2215213 Whirlpool CONTRL-BOX
WP2183061 WP2183061 Whirlpool COVER, AIR DIFFUSER
WPW10244012 WPW10244012 Whirlpool COVER, EVAPORATOR
WP2217784 WP2217784 Whirlpool COVER, HOLE
2202819N 2202819N Whirlpool COVER, SCREW (ALMOND MODEL)
WP2202819W WP2202819W Whirlpool COVER, SCREW (WHITE)
WP2162358 WP2162358 Whirlpool COVER-TERM
2217635 2217635 Whirlpool COVER-TERM
WP2192009 WP2192009 Whirlpool CRISPER PAN
2197416 2197416 Whirlpool DEFLECTOR
WP2221992 WP2221992 Whirlpool DIFFUSER
677969 677969 Whirlpool DO-IT-YOURSELF MANUAL REF./FZR.
2188462A 2188462A Whirlpool DOOR GASKET
2188448A 2188448A Whirlpool DOOR GASKET
WP2166037 WP2166037 Whirlpool DOOR HINGE
WP2261963 WP2261963 Whirlpool DOOR HINGE
72017 72017 Whirlpool DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 Whirlpool DRIER ((SERVICE))
LIT2217627 LIT2217627 Whirlpool ENERGY LABEL
WP2263919 WP2263919 Whirlpool EVAPORATOR
WPW10189703 WPW10189703 Whirlpool EVAPORATOR MOTOR
W10859322 W10859322 Whirlpool FILLER
2166004 2166004 Whirlpool FILLER
2202282 2202282 Whirlpool FILLER
WP2196157 WP2196157 Whirlpool FITTING
WP2174798 WP2174798 Whirlpool FLOOR
2201545 2201545 Whirlpool FREEZER DOOR PANEL (ALSO ORDER ITEM 11) (ALMOND)
2215350 2215350 Whirlpool FREEZER DOOR PANEL (ALSO ORDER ITEM 11) (BISCUIT)
WP1120614 WP1120614 Whirlpool GASKET RETAINER, TOP & BOTTOM (2)
WP9791659 WP9791659 Whirlpool GLASS COVER
WP542638 WP542638 Whirlpool GREASE, SILICONE (1/2 OZ.)
WP4387558 WP4387558 Whirlpool GROMMET
WP2163786 WP2163786 Whirlpool GROMMET
WP2264462 WP2264462 Whirlpool GROMMET
WP2215015 WP2215015 Whirlpool HANDLE
WP2221946T WP2221946T Whirlpool HANDLE
2221946N 2221946N Whirlpool HANDLE CENTER (ALMOND)
2202099 2202099 Whirlpool HANDLE, F.C. (ALMOND MODEL)
WP2202098 WP2202098 Whirlpool HANDLE, FREEZER
WP2221946W WP2221946W Whirlpool HANDLE, REFRIGERATOR
2176927 2176927 Whirlpool HARNS-WIRE
2319224 2319224 Whirlpool HEAT SHIELD
WP2263749 WP2263749 Whirlpool HEATER
WP2325482 WP2325482 Whirlpool HINGE BUTT, BTM
WP9791682 WP9791682 Whirlpool HINGE-PIN, BOTTOM
WP941839 WP941839 Whirlpool HOLE COVER, EVAPORATOR
WP2163372 WP2163372 Whirlpool HOLE PLUG
2151653 2151653 Whirlpool HOLE PLUG
2213324 2213324 Whirlpool HOLE PLUG (ALMOND)
WP2212649 WP2212649 Whirlpool HOLE PLUG, ENDCAP (BISCUIT)
WP2212648 WP2212648 Whirlpool HOLE PLUG, HINGE (2) (WHITE)
WP2200936 WP2200936 Whirlpool HOLE-PLUG, HANDLE (BISCUIT)
WP2189000 WP2189000 Whirlpool HOLE-PLUG, HANDLE (WHITE)
WP2316186 WP2316186 Whirlpool HOOD & FOIL ASSEMBLY
W11700559 W11700559 Whirlpool ICEMAKER
876370 876370 Whirlpool INSULATION
799833 799833 Whirlpool KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 Whirlpool KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
799832 799832 Whirlpool KIT, PORCELAIN REPAIR (WHITE)
WP2202885 WP2202885 Whirlpool KNOB, CONTROL
W11034434 W11034434 Whirlpool LENS-LIGHT
8009 8009 Whirlpool LIGHT BULB
LIT2217640 LIT2217640 Whirlpool LITERATURE PARTS (SERVICE & WIRING SHEET)
2152334 2152334 Whirlpool NAMEPLATE
2157907 2157907 Whirlpool NAMEPLATE
285002 285002 Whirlpool NUT
2183408 2183408 Whirlpool OVERLOAD
4387913 4387913 Whirlpool OVERLOAD (INCLUDES RELAY) (SERVICE)
799344 799344 Whirlpool PAINT
978883 978883 Whirlpool PAINT
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
511873 511873 Whirlpool PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP2201544 WP2201544 Whirlpool PANEL-EXT
2201546 2201546 Whirlpool PANEL-EXT
2173725 2173725 Whirlpool PANEL-INT
9790358 9790358 Whirlpool PANEL-INT
WP2174706 WP2174706 Whirlpool PIN-HITCH
W10833053 W10833053 Whirlpool PLATE, TAP (4)
WP2156006 WP2156006 Whirlpool PLUG TRIM (2)
WP2189008 WP2189008 Whirlpool PLUG-HNDLE
WP2156007 WP2156007 Whirlpool PLUG-TRIM (4)
350942 350942 Whirlpool PRIMER
WP2183003 WP2183003 Whirlpool PROTECTOR
2201547 2201547 Whirlpool REFRIGERATOR DOOR PANEL (ALSO ORDER ITEM 11) (ALMOND)
2215347 2215347 Whirlpool REFRIGERATOR DOOR PANEL (ALSO ORDER ITEM 11) (BISCUIT)
WP10097204 WP10097204 Whirlpool RELAY-STRT
1122551 1122551 Whirlpool RETAINER
1122553 1122553 Whirlpool RETAINER, GASKET
WP489115 WP489115 Whirlpool RIVET
W11594405 W11594405 Whirlpool RIVET
939962 939962 Whirlpool RIVET
WPW10475495 WPW10475495 Whirlpool ROLLER-CAB
2324094 2324094 Whirlpool ROLLER-FRONT
WP489128 WP489128 Whirlpool SCREW
W11693756 W11693756 Whirlpool SCREW
WP488163 WP488163 Whirlpool SCREW
WP965173 WP965173 Whirlpool SCREW
WP487353 WP487353 Whirlpool SCREW
WP489474 WP489474 Whirlpool SCREW
WP489174 WP489174 Whirlpool SCREW
WPW10141645 WPW10141645 Whirlpool SCREW
489498 489498 Whirlpool SCREW
2222100 2222100 Whirlpool SCREW
WP488921 WP488921 Whirlpool SCREW
WP3428970 WP3428970 Whirlpool SCREW
WP489497 WP489497 Whirlpool SCREW (8)
WP8281206 WP8281206 Whirlpool SCREW 8 X 1/2
WP489442 WP489442 Whirlpool SCREW 8-15 X 5/8
2202819T 2202819T Whirlpool SCREW COVER (BISCUIT)
WP939101 WP939101 Whirlpool SCREW, 8 X 1/2
WP489478 WP489478 Whirlpool SCREW, 8-18 X .50
WP489357 WP489357 Whirlpool SCREW, 8-18 X 3/4
WP489399 WP489399 Whirlpool SCREW, 8-32 X 5/16
WP1106508 WP1106508 Whirlpool SEAL GASKET
WP503695 WP503695 Whirlpool SEALER
WP505587 WP505587 Whirlpool SEALER MASTIC (1 QUART)
212643 212643 Whirlpool SEALER, PERMAGUM (4 - 12`` STRIPS)
WP2192515 WP2192515 Whirlpool SHELF (2)
WPW10401596 WPW10401596 Whirlpool SHELF-WIRE
WP2201567 WP2201567 Whirlpool SHIM, BOTTOM HINGE
2166043 2166043 Whirlpool SHIM, HINGE CENTER
2176844 2176844 Whirlpool SPACER
944772 944772 Whirlpool SPACER
350930 350930 Whirlpool SPRAY (13 OZ.) (WHITE)
WPW10222451 WPW10222451 Whirlpool SUPPORT
8201619 8201619 Whirlpool SUPPORT-EV
W11384469 W11384469 Whirlpool SWITCH, ROCKER ARM (REFRIGERATOR DOOR SIDE)
W11238399 W11238399 Whirlpool TAPE
833938 833938 Whirlpool TERMINAL
WPW10567140 WPW10567140 Whirlpool THERMOSTAT
WPW10339879 WPW10339879 Whirlpool TIE-WIRE
W10822278 W10822278 Whirlpool TIMER-DEF
978026 978026 Whirlpool TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 Whirlpool TORX KE
WP841180A WP841180A Whirlpool TRAY
WP2176668 WP2176668 Whirlpool TRAY-EVAP
WP2163629 WP2163629 Whirlpool TRIM, DOOR SHELF
WP1120826 WP1120826 Whirlpool TRIM, DOOR SHELF (LOWER)
W11661102 W11661102 Whirlpool TUBE
2217637 2217637 Whirlpool TUBE, DISCHARGE
8201582 8201582 Whirlpool TUBE-HEAT
LIT2210108 LIT2210108 Whirlpool USE & CARE GUIDE
978027 978027 Whirlpool VALVE, ACCESS ((3/8``) TUBE)
978028 978028 Whirlpool VALVE, ACCESS (1/2``)
WP978025 WP978025 Whirlpool VALVE, ACCESS (1/4``)
978029 978029 Whirlpool VALVE, ACCESS (5/8)
876764 876764 Whirlpool VALVE,ACCESS (3/16)
WP487802 WP487802 Whirlpool WASHER (7/64 NYLON)
WP487576 WP487576 Whirlpool WASHER, NYLON 1/16
WP2172890 WP2172890 Whirlpool WIRE ASSEMBLY, CAPACITATOR (PRODUCTION)
2177021 2177021 Whirlpool WIRE ASSEMBLY. UNIT
WP2192096 WP2192096 Whirlpool WIRE HARNESS
