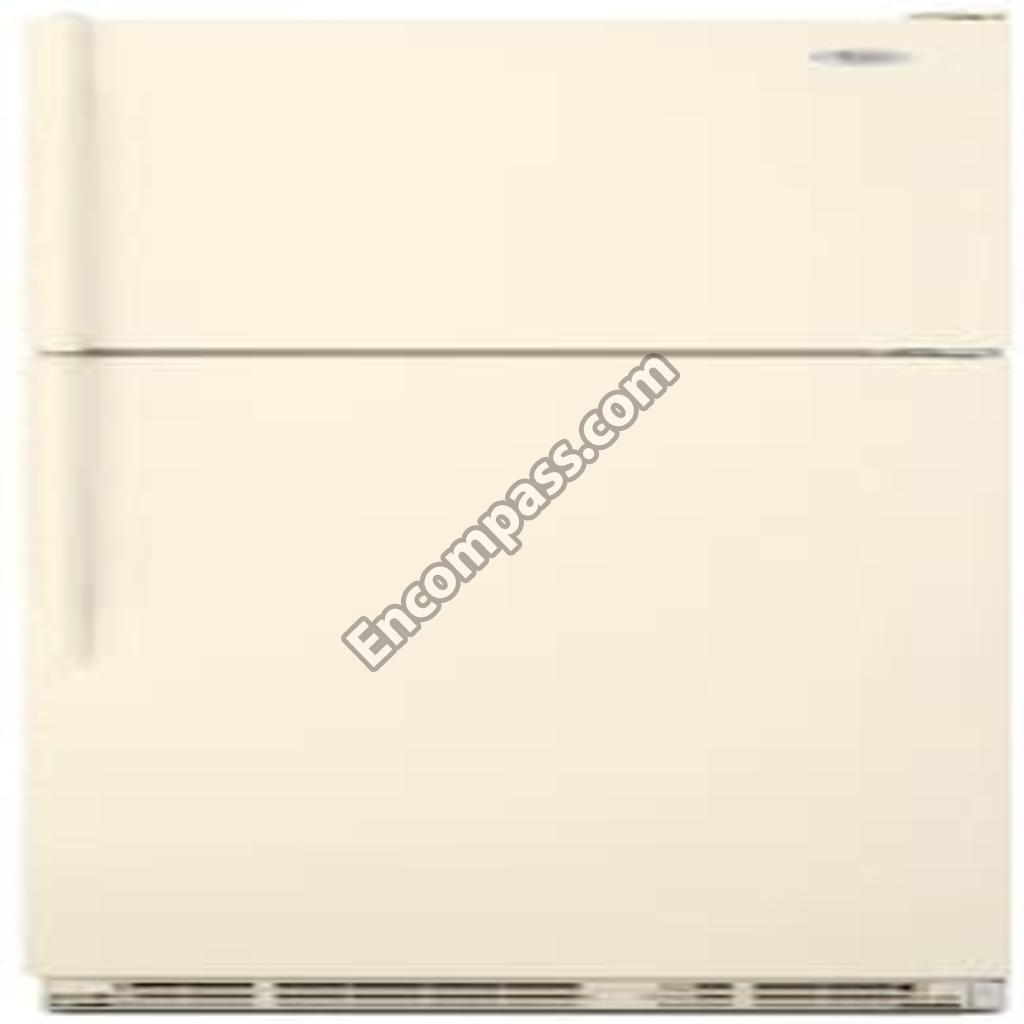

Model Image
Manufacturer

Whirlpool

Model Number

ET8WTKXKT01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8281146 WP8281146 Whirlpool 6CREW 8-15 X 1/2
978030 978030 Whirlpool ACCESS VALVE (3/4``)
WP2189452 WP2189452 Whirlpool AIR DIFFUSER, BOTTOM
2200793 2200793 Whirlpool AIR DIFFUSER, TOP
WP2210451 WP2210451 Whirlpool AIR DIFFUSER, TOP
WP2182340 WP2182340 Whirlpool AIR-TOWER
350956 350956 Whirlpool ALMOND
WP72107 WP72107 Whirlpool ALMOND
482801 482801 Whirlpool ALSO ORDER INSTALLATION KIT
WP2198921 WP2198921 Whirlpool BAFFLE-AIR
606755 606755 Whirlpool BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 Whirlpool BARRIER
WP4387503 WP4387503 Whirlpool BIMETL-DEF
72032 72032 Whirlpool BLACK
W11745278 W11745278 Whirlpool BRACKET
2200641 2200641 Whirlpool BRACKET, FAN MOTOR
2176301 2176301 Whirlpool BRACKET, HEATER
W10887190 W10887190 Whirlpool BULB-LIGHT
WP2212651 WP2212651 Whirlpool BUTTON-PLG
WP2183998 WP2183998 Whirlpool BUTTON-PLG
WP2200924 WP2200924 Whirlpool BUTTON-PLG
WP2151652 WP2151652 Whirlpool BUTTON-PLG
WP487996 WP487996 Whirlpool CAP-TUBE
WPW10662129 WPW10662129 Whirlpool CAPACITOR
4387478 4387478 Whirlpool CAPACITOR (SERVICE)
WP4317852 WP4317852 Whirlpool CEMENT, ALUMILASTIC (1 1/4 OZ.)
WP488366 WP488366 Whirlpool CLAMP
549193 549193 Whirlpool CLAMP, CORD
WP2189356 WP2189356 Whirlpool CLIP
2182338 2182338 Whirlpool CLIP
W10823815 W10823815 Whirlpool COMPRESSOR
WP2214960 WP2214960 Whirlpool CONDENSER
2218381 2218381 Whirlpool CONTROL BOX
W10283958 W10283958 Whirlpool CORNER FILLER (BISCUIT/BISQUE)
WPW10283959 WPW10283959 Whirlpool CORNER FILLER (WHITE)
WP2314548 WP2314548 Whirlpool COVER
WP2202819B WP2202819B Whirlpool COVER
2213364 2213364 Whirlpool COVER
WP2213360 WP2213360 Whirlpool COVER
WP2176281 WP2176281 Whirlpool COVER, AIR DIFFUSER
WP2205003 WP2205003 Whirlpool COVER, INLET TUBE
WP2163848 WP2163848 Whirlpool COVER, MEAT PAN
WP2202819W WP2202819W Whirlpool COVER, SCREW (WHITE)
4388740 4388740 Whirlpool COVER-EVAPORATOR
WP2213363 WP2213363 Whirlpool COVER-HINGE (BLACK)
WP2162358 WP2162358 Whirlpool COVER-TERM
WP2254578 WP2254578 Whirlpool COVER-UNIT
WP2163835 WP2163835 Whirlpool CRISPER TRACK, CENTER
2163762 2163762 Whirlpool CUP, SHELF MTG.
677969 677969 Whirlpool DO-IT-YOURSELF MANUAL REF./FZR.
L2200710 L2200710 Whirlpool DOOR ASSEMBLY BL
L2205279 L2205279 Whirlpool DOOR ASSEMBLY BT
L2205285 L2205285 Whirlpool DOOR ASSEMBLY BT
L2182487 L2182487 Whirlpool DOOR ASSEMBLY WH
L2183948 L2183948 Whirlpool DOOR ASSEMBLY WH
WP2218113 WP2218113 Whirlpool DOOR COMPARTMENT
2177304 2177304 Whirlpool DOOR GASKET, MAGNETIC (BLACK)
2177305 2177305 Whirlpool DOOR GASKET, MAGNETIC (BLACK)
2159327 2159327 Whirlpool DOOR GASKET, MAGNETIC (MIST BEIGE)
2159057 2159057 Whirlpool DOOR GASKET, MAGNETIC (MIST BEIGE)
WP2254473 WP2254473 Whirlpool DOOR HINGE
WP2254618 WP2254618 Whirlpool DOOR HINGE
WP2261963 WP2261963 Whirlpool DOOR HINGE
WPW10421484 WPW10421484 Whirlpool DOOR TRIM
2172619 2172619 Whirlpool DRAIN PAN
72017 72017 Whirlpool DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 Whirlpool DRIER ((SERVICE))
WP2195915 WP2195915 Whirlpool END CAP (2)
WP2156003 WP2156003 Whirlpool ENDCAP (6)
LIT2218448 LIT2218448 Whirlpool ENERGY LABEL
2195391 2195391 Whirlpool EVAPORATOR ASSEMBLY.
2300638 2300638 Whirlpool EXTENSION, AIR BAFFLE
WP2163777 WP2163777 Whirlpool FAN BLADE
WP4389142 WP4389142 Whirlpool FAN MOTOR
WP2190685 WP2190685 Whirlpool FAN, BLADE
W11252732 W11252732 Whirlpool FILLER
100000 100000 Whirlpool FITTING, WATER TUBE (NOT SERVICED)
2172565 2172565 Whirlpool FREEZER FLOOR
WP2254360 WP2254360 Whirlpool GASKET
WP542638 WP542638 Whirlpool GREASE, SILICONE (1/2 OZ.)
WP2254386 WP2254386 Whirlpool GRILLE
WP2254388 WP2254388 Whirlpool GRILLE
WP4387558 WP4387558 Whirlpool GROMMET
WP531933 WP531933 Whirlpool GROMMET
876811 876811 Whirlpool GROMMET (4) ((PRODUCTION))
WP2202806B WP2202806B Whirlpool HANDLE
WP2202807B WP2202807B Whirlpool HANDLE
WP2202807T WP2202807T Whirlpool HANDLE (BISCUIT)
WP2202807W WP2202807W Whirlpool HANDLE CENTER (PLASTIC) (WHITE)
WP2202806T WP2202806T Whirlpool HANDLE, CENTER (BISCUIT)
WP2202806W WP2202806W Whirlpool HANDLE, FREEZER (WHITE)
2221668 2221668 Whirlpool HARNS-WIRE
2187301 2187301 Whirlpool HARNS-WIRE
WP2315531 WP2315531 Whirlpool HEATER
2254518 2254518 Whirlpool HINGE, CENTER
WP941839 WP941839 Whirlpool HOLE COVER, EVAPORATOR
WP2212649 WP2212649 Whirlpool HOLE PLUG, ENDCAP (BISCUIT)
WP2212648 WP2212648 Whirlpool HOLE PLUG, HINGE (2) (WHITE)
WP2200936 WP2200936 Whirlpool HOLE-PLUG, HANDLE (BISCUIT)
WP2189009 WP2189009 Whirlpool HOLE-PLUG, HANDLE (BLACK)
WP2189000 WP2189000 Whirlpool HOLE-PLUG, HANDLE (WHITE)
WP841180A WP841180A Whirlpool ICE TRAY (FOR PLATINUM MODEL ONLY)
W11700559 W11700559 Whirlpool ICEMAKER
WP2169921 WP2169921 Whirlpool INSERT, CRISPER COVER
876370 876370 Whirlpool INSULATION
799833 799833 Whirlpool KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 Whirlpool KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
799832 799832 Whirlpool KIT, PORCELAIN REPAIR (WHITE)
WP2202885 WP2202885 Whirlpool KNOB, CONTROL
LIT2212841 LIT2212841 Whirlpool LITERATURE PARTS (USE & CARE GUIDE)
W10822259 W10822259 Whirlpool MOTOR-COND
2157907 2157907 Whirlpool NAMEPLATE
2152334 2152334 Whirlpool NAMEPLATE
WP4387938 WP4387938 Whirlpool OVERLOAD (SERVICE)
799344 799344 Whirlpool PAINT
978883 978883 Whirlpool PAINT
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
511873 511873 Whirlpool PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
W10856580 W10856580 Whirlpool PAN, CRISPER
W10854037 W10854037 Whirlpool PAN, CRISPER
WP2218127K WP2218127K Whirlpool PAN, MEAT
2320188 2320188 Whirlpool PLATE, UNIT MOUNTING
WP2156006 WP2156006 Whirlpool PLUG TRIM (2)
WP2156007 WP2156007 Whirlpool PLUG-TRIM (4)
350942 350942 Whirlpool PRIMER
WP2183003 WP2183003 Whirlpool PROTECTOR
L2213386 L2213386 Whirlpool REFRIGERATOR DOOR (INCLUDES NO.9 & NO.11) (BLACK)
WP2210509 WP2210509 Whirlpool RELEAS-VAC
2212998 2212998 Whirlpool RETAINER
W11594405 W11594405 Whirlpool RIVET
WP2166108 WP2166108 Whirlpool ROLLER, FRONT (2)
WPW10475495 WPW10475495 Whirlpool ROLLER-CAB
WP8281196 WP8281196 Whirlpool SCREW
WP98129 WP98129 Whirlpool SCREW
489412 489412 Whirlpool SCREW
WP489464 WP489464 Whirlpool SCREW
WP3400504 WP3400504 Whirlpool SCREW
WP488921 WP488921 Whirlpool SCREW
WP489497 WP489497 Whirlpool SCREW (8)
WP8281206 WP8281206 Whirlpool SCREW 8 X 1/2
2202819T 2202819T Whirlpool SCREW COVER (BISCUIT)
WP489478 WP489478 Whirlpool SCREW, 8-18 X .50
WP489357 WP489357 Whirlpool SCREW, 8-18 X 3/4
WP503695 WP503695 Whirlpool SEALER
WP505587 WP505587 Whirlpool SEALER MASTIC (1 QUART)
212643 212643 Whirlpool SEALER, PERMAGUM (4 - 12`` STRIPS)
LIT2201079 LIT2201079 Whirlpool SERVICE & WIRING SHEET
2189453 2189453 Whirlpool SHELF
2163856 2163856 Whirlpool SHELF (2)
WP2210522 WP2210522 Whirlpool SHELF, LADDER (2)
2300520 2300520 Whirlpool SHELF, LADDER CENTER
2204639 2204639 Whirlpool SHIELD
2172743 2172743 Whirlpool SHIM, BOTTOM HINGE
WP2183854 WP2183854 Whirlpool SHIM, HINGE CENTER
WP486692 WP486692 Whirlpool SPEED NUT (1/4-20)
350930 350930 Whirlpool SPRAY (13 OZ.) (WHITE)
8201769 8201769 Whirlpool START-DEVICE COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY)
WP2172748 WP2172748 Whirlpool SUPPORT
2201184 2201184 Whirlpool SUPPORT-EV
W11384469 W11384469 Whirlpool SWITCH, ROCKER ARM (REFRIGERATOR DOOR SIDE)
W11238399 W11238399 Whirlpool TAPE
833938 833938 Whirlpool TERMINAL
WP2204605 WP2204605 Whirlpool THERMOSTAT
WPW10339879 WPW10339879 Whirlpool TIE-WIRE
W10822278 W10822278 Whirlpool TIMER-DEF
978026 978026 Whirlpool TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 Whirlpool TORX KE
WP2201051 WP2201051 Whirlpool TRIM, DOOR
WP2195943 WP2195943 Whirlpool TRIM, DOOR SHELF
WP2201052 WP2201052 Whirlpool TRIM, DOOR SHELF
WP2201061 WP2201061 Whirlpool TRIM, DOOR SHELF
WP2157313 WP2157313 Whirlpool TRIM, DOOR SHELF (2)
W11676464 W11676464 Whirlpool TUBE
2205294 2205294 Whirlpool TUBE
2205293 2205293 Whirlpool TUBE
876765 876765 Whirlpool TUBE KIT
2212603 2212603 Whirlpool TUBE, TRANSITION
978027 978027 Whirlpool VALVE, ACCESS ((3/8``) TUBE)
978028 978028 Whirlpool VALVE, ACCESS (1/2``)
WP978025 WP978025 Whirlpool VALVE, ACCESS (1/4``)
978029 978029 Whirlpool VALVE, ACCESS (5/8)
876764 876764 Whirlpool VALVE,ACCESS (3/16)
WP489467 WP489467 Whirlpool WASHER
WP487576 WP487576 Whirlpool WASHER, NYLON 1/16
2187384 2187384 Whirlpool WIRE ASSY. UNIT
