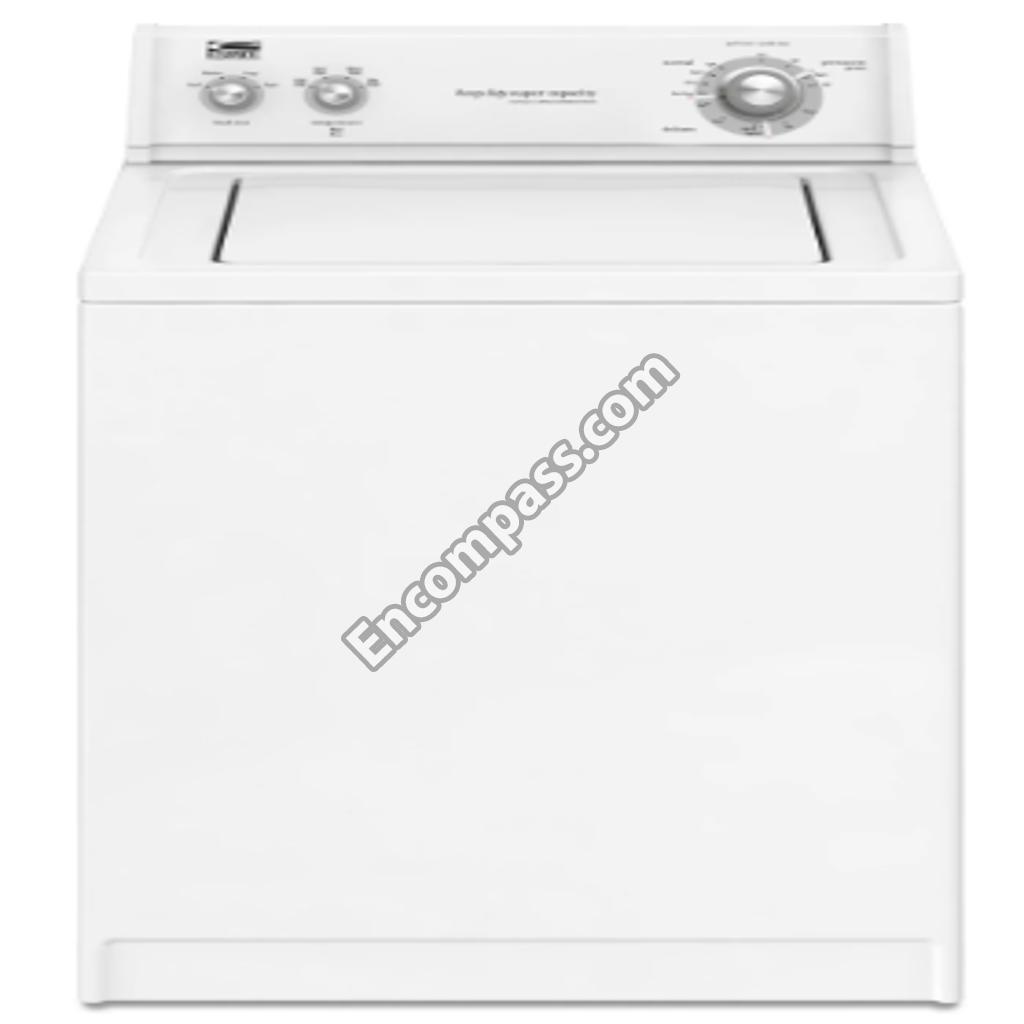

Model Image
Manufacturer

Whirlpool

Model Number

ETW4400WQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40922 40922 ACCESSORY PARTS, DRAIN HOSE EXTENSION KIT
40923 40923 ADAPTER
285771 285771 BASE
W10389329 W10389329 BASKET ASSEMBLY
W10820043 W10820043 BASKTDRIVE
285205 285205 BEARING
WP8546462 WP8546462 BEARING
WP8546455 WP8546455 BEARING
WP3363661 WP3363661 BEARING
WP21258 WP21258 BEARING
285203 285203 BEARING
WP3362952 WP3362952 BEZEL
WP389140 WP389140 BLOCK
3390423 3390423 BLOCK, DISCONNECT (12-WAY)
WP64065 WP64065 BRACKET
WP64067 WP64067 BRACKET
WP3948608 WP3948608 BRACKET
280129A 280129A BREAK-SPHN
WP9724509 WP9724509 BUMPER
63424 63424 CABINET
285811 285811 CAM-AGIT
WP8546461 WP8546461 CAM-BRAKE
WP62646 WP62646 CAP
WPW10074580 WPW10074580 CAP
WP3355758 WP3355758 CAP
WP8572717 WP8572717 CAPACITOR
WP285655 WP285655 CLAMP
WP616099 WP616099 CLAMP
WP90016 WP90016 CLIP
8528351 8528351 CLIP
WP3355454 WP3355454 CLIP
WP8536939 WP8536939 CLIP
WP62780 WP62780 CLIP
3352944 3352944 CLIP
2219077 2219077 CLIP
8541668 8541668 CLIP
8318046 8318046 CLIP
8281256 8281256 CLIP, HARNESS
388498 388498 CLIP, HARNESS
8282566 8282566 CLIP, PINE TREE
285785 285785 CLUTCH
WP3360056 WP3360056 CONNECTOR
WP2172937 WP2172937 CONNECTOR
WP62505 WP62505 CONNECTOR
WP62889 WP62889 CONNECTOR
W10876590 W10876590 CONNECTOR
3354926 3354926 CONNECTOR
3354925 3354925 CONNECTOR
3347243 3347243 CONNECTOR
353424 353424 CONNECTOR
717252 717252 CONNECTOR, 2-WAY
285753A 285753A COUPLING
285202 285202 COVER
WP8538955 WP8538955 DIAL
80040 80040 DOG-AGIT
367031 367031 DRAIN PROTECTOR
WP661600 WP661600 DRIVE MOTOR
279960 279960 ENDCAP
W10062895 W10062895 ENERGY GUIDE
W10150642 W10150642 FEATURE SHEET (ENGLISH/FRENCH)
W10150643 W10150643 FEATURE SHEET (SPANISH)
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
WPW10001130 WPW10001130 FRONT FOOT/LEG
W10814296 W10814296 GASKET
285515 285515 GEARCASE
3360629 3360629 GEARCASE
285208 285208 GREASE
WP62691 WP62691 GROMMET
W10307145 W10307145 HARNESS, WIRING (FOR DETAIL SEE PAGES 9 & 10)
WP91770 WP91770 HINGE
WPW10225135 WPW10225135 HINGE
WP353244 WP353244 HOSE
285871 285871 HOSE
285448A 285448A HOSE WASHERS (PACKAGE OF 4)
WPW10189267 WPW10189267 HOSE-DRAIN
8212487RP 8212487RP HOSE-FILL
8212545RP 8212545RP HOSE-FILL
8212546RP 8212546RP HOSE-FILL
8212638RP 8212638RP HOSE-FILL
8212641RP 8212641RP HOSE-FILL
8212656RP 8212656RP HOSE-FILL
W10200331 W10200331 INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
W10200662 W10200662 INSTALLATION INSTRUCTIONS (SPANISH)
WP8538957 WP8538957 KNOB
WP8538949 WP8538949 KNOB
WPW10193857 WPW10193857 LID
285790 285790 LINING
WP63466 WP63466 LINK
WP3348752 WP3348752 MOVER-AGIT
388253A 388253A NEUTRL-PAK
WP3359452 WP3359452 NUT
WP357213 WP357213 NUT
WP21366 WP21366 NUT-SPANER
350572 350572 OIL
285744 285744 PAD
285219 285219 PAD
WP62747 WP62747 PAD
799344 799344 PAINT
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10200896 WPW10200896 PANEL, CONSOLE
WPW10194450 WPW10194450 PANEL-REAR
WP62837 WP62837 PIN-DOWEL
WP62611 WP62611 PLATE
W10820044 W10820044 POWER CORD
63523 63523 PROTECTOR
285244 285244 REAR FOOT/LEG
3347730 3347730 RECEPTACLE, 6 WAY
285777 285777 RELIEF-STR
8559320 8559320 RESTRAINT, HOSE
WP389379 WP389379 RETAINER
WPW10145155 WPW10145155 RETAINER
WP8546127 WP8546127 RETAINER
WPW10086010 WPW10086010 RETAINER
WP8055003 WP8055003 RETAINER
WP8577378 WP8577378 RETAINER
3349557 3349557 RETAINER
62677 62677 RETAINER, SPRING
WP62658 WP62658 RING
WP63134 WP63134 RING
285353 285353 RING
WPW10080230 WPW10080230 RING
W10083190 W10083190 RING, RETAINING
90369 90369 RING, RETAINING (2)
WP387240 WP387240 RING-BAL
WPW10072840 WPW10072840 RING-O
285765 285765 RING-RETNR
W10880720 W10880720 RING-TUB
W11033823 W11033823 RING-WIRE
285452A 285452A SCREEN
W10846509 W10846509 SCREW
WP273556 WP273556 SCREW
WP3400516 WP3400516 SCREW
WP358237 WP358237 SCREW
WP388326 WP388326 SCREW
WP3400818 WP3400818 SCREW
WP90767 WP90767 SCREW
WP9740848 WP9740848 SCREW
WP3390631 WP3390631 SCREW
WP3351614 WP3351614 SCREW
WPW10119828 WPW10119828 SCREW
3400073 3400073 SCREW
WP8577376 WP8577376 SEAL
W11095997 W11095997 SEAL
WP3349985 WP3349985 SEAL-COVER
285352 285352 SEAL-OIL
WP356427 WP356427 SEAL-SHAFT
WP8577374 WP8577374 SEAL-SHAFT
WP3976308 WP3976308 SEAL-TUB
WP285195 WP285195 SEALER
WP389387 WP389387 SHAFT-AGIT
WP3946532 WP3946532 SHIELD
W10838408 W10838408 SHIELD-MTR
285438 285438 SHOE-BRAKE
WP3946509 WP3946509 SKATE PLT
WP63022 WP63022 SLEEVE
285658 285658 SLEEVE
WP62750 WP62750 SPACER
350938 350938 SPRAY
350930 350930 SPRAY
285901 285901 SPRING
8316845 8316845 SPRING
WP63907 WP63907 SPRING
WP3946792 WP3946792 SPRING
62676 62676 SPRING, AGITATE
387806 387806 SPRING, BRAKE
WP8568314 WP8568314 STRAP
280184 280184 SUPPORT
WP8519200 WP8519200 SUPPORT
WP8318084 WP8318084 SWITCH-LID
WP3952056 WP3952056 SWITCH-MTR
WPW10184148 WPW10184148 SWTCH-TEMP
WPW10339879 WPW10339879 TIE-WIRE
WPW10199989 WPW10199989 TIMER
3948614 3948614 TIMER, BLOCK DISCONNECT (NATURAL)
WP8318064 WP8318064 TOP
63849 63849 TUB
WP64208 WP64208 TUBE-SPIN
W10200843 W10200843 USE & CARE GUIDE (ENGLISH/FRENCH)
W10200844 W10200844 USE & CARE GUIDE (SPANISH)
WPW10144820 WPW10144820 VALVE
WP388815 WP388815 WASHER
WP63292 WP63292 WASHER
285587 285587 WASHER
WP3949550 WP3949550 WASHER
285565 285565 WASHER AGITATOR
WP3347288 WP3347288 WASHER AGITATOR
285766 285766 WASHER KIT, THRUST
62619 62619 WASHER, AGITATE GEAR
62618 62618 WASHER, CAM THRUST
W10339251 W10339251 WATER LEVEL SWITCH
WP3363394 WP3363394 WATER PUMP
W10199994 W10199994 WIRING DIAGRAM
