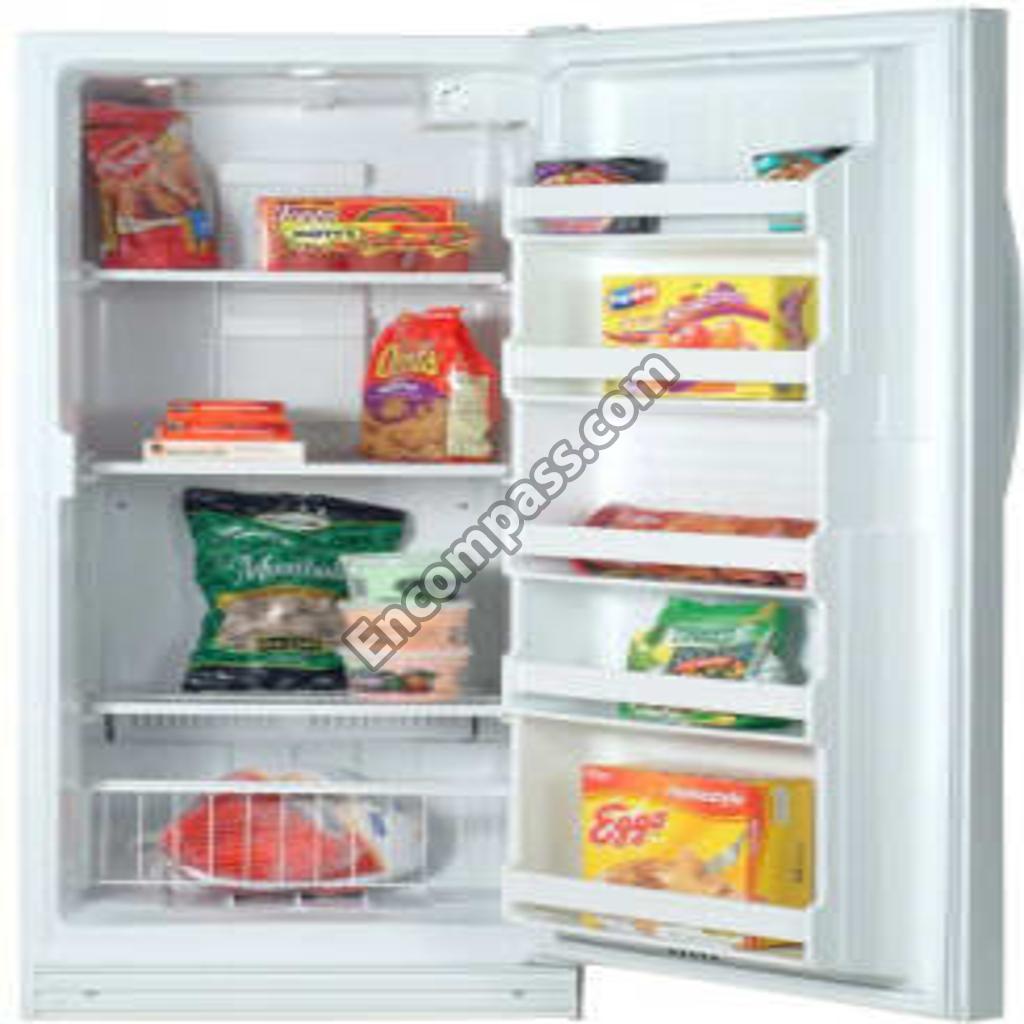

Model Image
Manufacturer

Whirlpool

Model Number

EV120NXRQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP2196003 WP2196003 BARRIER
WP1-81801-001 WP1-81801-001 BIMETL-DEF
W11100462 W11100462 BLADE-FAN
WP8204624 WP8204624 BOLT
8210220 8210220 BOLT
2-80028-101 2-80028-101 BRACKET, FAN
4390731 4390731 BUSHING
N_P N_P CABINET (NOT A SERVICEABLE PART)
8210273 8210273 CAPACITOR
1-80247-101 1-80247-101 CLIP
8210390 8210390 CLIP
W10309989 W10309989 COMPRESSOR
4356335 4356335 COMPRESSOR GROMMET
W10451951 W10451951 CONDENSER
2217635 2217635 COVER
WP4390662 WP4390662 COVER, EVAPORATOR
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
1-60123-001 1-60123-001 COVER, ICEMAKER HOLE
72032 72032 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (BLACK))
72017 72017 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (WHITE))
WP4357136 WP4357136 DOOR GASKET
W10843121 W10843121 DRIER-TUBE
8210387 8210387 ENERGY GUIDE/TAG
8210391 8210391 EVAPORATOR
WP3-80411-103 WP3-80411-103 EVAPORATOR MOTOR
WP4357263 WP4357263 EXCHANGER, HEAT
8210227 8210227 FILLER
4390664 4390664 GASKET, EVAPORATOR COVER (LEFT)
4390663 4390663 GASKET, EVAPORATOR COVER (RIGHT)
4357179 4357179 GATE
4357271 4357271 GRILLE (INCLUDES 6 & 7)
4357020 4357020 GROMMET
W10862416 W10862416 GROMMET, DRAIN
WP3-82013-003 WP3-82013-003 HANDLE KIT (WHITE)
4-81785-001 4-81785-001 HARNESS, FAN
8210389 8210389 HEATER
8210238 8210238 HINGE-DOOR
3-82390-001 3-82390-001 KNOB CONTROL
W11117769 W11117769 LEVELER
3-82130-001 3-82130-001 LIGHT, POWER WARNING
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
2157907 2157907 NAMEPLATE (WHITE)
WP2214067 WP2214067 OVERLOAD
8210432 8210432 OWNERS MANUAL
799344 799344 PAINT
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4357056 4357056 PAN, COMPRESSOR
WP4390675 WP4390675 PAN-DRIP
8210365 8210365 PANEL-EXT
8210393 8210393 PANEL-INT
4-82858-001 4-82858-001 POWER CORD
WP4356738 WP4356738 RELAY-STRT
WP3-24838-048 WP3-24838-048 SCREW
WP3400094 WP3400094 SCREW
60001022 60001022 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP489491 WP489491 SCREW
4390598 4390598 SCREW
4390798 4390798 SCREW
3-80732-001 3-80732-001 SCREW
WP489478 WP489478 SCREW
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
8210336 8210336 SHELF-WIRE
8210337 8210337 SHELF-WIRE
4357128 4357128 SHIELD, MOTOR
4357284 4357284 SHIELD-HT
8210388 8210388 SHIELD-HT
4390489 4390489 SHIM, BOTTOM
4356846 4356846 SLEEVE
350930 350930 SPRAY
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
4357294 4357294 SUPPORT, FENCE (L.H)
4357293 4357293 SUPPORT, FENCE (R.H)
W11238399 W11238399 TAPE
WP4-83053-002 WP4-83053-002 THERMOSTAT
4356952 4356952 THERMOSTAT, CLIP
WP3-81329 WP3-81329 TIMER-DEF
2-81016-105 2-81016-105 TOP HINGE (WHITE)
WP2-82012-001 WP2-82012-001 TRIM, HANDLE
4390606 4390606 TRIM, SHELF (5)
3-24898-007 3-24898-007 VENT PLUG
WP3-80414-103 WP3-80414-103 VENT-PLUG
4356847 4356847 WASHER
W10851331 W10851331 WASHER
