Whirlpool

Model Number

EV150NXEW00

Description

Upright Freezer

Interactive Exploded View

Parts List

Part Number Description
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
WPW10068250 WPW10068250 APPLIANCE SCREW, #8-32 X 0.29-IN
350956 350956 APPLIANCE SPRAY PAINT (ALMOND)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
WP72107 WP72107 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (ALMOND)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
WP8204624 WP8204624 BOLT
4357252 4357252 BRACKET
4357089 4357089 BRACKET
4356941 4356941 CLIP
4356952 4356952 CLIP-THRMT
4357250 4357250 DOOR HINGE
4357145 4357145 DOOR LOCK
4356813 4356813 DOOR TRIM
W10862416 W10862416 DRAIN TUBE
4357253 4357253 DRIP PAN
WP3400094 WP3400094 DRYER SCREW
WP3-80414-103 WP3-80414-103 FREEZER AIR BAFFLE
4356852 4356852 FREEZER COMPRESSOR MOUNTING BOLT
4356847 4356847 FREEZER COMPRESSOR MOUNTING WASHER
WP3-81329 WP3-81329 FREEZER DEFROST TIMER
WP4357099 WP4357099 FREEZER DOOR GASKET
WP4356840 WP4356840 FREEZER DOOR KEY
WP4-81546 WP4-81546 FREEZER EVAPORATOR
WP3-24004-109 WP3-24004-109 FREEZER EVAPORATOR MOUNTING SCREW
4357293 4357293 FREEZER SHELF SUPPORT, RIGHT
4-80576-202 4-80576-202 FREEZER STORAGE GATE SUPPORT RAIL, LEFT
WP4-83053-003 WP4-83053-003 FREEZER TEMPERATURE CONTROL THERMOSTAT
1-80247-101 1-80247-101 FREEZER TOE GRILLE CLIP
4-82315-001 4-82315-001 FREEZER WIRE SHELF
4356927 4356927 GASKET
3-80340-105 3-80340-105 GATE
4357020 4357020 GROMMET
4356335 4356335 GROMMET
4356895 4356895 HANDLE
4357036 4357036 HANDLE INSERT
4-80504-101 4-80504-101 HEAT SHIELD
4390731 4390731 HINGE BUSHING
4357279 4357279 HINGE COVER
2005042 2005042 LIGHT SOCKET
4357224 4357224 LOCK BOLT
4356842 4356842 LOCK CLIP
4357128 4357128 MOTOR BRACKET
2-80028-101 2-80028-101 MOTOR BRACKET
4356661 4356661 OVERLOAD
4-82684-003 4-82684-003 PAN COMPRESSOR
4357249 4357249 PANL WH T
4356812 4356812 PLATE
1-81154 1-81154 PLATE
W11175809 W11175809 REFRIGERATION APPLIANCE DEFROST HEATER
WPW10662129 WPW10662129 REFRIGERATION APPLIANCE RUN CAPACITOR
3-24898-007 3-24898-007 REFRIGERATOR BREATHER VALVE
W10309990 W10309990 REFRIGERATOR COMPRESSOR
WP4387501 WP4387501 REFRIGERATOR DEFROST BI-METAL THERMOSTAT
876370 876370 REFRIGERATOR DOOR INSULATION, 2-PIECE
W11384469 W11384469 REFRIGERATOR DOOR SWITCH
WP3-80411-103 WP3-80411-103 REFRIGERATOR EVAPORATOR FAN MOTOR
WP4357245 WP4357245 REFRIGERATOR EXCHANGER
W11100462 W11100462 REFRIGERATOR FAN BLADE
W10843121 W10843121 REFRIGERATOR FILTER DRYER
W11117769 W11117769 REFRIGERATOR LEVELER

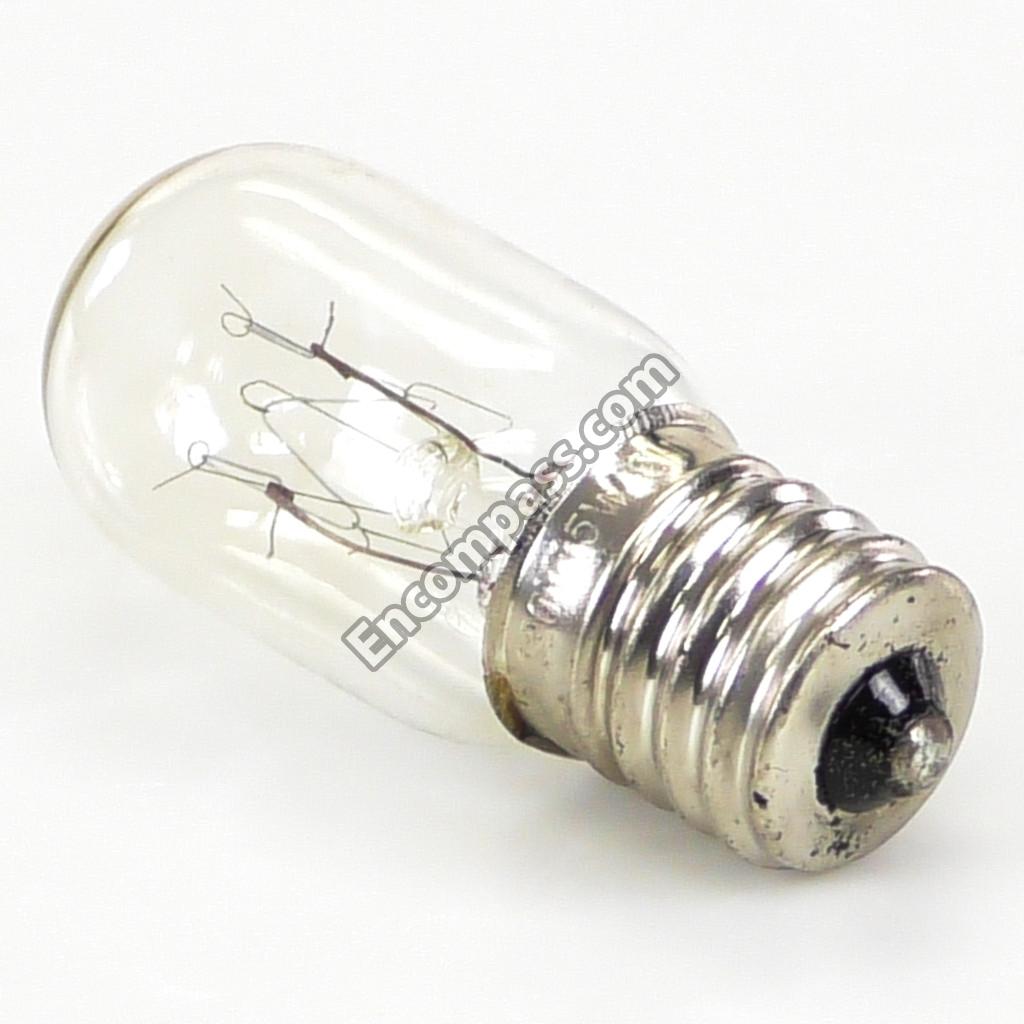

WP1-24397-001 WP1-24397-001 REFRIGERATOR LIGHT BULB
WP505587 WP505587 REFRIGERATOR MASTIC SEALER
WP4390870 WP4390870 REFRIGERATOR PANEL
WP503695 WP503695 REFRIGERATOR PERMAGUM SEALER
212643 212643 REFRIGERATOR PERMAGUM SEALER
WP3-24838-048 WP3-24838-048 REFRIGERATOR SCREW
W11233072 W11233072 REFRIGERATOR SCREW
WP489478 WP489478 REFRIGERATOR SCREW
WP2196003 WP2196003 REFRIGERATOR THERMOSTAT SENSOR BARRIER
WP4-60461-005 WP4-60461-005 REFRIGERATOR TOE GRILLE
W11238399 W11238399 REFRIGERATOR VINYL TAPE
W10851331 W10851331 REFRIGERATOR WASHER
4356951 4356951 RETAINER
60001022 60001022 SCREW
3-80732-001 3-80732-001 SCREW
4357139 4357139 SCREW
4356828 4356828 SHIM
4390489 4390489 SHIM
4356846 4356846 SLEEVE
4356730 4356730 START RELAY
1105055 1105055 TERMINAL COVER
4357040 4357040 THERMOSTAT KNOB
978883 978883 TOUCH-UP PAINT (ALMOND)
3-25095-011 3-25095-011 TUBE CLAMP
4356992 4356992 WASHER
4-82314-001 4-82314-001 WIRE SHELF
