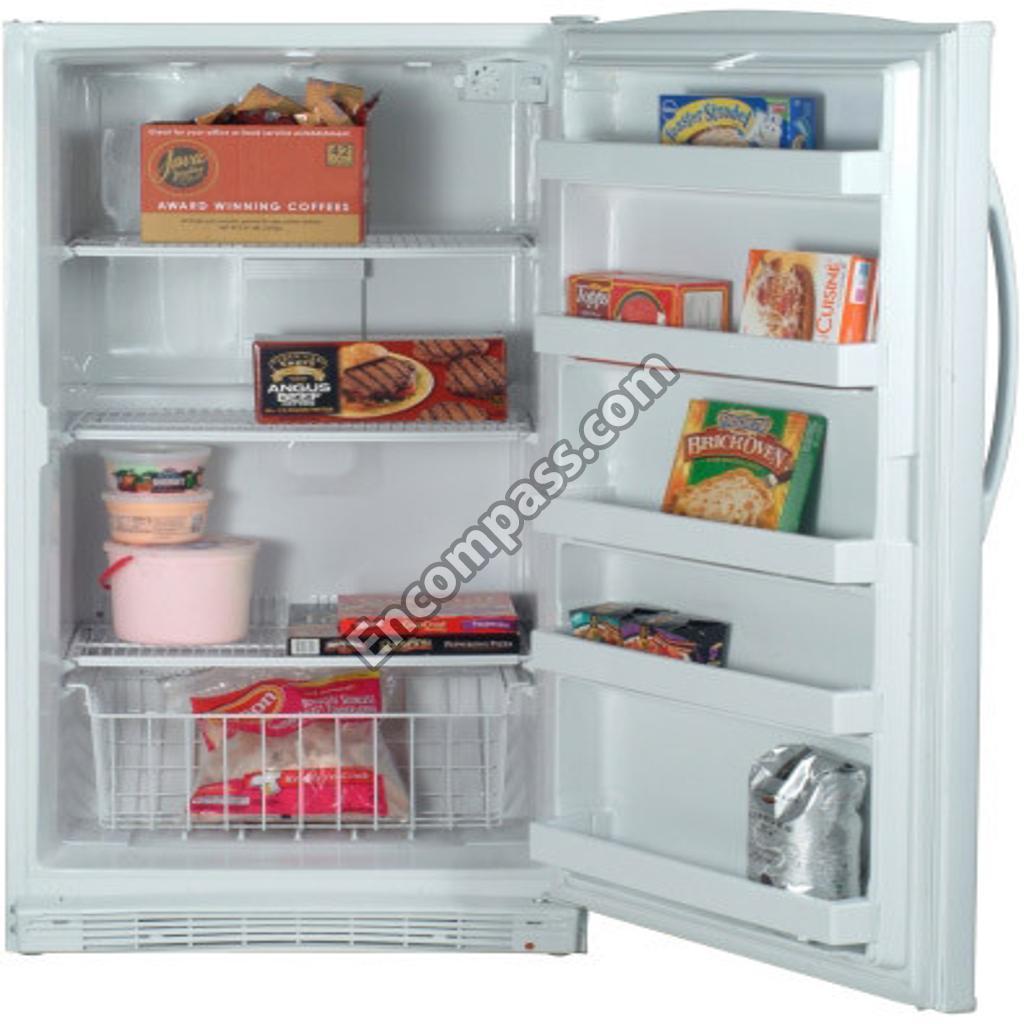

Model Image
Manufacturer

Whirlpool

Model Number

EV161NZRQ05

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3-82728-001 3-82728-001 ALARM (BUZZER)
WP2196003 WP2196003 BARRIER
W10508628 W10508628 BASKET, WIRE
WP1-81801-001 WP1-81801-001 BIMETL-DEF
WPW10445742 WPW10445742 BLADE-FAN
1-80252-101 1-80252-101 BLOCK, FOAM
WP8204624 WP8204624 BOLT
8210220 8210220 BOLT
4390708 4390708 BOX, CONTROL
4-82389-005 4-82389-005 BOX, CONTROL
2-80028-101 2-80028-101 BRACKET, FAN
4390731 4390731 BUSHING, HINGE
100000 100000 CABINET, (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 CAPACITOR
488946 488946 CLAMP, TUBING
WP2255411 WP2255411 CLIP
1-80247-101 1-80247-101 CLIP
4356952 4356952 CLIP, THERMOSTAT
W10309990 W10309990 COMPRESSOR
4356335 4356335 COMPRESSOR GROMMET
W10451951 W10451951 CONDENSER
2217635 2217635 COVER
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
W10189623 W10189623 COVEREVAP
72017 72017 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (WHITE))
WP4-65151-001 WP4-65151-001 DOOR GASKET
8210357 8210357 DOR-FMD WH
W10843121 W10843121 DRIER-TUBE
W10270477 W10270477 ENERGY LABEL/TAG
WP4-81546 WP4-81546 EVAPORATOR
WP3-60336-001 WP3-60336-001 EVAPORATOR MOTOR
WP4357263 WP4357263 EXCHANGER, HEAT
4390664 4390664 GASKET, COVER EVAPORATOR (LEFT)
4390663 4390663 GASKET, COVER EVAPORATOR (RIGHT)
4-60461-001 4-60461-001 GRILLE
4357020 4357020 GROMMET
W10862416 W10862416 GROMMET, DRAIN
2313345W 2313345W HANDLE
4-81785-001 4-81785-001 HARNS-WIRE
8201749 8201749 HEATER
8210238 8210238 HINGE-DOOR
3-82390-001 3-82390-001 KNOB CONTROL
3-82391-001 3-82391-001 LENS
W11117769 W11117769 LEVELER
W11679940 W11679940 LIGHT BULB
3-82130-001 3-82130-001 LIGHT, POWER WARNING
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
WP2213265 WP2213265 NAMEPLATE
WP2149959 WP2149959 OVERLOAD
8210432 8210432 OWNERS MANUAL
799344 799344 PAINT
4-82684-003 4-82684-003 PAN, COMPRESSOR
WP4390675 WP4390675 PAN-DRIP
4-80504-101 4-80504-101 PLATE, EVAPORATOR MOUNT
4-82858-001 4-82858-001 POWER CORD
W10737497 W10737497 RAIL, DOOR SHELF
WP4356738 WP4356738 RELAY-STRT
WP8533920 WP8533920 SCREW
WP489491 WP489491 SCREW
WP3-24838-048 WP3-24838-048 SCREW
WP3400094 WP3400094 SCREW
WP3-24004-109 WP3-24004-109 SCREW
60001022 60001022 SCREW
WPW10068250 WPW10068250 SCREW
3-24004-049 3-24004-049 SCREW
WP489478 WP489478 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
4-82315-001 4-82315-001 SHELF-WIRE
8210347 8210347 SHELF-WIRE
8210351 8210351 SHIELD-HT
W10164624 W10164624 SHIELD-HT
4390489 4390489 SHIM, HINGE
4356846 4356846 SLEEVE
WP3-82393-001 WP3-82393-001 SOCKET
350930 350930 SPRAY
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
W11384469 W11384469 SWITCH
W10406953 W10406953 SWITCH, ALARM (ILLUMINATED)
W11238399 W11238399 TAPE
WP4-83053-002 WP4-83053-002 THERMOSTAT
WP3-81329 WP3-81329 TIMER-DEF
2-81016-105 2-81016-105 TOP HINGE (WHITE)
3-24898-007 3-24898-007 VENT PLUG
WP3-80414-103 WP3-80414-103 VENT-PLUG
4356847 4356847 WASHER
W10851331 W10851331 WASHER
