Model Image
Manufacturer

Whirlpool

Model Number

EV161NZTQ02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3-82728-001 3-82728-001 ALARM (BUZZER)
W10508628 W10508628 BASKET, WIRE
WPW10491891 WPW10491891 BIMETL-DEF
WP2169142 WP2169142 BLADE-FAN
W10452121 W10452121 BLOCK-EVAP
WP8204624 WP8204624 BOLT
8210220 8210220 BOLT, COMPRESSOR
4-82389-005 4-82389-005 BOX, CONTROL
13058002 13058002 BRACKET, MOTOR
1-34291-002 1-34291-002 BULB, LIGHT
N_P N_P CABINET (NOT A SERVICEABLE PART)
4387478 4387478 CAPACITOR (SERVICE)
3-25095-011 3-25095-011 CLAMP, TUBE
W10309990 W10309990 COMPRESSOR
W10451951 W10451951 CONDENSER
3-80838-003 3-80838-003 COVER, HINGE
W10452370 W10452370 COVER-EVAP
72017 72017 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (WHITE))
W10296534 W10296534 DOOR ASSEMBLY (INCLUDES INTERIOR LINER)
WP4-65151-001 WP4-65151-001 DOOR GASKET
W10843121 W10843121 DRIER-TUBE
W10326805 W10326805 ENERGY LABEL/TAG

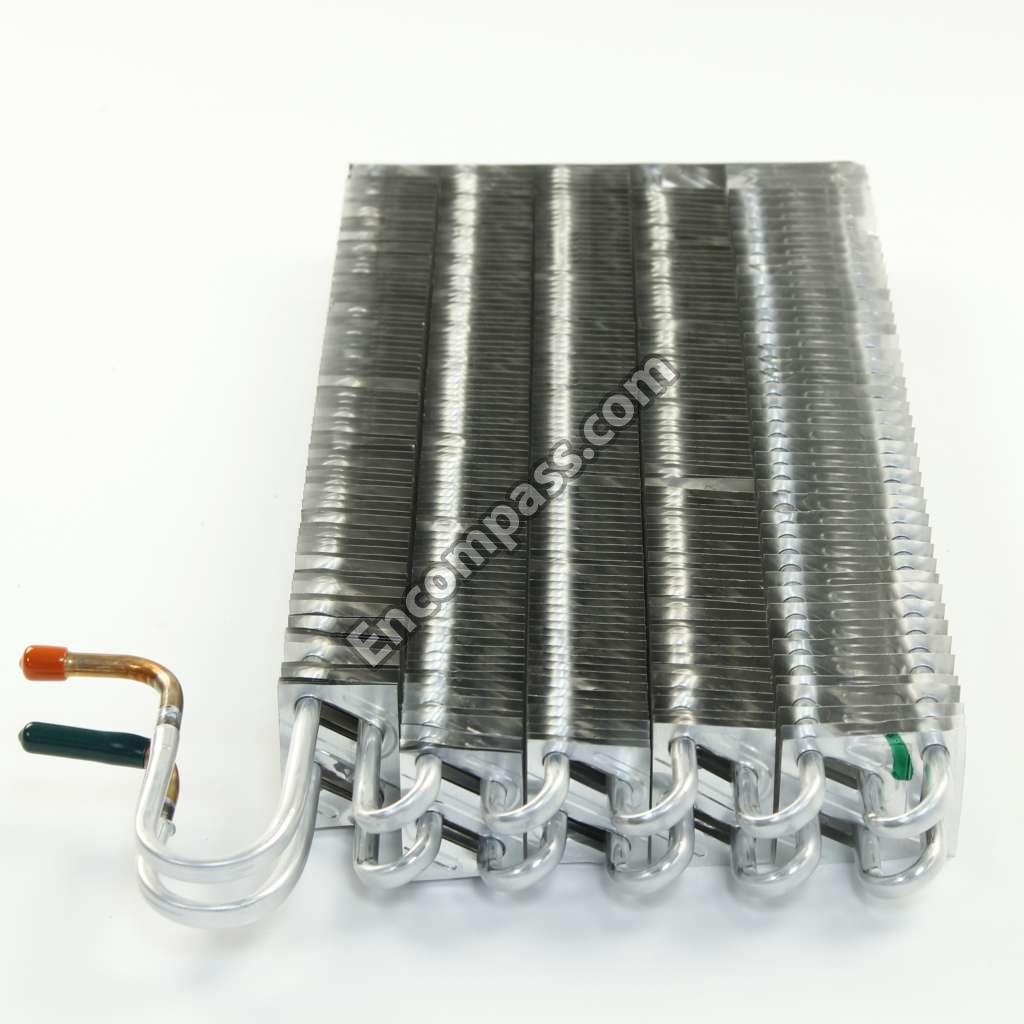

WPW10455861 WPW10455861 EVAPORATOR
WPW10236142 WPW10236142 EVAPORATOR MOTOR
WPW10474988 WPW10474988 EXCHANGER
3-60180-002 3-60180-002 GASKET, COVER EVAPORATOR (LEFT)
3-60180-001 3-60180-001 GASKET, COVER EVAPORATOR (RIGHT)
4-60461-001 4-60461-001 GRILLE
4357020 4357020 GROMMET
WP2163786 WP2163786 GROMMET
W10862416 W10862416 GROMMET, DRAIN
WPW10127761K WPW10127761K HANDLE
W10507269 W10507269 HARNESS
WPW10486820 WPW10486820 HEATER
4-82693-002 4-82693-002 HINGE, BOTTOM
2-81016-105 2-81016-105 HINGE, TOP
3-82390-001 3-82390-001 KNOB, CONTROL
WP3-82710-001 WP3-82710-001 LEVELER
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11178521 W11178521 NAMEPLATE
WP2187145 WP2187145 OVERLOAD
W10326799 W10326799 OWNERS MANUAL
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
WPW10470130 WPW10470130 PAN-COMPRS
WP4390675 WP4390675 PAN-DRIP
2-25702-008 2-25702-008 PLUG, HOLE
WP2189000 WP2189000 PLUG-HNDLE
4-82858-001 4-82858-001 POWER CORD
3-82130-001 3-82130-001 POWER LIGHT ASSEMBLY
WP4-65450-001 WP4-65450-001 RAIL
799344 799344 REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UNCUT))
WPW10466655 WPW10466655 RELAY-STRT
WPW10288153 WPW10288153 SCREW
10623002 10623002 SCREW
WP3-24838-048 WP3-24838-048 SCREW
60001022 60001022 SCREW
4391961 4391961 SCREW
WP489478 WP489478 SCREW
W10451793 W10451793 SCREW
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
4-82314-001 4-82314-001 SHELF, LOWER WIRE
4-82315-001 4-82315-001 SHIELD, LIGHT
W10452115 W10452115 SHIELD-HT
W10508692 W10508692 SHIELD-HT
2-81125-001 2-81125-001 STOP-DOOR
W11384469 W11384469 SWITCH
W10406953 W10406953 SWITCH
W11238399 W11238399 TAPE

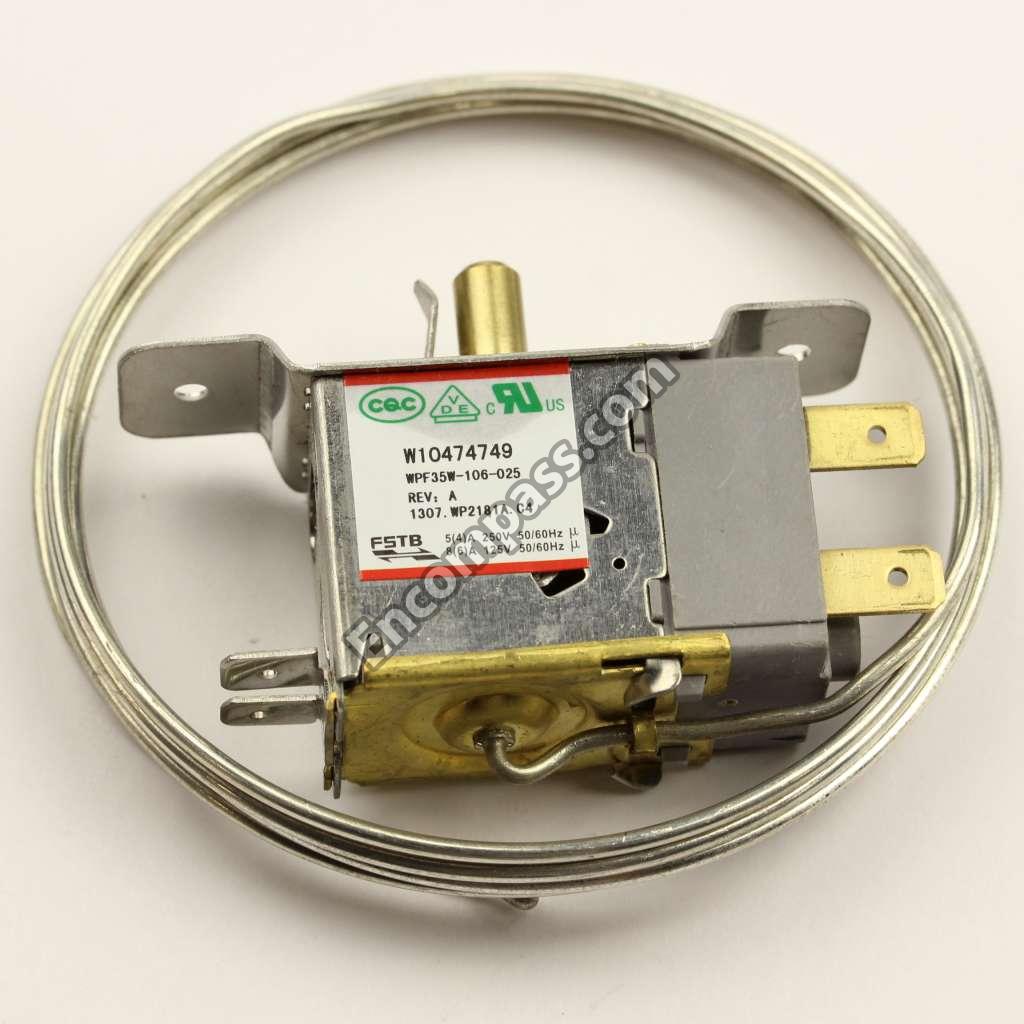

WPW10474749 WPW10474749 THERMOSTAT
WP3-81329 WP3-81329 TIMER-DEF
WP3-80414-103 WP3-80414-103 VENT-PLUG
4356847 4356847 WASHER
