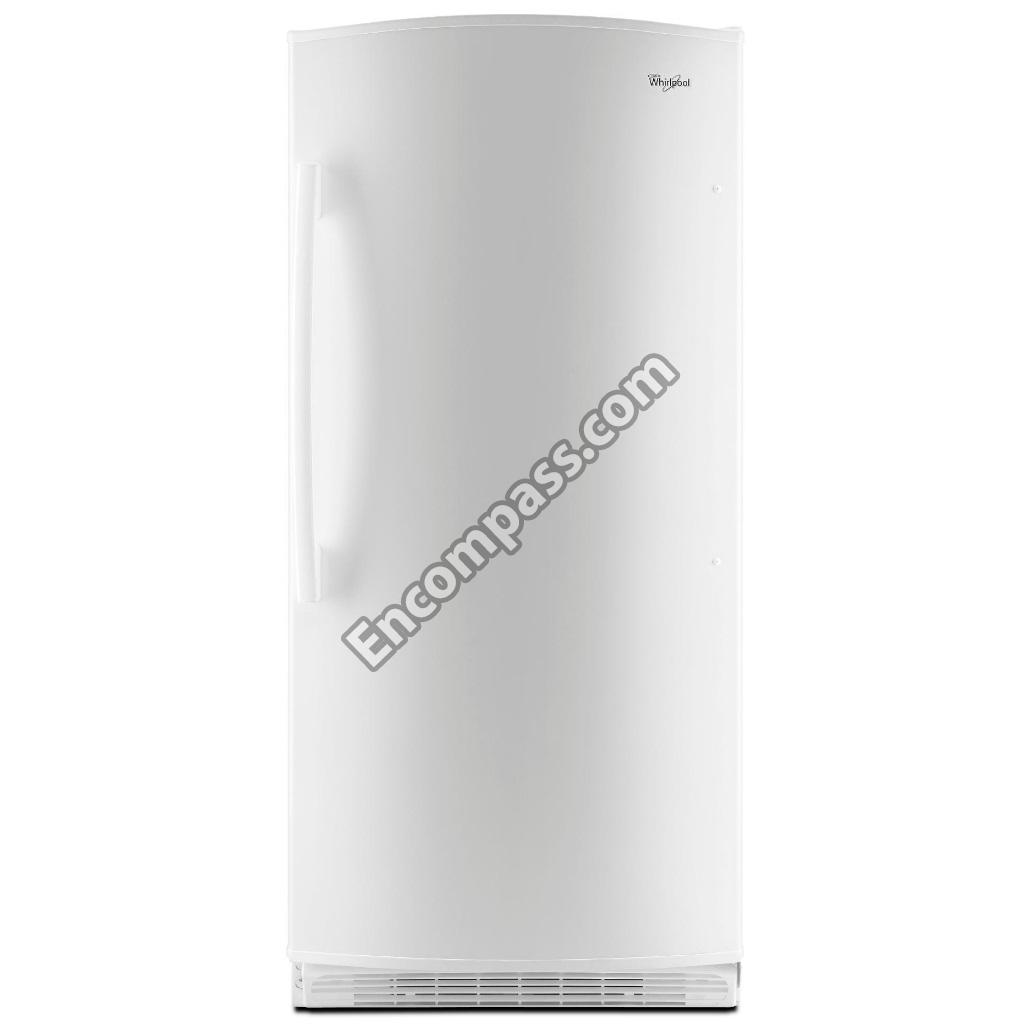

Model Image
Manufacturer

Whirlpool

Model Number

EV181FZTQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP2196003 WP2196003 BARRIER
W10508628 W10508628 BASKET, WIRE
WP8204624 WP8204624 BOLT
4357250 4357250 BOTTOM HINGE (WHITE)
4-82389-002 4-82389-002 BOX, CONTROL
N_P N_P CABINET (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 CAPACITOR
1-80308-101 1-80308-101 CLAMP
488946 488946 CLAMP, TUBING
1-80247-101 1-80247-101 CLIP
W10309990 W10309990 COMPRESSOR
2217635 2217635 COVER
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
WP4-65151-002 WP4-65151-002 DOOR GASKET
W10296435 W10296435 DOR-FMD WH
1-80860 1-80860 DRAIN PLUG
W10843121 W10843121 DRIER-TUBE
W10296537 W10296537 ENERGY LABEL/TAG
4-82416-001 4-82416-001 EVAPORATOR
WP4-60461-005 WP4-60461-005 GRILLE
4356335 4356335 GROMMET
2-81437-002 2-81437-002 GROMMET, DRAIN
WP2254600W WP2254600W HANDLE
2-82030-005 2-82030-005 HEAT EXCHANGER
3-82390-001 3-82390-001 KNOB CONTROL
3-82391-001 3-82391-001 LENS
WP3-82710-001 WP3-82710-001 LEVELER
W11679940 W11679940 LIGHT BULB
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
2157907 2157907 NAMEPLATE (WHITE)
WP2149959 WP2149959 OVERLOAD
8210432 8210432 OWNERS MANUAL
799344 799344 PAINT
4-82684-003 4-82684-003 PAN, COMPRESSOR MOUNTING
4-82858-001 4-82858-001 POWER CORD
WP4-65427-001 WP4-65427-001 RAIL
WP4356738 WP4356738 RELAY-STRT
WP8533976 WP8533976 SCREW
WP488163 WP488163 SCREW
WP3-24838-048 WP3-24838-048 SCREW
WP3-24004-109 WP3-24004-109 SCREW
4390798 4390798 SCREW
3-24004-049 3-24004-049 SCREW
4357139 4357139 SCREW
4356852 4356852 SCREW, COMPRESSOR MOUNTING
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
8210351 8210351 SHIELD-HT
4390489 4390489 SHIM
WP3-82393-001 WP3-82393-001 SOCKET
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
WPW10170540 WPW10170540 STUD-HNDLE
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WP4-83053-001 WP4-83053-001 THERMOSTAT
2-81016-105 2-81016-105 TOP HINGE (WHITE)
WP72107 WP72107 TUCHUP
3-24898-007 3-24898-007 VENT PLUG
W10903204 W10903204 WASHER
W10851331 W10851331 WASHER
