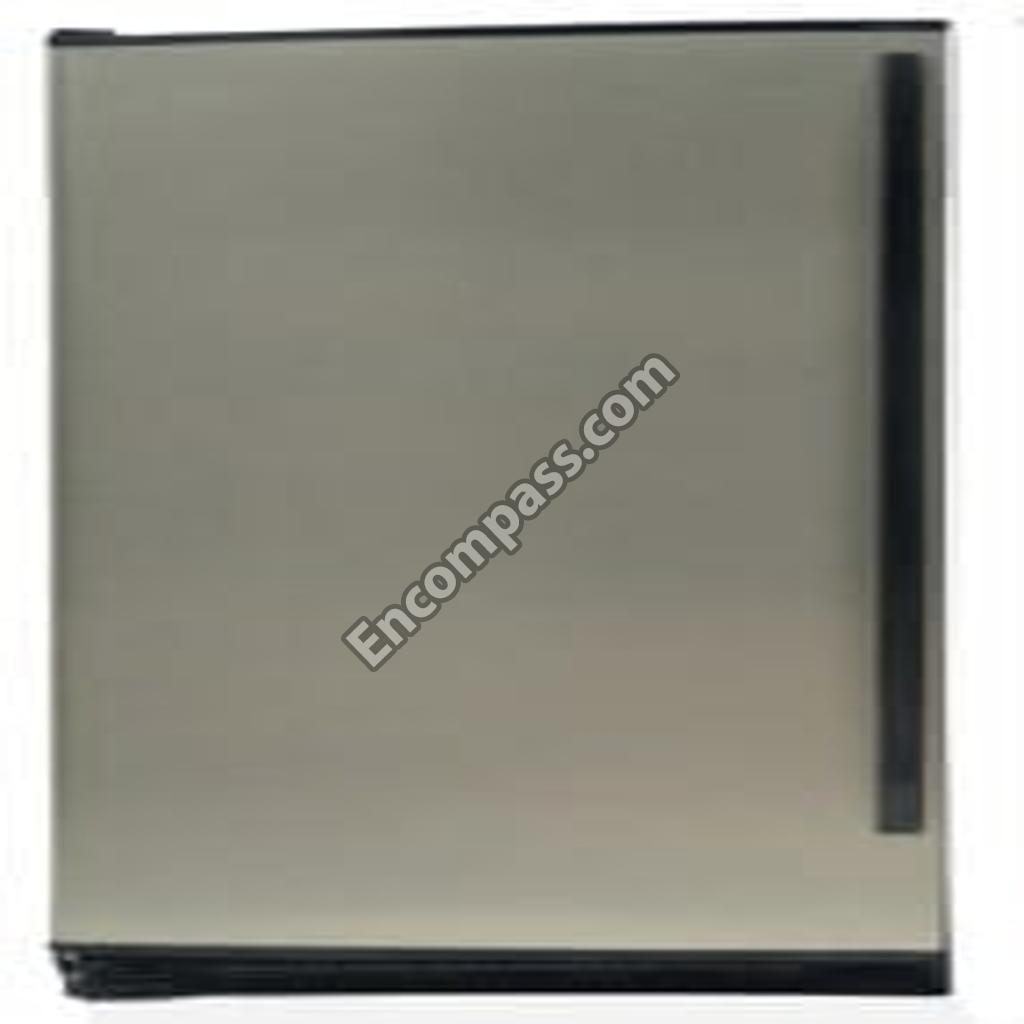

Model Image
Manufacturer

Whirlpool

Model Number

EV187NYRS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4390755 4390755 Whirlpool AXLE
4390818 4390818 Whirlpool BASKET, MIDDLE
W10508628 W10508628 Whirlpool BASKET, WIRE
WP1-81801-001 WP1-81801-001 Whirlpool BIMETL-DEF
WP4-65454-001 WP4-65454-001 Whirlpool BIN-CNTLVR
W11100462 W11100462 Whirlpool BLADE-FAN
WP8204624 WP8204624 Whirlpool BOLT
8210220 8210220 Whirlpool BOLT
4357250 4357250 Whirlpool BOTTOM HINGE (WHITE)
8210265 8210265 Whirlpool BRACKET
2-80028-101 2-80028-101 Whirlpool BRACKET, FAN
4390744 4390744 Whirlpool BRACKET, LIGHT
4390869 4390869 Whirlpool BUSHING (BLACK)
4390731 4390731 Whirlpool BUSHING (WHITE)
100000 100000 Whirlpool CABINET, (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 Whirlpool CAPACITOR
WP2255411 WP2255411 Whirlpool CLIP
1-80247-101 1-80247-101 Whirlpool CLIP
4356952 4356952 Whirlpool CLIP, THERMOSTAT
W10309994 W10309994 Whirlpool COMPRESSOR
4356335 4356335 Whirlpool COMPRESSOR GROMMET
8210243 8210243 Whirlpool CONDENSER
2217635 2217635 Whirlpool COVER
WP4390662 WP4390662 Whirlpool COVER, EVAPORATOR
3-80838-003 3-80838-003 Whirlpool COVER, HINGE (WHITE)
1-60123-001 1-60123-001 Whirlpool COVER, ICEMAKER HOLE
WP8210368 WP8210368 Whirlpool DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER) (SATINA)
WP8210360 WP8210360 Whirlpool DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER) (WHITE)
WP4-65151-002 WP4-65151-002 Whirlpool DOOR GASKET
8210367 8210367 Whirlpool DOR-FIP SS
4390932 4390932 Whirlpool DRAIN PAN
W10843121 W10843121 Whirlpool DRIER-TUBE
8210209 8210209 Whirlpool ENERGY GUIDE/TAG
WP4-81546 WP4-81546 Whirlpool EVAPORATOR
WP3-80411-103 WP3-80411-103 Whirlpool EVAPORATOR MOTOR
WP4357263 WP4357263 Whirlpool EXCHANGER, HEAT
8210227 8210227 Whirlpool FILLER
8210228 8210228 Whirlpool FILLER
4390664 4390664 Whirlpool GASKET, EVAPORATOR COVER (LEFT)
4390663 4390663 Whirlpool GASKET, EVAPORATOR COVER (RIGHT)
8210343 8210343 Whirlpool GASKET-DOR
WP4-60461-005 WP4-60461-005 Whirlpool GRILLE
8210294 8210294 Whirlpool GRILLE
4357020 4357020 Whirlpool GROMMET
W10862416 W10862416 Whirlpool GROMMET, DRAIN
WP2254600S WP2254600S Whirlpool HANDLE
W10187086 W10187086 Whirlpool HANDLE
2313345W 2313345W Whirlpool HANDLE
8210394 8210394 Whirlpool HARNS-WIRE
W11175809 W11175809 Whirlpool HEATER
4390763 4390763 Whirlpool HINGE COVER (BLACK)
8210235 8210235 Whirlpool HINGE-DOOR
8210251 8210251 Whirlpool HINGE-DOOR
W11700559 W11700559 Whirlpool ICEMAKER
4-81294-004 4-81294-004 Whirlpool KNOB, THERMOSTAT
W11117769 W11117769 Whirlpool LEVELER
W11679940 W11679940 Whirlpool LIGHT BULB
876370 876370 Whirlpool MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
WP2213265 WP2213265 Whirlpool NAMEPLATE
2157907 2157907 Whirlpool NAMEPLATE (WHITE)
2-34286-021 2-34286-021 Whirlpool OVERLOAD
8210432 8210432 Whirlpool OWNERS MANUAL
799344 799344 Whirlpool PAINT
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 Whirlpool PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
8210202 8210202 Whirlpool PAN-COMPRS
8210211 8210211 Whirlpool PIN-ROLLER
4-80504-101 4-80504-101 Whirlpool PLATE, EVAPORATOR MOUNT
1-81154 1-81154 Whirlpool PLATE, THERMOSTAT
WP2189000 WP2189000 Whirlpool PLUG-HNDLE
4390820 4390820 Whirlpool RAIL, BASKET (LEFT)
4-60222-002 4-60222-002 Whirlpool RAIL, BASKET (RIGHT)
WP4356738 WP4356738 Whirlpool RELAY-STRT
3-60315-001 3-60315-001 Whirlpool ROLLER, FRONT
8210210 8210210 Whirlpool ROLLER-CAB
WP3400094 WP3400094 Whirlpool SCREW
60001022 60001022 Whirlpool SCREW
WP488163 WP488163 Whirlpool SCREW
WP8533976 WP8533976 Whirlpool SCREW
WP489491 WP489491 Whirlpool SCREW
W11233072 W11233072 Whirlpool SCREW
4358067 4358067 Whirlpool SCREW
WP3-24838-048 WP3-24838-048 Whirlpool SCREW
WP489478 WP489478 Whirlpool SCREW
4390822 4390822 Whirlpool SCREW (1 1/2``)
WP505587 WP505587 Whirlpool SEALER
WP503695 WP503695 Whirlpool SEALER
212643 212643 Whirlpool SEALER-GUM
4390817 4390817 Whirlpool SHELF, MIDDLE
W10569106 W10569106 Whirlpool SHELF, TOP
4357128 4357128 Whirlpool SHIELD, MOTOR
4357284 4357284 Whirlpool SHIELD-HT
WP3-60197-001 WP3-60197-001 Whirlpool SHIELD-HT
4390489 4390489 Whirlpool SHIM, BOTTOM
4356846 4356846 Whirlpool SLEEVE
4390466 4390466 Whirlpool SOCKET, LAMP
350930 350930 Whirlpool SPRAY
4390823 4390823 Whirlpool STOP, BASKET
2-81124-001 2-81124-001 Whirlpool STOP, DOOR (TOP) (NATURAL)
8210402 8210402 Whirlpool STOP-DOOR
WPW10170540 WPW10170540 Whirlpool STUD-HNDLE
W11384469 W11384469 Whirlpool SWITCH
W11238399 W11238399 Whirlpool TAPE
WP4-83053-003 WP4-83053-003 Whirlpool THERMOSTAT
WP3-81329 WP3-81329 Whirlpool TIMER-DEF
4390673 4390673 Whirlpool TOP, HINGE (WHITE)
4-65449-001 4-65449-001 Whirlpool TRIM-DOOR
3-24898-007 3-24898-007 Whirlpool VENT PLUG
WP3-80414-103 WP3-80414-103 Whirlpool VENT-PLUG
4356847 4356847 Whirlpool WASHER
W10851331 W10851331 Whirlpool WASHER
