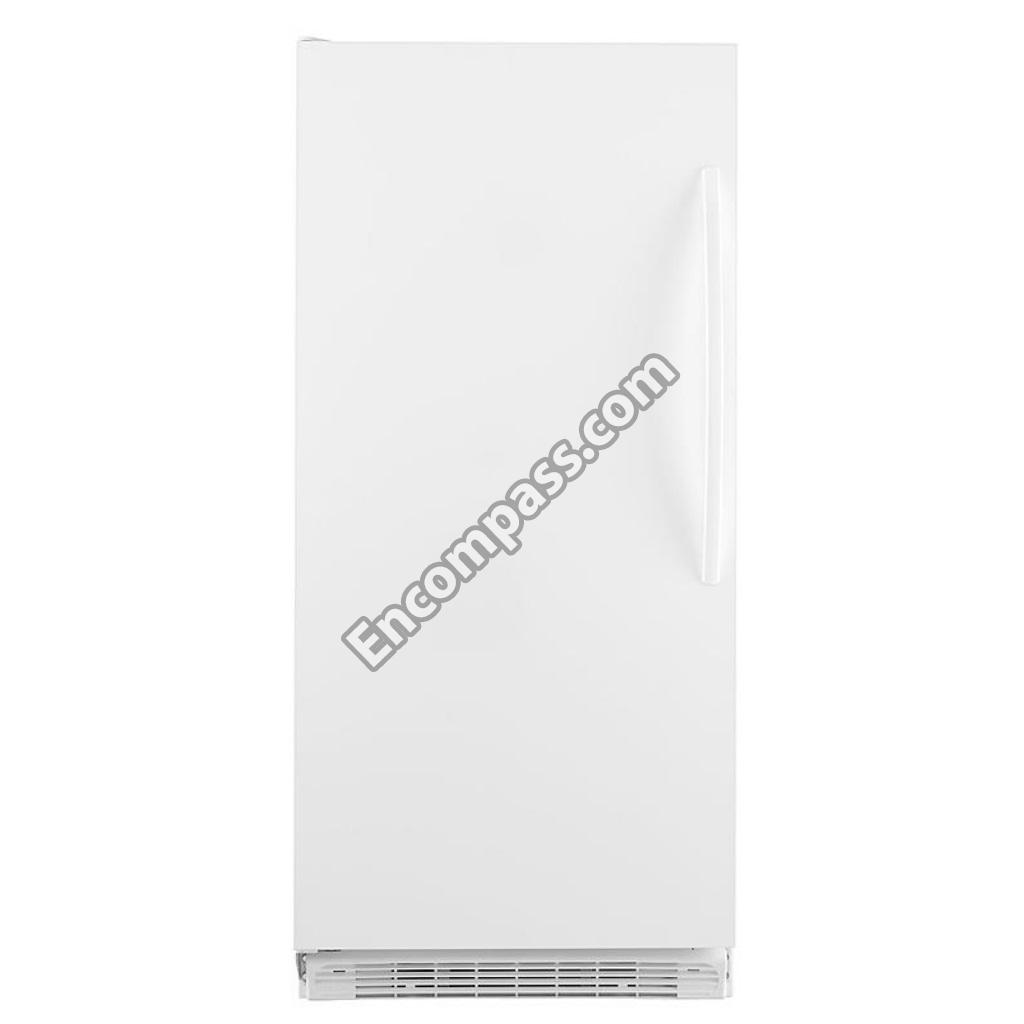

Model Image
Manufacturer

Whirlpool

Model Number

EV188NYWQ01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4390755 4390755 AXLE
W10508628 W10508628 BASKET, WIRE
W10508630 W10508630 BASKET, WIRE
WP1-81801-001 WP1-81801-001 BIMETL-DEF
WPW10445742 WPW10445742 BLADE-FAN
1-80252-101 1-80252-101 BLOCK, FOAM
WP8204624 WP8204624 BOLT
8210220 8210220 BOLT
4-82693-012 4-82693-012 BOTTOM HINGE (BLACK)
68001628 68001628 BOTTOM HINGE (WHITE)
8210265 8210265 BRACKET
4-60201-001 4-60201-001 BRACKET
2-80028-101 2-80028-101 BRACKET, FAN
3-60199-004 3-60199-004 BUSHING
4390731 4390731 BUSHING (WHITE)
N_P N_P CABINET (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 CAPACITOR
WP2255411 WP2255411 CLIP
4356952 4356952 CLIP, THERMOSTAT
W10309994 W10309994 COMPRESSOR
4356335 4356335 COMPRESSOR GROMMET
4-82683-001 4-82683-001 CONDENSER
2217635 2217635 COVER
WP4-65454-001 WP4-65454-001 COVER
3-80838-007 3-80838-007 COVER
WP4390662 WP4390662 COVER, EVAPORATOR
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
1-60123-001 1-60123-001 COVER, ICEMAKER HOLE
72032 72032 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (BLACK))
72017 72017 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (WHITE))
4-82573-002 4-82573-002 DIFFUSER
4-82556-002 4-82556-002 DIFFUSER, AIR UPR
W10271516 W10271516 DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER)
W10338072 W10338072 DOOR ASSEMBLY WH
WP4-65151-010 WP4-65151-010 DOOR GASKET
WP4-65151-002 WP4-65151-002 DOOR GASKET
W10843121 W10843121 DRIER-TUBE
W10326807 W10326807 ENERGY GUIDE/TAG
WP4-81546 WP4-81546 EVAPORATOR
WP3-60336-001 WP3-60336-001 EVAPORATOR MOTOR
8210227 8210227 FILLER
8210228 8210228 FILLER
4390664 4390664 GASKET, COVER EVAPORATOR (LEFT)
4390663 4390663 GASKET, COVER EVAPORATOR (RIGHT)
WP4-60461-005 WP4-60461-005 GRILLE
WP4-60461-010 WP4-60461-010 GRILLE
4357020 4357020 GROMMET
W10862416 W10862416 GROMMET, DRAIN
3-82596-002 3-82596-002 HANDLE
3-82596-003 3-82596-003 HANDLE
WP4357263 WP4357263 HEAT, EXCHANGER

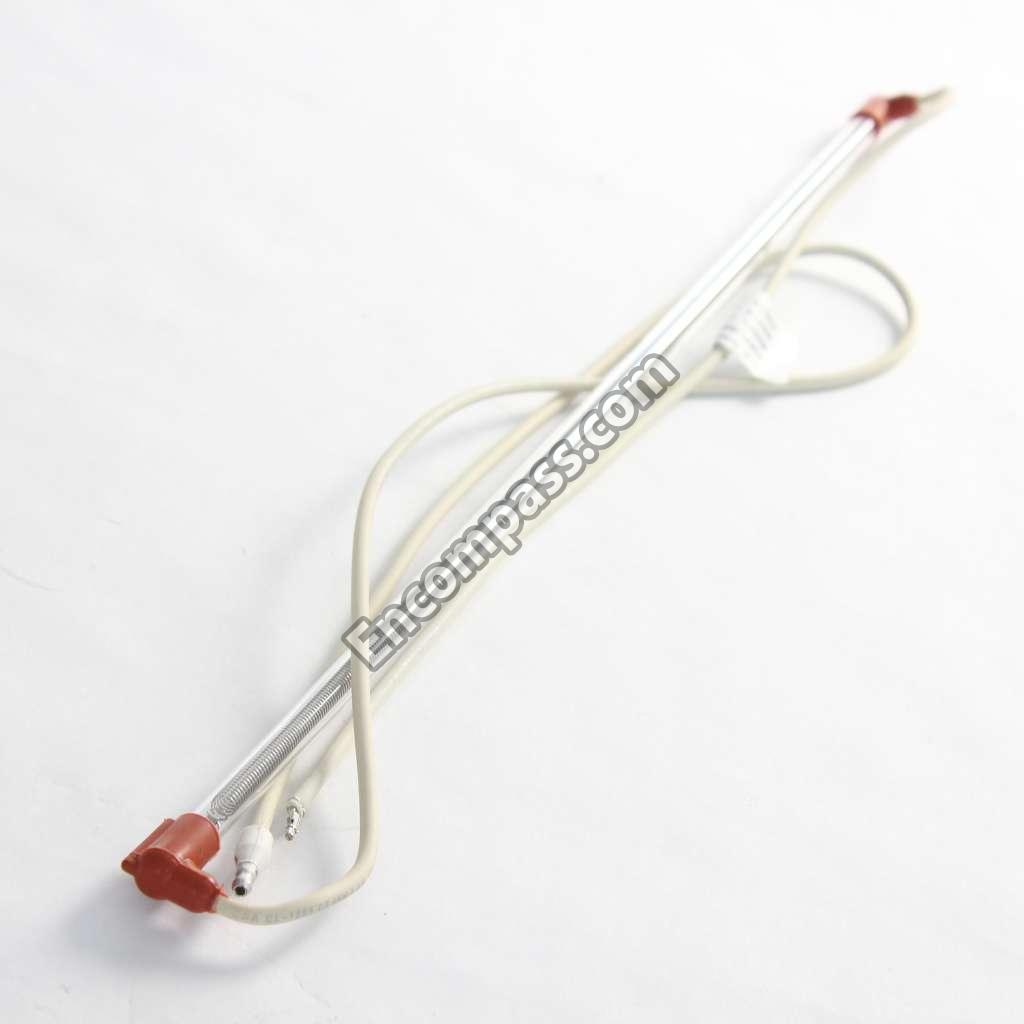

WP3-80405-003 WP3-80405-003 HEATER
2-81016-105 2-81016-105 HINGE-DOOR
W10260541 W10260541 HINGE-DOOR
4-60185-002 4-60185-002 HOUSING
W11700559 W11700559 ICEMAKER
4-81294-004 4-81294-004 KNOB, THERMOSTAT
WP3-82710-001 WP3-82710-001 LEVELER
W11679940 W11679940 LIGHT BULB
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
WP2213265 WP2213265 NAMEPLATE
2157907 2157907 NAMEPLATE (WHITE)
WP2183456 WP2183456 OVERLOAD
W10326801 W10326801 OWNERS MANUAL
799344 799344 PAINT
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4-82749-001 4-82749-001 PAN
WPW10470129 WPW10470129 PAN-COMPRS
4-80504-101 4-80504-101 PLATE, EVAPORATOR MOUNT
1-81154 1-81154 PLATE, THERMOSTAT
4-82858-001 4-82858-001 POWER CORD
4390820 4390820 RAIL, BASKET (LEFT)
4-60222-002 4-60222-002 RAIL, BASKET (RIGHT)
3-60315-001 3-60315-001 ROLLER, FRONT
WP3400094 WP3400094 SCREW
60001022 60001022 SCREW
W11233072 W11233072 SCREW
WP489491 WP489491 SCREW
WPW10068250 WPW10068250 SCREW
WP3-24838-048 WP3-24838-048 SCREW
WP489478 WP489478 SCREW
4390822 4390822 SCREW (1 1/2``)
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
4390817 4390817 SHELF, MIDDLE
W10569106 W10569106 SHELF, TOP
4357128 4357128 SHIELD, MOTOR
WP3-60197-001 WP3-60197-001 SHIELD-HT
W10164624 W10164624 SHIELD-HT
4390489 4390489 SHIM, BOTTOM
4356846 4356846 SLEEVE
350930 350930 SPRAY
WPW10189190 WPW10189190 START-DEV
4390823 4390823 STOP, BASKET
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
8210402 8210402 STOP-DOOR
2-81124-004 2-81124-004 STOP-DOOR
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WP4-83053-003 WP4-83053-003 THERMOSTAT
WP3-81329 WP3-81329 TIMER-DEF
4-65449-001 4-65449-001 TRIM-DOOR
3-24898-007 3-24898-007 VENT PLUG
WP3-80414-103 WP3-80414-103 VENT-PLUG
4356847 4356847 WASHER
W10851331 W10851331 WASHER
