Model Image
Manufacturer

Whirlpool

Model Number

EV201NXMQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4390755 4390755 AXLE
WP2196003 WP2196003 BARRIER
W10508627 W10508627 BASKET
WP4387501 WP4387501 BIMETL-DEF
72032 72032 BLACK
WP8204624 WP8204624 BOLT
2-80028-101 2-80028-101 BRACKET, FAN
4390744 4390744 BRACKET, LIGHT
4390731 4390731 BUSHING
100000 100000 CABINET (NOT A SERVICEABLE PART)
4356665 4356665 CAPACITOR
1-80247-101 1-80247-101 CLIP
W10309994 W10309994 COMPRESSOR
4356335 4356335 COMPRESSOR GROMMET
W10451951 W10451951 CONDENSER
2217635 2217635 COVER
WP4390662 WP4390662 COVER, EVAPORATOR
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
1-60123-001 1-60123-001 COVER, ICEMAKER HOLE

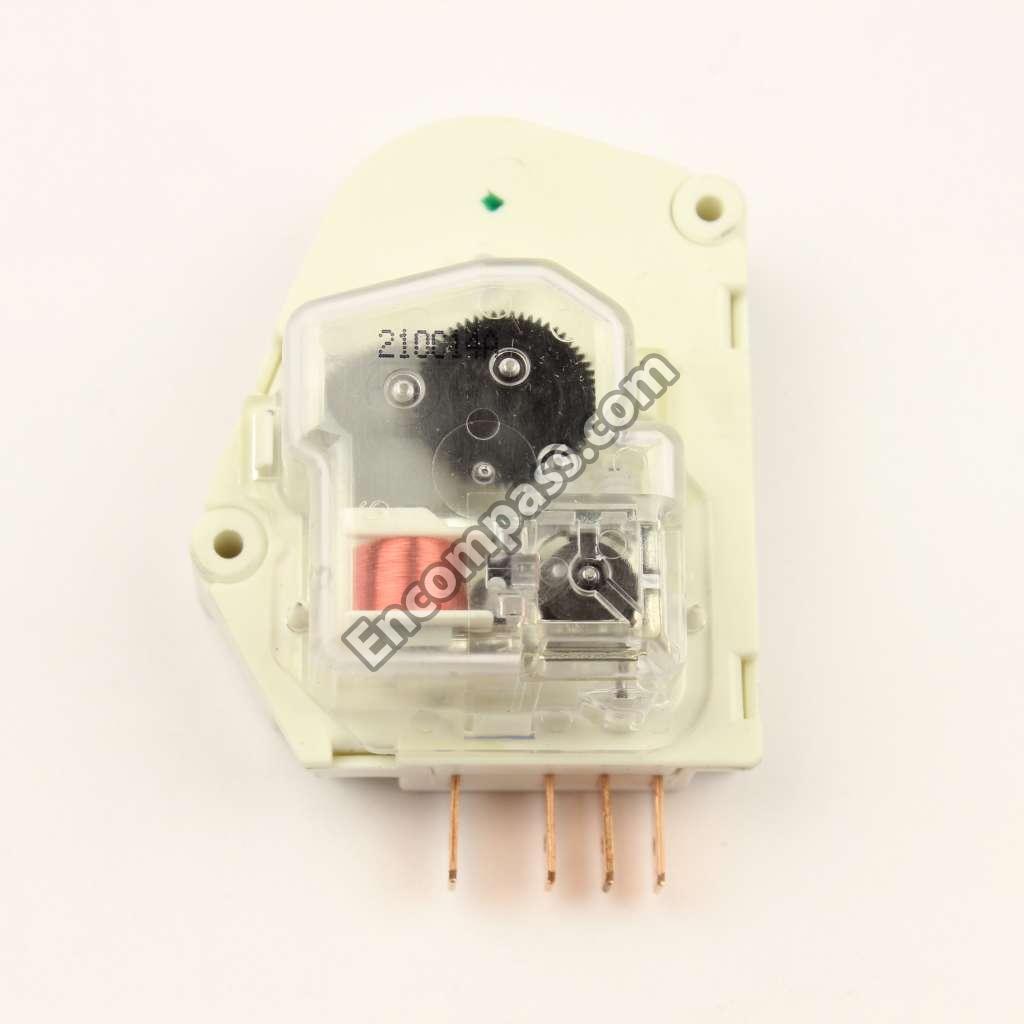

WP3-81329 WP3-81329 DEFROST TIMER
WP4-81049-001 WP4-81049-001 DOOR GASKET (WHITE MODEL)
4390702 4390702 DOOR RAIL
4390695 4390695 DOOR STOP
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER-TUBE

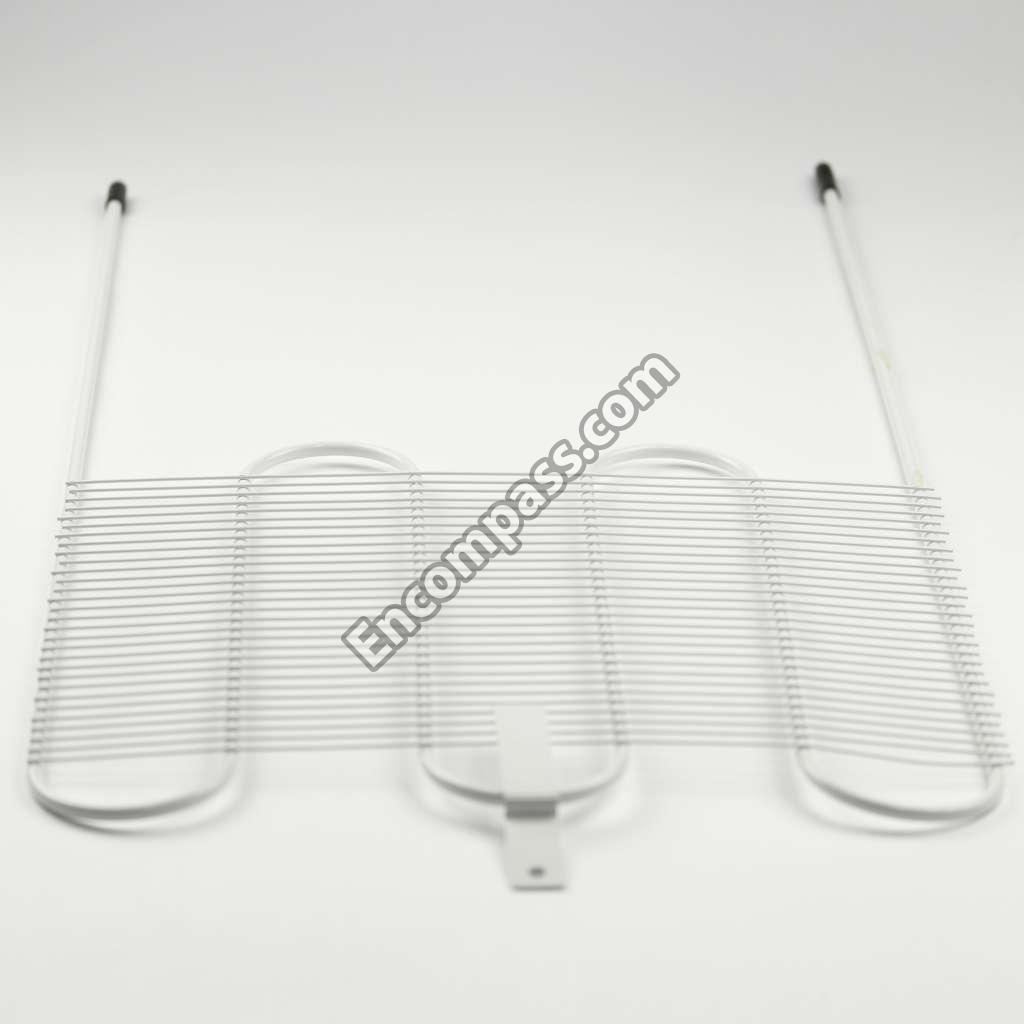

WP4-81546 WP4-81546 EVAPORATOR
WP4357263 WP4357263 EXCHANGER, HEAT
4390934 4390934 EXTERIOR DOOR (WHITE (INCLUDES INSULATION))

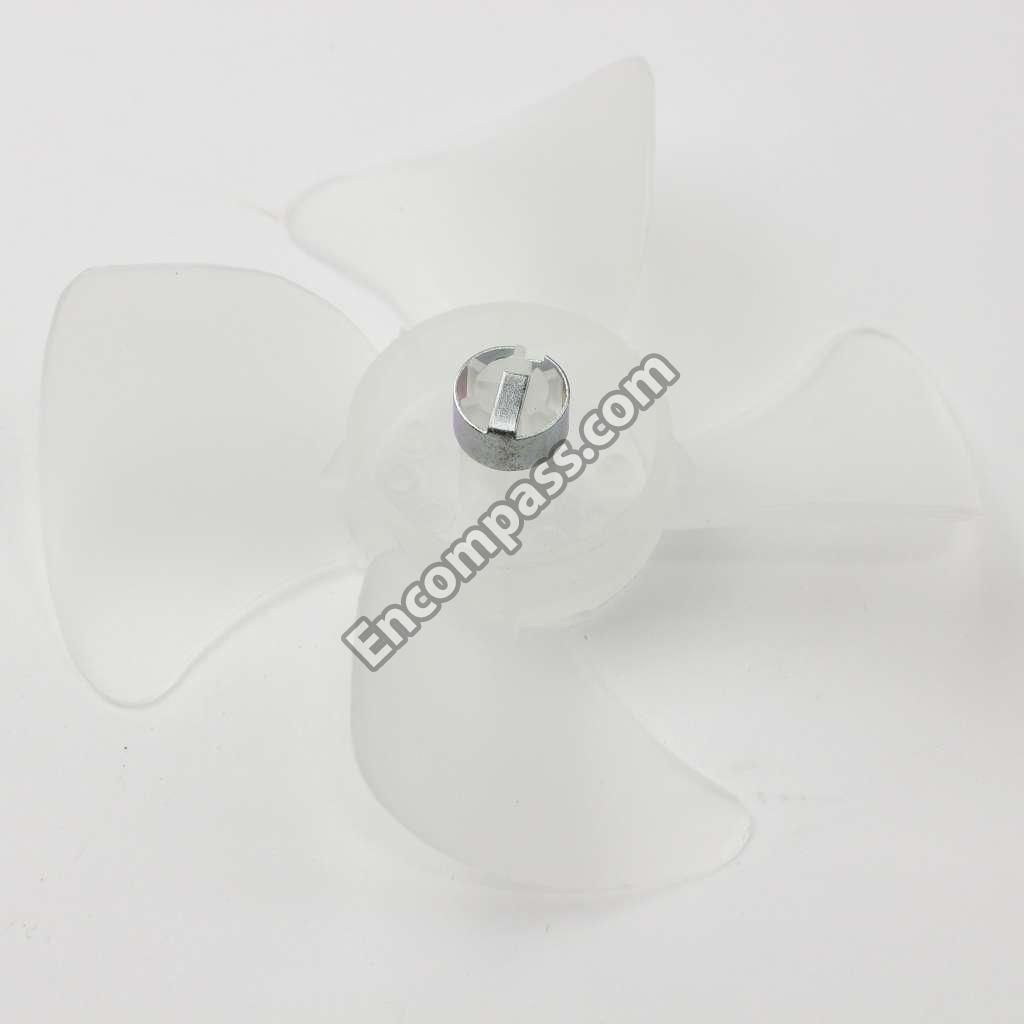

WPW10445742 WPW10445742 FAN BLADE

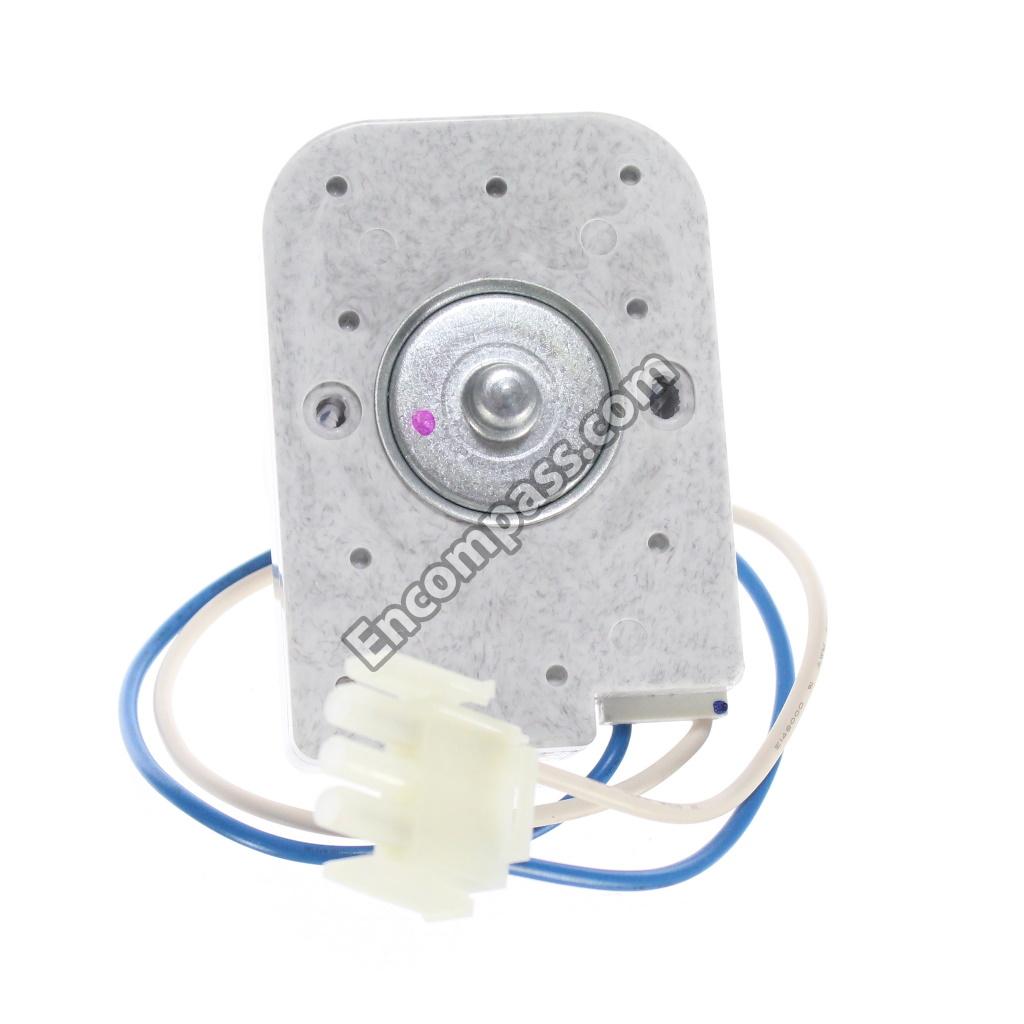

WP3-60336-001 WP3-60336-001 FAN MOTOR
4390664 4390664 GASKET, EVAPORATOR COVER (LEFT)
4390663 4390663 GASKET, EVAPORATOR COVER (RIGHT)
4-60461-001 4-60461-001 GRILLE
4357020 4357020 GROMMET
W10862416 W10862416 GROMMET, DRAIN
3-82596-002 3-82596-002 HANDLE (WHITE)
4390938 4390938 HARNESS, WIRING
W11175809 W11175809 HEATER
4357250 4357250 HINGE, BOTTOM
4390673 4390673 HINGE, TOP
2-35195-006 2-35195-006 HOOK BOLT, LOCK
W11700559 W11700559 ICEMAKER
4390939 4390939 INTERIOR PANEL
2207010SN 2207010SN JEWELRY, HANDLE (SATIN NICKEL)
WP4356840 WP4356840 KEY
4-81294-004 4-81294-004 KNOB, THERMOSTAT
4390466 4390466 LAMP, SOCKET
W11117769 W11117769 LEVELER
W11679940 W11679940 LIGHT BULB
3-82130-001 3-82130-001 LIGHT, POWER WARNING
LIT4390937 LIT4390937 LITERATURE PARTS (ENERGY GUIDE)
LIT4390916 LIT4390916 LITERATURE PARTS (OWNERS MANUAL)
4357145 4357145 LOCK KIT (INCLUDES ITEMS 6, 7, 8, 9, 10 & 13)
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
2152334 2152334 NAMEPLATE
2-34286-021 2-34286-021 OVERLOAD
799344 799344 PAINT
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
8210279 8210279 PAN-COMPRS
WP4390675 WP4390675 PAN-DRIP
4-80504-101 4-80504-101 PLATE, EVAPORATOR MOUNT
1-81154 1-81154 PLATE, THERMOSTAT
4390693 4390693 POWER CORD
WP4356738 WP4356738 RELAY-STRT
3-60315-001 3-60315-001 ROLLER, FRONT
WP3-24838-048 WP3-24838-048 SCREW
WP3400094 WP3400094 SCREW
60001022 60001022 SCREW
WP489491 WP489491 SCREW
4390598 4390598 SCREW
W11233072 W11233072 SCREW
WPW10068250 WPW10068250 SCREW
WP489478 WP489478 SCREW
4356852 4356852 SCREW, COMPRESSOR
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
4-82317-001 4-82317-001 SHELF-WIRE
8210275 8210275 SHELF-WIRE
4357284 4357284 SHIELD-HT
WP3-60197-001 WP3-60197-001 SHIELD-HT
4356828 4356828 SHIM, BOTTOM
4390489 4390489 SHIM, HINGE
4356846 4356846 SLEEVE
350930 350930 SPRAY (13 OZ.) (WHITE)
4356842 4356842 SPRING CLIP
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE

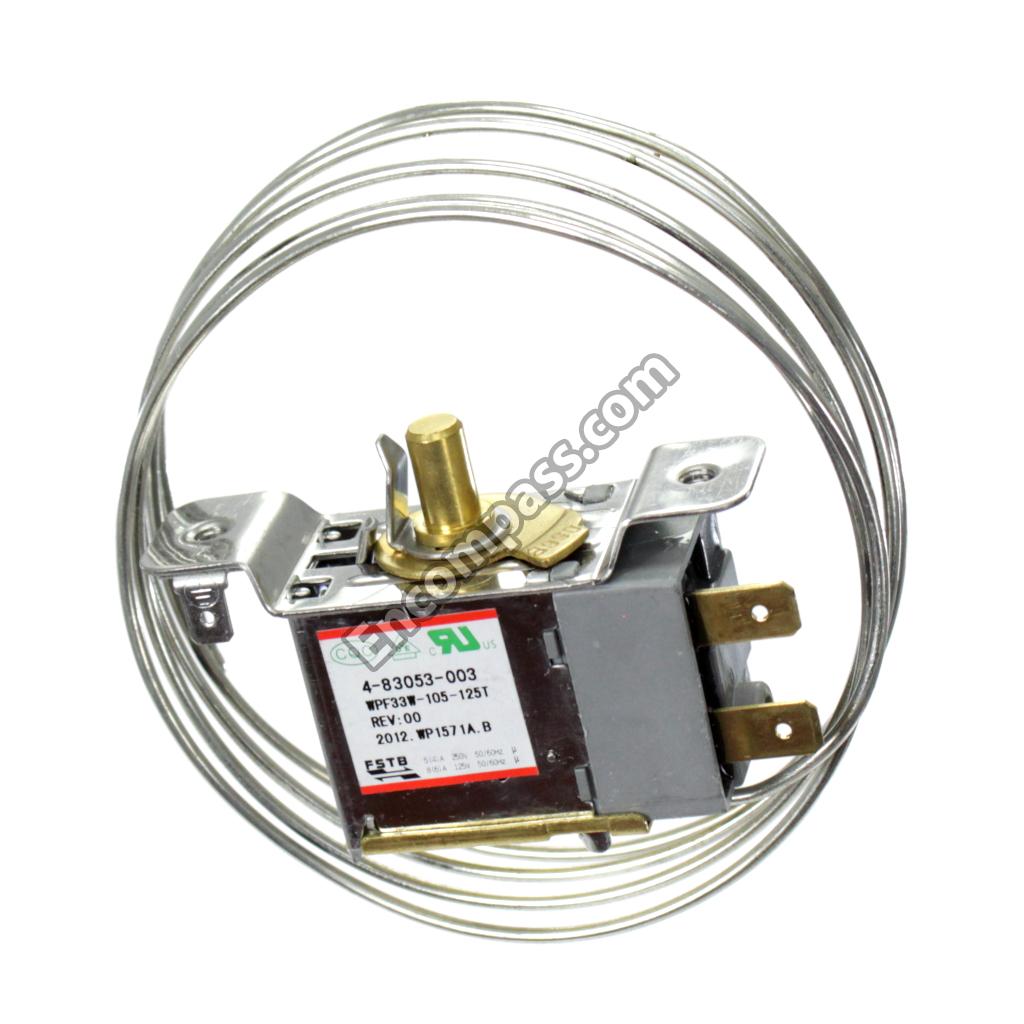

WP4-83053-003 WP4-83053-003 THERMOSTAT
4356952 4356952 THERMOSTAT, CLIP
WP4390857 WP4390857 TRIM, HANDLE (BOTTOM)
4390856 4390856 TRIM, HANDLE (TOP)
3-24898-007 3-24898-007 VENT PLUG
WP3-80414-103 WP3-80414-103 VENT-PLUG
4356847 4356847 WASHER
4356992 4356992 WASHER
W10851331 W10851331 WASHER, DOOR SPACER
