Model Image
Manufacturer

Whirlpool

Model Number

EV209NBTQ01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10164512 W10164512 ALARM-FZR
W10164580 W10164580 ARM-SHUT
4390755 4390755 AXLE
WP2196003 WP2196003 BARRIER
4-82558-001 4-82558-001 BASKET
W10164565 W10164565 BASKET
W10164583 W10164583 BASKET
WP1-81801-001 WP1-81801-001 BIMETL-DEF
WP4-82576-001 WP4-82576-001 BIN CONTROL LEVER
4-82576-002 4-82576-002 BIN-CNTLVR
WPW10445742 WPW10445742 BLADE-FAN
1-80252-101 1-80252-101 BLOCK, FOAM
WP8204624 WP8204624 BOLT
8210220 8210220 BOLT
4-82389-005 4-82389-005 BOX, CONTROL
2-80028-101 2-80028-101 BRACKET, FAN
W10207408 W10207408 BUSHING, HINGE
N_P N_P CABINET (NOT A SERVICEABLE PART)
W10164568 W10164568 CAP, ICEMAKER WATER TUBE
3-35956-013 3-35956-013 CAPACITOR
3-25095-011 3-25095-011 CLAMP, TUBE
1-80247-101 1-80247-101 CLIP
W10164630 W10164630 CLIP
4356952 4356952 CLIP, THERMOSTAT
W10309994 W10309994 COMPRESSOR
4356335 4356335 COMPRESSOR GROMMET
W10451951 W10451951 CONDENSER
4-82858-001 4-82858-001 CORD-POWER
2217635 2217635 COVER
W10164566 W10164566 COVER
W10164562 W10164562 COVER
4-82699-002 4-82699-002 COVER, EVAPORATOR
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
72017 72017 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (WHITE))
W10164558 W10164558 DIFFUSER
W10164560 W10164560 DIFFUSER
W10183189 W10183189 DIVIDER
WPW10164616 WPW10164616 DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER)
WPW10164614 WPW10164614 DOOR ASSEMBLY. (TOP) (INCLUDES INTERIOR DOOR LINER)
W10843121 W10843121 DRIER-TUBE
W10180511 W10180511 ENERGY LABEL/TAG
WP4-81546 WP4-81546 EVAPORATOR
WP3-60336-001 WP3-60336-001 EVAPORATOR MOTOR
WP4357263 WP4357263 EXCHANGER, HEAT
W10164582 W10164582 GASKET
4390664 4390664 GASKET, COVER EVAPORATOR (LEFT)
4390663 4390663 GASKET, COVER EVAPORATOR (RIGHT)

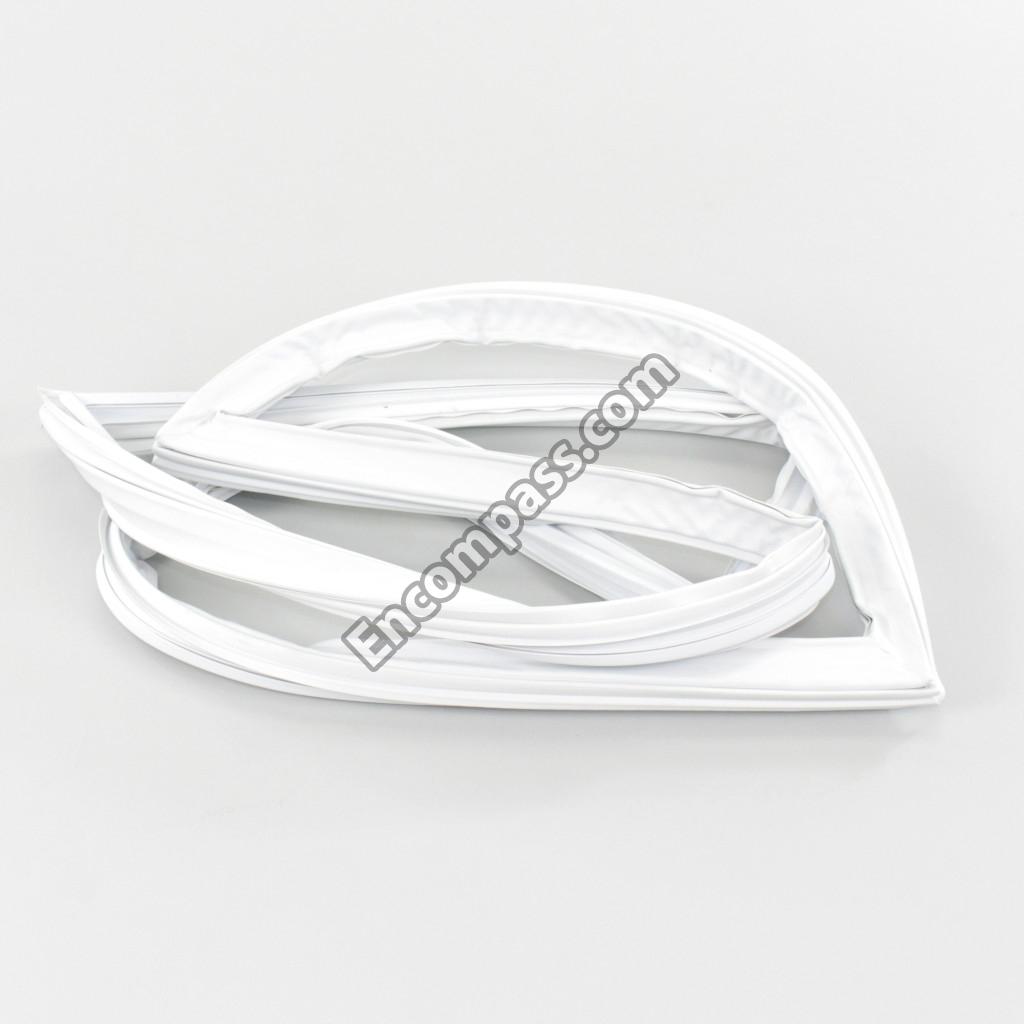

WP4-65151-006 WP4-65151-006 GASKET, DOOR (UPPER)

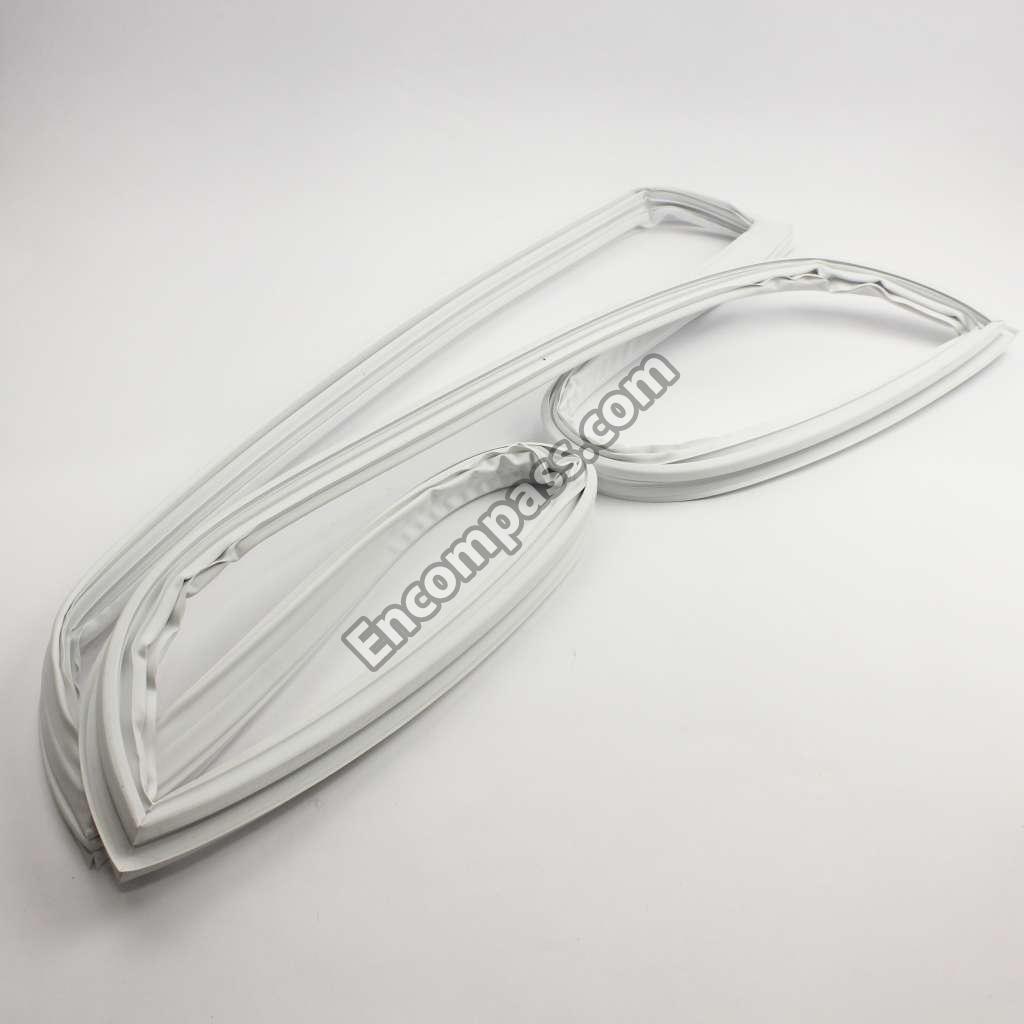

4-65151-007 4-65151-007 GASKET, LOWER DOOR
WP4-60461-002 WP4-60461-002 GRILLE
4357020 4357020 GROMMET
W10862416 W10862416 GROMMET, DRAIN
W10164626 W10164626 HARNESS
W10164629 W10164629 HARNESS
W10164510 W10164510 HARNS-WIRE
WP3-80405-003 WP3-80405-003 HEATER
4-82693-007 4-82693-007 HINGE, BOTTOM
W10164537 W10164537 HINGE-DOOR
W11700559 W11700559 ICEMAKER
W10183363 W10183363 INSTRUCTIONS, FIELD INSTALLABLE ICE MAKER
3-82390-001 3-82390-001 KNOB CONTROL
3-82391-001 3-82391-001 LENS
WP3-82710-001 WP3-82710-001 LEVELER
W11679940 W11679940 LIGHT BULB
3-82130-001 3-82130-001 LIGHT, POWER WARNING
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
WP2213265 WP2213265 NAMEPLATE
2-34286-021 2-34286-021 OVERLOAD
W10164586 W10164586 OWNERS MANUAL
799344 799344 PAINT
WP4390675 WP4390675 PAN-DRIP
W10164561 W10164561 PAN-ICE
W10261376 W10261376 PANCOMPRS
4-80504-101 4-80504-101 PLATE, EVAPORATOR MOUNT
WP4-65451-001 WP4-65451-001 RAIL
4-82637-001 4-82637-001 RAIL
WPW10189183 WPW10189183 RAIL, MULLION
3-60315-001 3-60315-001 ROLLER, FRONT
WP3-24838-048 WP3-24838-048 SCREW
WP3400094 WP3400094 SCREW
WP3-24004-109 WP3-24004-109 SCREW
60001022 60001022 SCREW
4356491 4356491 SCREW
WP489478 WP489478 SCREW
4390511 4390511 SCREW
W10164633 W10164633 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
WP4-82634-001 WP4-82634-001 SHELF-WIRE
W10164564 W10164564 SHELF-WIRE
W10164550 W10164550 SHIELD
8210351 8210351 SHIELD-HT
W10164624 W10164624 SHIELD-HT
2-82884-001 2-82884-001 SHIM
4356846 4356846 SLEEVE
W10164570 W10164570 SLIDE
WP3-82393-001 WP3-82393-001 SOCKET
350930 350930 SPRAY
WPW10189190 WPW10189190 START-DEV
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
W10164584 W10164584 SUPPORT
WP4387911 WP4387911 SWITCH
W10406953 W10406953 SWITCH, ALARM (ILLUMINATED)
W11238399 W11238399 TAPE
WP3-81329 WP3-81329 TIMER-DEF
2-81016-105 2-81016-105 TOP HINGE (WHITE)
W10164581 W10164581 TUBE-INLET
4356847 4356847 WASHER
