Model Image
Manufacturer

Whirlpool

Model Number

EV250FXKQ01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP72107 WP72107 ALMOND
WP2196003 WP2196003 BARRIER
4-81880-001 4-81880-001 BASKET, LOWER
4-81879-001 4-81879-001 BASKET, WIRE
WP8204624 WP8204624 BOLT
4357250 4357250 BOTTOM HINGE (WHITE)
4390626 4390626 BRACKET
3-35956-013 3-35956-013 CAPACITOR
1-80308-101 1-80308-101 CLAMP
1-80247-101 1-80247-101 CLIP
W10309995 W10309995 COMPRESSOR
2217635 2217635 COVER
3-80838-003 3-80838-003 COVER, HINGE (WHITE)

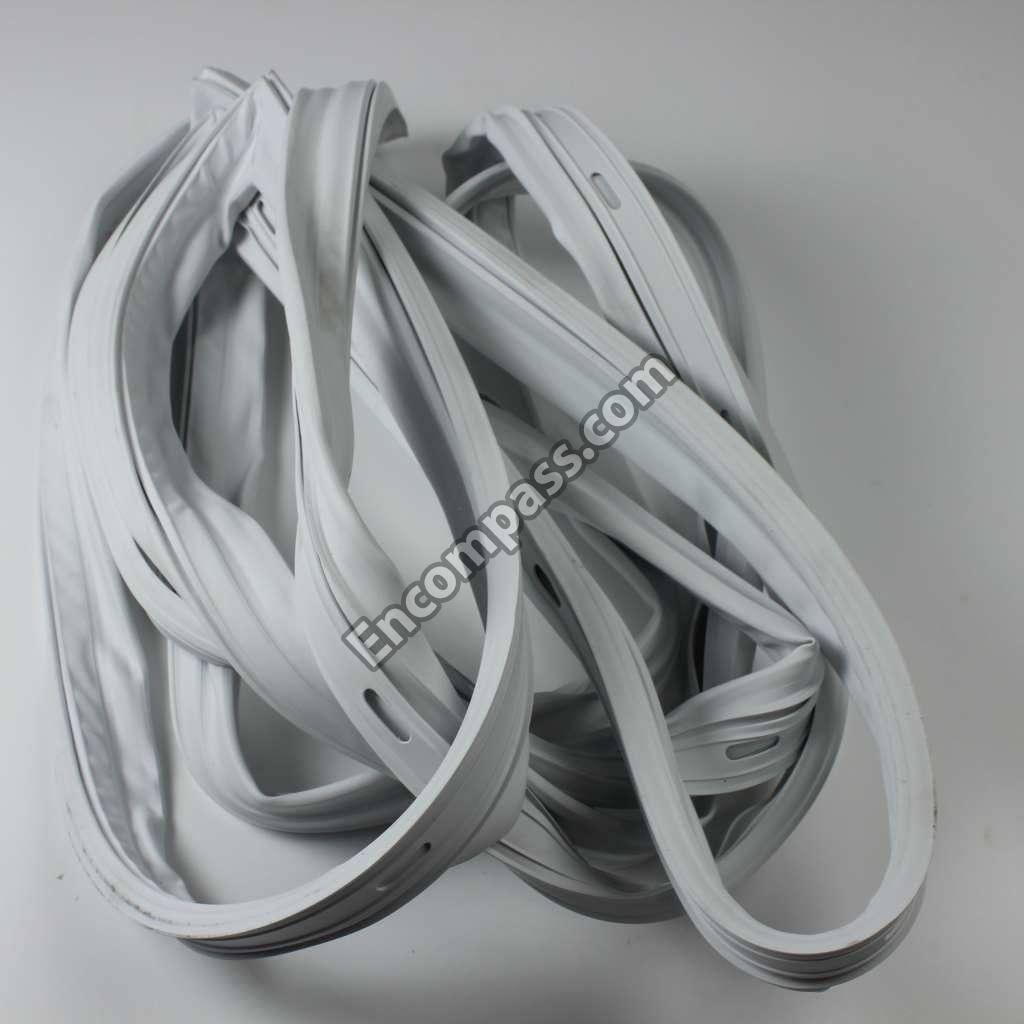

WP4-81679-001 WP4-81679-001 DOOR GASKET
4390695 4390695 DOOR STOP
4390801 4390801 DOOR, EXTERIOR
1-80860 1-80860 DRAIN PLUG
W10843121 W10843121 DRIER-TUBE
4390813 4390813 EVAPORATOR SHELF
4390812 4390812 EVAPORATOR SHELF
4390811 4390811 EVAPORATOR SHELF
4390814 4390814 EVAPORATOR SHELF, BOTTOM
4390810 4390810 EVAPORATOR TOP
4356893 4356893 FOAM BLOCK
4390804 4390804 GRILLE
4356335 4356335 GROMMET
2-81437-002 2-81437-002 GROMMET, DRAIN
3-82596-002 3-82596-002 HANDLE (WHITE)
4390809 4390809 HEAT EXCHANGER
4390731 4390731 HINGE, BUSHING
W10461647 W10461647 INTERIOR DOOR
WP4356840 WP4356840 KEY
4-81294-004 4-81294-004 KNOB, THERMOSTAT
W11117769 W11117769 LEVELER
W10873798 W10873798 LIGHT BULB
100000 100000 LINER (NOT A SERVICEABLE PART)
LIT4390800 LIT4390800 LITERATURE PARTS (ENERGY LABEL)
LIT4390678 LIT4390678 LITERATURE PARTS (OWNERS MANUAL)
4357145 4357145 LOCK KIT (INCLUDES ITEMS 6, 7, 8, 9, 10 & 13)
4357224 4357224 LOCK, BOLT
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
2157907 2157907 NAMEPLATE (WHITE)
4390808 4390808 OVERLOAD
799344 799344 PAINT
4390807 4390807 PAN, COMPRESSOR MOUNTING
1-81154 1-81154 PLATE, THERMOSTAT
4390693 4390693 POWER CORD
4-60222-002 4-60222-002 RAIL, BASKET (RIGHT)
W10450648 W10450648 RAIL, DOOR
WP4356738 WP4356738 RELAY-STRT
4390598 4390598 SCREW
WP3-24838-048 WP3-24838-048 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WPW10068250 WPW10068250 SCREW
WP489478 WP489478 SCREW
4356852 4356852 SCREW, COMPRESSOR MOUNTING
4390798 4390798 SCREW, SUPPORT (1 1/2``)
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
4357285 4357285 SHIELD, LIGHT
4356828 4356828 SHIM, BOTTOM
4356846 4356846 SLEEVE, GROMMET
2005042 2005042 SOCKET, LAMP
350930 350930 SPRAY (13 OZ.) (WHITE)
4356842 4356842 SPRING CLIP
4390823 4390823 STOP, BASKET
4390795 4390795 SUPPORT, BASKET (LEFT)
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
8210226 8210226 THERMOSTAT
4390673 4390673 TOP, HINGE (WHITE)
3-24898-007 3-24898-007 VENT PLUG
4356992 4356992 WASHER
W10903204 W10903204 WASHER
4356847 4356847 WASHER
W10851331 W10851331 WASHER, DOOR SPACER
