Model Image
Manufacturer

Whirlpool

Model Number

EV250NXTQ03

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3-82728-001 3-82728-001 ALARM, SWITCH DOOR
3-82130-001 3-82130-001 ASSEMBLY, POWER WARNING LIGHT BRACKET
W10508626 W10508626 BASKET
4-81880-001 4-81880-001 BASKET, WIRE

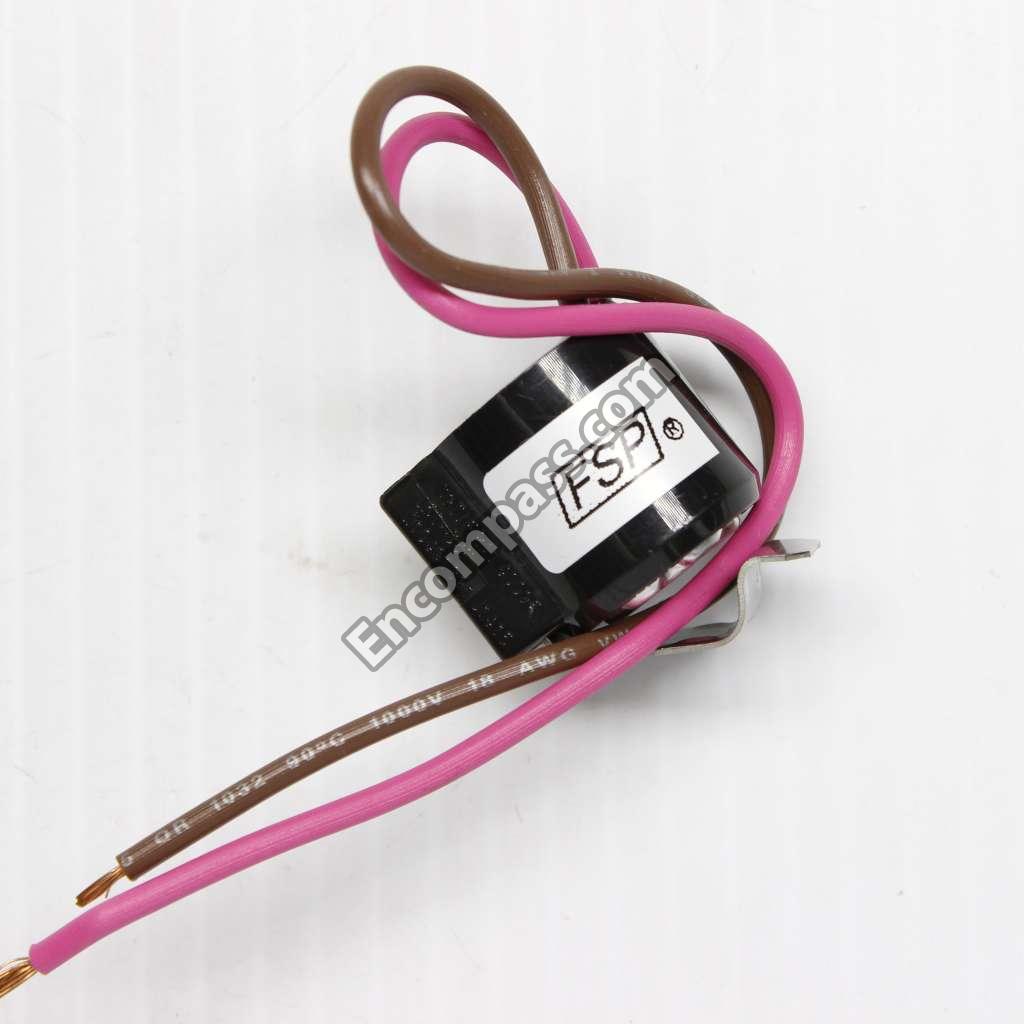

WPW10491891 WPW10491891 BIMETL-DEF
W11100462 W11100462 BLADE-FAN
WP8204624 WP8204624 BOLT
8210220 8210220 BOLT, COMPRESSOR
8210238 8210238 BOTTOM HINGE (WHITE)
4-82389-005 4-82389-005 BOX, CONTROL
2-80028-101 2-80028-101 BRACKET, FAN
1-34291-002 1-34291-002 BULB, LIGHT
N_P N_P CABINET (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
1-80231-101 1-80231-101 CLAMP, TUBE
W10309995 W10309995 COMPRESSOR
W10451950 W10451950 CONDENSER
4-82705-001 4-82705-001 COVER, EVAPORATOR
WP4-81679-001 WP4-81679-001 DOOR GASKET
W10461647 W10461647 DOOR LINER
W10340544 W10340544 DOR-FIP WH
W10843121 W10843121 DRIER-TUBE
W10326811 W10326811 ENERGY LABEL/TAG
WPW10465994 WPW10465994 EVAPORATOR
WP3-80411-103 WP3-80411-103 EVAPORATOR MOTOR
3-60180-002 3-60180-002 GASKET, COVER EVAPORATOR (LEFT SIDE)
3-60180-001 3-60180-001 GASKET, COVER EVAPORATOR (RIGHT SIDE)
WP542638 WP542638 GREASE
WP2163786 WP2163786 GROMMET
WPW10127761K WPW10127761K HANDLE
W10454671 W10454671 HEATER
2-81016-105 2-81016-105 HINGE, TOP FC (WHITE)
3-82390-001 3-82390-001 KNOB, CONTROL
WP3-82710-001 WP3-82710-001 LEVELER
833938 833938 MISCELLANEOUS (KIT, TERMINAL CONNECTOR)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
876029 876029 MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11178521 W11178521 NAMEPLATE
WP61006296 WP61006296 OVERLOAD
W10326799 W10326799 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4-81680-001 4-81680-001 PAN, COMPRESSOR
WP4390675 WP4390675 PAN-DRIP
3-23995-014 3-23995-014 PLASTIC, GROMMET
3-24898-007 3-24898-007 PLUG, VENT
4-82858-001 4-82858-001 POWER CORD
W10393770 W10393770 RELAY
W11673287 W11673287 RELAY-STRT
WP3-24838-048 WP3-24838-048 SCREW
WP3400094 WP3400094 SCREW
WP489491 WP489491 SCREW
60001022 60001022 SCREW
WP489478 WP489478 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
4-82318-001 4-82318-001 SHELF, LOWER
4-82319-001 4-82319-001 SHELF, UPPER WIRE
W10455865 W10455865 SHIELD-HT
2-81124-001 2-81124-001 STOP, DOOR (NATURAL)
W11384469 W11384469 SWITCH
W10406953 W10406953 SWITCH
W11238399 W11238399 TAPE
WP4-83053-002 WP4-83053-002 THERMOSTAT
WP3-81329 WP3-81329 TIMER-DEF
WP1117510 WP1117510 TORX SCREW WRENCH TORX KEY
4-80502-119 4-80502-119 TRIM, TOE KICK (WHITE)
W10450648 W10450648 TRIM-DOOR
W10862416 W10862416 TUBE-DRAIN
