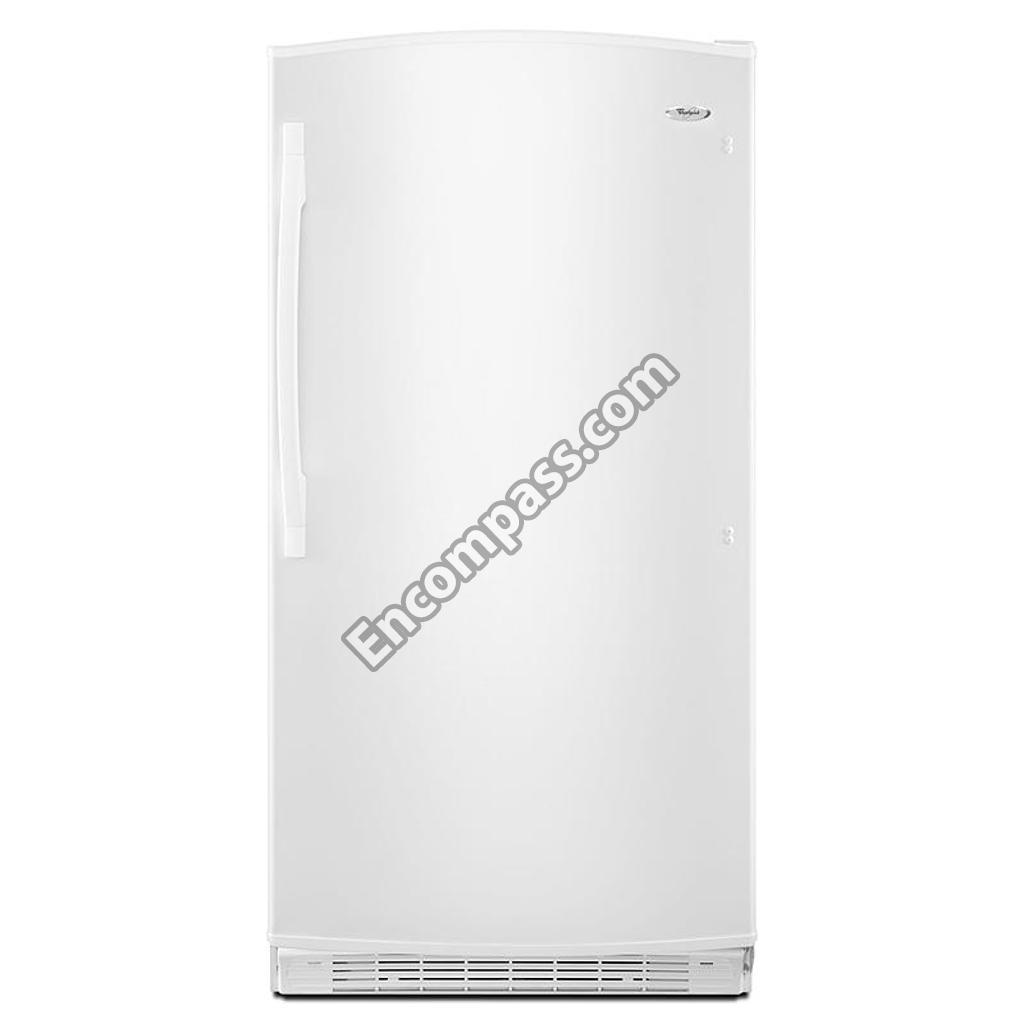

Model Image
Manufacturer

Whirlpool

Model Number

EVL165NXRQ04

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10508628 W10508628 BASKET, WIRE
WP4387501 WP4387501 BIMETL-DEF
WPW10445742 WPW10445742 BLADE-FAN
1-80252-101 1-80252-101 BLOCK, FOAM
WP8204624 WP8204624 BOLT
4357250 4357250 BOTTOM HINGE (WHITE)
4390744 4390744 BRACKET, LIGHT
4390731 4390731 BUSHING, HINGE
100000 100000 CABINET, (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 CAPACITOR
1-80247-101 1-80247-101 CLIP
4356952 4356952 CLIP, THERMOSTAT
W10309989 W10309989 COMPRESSOR
W10451951 W10451951 CONDENSER
2217635 2217635 COVER
WP4390662 WP4390662 COVER, EVAPORATOR
3-80838-003 3-80838-003 COVER, HINGE (WHITE)
1-60123-001 1-60123-001 COVER, ICEMAKER HOLE
WP8210358 WP8210358 DOOR ASSEMBLY (WHITE (INCLUDES INTERIOR DOOR LINER))
WP4-65151-001 WP4-65151-001 DOOR GASKET
W10843121 W10843121 DRIER-TUBE
8210425 8210425 ENERGY GUIDE/TAG
WP4-81546 WP4-81546 EVAPORATOR
WP3-60336-001 WP3-60336-001 EVAPORATOR MOTOR
WP4357263 WP4357263 EXCHANGER, HEAT
4390664 4390664 GASKET, EVAPORATOR COVER (LEFT)
4390663 4390663 GASKET, EVAPORATOR COVER (RIGHT)
WP4-60461-005 WP4-60461-005 GRILLE
4357020 4357020 GROMMET
4356335 4356335 GROMMET, COMPRESSOR
W10862416 W10862416 GROMMET, DRAIN
WP2254600W WP2254600W HANDLE
4-81785-001 4-81785-001 HARNS-WIRE
WP3-80405-003 WP3-80405-003 HEATER
8210204 8210204 HOUSING
W11700559 W11700559 ICEMAKER
WP4356840 WP4356840 KEY-DOOR
8210206 8210206 KNOB-THERM
W11117769 W11117769 LEVELER
W11679940 W11679940 LIGHT BULB
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
WP2213265 WP2213265 NAMEPLATE
WP2214067 WP2214067 OVERLOAD
W10128851 W10128851 OWNERS MANUAL
799344 799344 PAINT
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4357031 4357031 PAN, COMPRESSOR
WP4390675 WP4390675 PAN-DRIP
4-80504-101 4-80504-101 PLATE, EVAPORATOR MOUNT
4-82858-001 4-82858-001 POWER CORD
W10737497 W10737497 RAIL, DOOR SHELF
WP4356738 WP4356738 RELAY-STRT
WP489491 WP489491 SCREW
WP3-24838-048 WP3-24838-048 SCREW
WP3400094 WP3400094 SCREW
60001022 60001022 SCREW
WP488163 WP488163 SCREW
WP8533976 WP8533976 SCREW
W11233072 W11233072 SCREW
WP489478 WP489478 SCREW
4356852 4356852 SCREW, COMPRESSOR
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
4-82315-001 4-82315-001 SHELF-WIRE
WP3-60197-001 WP3-60197-001 SHIELD-HT
W10164624 W10164624 SHIELD-HT
4390489 4390489 SHIM, BOTTOM
4356846 4356846 SLEEVE
WP3-82393-001 WP3-82393-001 SOCKET
350930 350930 SPRAY
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
WPW10170540 WPW10170540 STUD-HNDLE
W11384469 W11384469 SWITCH
8210203 8210203 SWITCH
W11238399 W11238399 TAPE
8210207 8210207 THERMOSTAT
8210208 8210208 THERMOSTAT
WP3-81329 WP3-81329 TIMER-DEF
2-81016-105 2-81016-105 TOP HINGE (WHITE)
3-24898-007 3-24898-007 VENT PLUG
WP3-80414-103 WP3-80414-103 VENT-PLUG
4356847 4356847 WASHER
