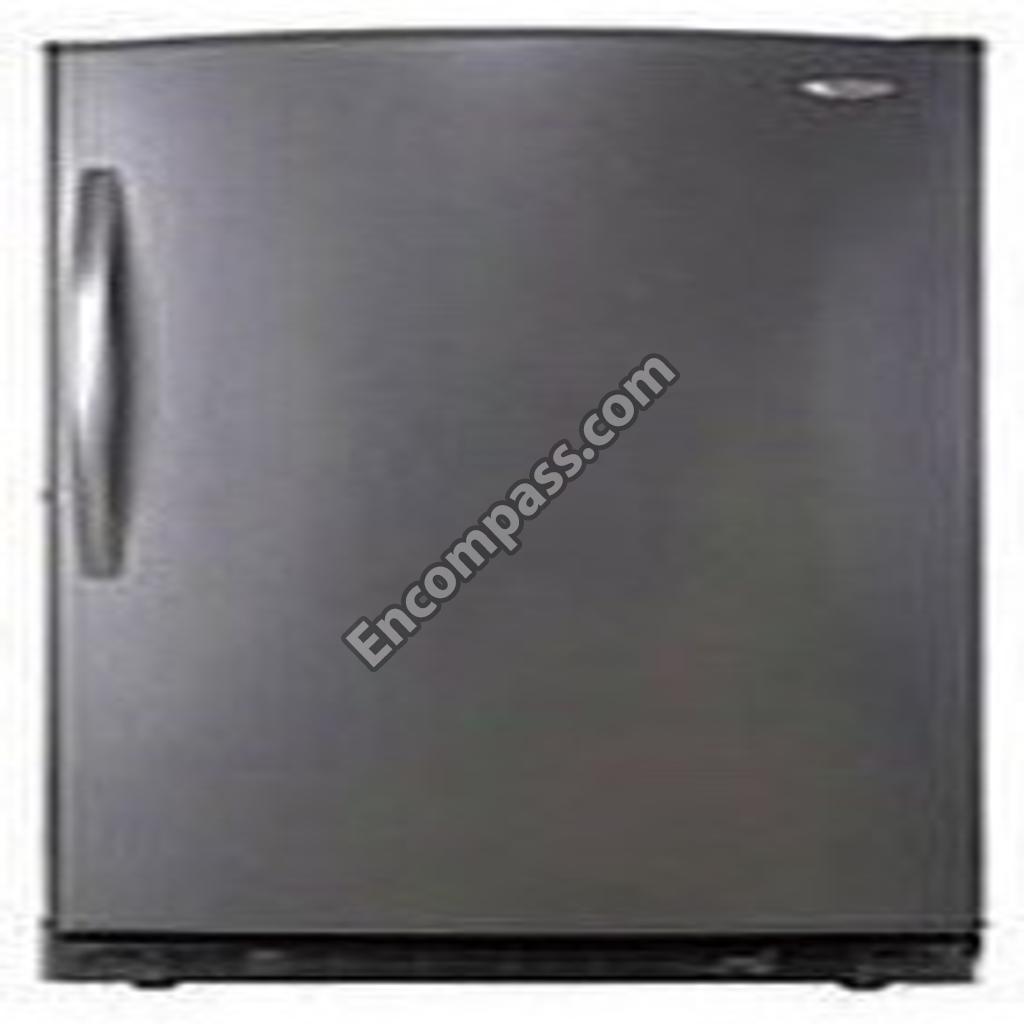

Model Image
Manufacturer

Whirlpool

Model Number

EVL202NXTN00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2-32304 2-32304 Whirlpool ALARM (BUZZER)
3-82728-001 3-82728-001 Whirlpool ALARM (BUZZER)
WP2196003 WP2196003 Whirlpool BARRIER
4390933 4390933 Whirlpool BASKET, WIRE
W10508627 W10508627 Whirlpool BASKET, WIRE
WP1-81801-001 WP1-81801-001 Whirlpool BIMETL-DEF
WP4-82576-001 WP4-82576-001 Whirlpool BIN CONTROL LEVER
W11100462 W11100462 Whirlpool BLADE-FAN
1-80252-101 1-80252-101 Whirlpool BLOCK, FOAM
8210220 8210220 Whirlpool BOLT
4390708 4390708 Whirlpool BOX, CONTROL
2-80028-101 2-80028-101 Whirlpool BRACKET, FAN
72017 72017 Whirlpool BRUSH TOUCH-UP KIT (WHITE)
100000 100000 Whirlpool CABINET, (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 Whirlpool CAPACITOR
488946 488946 Whirlpool CLAMP, TUBING
1-80247-101 1-80247-101 Whirlpool CLIP
4356952 4356952 Whirlpool CLIP, THERMOSTAT
W10309994 W10309994 Whirlpool COMPRESSOR
W10451951 W10451951 Whirlpool CONDENSER
2217635 2217635 Whirlpool COVER
3-80838-007 3-80838-007 Whirlpool COVER
WP4390662 WP4390662 Whirlpool COVER, EVAPORATOR
4-82573-002 4-82573-002 Whirlpool DIFFUSER
4-82556-002 4-82556-002 Whirlpool DIFFUSER, AIR UPR
WPW10281109 WPW10281109 Whirlpool DOOR ASSEMBLY
W10843121 W10843121 Whirlpool DRIER-TUBE
W10243404 W10243404 Whirlpool ENERGY LABEL/TAG
WP4-81546 WP4-81546 Whirlpool EVAPORATOR
WP3-60336-001 WP3-60336-001 Whirlpool EVAPORATOR MOTOR
WP4357263 WP4357263 Whirlpool EXCHANGER, HEAT
4390664 4390664 Whirlpool GASKET, COVER EVAPORATOR (LEFT)
4390663 4390663 Whirlpool GASKET, COVER EVAPORATOR (RIGHT)
WPW10260288 WPW10260288 Whirlpool GASKET, DOOR
4-60461-011 4-60461-011 Whirlpool GRILLE
4357020 4357020 Whirlpool GROMMET
4356335 4356335 Whirlpool GROMMET, COMPRESSOR
W10862416 W10862416 Whirlpool GROMMET, DRAIN
W10202711 W10202711 Whirlpool HANDLE
4-81785-001 4-81785-001 Whirlpool HARNS-WIRE
WP3-80405-003 WP3-80405-003 Whirlpool HEATER
8210235 8210235 Whirlpool HINGE-DOOR
W10260541 W10260541 Whirlpool HINGE-DOOR
4-60185-002 4-60185-002 Whirlpool HOUSING
WP4356840 WP4356840 Whirlpool KEY-DOOR
3-82390-001 3-82390-001 Whirlpool KNOB CONTROL
3-82391-001 3-82391-001 Whirlpool LENS
WP3-82710-001 WP3-82710-001 Whirlpool LEVELER
W11679940 W11679940 Whirlpool LIGHT BULB
3-82130-001 3-82130-001 Whirlpool LIGHT, POWER WARNING
876370 876370 Whirlpool MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
WP2213265 WP2213265 Whirlpool NAMEPLATE
2-34286-021 2-34286-021 Whirlpool OVERLOAD
8210432 8210432 Whirlpool OWNERS MANUAL
799344 799344 Whirlpool PAINT
W10260291 W10260291 Whirlpool PAN-COMPRS
WP4390675 WP4390675 Whirlpool PAN-DRIP
4-80504-101 4-80504-101 Whirlpool PLATE, EVAPORATOR MOUNT
WP2189000 WP2189000 Whirlpool PLUG-HNDLE
4-82858-001 4-82858-001 Whirlpool POWER CORD
WP4-65451-001 WP4-65451-001 Whirlpool RAIL
4-60222-002 4-60222-002 Whirlpool RAIL, BASKET (RIGHT)
WP4356738 WP4356738 Whirlpool RELAY-STRT
WP8533976 WP8533976 Whirlpool SCREW
WP488163 WP488163 Whirlpool SCREW
WP489491 WP489491 Whirlpool SCREW
WP3-24838-048 WP3-24838-048 Whirlpool SCREW
WP3400094 WP3400094 Whirlpool SCREW
60001022 60001022 Whirlpool SCREW
WP3-24004-109 WP3-24004-109 Whirlpool SCREW
WPW10068250 WPW10068250 Whirlpool SCREW
3-24004-049 3-24004-049 Whirlpool SCREW
WP489478 WP489478 Whirlpool SCREW
W10201504 W10201504 Whirlpool SCREW
WP505587 WP505587 Whirlpool SEALER
WP503695 WP503695 Whirlpool SEALER
212643 212643 Whirlpool SEALER-GUM
WP4-82977-001 WP4-82977-001 Whirlpool SHELF-WIRE
WP4-82634-001 WP4-82634-001 Whirlpool SHELF-WIRE
4357128 4357128 Whirlpool SHIELD, MOTOR
4357284 4357284 Whirlpool SHIELD-HT
8210351 8210351 Whirlpool SHIELD-HT
4390489 4390489 Whirlpool SHIM, HINGE
4356846 4356846 Whirlpool SLEEVE
WP3-82393-001 WP3-82393-001 Whirlpool SOCKET
350930 350930 Whirlpool SPRAY
4390823 4390823 Whirlpool STOP, BASKET
2-81124-001 2-81124-001 Whirlpool STOP, DOOR (TOP) (NATURAL)
WPW10170540 WPW10170540 Whirlpool STUD-HNDLE
4390820 4390820 Whirlpool SUPPORT, BASKET
W11384469 W11384469 Whirlpool SWITCH
W11238399 W11238399 Whirlpool TAPE
WP4-83053-002 WP4-83053-002 Whirlpool THERMOSTAT
WP3-81329 WP3-81329 Whirlpool TIMER-DEF
3-24898-007 3-24898-007 Whirlpool VENT PLUG
4356847 4356847 Whirlpool WASHER
