Model Image
Manufacturer

Whirlpool

Model Number

EWT8002A00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
9790408 9790408 AIR-TOWER
W11594405 W11594405 AXLE
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 BARRIER

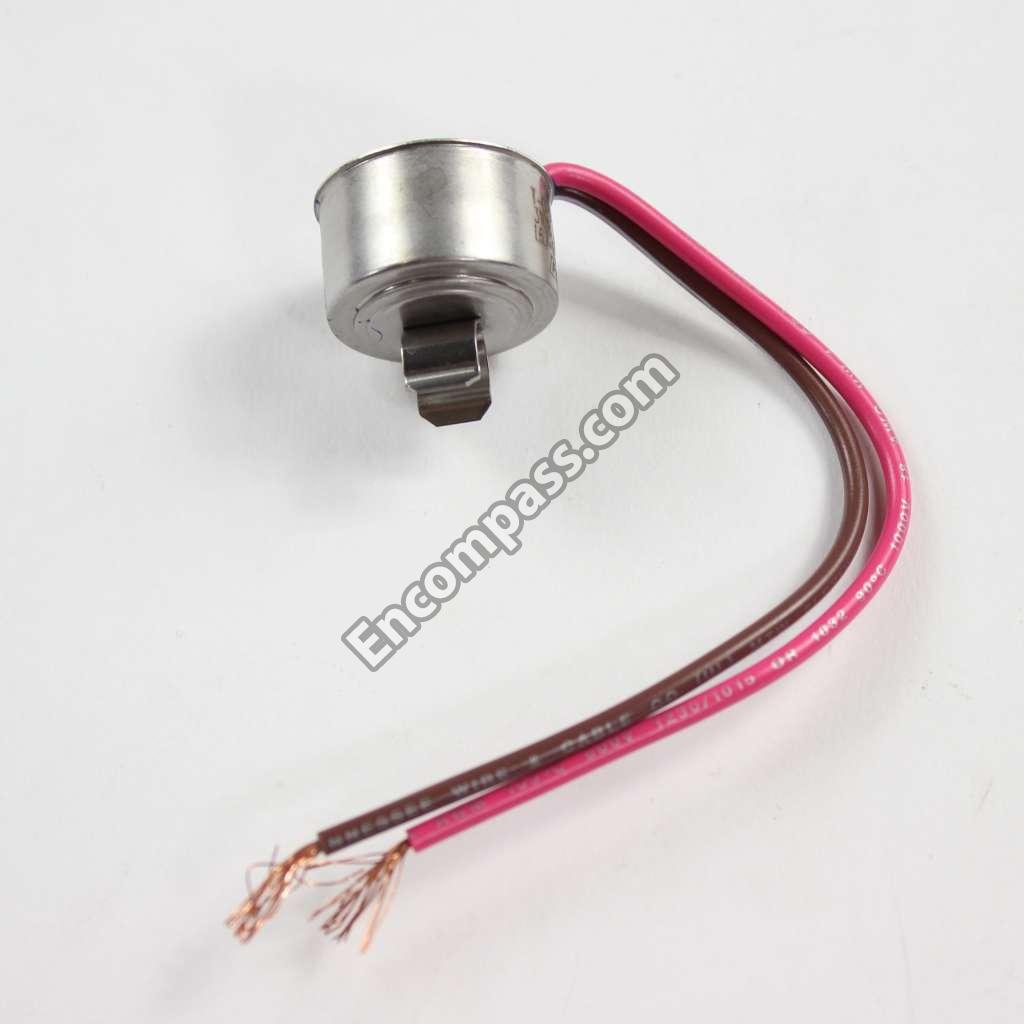

WP4387490 WP4387490 BIMETL-DEF
WP4387500 WP4387500 BIMETL-DEF
2324274 2324274 BIN-CNTLVR
WP1100939 WP1100939 BLADE-FAN
WP2212446 WP2212446 BODY-CNTRL
WP2197405 WP2197405 BRACKET
WPW10180172 WPW10180172 BRACKET
W11745278 W11745278 BRACKET
WP941839 WP941839 BUTTON-PLG
WP2151652 WP2151652 BUTTON-PLG
WP2183998 WP2183998 BUTTON-PLG
WP2201147 WP2201147 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
2263628 2263628 CLIP
9791833 9791833 CLIP
24364001 24364001 CLIP, COMPRESSOR
2264920 2264920 COLLAR, BIN-RC
2264943 2264943 COLLAR-TRIVET-FC
W10170300 W10170300 COMPRESSOR
WPW10219348 WPW10219348 CONDENSER
W10216493 W10216493 CONTAINER
2266382 2266382 CONTROL BOX
WP2222031 WP2222031 COVER
WP2183061 WP2183061 COVER
WP2213360 WP2213360 COVER
2261978 2261978 COVER
2213360D 2213360D COVER, HINGE (UNIVERSAL SILVER)
2264669 2264669 COVER-EVAPORATOR
2213762 2213762 COVER-UNIT
WP2256704 WP2256704 CRISPER PAN
4392899 4392899 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (BISCUIT))
72032 72032 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (BLACK))
72017 72017 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (WHITE))
WP2221992 WP2221992 DIFFUSER
677969 677969 DO-IT-YOURSELF MANUAL, REF./ FZR.
WP2166037 WP2166037 DOOR HINGE
WPW10234241 WPW10234241 DOOR TRIM
2325501 2325501 DOOR-COMP
2323816L 2323816L DOR-FIP ST
2323817L 2323817L DOR-FIP ST
2323817W 2323817W DOR-FIP WH
L2323816W L2323816W DOR-FIP WH
W10843121 W10843121 DRIER-TUBE
WPW10143759 WPW10143759 DRIER-UV
2325519 2325519 EGG-CONTNR
WP2156003 WP2156003 ENDCAP
WP2263920 WP2263920 EVAPORATOR
WP2201215 WP2201215 EVAPORATOR MOTOR
W10859322 W10859322 FILLER
2166003D 2166003D FILLER
WP2319263W WP2319263W GASKET ASSEMBLY
WP2319264W WP2319264W GASKET ASSEMBLY

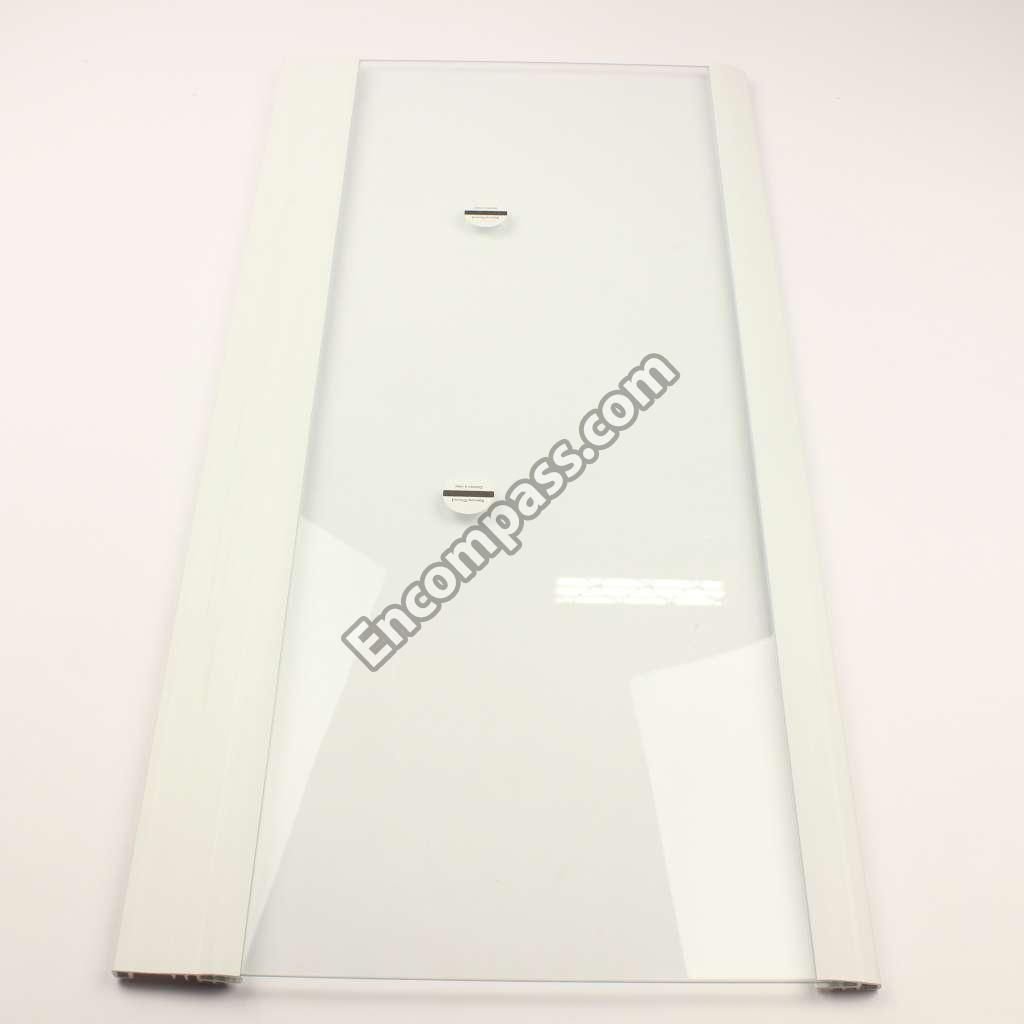

WPW10283860 WPW10283860 GLASS SHELF
WP542638 WP542638 GREASE
WP2163786 WP2163786 GROMMET
WP2264462 WP2264462 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2319300D 2319300D HANDLE
2319301D 2319301D HANDLE
2319301W 2319301W HANDLE
2319300W 2319300W HANDLE
2266642 2266642 HARNS-WIRE
W10183888 W10183888 HARNS-WIRE
WP2167357 WP2167357 HEATER
WP2325482 WP2325482 HINGE
2321179 2321179 HINGE-DOOR
WP2325483 WP2325483 HINGE-PIN
WP2256601 WP2256601 HOLDER
WP2316186 WP2316186 HOOD&FOIL
2316052 2316052 HOUSING
W11553819 W11553819 INSULATION
876029 876029 INSULATION
876370 876370 INSULATION
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP2202885 WP2202885 KNOB-THERM
W11034434 W11034434 LENS-LIGHT
WP67002552 WP67002552 LIGHT BULB
WP2213265 WP2213265 NAMEPLATE
285002 285002 NUT
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
WP2261934 WP2261934 PAN-MEAT
WP2174706 WP2174706 PIN-HITCH
N_P N_P RAIL, CENTER (NOT SERVICED)
4392900 4392900 REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. UNCUT))
2165773 2165773 RETAINER
939962 939962 RIVET
WPW10475495 WPW10475495 ROLLER-CAB
2264963 2264963 ROLLER-CAB
8533892 8533892 SCREW
WP487353 WP487353 SCREW
WP489474 WP489474 SCREW
WP489478 WP489478 SCREW
WP489399 WP489399 SCREW
WP489174 WP489174 SCREW
WP4449746 WP4449746 SCREW
WP489497 WP489497 SCREW
WP489442 WP489442 SCREW
2256637 2256637 SCREW
2222100 2222100 SCREW
WP489491 WP489491 SCREW
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
WP2262441 WP2262441 SHELF-GLAS
W10837901 W10837901 SHELF-GLAS
2319224 2319224 SHIELD
WP2258681W WP2258681W SHIM
WP2201567 WP2201567 SHIM
2166043 2166043 SHIM, HINGE CENTER
WP2175210 WP2175210 SHROUD
WP2176222 WP2176222 SLIDE
2258452 2258452 SPACER
2265629 2265629 SPRING, TWIST ICE
2321301 2321301 START-DEV
WPW10222451 WPW10222451 SUPPORT
8201619 8201619 SUPPORT-EV
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
WPW10511937 WPW10511937 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
WP2188379 WP2188379 TIMER-DEF
511873 511873 TOUCH-UP, WHITE PORCELAIN (2 OZ.)
W10225160 W10225160 TRAY
WP2201801 WP2201801 TRAY-EVAP
WP2324266 WP2324266 TRIM, DOOR SHELF
2316409W 2316409W TRIM-DOOR
2316410W 2316410W TRIM-DOOR
2316411W 2316411W TRIM-DOOR
W10198760 W10198760 TRIM-DOOR
W10198761 W10198761 TRIM-DOOR
W10198759 W10198759 TRIM-DOOR
2319303C 2319303C TRIM-HANDL
2319302W 2319302W TRIM-HANDL
2319302D 2319302D TRIM-HANDL
2325514 2325514 TRIM-PAN
2264930 2264930 TRIM-TRIVT
2324265 2324265 TRIVET
2324268 2324268 TRIVET
W11661102 W11661102 TUBE
W10245438 W10245438 TUBE
2265367 2265367 TWIST ICE SUPPORT
W10183917 W10183917 USE & CARE GUIDE
WP978025 WP978025 VALVE
978029 978029 VALVE
978030 978030 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978028 978028 VALVE, ACCESS (1/2``)
8526417 8526417 WASHER
WP489467 WP489467 WASHER
WP487576 WP487576 WASHER
2265965 2265965 WIRE ASSEMBLY CONTROL BOX
