Model Image
Manufacturer

Whirlpool

Model Number

FGP355VW3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4315786 4315786 ANCHOR
4320545 4320545 ANTI-TIP KIT
4321080 4321080 ANTI-TIP KIT
4320540 4320540 BACKER, CARRIAGE
4363572 4363572 BAFFLE, BOTTOM
4157006 4157006 BASE, FRONT
4320805 4320805 BOTTOM, OVEN
4320443 4320443 BRACKET (LEFT)
4320444 4320444 BRACKET (RIGHT)
31957101 31957101 BRACKET, IGNITER MOUNTING
4320432 4320432 BRACKET, SPARK IGNITOR (2)
8189794 8189794 BUMPER
4315408 4315408 BUMPER, COOKTOP (2)
4320477 4320477 BUMPER, RUBBER (2)
4363416 4363416 BURNER BOX
4363104 4363104 BURNER, FRONT (2)
4363106 4363106 BURNER, REAR (2)
4315520 4315520 CARRIAGE, BROILER
4157330 4157330 CLIP, SPEED
98005642 98005642 CLIP, THERM BULB
4363090 4363090 CLOCK/OVEN CONTROL WITH CAMERA LENS
4179175 4179175 COOKTOP (ALMOND)
4320448 4320448 COVER, WIRE
4320684 4320684 END CAP (LEFT)
4320685 4320685 END CAP (RIGHT)
4321270 4321270 EXTENSION BURNER BOX
4157014 4157014 FLUE, BOX
4320472 4320472 FRAME
4320464 4320464 FRAME, FRONT
4320471 4320471 GLASS, OUTER
8189700 8189700 GRATE-BRNR
4315094 4315094 GRID
LIT4315645 LIT4315645 GUIDE, USE & CARE
4157028 4157028 HANDLE
4157208 4157208 HANDLE
4320451 4320451 HINGE, DOOR (2)
4157049 4157049 HINGE, DOOR (L.H.)
4157048 4157048 HINGE, DOOR (R.H.)

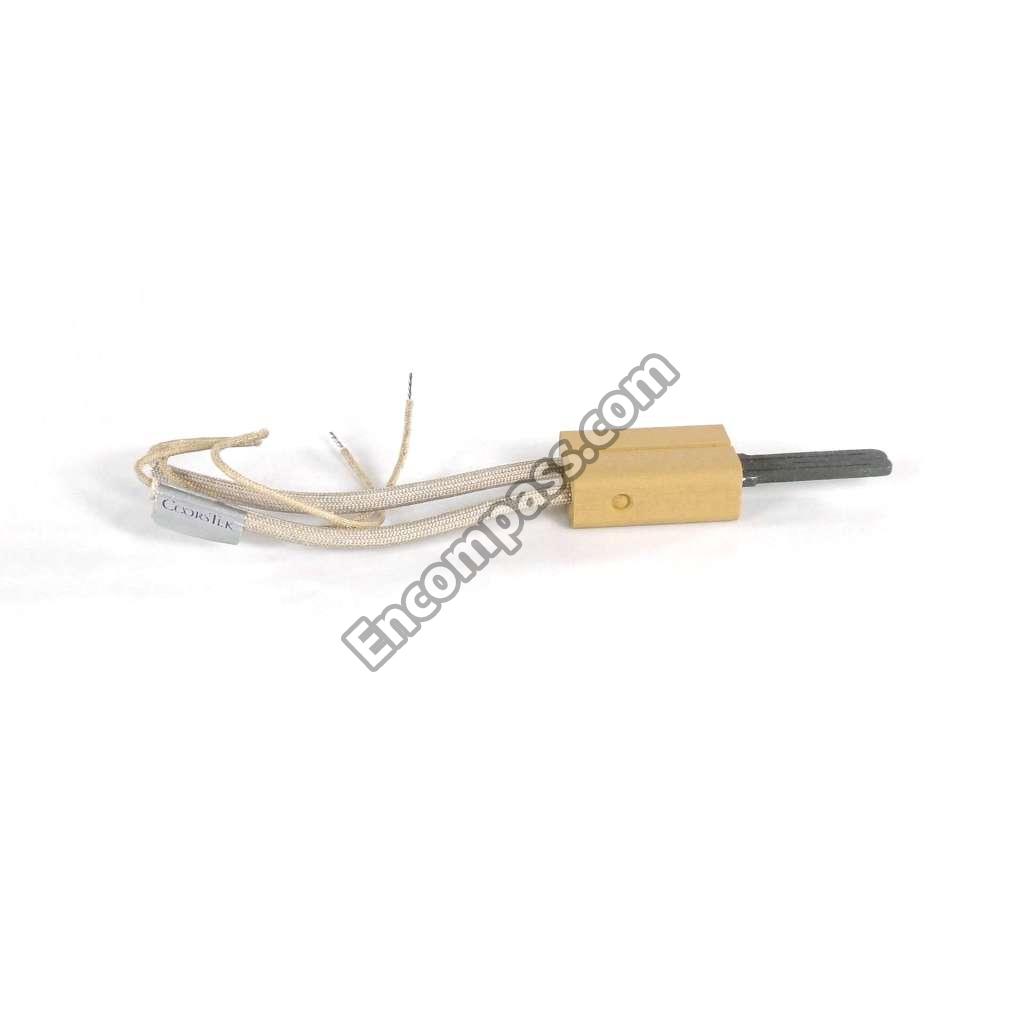

WP31939701 WP31939701 IGNITOR- B
Y07491203 Y07491203 IGNITOR- G
LIT4315695 LIT4315695 INSTRUCTIONS, INSTALLATION
4157033 4157033 INSULATION
WPW10208653 WPW10208653 INSULATION
WP313523 WP313523 KNOB
4315516 4315516 KNOB, BURNER (4)
WPY0312066 WPY0312066 KNOB, THERMOSTAT
4363195 4363195 LEG, LEVELER (4)
8009 8009 LIGHT BULB
4321171 4321171 LINER, BROILER DOOR
4315055 4315055 LINER, OVEN BACK
4320729 4320729 LINER, OVEN SIDE (2)
4315046 4315046 LINER, OVEN TOP
4320765 4320765 LINING
LIT4363082 LIT4363082 LIST, REPAIR PARTS
4314933 4314933 LOCATOR STUD (2)
4372836 4372836 MODULE, SPARK
W10080180 W10080180 NUT
4157332 4157332 NUT (4)
4320441 4320441 OVEN BURNER
4320422 4320422 PANEL, BACKGUARD
4320816 4320816 PANEL, BROILER (ALMOND)
4320807 4320807 PANEL, BROILER (WHITE)
4320424 4320424 PANEL, FILLER (ALMOND)
4320423 4320423 PANEL, FILLER (WHITE)
4320410 4320410 PANEL, MANIFOLD
4315380 4315380 PANEL, REAR
4320373 4320373 PANEL, SIDE (2) (ALMOND)
4157000 4157000 PANEL, SIDE (2) (WHITE)
4320437 4320437 PIPE, MANIFOLD
4157053 4157053 PLATE (2)
4157171 4157171 PLATE, MOUNTING
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
4320804 4320804 RACK, OVEN (2)
4363194 4363194 RAIL, BASE (2)
4157084 4157084 REGULATOR, PRESSURE
4320351 4320351 RING, HOLD DOWN
4315388 4315388 ROLLER
4363050 4363050 ROLLER PIN (2)
4320348 4320348 SCREW
4159300 4159300 SCREW
WP681414 WP681414 SCREW
WP308685 WP308685 SCREW
W10491986 W10491986 SCREW
8190661 8190661 SCREW
4157054 4157054 SCREW (2)
4157122 4157122 SCREW, 10-12 X 1/2 (4)
486146 486146 SCREW, 10-24 X 1/2
4320474 4320474 SCREW, DOOR HANDLE
681605 681605 SCREW, NO.6-20 X 1`` (2)
4320427 4320427 SCREW, NO.8 X 1/2`` (2)
4315522 4315522 SCREWS (3)
31958801 31958801 SEAL- OVEN
4157325 4157325 SHIELD, INSULATION
4157331 4157331 SHIELD, RADIATION
4363758 4363758 SOCKT-LITE
241279 241279 SPACER
4320440 4320440 SPREADER, FLAME
4363233 4363233 SPRING, DOOR (2)
4320798 4320798 SUPPORT, BURNER
4320418 4320418 SUPPORT, LEG (LEFT)
4320419 4320419 SUPPORT, LEG (RIGHT)
4363397 4363397 SUPPORT, LINER
4157011 4157011 SUPPORT, MAIN (2)
4315382 4315382 SUPPORT, REAR (2)
WP4157180 WP4157180 SWTCH-IGNR
WP8189867 WP8189867 SWTCH-LITE
Y07659500 Y07659500 THERMOSTAT
4320544 4320544 TIMER, SUPPORT LEG (2)
4320480 4320480 TOP, MAIN (WHITE)
4320468 4320468 TRACK, UPPER (RIGHT ASSEMBLY.)
4342530 4342530 TUBING-GAS
4157661 4157661 VALVE, SHUT OFF
Y07646901 Y07646901 VALVE-OVEN
Y07729700 Y07729700 WINDOW, OVEN DOOR (2) PANE
4157013 4157013 WIRE COVER OVER LIGHT
4320536 4320536 ``Z`` BRACKET (2)
