Model Image
Manufacturer

Whirlpool

Model Number

G7CE3655XB00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10312152 W10312152 BAFFLE-HT
WPW10245259 WPW10245259 BLOCK-TERM
W10311955 W10311955 BOX-BURNER
7111P020-60 7111P020-60 CLAMP, WIRE
31682 31682 CLEANER
W10355051 W10355051 CLEANER, COOKTOP
8286582 8286582 CLIP
W10291385 W10291385 CONDUIT
WPW10365145 WPW10365145 COOKTOP
W10365144 W10365144 COOKTOP
W11215839 W11215839 COVR-SWTCH
WP71002569 WP71002569 GASKET- IN
W10316660 W10316660 GASKT-HEAT
WPW10293874 WPW10293874 GROMMET
8008P068-60 8008P068-60 GROMMET
W10324729 W10324729 GROMMET
8186533 8186533 HARDWARE
W11190476 W11190476 HARNS-WIRE
W10291400 W10291400 HARNS-WIRE

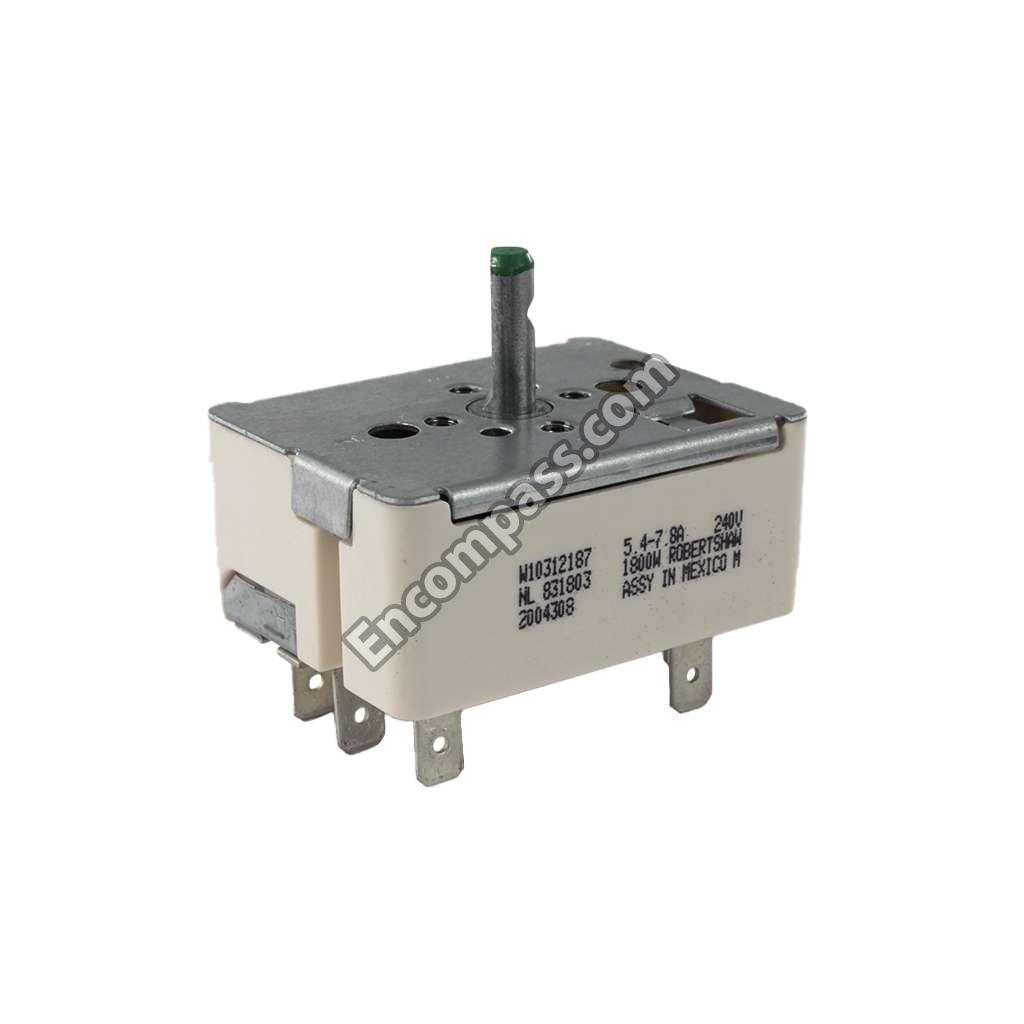

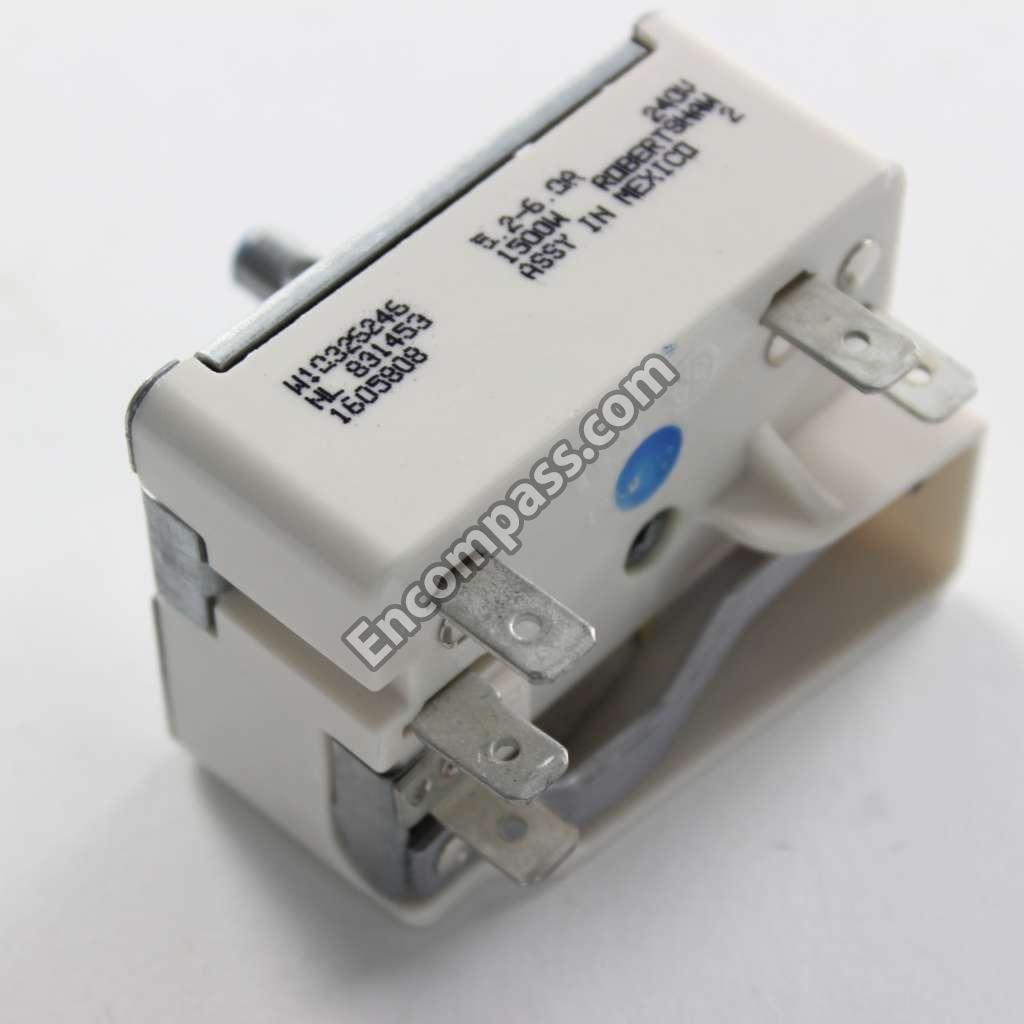

WPW10326246 WPW10326246 INFINITE CONTROL SWITCH
W10861720 W10861720 INFINITE CONTROL SWITCH
WPW10270254 WPW10270254 INFINITE CONTROL SWITCH
W10346695 W10346695 INSTALLATION INSTRUCTIONS

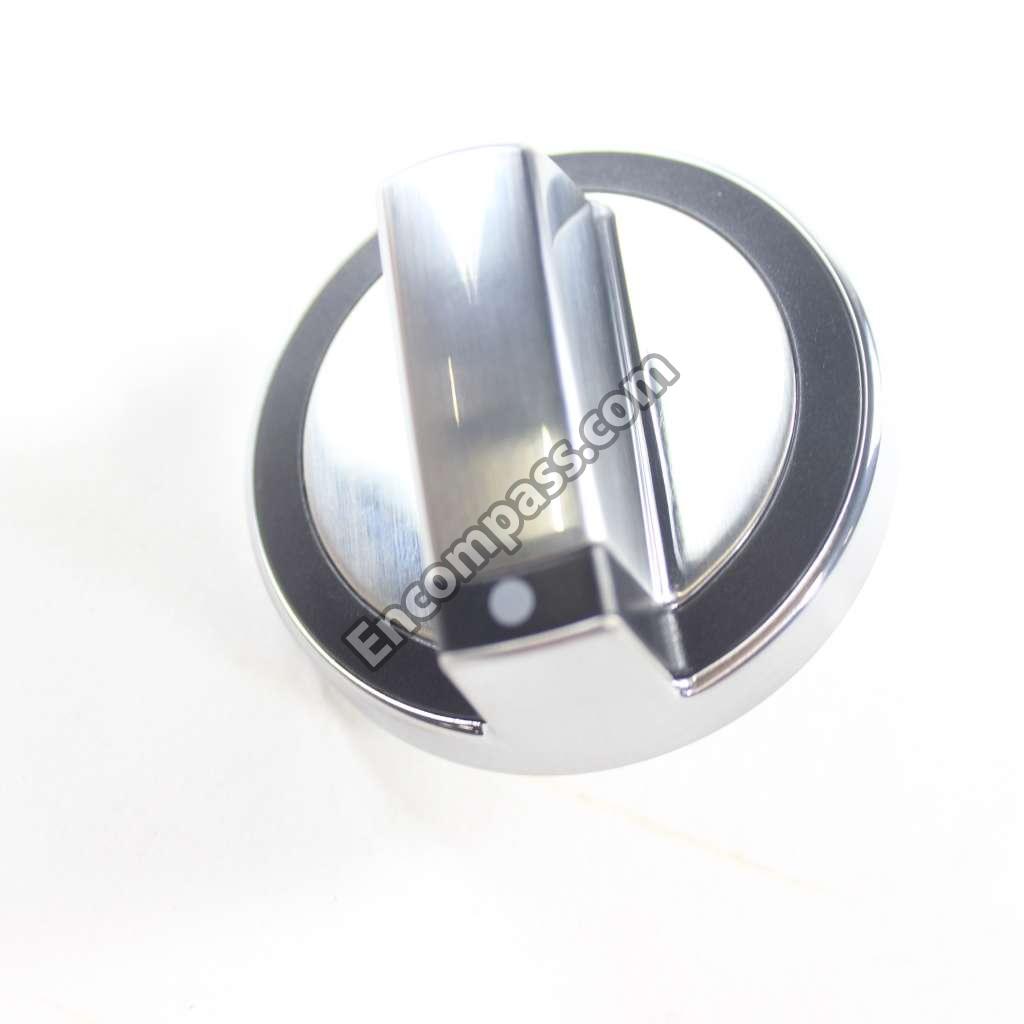

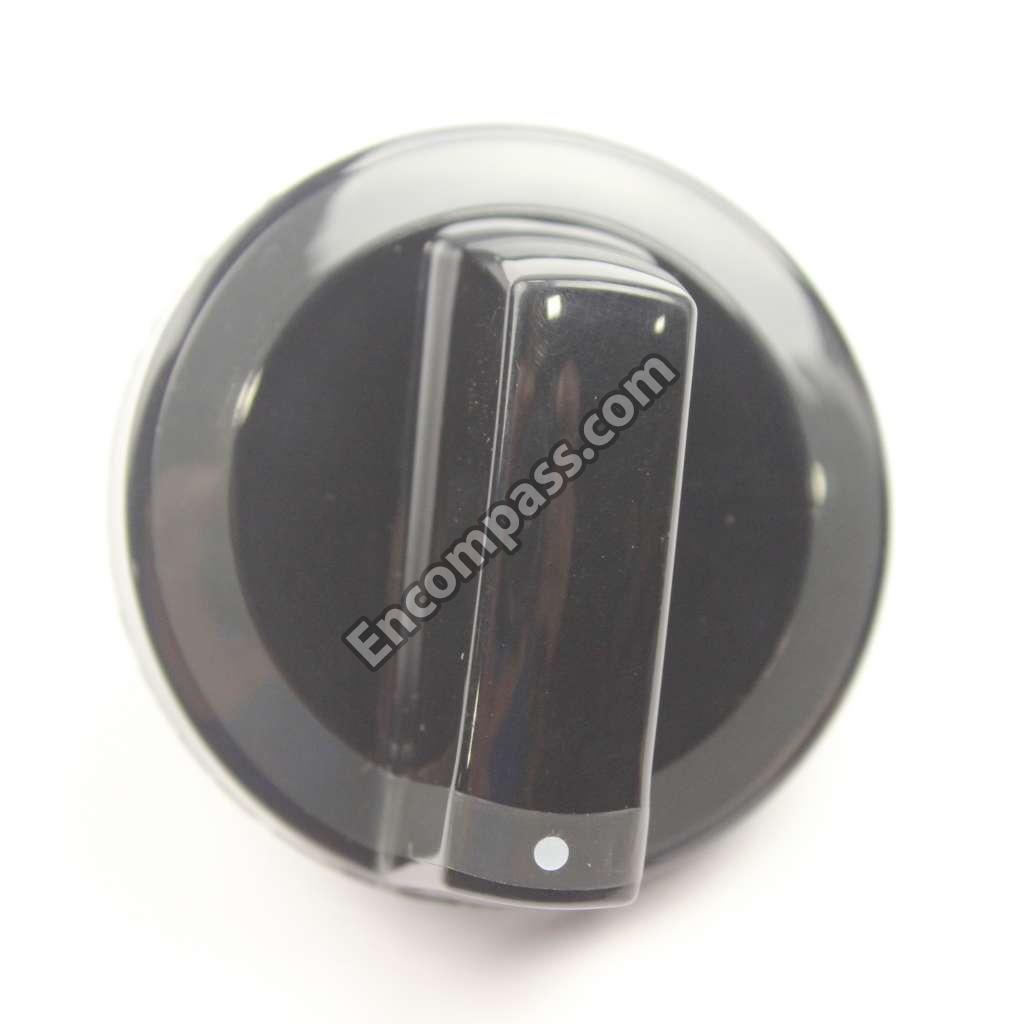

WPW10316815 WPW10316815 KNOB
WPW10316664 WPW10316664 KNOB
WPW10316662 WPW10316662 KNOB
W11213837 W11213837 KNOB
31462A 31462A POLISH
31463 31463 PROTECTANT
9762761 9762761 SAFER COOKING TIPS (ENGLISH
W10065852 W10065852 SAFER COOKING TIPS (FRENCH)
WA906B WA906B SCRAPER
WP90767 WP90767 SCREW
WP3400093 WP3400093 SCREW
WP486579 WP486579 SCREW
W10491984 W10491984 SEAL-SWTCH
W10311897 W10311897 SHIELD-HT
WPW10225448 WPW10225448 SPRING
W10311788 W10311788 SPRT-ELMNT
W10311793 W10311793 SPRT-ELMNT

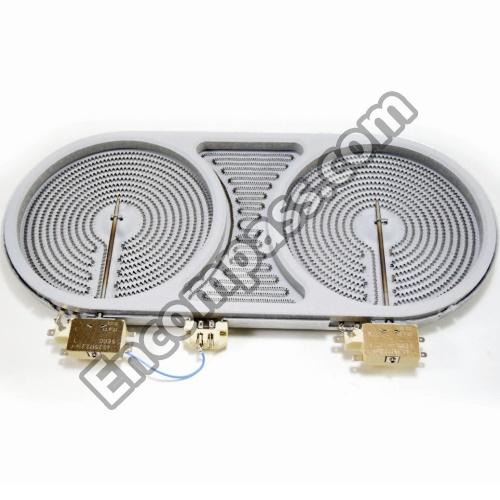

W11171119 W11171119 SURFACE ELEMENT
WPW10245539 WPW10245539 SURFACE ELEMENT
WPW10297138 WPW10297138 SURFACE ELEMENT
WPW10248259 WPW10248259 SURFACE ELEMENT

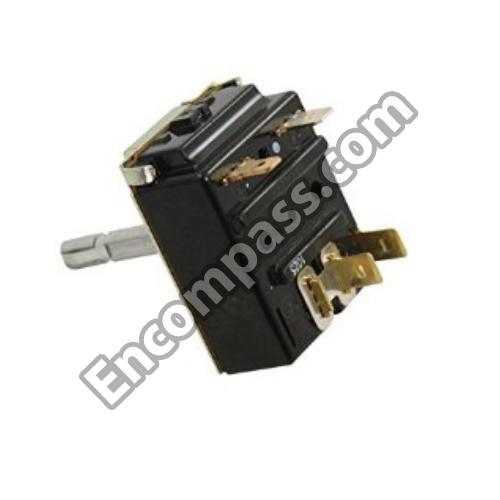

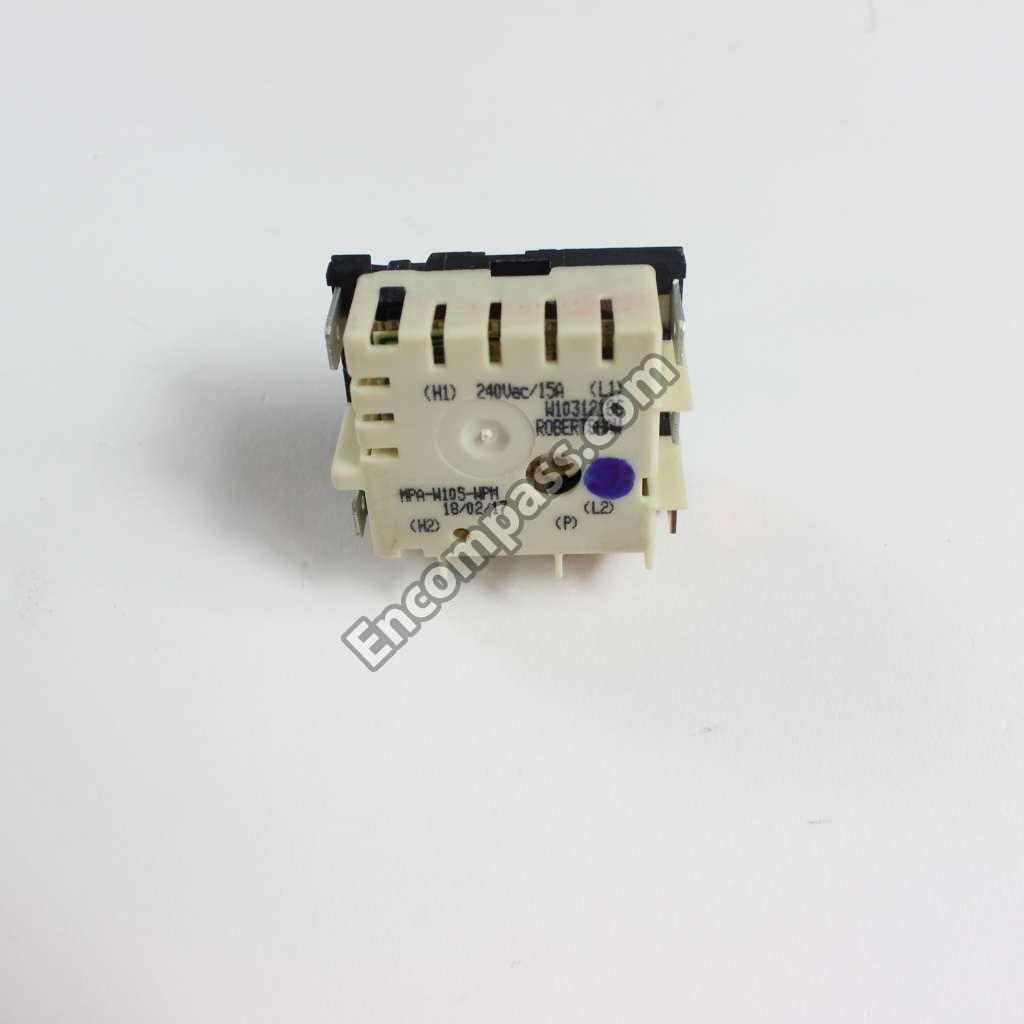

W11106342 W11106342 SWITCH-INF
W10337590 W10337590 SWITCH-INF
WP7450P034-60 WP7450P034-60 SWTCH-LMIT
WP9762441 WP9762441 SWTCH-SLCT
W10346696 W10346696 USE & CARE GUIDE
W10291399 W10291399 WIRING DIAGRAM
