Model Image
Manufacturer

Whirlpool

Model Number

GACP15XXMG5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10165295BU W10165295BU "BAG, TRASH (15"" PLASTIC) (12 BOXES OF 15 PACK)"
9871125 9871125 ACTUATOR, SAFETY SWITCH
WP279368 WP279368 ADHESIVE
775668 775668 ANGLE, FRAME PLATE
W10165295RP W10165295RP BAG 15 PAK
W10165294RB W10165294RB BAG 60 PAK
675186 675186 BAG, TRASH (15 IN PAPER) (12 PACK)
882652 882652 BAG, TRASH (15 IN PAPER) (48 PACK)
W11729129 W11729129 BASE
WP9871602 WP9871602 BEARING
W10917043 W10917043 BEARING
882688 882688 BEARING
WP8204624 WP8204624 BOLT
W11684541 W11684541 BRACKET
9870118A 9870118A BRACKT-KIT
W11705838 W11705838 BUTTON-PLG
WP9870775 WP9870775 CAP-PWRSCR
13030RP 13030RP CARRIER, BAG
9871956 9871956 CASTER, RIGID
9871957 9871957 CASTER, SWIVEL
780477 780477 CHAIN, DRIVE
W11705832 W11705832 CLAMP
W11679168 W11679168 CLIP
8534092 8534092 CLIP
WP776036 WP776036 CLIP
WPW10451276 WPW10451276 CONTAINER
W10540355 W10540355 DEODORIZER BLOCK (GREEN APPLE)
9872166L 9872166L DEODORIZER BLOCK (LAVENDER)
9872166LG 9872166LG DEODORIZER BLOCK (LEMONGROVE)
W10540354 W10540354 DEODORIZER, SOLID STICK UPS (2 PACK)
675379 675379 DOOR LATCH ASSEMBLY
WP9871839B WP9871839B ESCUTCHEON
WPW10001130 WPW10001130 FEET-LVLNG
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
882699 882699 GEAR-DRIVE
675351 675351 GREASE 4 OZ. (USE ON POWER SCREW AND RAM PRESSURE PADS)
WP777328 WP777328 GUARD
W11034802 W11034802 GUIDE, USE & CARE
WP776395 WP776395 GUIDE-LTCH
WP9871267 WP9871267 HANDLE
WP777108 WP777108 HANDLE-BAG
776941 776941 HUB, POWER SCREW
9871959 9871959 INSERT, ESCUTCHEON
W10318872 W10318872 INSTRUCTION SHEET

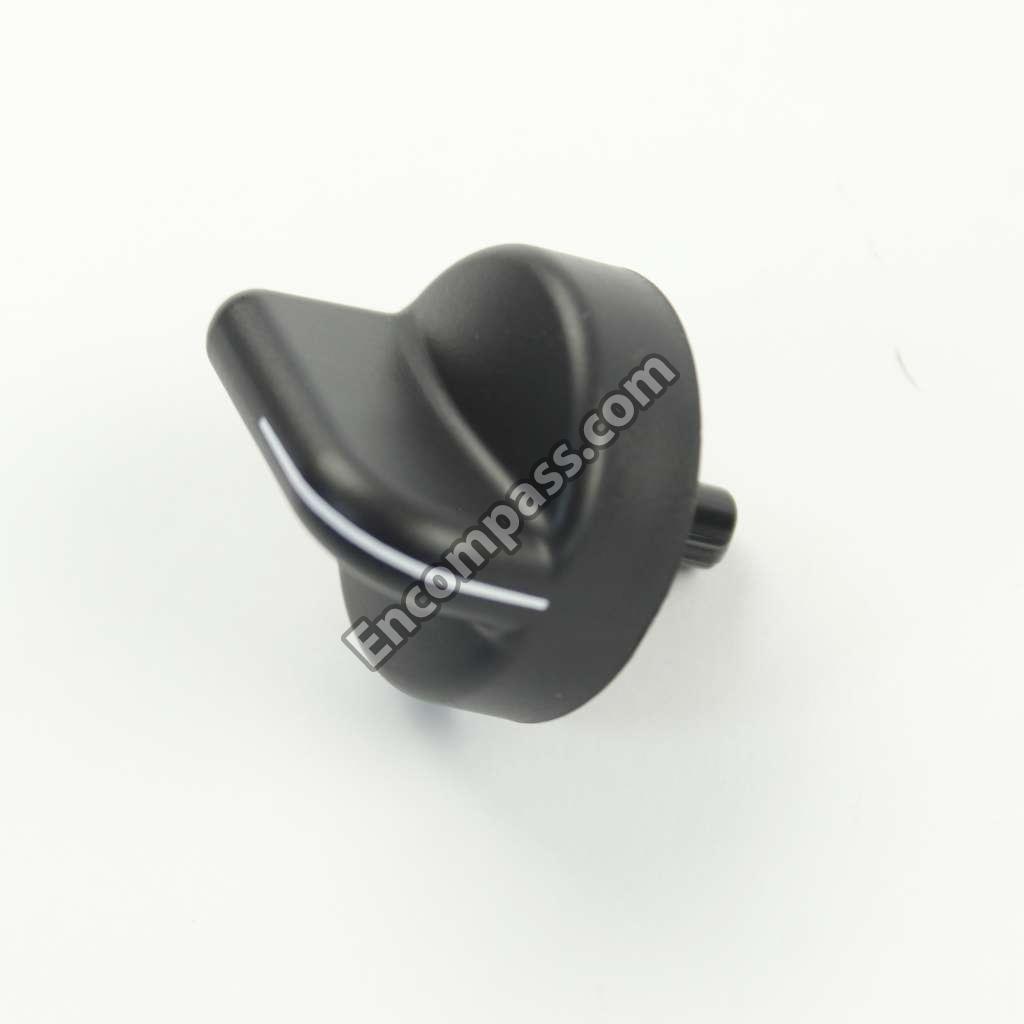

WP9871800 WP9871800 KNOB-SWICH
W10439651 W10439651 MOTOR-DRIVE
2253774 2253774 NAMEPLATE
WP777383 WP777383 NUT
WP486692 WP486692 NUT
WP776356 WP776356 NUT
WP776338 WP776338 NUT
3400938 3400938 NUT, HEX
4154842 4154842 NUT, POWER SCREW
WP9870163 WP9870163 NUT-POWER
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
WP780437 WP780437 PAN-BOTTOM
9872013 9872013 PANEL, BACK
9871955 9871955 PANEL, CONTAINER FRONT (WHITE & BLACK)
WP9870444 WP9870444 PANEL-INER
W11679165 W11679165 PEDAL-FOOT
W11705836 W11705836 PIN
WP454512 WP454512 PIN-SPRING
779121 779121 PLATE, BEARING
9871160 9871160 PLATE, COVER
775665 775665 PLATE, DOOR LATCH
776327 776327 PLATE, DRIVE MOUNT
777850 777850 PLATE, NUT
775676 775676 PLATE, POWER CORD
775481 775481 RACE, THRUST
W11696573 W11696573 RAM
9872015 9872015 RELIEF, STRAIN (POWER CORD)
W11705833 W11705833 RETAINER
WP59002061 WP59002061 SCREW
WP780263 WP780263 SCREW
WPW10139210 WPW10139210 SCREW
WP3196175 WP3196175 SCREW
W11233072 W11233072 SCREW
WP489399 WP489399 SCREW
W11189635 W11189635 SCREW
777849 777849 SCREW
WP489478 WP489478 SCREW
WP486754 WP486754 SCREW
WP3351614 WP3351614 SCREW
WPW10451272 WPW10451272 SCREW-POWR
9870867 9870867 SHIELD, SLIDE TRACK
WP9870975 WP9870975 SLIDE
9870976 9870976 SLIDE, TRACK (RIGHT HAND)
W10917246 W10917246 SLIDE-RAM
WP777180 WP777180 SPRING
775736 775736 SPRING, DOOR LATCH
W11679164 W11679164 SPROCKET
WP9870037 WP9870037 STOP-RAM
882694 882694 STUD
9871829 9871829 SWITCH, DRAWER (BLACK)
WP777811 WP777811 SWITCH-DIR
675382 675382 SWITCH-OFF
W11243179 W11243179 SWITCH-SAF
W10415490 W10415490 TECH SHEET
W11234068 W11234068 TOP (GRANITE)
72032 72032 TOUCH-UP PAINT (BLACK)
WP777332 WP777332 WASHER
W11214485 W11214485 WASHER
776035 776035 WASHER, WAVE
W11672206 W11672206 WHEEL-LVLR
W11023674 W11023674 WHEEL-LVLR
W11729130 W11729130 WIRE HARNESS
W11234067 W11234067 WRAPPER, CABINET (GRANITE)
