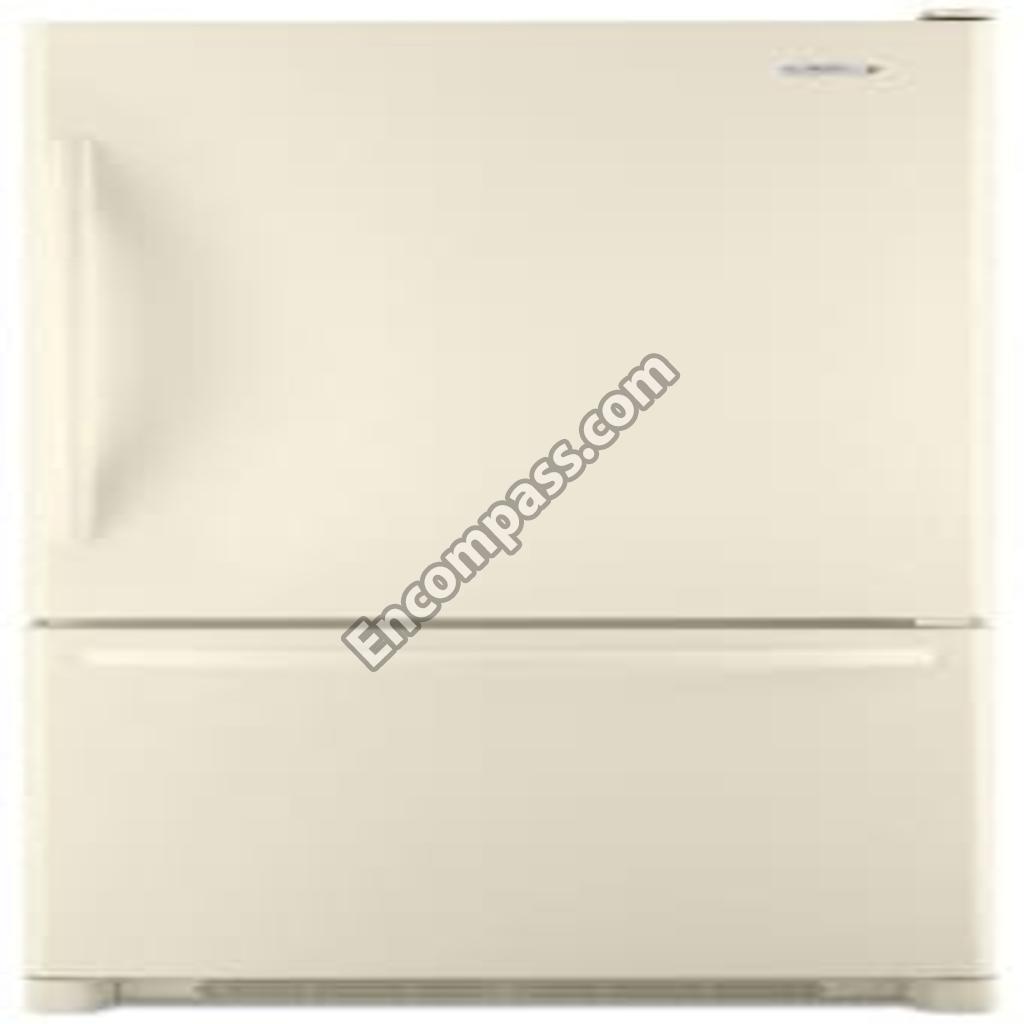

Model Image
Manufacturer

Whirlpool

Model Number

GB2SHTXTT00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2217192 2217192 ACCESSORIES (CLEANER, STAINLESS STEEL)
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
12658566SQ 12658566SQ ASSY- ROLL
67006434 67006434 AXLE, ROLLER
WP12591403 WP12591403 BASEPAN
13016002 13016002 BASKET, FREEZER (LOWER)
67001075 67001075 BASKET, FREEZER (UPPER)
WPW10371194 WPW10371194 BIN CONTROL LEVER
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
WP12777701 WP12777701 BLOCK- FIL
67006697 67006697 BOLT, ADJUSTING (REAR)
WP12227303WD WP12227303WD BRACE- CRI
WP2256087 WP2256087 BRACKET
WP67004953 WP67004953 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10280608 WPW10280608 BRACKET
WP67005633 WP67005633 BRACKET
12002500 12002500 BRACKET, BASKET (RIGHT)
Y67003896 Y67003896 BRACKET, CONTROL AND LIGHTS
12906303WD 12906303WD BRACKET, FOOT
12456801V 12456801V BRACKET, FOOT
WP12812501WD WP12812501WD BRACKET- D
WP12812502WD WP12812502WD BRACKET- D
67004978 67004978 BUSHING (BLACK)
WP67004977 WP67004977 BUSHING- D
WP67001130 WP67001130 BUTTON- PL
WP12246608 WP12246608 BUTTON- PL
100000 100000 CABINET (NOT A SERVICABLE PART)
WP67005626 WP67005626 CADDY- CAN
W11395888 W11395888 CAP-FILTER
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10833902 W10833902 CLAMP
WP2315522 WP2315522 CLIP
W10819546 W10819546 CLIP
67007052 67007052 CLIP, CAPACITOR
67001067 67001067 CLIP, DRAIN TUBE
10623002 10623002 CLIP, EVAPORATOR
67002816 67002816 CLIP, WATERLINE
M0104102 M0104102 CLIP- CORD
10547003 10547003 CLIP- DRIE
W11673433 W11673433 CLIP- EVAP
WP12627302 WP12627302 CLIP- TOE
WP67003639 WP67003639 CLOSER
WP67003638 WP67003638 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006132 WP67006132 CONDENSER
WPW10503278 WPW10503278 CONTROL BOARD
WP67003903 WP67003903 CONTROL- D
W11519867 W11519867 COVER
W10720642 W10720642 COVER
W11284721 W11284721 COVER
12587703C 12587703C COVER, CORNER (BISQUE)
67003485 67003485 COVER, CORNER (BLACK)
67003484 67003484 COVER, CORNER (WHITE)
W10308415 W10308415 COVER, EVAPORATOR
67001013 67001013 COVER, HINGE (BISQUE)
67001012 67001012 COVER, HINGE (BLACK)
67001014 67001014 COVER, HINGE (WHITE)
67003905 67003905 COVER, LIGHT
12575101WD 12575101WD COVER, UNIT
12726003 12726003 COVER, WATER LINE
67004611 67004611 COVER, WATER VALVE
WP12568001 WP12568001 COVER- FIL
WP67003924 WP67003924 COVER- FZ
WP12806701 WP12806701 COVER-BOX
WP67001098 WP67001098 COVER-TUBE
WP67002633 WP67002633 CRISPER PAN
WP628356 WP628356 CUP-FILL
12225601 12225601 DAM (LEFT SIDE)
67001084 67001084 DAM (RIGHT SIDE)
67006644 67006644 DIVIDER, LOWER BASKET
67004127 67004127 DIVIDER, UPPER BASKET
12658928SQ 12658928SQ DOOR ASSEMBLY SS
67003781 67003781 DOOR CLOSURE (BISQUE)
WP12744905 WP12744905 DOOR COMP
W10443315 W10443315 DOOR GASKET, MAGNETIC (WHITE)
W10443313 W10443313 DOOR GASKET, MAGNETIC (WHITE)
2319729T 2319729T DOOR HANDLE (BISQUE)
WP2319727S WP2319727S DOOR HANDLE (STAINLESS STEEL)
WP12566606ED WP12566606ED DOOR HINGE
WP12607104ED WP12607104ED DOOR HINGE
12658533BQ 12658533BQ DOOR, REFRIGERATOR (BLACK)
W10328327 W10328327 DRAWER, PANTRY
WPW10143759 WPW10143759 DRIER-UV
12863067 12863067 ENERGY TAG
12001919 12001919 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
W11177593 W11177593 FEET-LVLNG
67006470 67006470 FILTER, WATER
WP2300868 WP2300868 FITTING
WPW10568041 WPW10568041 FRAME
67004782 67004782 FREEZER DOOR (W/ INSULATION) (BISQUE)
67004781 67004781 FREEZER DOOR (W/ INSULATION) (BLACK)
67004783 67004783 FREEZER DOOR (W/ INSULATION) (WHITE)
WPW10289690 WPW10289690 FRONT COVER
W10815413 W10815413 FUNNEL
W10856123 W10856123 GASKET
WPW10436250 WPW10436250 GASKET ASSEMBLY
WPW10436248 WPW10436248 GASKET ASSEMBLY
B5759649 B5759649 GASKET MC
A3189394 A3189394 GASKET, BOTTOM
WPB8381501 WPB8381501 GASKET- DR
12002497 12002497 GEAR
W11402523 W11402523 GLASS SHELF
WP67006878 WP67006878 GLASS- CRI
WP67001054 WP67001054 GLIDE LT
WP67001053 WP67001053 GLIDE RT
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534161 WPW10534161 GRILLE-FRT
WPW10236197 WPW10236197 GRILLE-FRT
WPW10534162 WPW10534162 GRILLE-FRT
W10450022 W10450022 GRIPPER, BUCKET (MEDIUM)
67003493 67003493 GROMMET (4)
67005680 67005680 GROMMET (8)
WP61004743 WP61004743 GROMMET- B
WP67002780 WP67002780 GROMMET- F
W11677725 W11677725 GUIDE
10508506 10508506 HANDLE
WP2319727W WP2319727W HANDLE
WP2319727B WP2319727B HANDLE
2254600T 2254600T HANDLE (BISQUE)
12870501 12870501 HARNESS, EVAP HEATER
67006095 67006095 HARNESS, LIGHTS (FREEZER)
67004955 67004955 HARNESS, UNIT
WP67001794 WP67001794 HEATER- DE
W11689473 W11689473 HINGE- CEN
WP67001716 WP67001716 HOOK- LADD
WP67006524 WP67006524 HOUSING
WPW10464769 WPW10464769 HOUSING
W11702858 W11702858 HOUSING
12806601 12806601 HOUSING, LIGHT
67003906 67003906 HOUSING, LIGHTING
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICEMAKER
WP67003753 WP67003753 INLET VALVE
WP67006531 WP67006531 INLET VALVE
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
WP67003904 WP67003904 INSULATION
67003796 67003796 INSULATION, SOUND
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
67001073 67001073 LADDER, CENTER
67001317 67001317 LADDER, SIDE
W11679940 W11679940 LIGHT BULB
12828178 12828178 MANUAL OW
W11613295 W11613295 MOTOR-COND
WP2220214 WP2220214 NAMEPLATE
WP627018 WP627018 NUT
M0286708 M0286708 NUT- SPEED
67005190 67005190 OVERLAY
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP12579803 WP12579803 PAN- DRAIN
WP67001255 WP67001255 PAN-ICE
WPM1205302 WPM1205302 PIN
WP67006642 WP67006642 PIN
12707303SP 12707303SP PLATE, SWITCH
WP67001668 WP67001668 PLATE- FIL
10712401 10712401 PLUG
WPA3076901 WPA3076901 PLUG, BUTTON
M0310738 M0310738 PLUG, BUTTON (3) (BISCUIT)
67004838 67004838 PLUG, BUTTON (BLACK)
67007121 67007121 POWER CORD
350942 350942 PRIMER
12503808SP 12503808SP RACK, CAN
WPW10671238 WPW10671238 RAIL-CENTR
12658533CQ 12658533CQ REFRIGERATOR DOOR (W/ INSULATION) (BISQUE)
WP12658533WQ WP12658533WQ REFRIGERATOR DOOR (W/ INSULATION) (WHITE)
WP67005149 WP67005149 ROLLER
WP10450603 WP10450603 ROLLER
WP12580304 WP12580304 ROLLER ASSEMBLY
WP489128 WP489128 SCREW
W11233072 W11233072 SCREW
67006608 67006608 SCREW
W10709795 W10709795 SCREW
W10709798 W10709798 SCREW
WP67004954 WP67004954 SCREW
12992301 12992301 SCREW
WP3387230 WP3387230 SCREW
WP400021-1 WP400021-1 SCREW
W10709797 W10709797 SCREW
WP489474 WP489474 SCREW
WP33001882 WP33001882 SCREW
67006425 67006425 SCREW
WP489349 WP489349 SCREW
WP98165 WP98165 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
71003131 71003131 SCREW
WP681249 WP681249 SCREW
12846902 12846902 SCREW (2)
12991101 12991101 SCREW, HANDLE (BLACK)
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
W11715937 W11715937 SHAFT
12463302 12463302 SHELF SPL
12575305 12575305 SHROUD CO
67002777 67002777 SHROUD, EVAP FAN
WP67005864 WP67005864 SLIDE
WP67006607 WP67006607 SLIDE
W11447232 W11447232 SOCKET
350930 350930 SPRAY
WPA1055105 WPA1055105 SPRING
W10613606 W10613606 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
W11708403 W11708403 STOP-DOOR
WP67004790 WP67004790 STUD, HANDLE
WP67001721 WP67001721 SUPPORT- L
WP67001722 WP67001722 SUPPORT- R
12831101 12831101 SWEEP-WATER VALVE
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
WP12575501 WP12575501 SWITCH- LI
W10153958 W10153958 TANK, WATER
W11238399 W11238399 TAPE
67004282 67004282 TECH SHEET
833938 833938 TERMINAL
12002355 12002355 THERMISTOR
WP67003426 WP67003426 THERMOSTAT
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
67004102 67004102 TRACK, WATER
67005130 67005130 TRAY, SUMP
WP67001279 WP67001279 TRAY- DAIR
WPW10292802 WPW10292802 TRAY-DRIP
WP12690502 WP12690502 TRIM, DOOR SHELF
W10656986 W10656986 TRIM, PANTRY FRONT
WPW10231482 WPW10231482 TRIM-SHELF
WPB5705307 WPB5705307 TUBE
WP12866902 WP12866902 TUBE, DISCHARGE
67001066 67001066 TUBE, DRAIN
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
W10823511 W10823511 WATER TUBE
W11181718 W11181718 WATER TUBE
WPD7813010 WPD7813010 WIRE HARNESS
W11619328 W11619328 WIRE HARNESS
WP67005162 WP67005162 WIRE HARNESS
