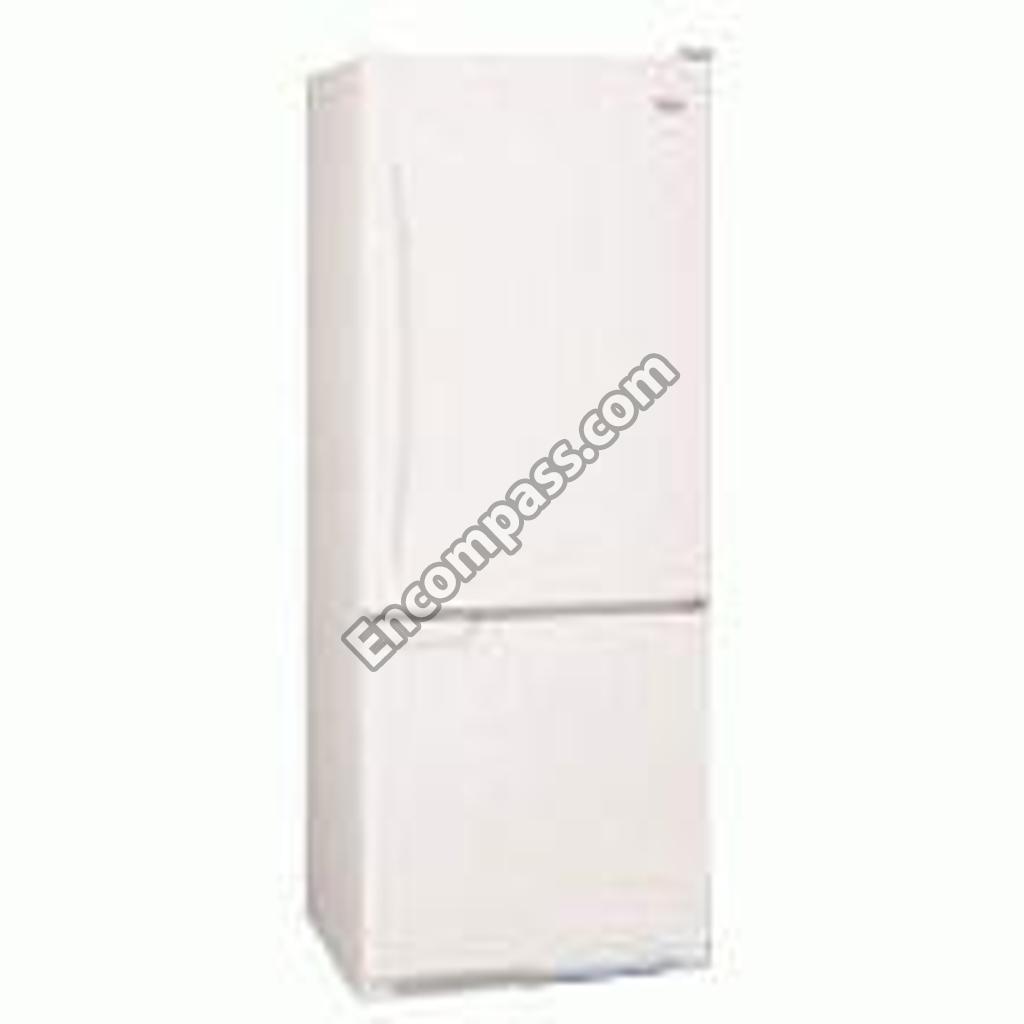

Model Image
Manufacturer

Whirlpool

Model Number

GB9SHKRLS01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
12225601 12225601 AIR DAM
350956 350956 ALMOND
WP72107 WP72107 ALMOND
67006434 67006434 AXLE, ROLLER (2)
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
8170991 8170991 BASE-UNIT
67002445 67002445 BASKET, TILT-OUT
8170988 8170988 BASKET-FZR
WP12754803 WP12754803 BASKET-FZR
WP67001040 WP67001040 BELT- DAMP
WPW10351081 WPW10351081 BIN CONTROL LEVER
WPW10371194 WPW10371194 BIN CONTROL LEVER
72032 72032 BLACK
WP12587601 WP12587601 BLADE- CON
WP2169142 WP2169142 BLADE-FAN
8170907 8170907 BRACKET
WP67004975 WP67004975 BUSHING (WHITE)
WP67001130 WP67001130 BUTTON- PL
WP12246608 WP12246608 BUTTON- PL
100000 100000 CABINET (NOT A SERVICEABLE PART)
WP65889-4 WP65889-4 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
8170901 8170901 CLAMP
W11673433 W11673433 CLIP
8170895 8170895 CLIP
67001067 67001067 CLIP, DRAIN TUBE
4344219 4344219 CLIP, EVAPORATOR
WP12627302 WP12627302 CLIP- TOE
4396418 4396418 COMPLETE ICE MAKER ASSEMBLY
W10309990 W10309990 COMPRESSOR
67006133 67006133 CONDENSER
WP67003410 WP67003410 CONTROL
8171003 8171003 COVER
8170976 8170976 COVER
12694401 12694401 COVER
12587703C 12587703C COVER, CORNER (BISQUE)
67003485 67003485 COVER, CORNER (BLK)
8171006 8171006 COVER, EVAPORATOR
67001012 67001012 COVER, TOP HINGE (BLK)
67001014 67001014 COVER, TOP HINGE (WHT)
67003484 67003484 COVER- COR
67001285 67001285 COVER- FZ
12575101WD 12575101WD COVER-BACK
WP67001098 WP67001098 COVER-TUBE
8170898 8170898 COVER-VALV
W10833528 W10833528 CRISPER PAN
WP628356 WP628356 CUP-FILL
8170879 8170879 DIVIDER
8170777 8170777 DOOR HANDLE (BISCUIT)
4388972 4388972 DOOR HANDLE (WHITE)
WP12566606ED WP12566606ED DOOR HINGE
WP12607104ED WP12607104ED DOOR HINGE
WP67003637 WP67003637 DOOR-COMP
8170985 8170985 DOR-FIP BL
12658501CQ 12658501CQ DOR-FIP BQ
8170973 8170973 DOR-FIP BT
8170962 8170962 DOR-FIP SS
8170753 8170753 DOR-FIP SS
67001138 67001138 DOR-FIP WH
12477402 12477402 DRAIN PAN
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER-TUBE
W10136387A W10136387A EGG-CONTNR
67001027 67001027 END CAP, FZ DR BSKT
67001026 67001026 END CAP, FZ DR BSKT
8170830 8170830 ENDCAP
W11177593 W11177593 FEET-LVLNG
67003796 67003796 FIBER- ACO
WPW10671240 WPW10671240 FRAME
12658901WQ 12658901WQ FREEZER DOOR PANEL (INCLUDES INSULATION) (WHITE)
W10815413 W10815413 FUNNEL
12658901BQ 12658901BQ FZ DR FOAM
B5759611 B5759611 GASKET
W10856123 W10856123 GASKET
8170924 8170924 GASKET
8171007 8171007 GASKET
8170994 8170994 GASKET
8170918 8170918 GASKET
WPW10443309 WPW10443309 GASKET ASSEMBLY
WPW10436245 WPW10436245 GASKET ASSEMBLY
WPW10443311 WPW10443311 GASKET ASSEMBLY
A3189394 A3189394 GASKET, BOTTOM
WPB8381501 WPB8381501 GASKET- DR
WPW10436247 WPW10436247 GASKET-FIP
67001037 67001037 GEAR- DAMP
WP67006877 WP67006877 GLASS SHELF
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
WPW10175909 WPW10175909 GRILLE
8170997 8170997 GRILLE
WP67003849 WP67003849 GRILLE-FRT
WP67003843 WP67003843 GRILLE-FRT
8170888 8170888 GROMMET
8170908 8170908 GROMMET
798392 798392 GROMMET (3)
67005680 67005680 GROMMET- C
WP67002780 WP67002780 GROMMET- F
4388974 4388974 HANDLE
WP67005141 WP67005141 HANDLE
WP67005140 WP67005140 HANDLE
8170874 8170874 HANDLE
67005125 67005125 HANDLE, DOOR (BLACK)
8170919 8170919 HARNS-WIRE
8170903 8170903 HARNS-WIRE
WP67002135 WP67002135 HEATER- DE
10961005B 10961005B HING-BUSHG
WP12561901B WP12561901B HINGE COVER, BOTTOM (BLACK)
12561901W 12561901W HINGE COVER, BOTTOM (WHITE)
W10215662 W10215662 HINGE, BOTTOM (BLACK)
12465002WD 12465002WD HINGE- BOT
W11689473 W11689473 HINGE- CEN
8170863 8170863 HINGE-DOOR
W11702858 W11702858 HOUSING
WP67002085 WP67002085 HOUSING
8170831 8170831 HOUSING
4343700 4343700 ICE CONTAINER ASSEMBLY
12650002 12650002 INSULATION
876370 876370 INSULATION
12002051 12002051 KIT, EVAPORATOR
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
67001033 67001033 KNOB
67002512 67002512 KNOB, FRONT
67003420 67003420 KNOB-THERM
8170998 8170998 LADDER
8170999 8170999 LADDER
12435806 12435806 LADDER- CE
8170832 8170832 LENS-LIGHT
W11679940 W11679940 LIGHT BULB
LIT8171149 LIT8171149 LITERATURE PARTS (ENERGY TAG)
LIT8170947 LIT8170947 LITERATURE PARTS (TECH SHEET)
LIT8170948 LIT8170948 LITERATURE PARTS (USE & CARE GUIDE)
WP12476002 WP12476002 MODULE- FZ
833697 833697 MOTOR-COND
WPW10128551 WPW10128551 MOTOR-EVAP
WP2220214 WP2220214 NAMEPLATE
WP12555902 WP12555902 OVERLOAD (INCLUDES RELAY)
799344 799344 PAINT
978883 978883 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP67001255 WP67001255 PAN-ICE
WP2218127K WP2218127K PAN-MEAT
67001045 67001045 PANEL- FZ
67007018 67007018 PIN HINGE BOTTOM
WP67006744 WP67006744 PIN- CENTE
8170921 8170921 PLATE
WPA3076901 WPA3076901 PLUG, BUTTON
4343926 4343926 PLUG, BUTTON (BLACK)
A3080001 A3080001 PLUG, BUTTON (BLK)
A3080002 A3080002 PLUG, BUTTON (WHT)
67004838 67004838 PLUG, VENT (BLACK)
10712401 10712401 PLUG, VENT (WHT)
WP2189009 WP2189009 PLUG-HNDLE
W10709784 W10709784 PLUG-HNDLE
WP2189000 WP2189000 PLUG-HNDLE
M0310343 M0310343 PLUG-HOLE
WP67006506 WP67006506 POWER CORD
350942 350942 PRIMER
8170799 8170799 RACK, WINE
12658501BQ 12658501BQ REFRIGERATOR DOOR (W/ INSULATION) (BLACK)
4344093 4344093 ROLLER
WP67005149 WP67005149 ROLLER
WP12580304 WP12580304 ROLLER ASSEMBLY
4344094 4344094 SCREW
4391961 4391961 SCREW
WPM0223816 WPM0223816 SCREW
12992301 12992301 SCREW
WP98165 WP98165 SCREW
WPW10348409 WPW10348409 SCREW
71003131 71003131 SCREW
3400873 3400873 SCREW
WP67006715 WP67006715 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
W10005070 W10005070 SCREW
W10709801 W10709801 SCREW
W10709795 W10709795 SCREW
M0216705 M0216705 SCREW (2)
67006425 67006425 SCREW (3)
681390 681390 SCREW, 8-32 X 3/8
M0221523 M0221523 SCREW, SHLDR
M0260242 M0260242 SCREW, TF
67001158 67001158 SEAL- FRON
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
67002691 67002691 SHELF, FREEZER
67002686 67002686 SHELF, MEATKEEPER
8170763 8170763 SHELF-CANT
8170964 8170964 SHELF-CANT
WPM0274062 WPM0274062 SHIM, BOTTOM HINGE (BLACK)
WPM0274057 WPM0274057 SHIM- NON
WPM0274058 WPM0274058 SHIM- NON
8170906 8170906 SHROUD
67001090 67001090 SHROUD, CONDENSER FAN
67002777 67002777 SHROUD, EVAP FAN
8170556 8170556 SLIDE
W11447232 W11447232 SOCKET
350930 350930 SPRAY (13 OZ.) (WHITE)
12968202W 12968202W STOP, DOOR (WHITE)
W11708403 W11708403 STOP-DOOR
67003781 67003781 STOP-DOOR
WP12576801 WP12576801 STRAP
WP12227302WD WP12227302WD SUPPORT
8171155 8171155 SUPPORT-EV
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH, LIGHT
W11238399 W11238399 TAPE
67001034 67001034 TENSIONER-
833938 833938 TERMINAL
WP67003000 WP67003000 THERMOSTAT
12001937 12001937 THERMOSTAT KIT
WP67001036 WP67001036 TIMER- DEF
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 TORX KE
WP841180A WP841180A TRAY
W11337775 W11337775 TRAY, DRIP
WP67001279 WP67001279 TRAY- DAIR
8171005 8171005 TRAY-DRIP
67002681 67002681 TRIM, HANDLE (BISQUE)
67002680 67002680 TRIM- HAND
67002682 67002682 TRIM-HANDL
8170786 8170786 TRIM-HANDL
8170807 8170807 TRIM-PAN
WPW10231337 WPW10231337 TRIM-SHELF
WP12690501 WP12690501 TRIM-SHELF
WP12532601Q WP12532601Q TUBE- DISC
67001066 67001066 TUBE- DRAI
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
876764 876764 VALVE,ACCESS (3/16)
8171000 8171000 WIRE-SHELF
