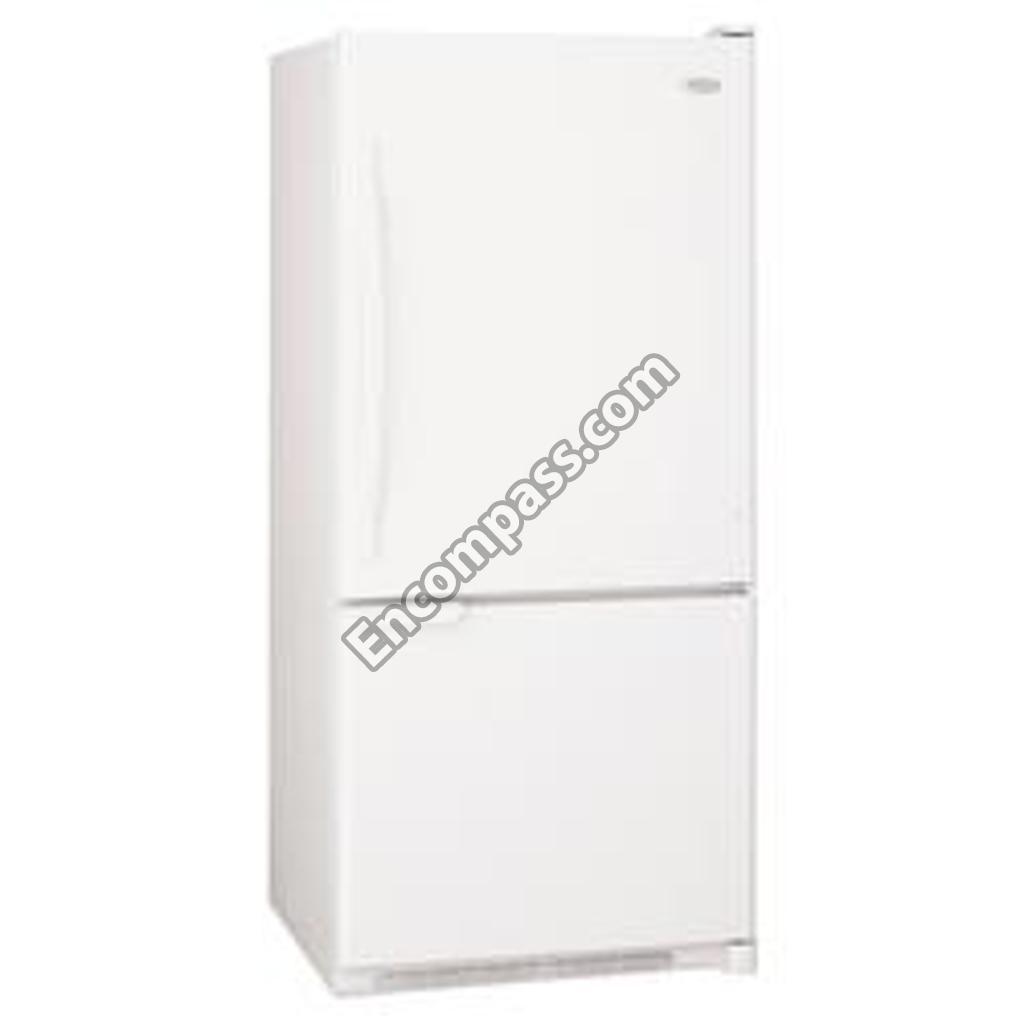

Model Image
Manufacturer

Whirlpool

Model Number

GB9SHKXMQ02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
67006434 67006434 AXLE, ROLLER (2)
67006914 67006914 BASEPAN
67002445 67002445 BASKET, TILT OUT
WP12754803 WP12754803 BASKET-FZR
WP67001040 WP67001040 BELT- DAMP
WPW10351081 WPW10351081 BIN CONTROL LEVER
WPW10371194 WPW10371194 BIN CONTROL LEVER
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
67005491 67005491 BLOCK, CONDENSER
WP2256087 WP2256087 BRACKET
WP67004953 WP67004953 BRACKET
WP67005633 WP67005633 BRACKET
WP12724501 WP12724501 BRACKET, CONTROL AND LIGHTS
WP67004977 WP67004977 BUSHING- D
WP67001130 WP67001130 BUTTON- PL
100000 100000 CABINET (NOT A SERVICABLE PART)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A CLEANER, STAINLESS STEEL
WP2315522 WP2315522 CLIP
W10131991 W10131991 CLIP
67001067 67001067 CLIP, DRAIN TUBE
10623002 10623002 CLIP, EVAPORATOR
10547003 10547003 CLIP- DRIE
W11673433 W11673433 CLIP- EVAP
WP12627302 WP12627302 CLIP- TOE
W10170276 W10170276 COMPRESSOR
67006133 67006133 CONDENSER
WP67003000 WP67003000 CONTROL- F
67003484 67003484 COVER, CORNER (WHITE)
12694401 12694401 COVER, DAMPER
12226107 12226107 COVER, EVAPORATOR
67001014 67001014 COVER, HINGE (WHITE)
67001285 67001285 COVER, LIGHT
67002301 67002301 COVER, LIGHT
12575101WD 12575101WD COVER, UNIT
67001173 67001173 COVER, WATER VALVE
12561901W 12561901W COVER- LWR
WP67001098 WP67001098 COVER-TUBE
WP628356 WP628356 CUP-FILL
12225601 12225601 DAM (LEFT SIDE)
67001084 67001084 DAM (RIGHT SIDE)
WP67003410 WP67003410 DAMPER GEA
8170879 8170879 DIVIDER
WP12744905 WP12744905 DOOR COMP
WP12566606ED WP12566606ED DOOR HINGE
WP12607104ED WP12607104ED DOOR HINGE
12477402 12477402 DRAIN PAN
WPW10143759 WPW10143759 DRIER-UV
W10136387A W10136387A EGG-CONTNR
67001026 67001026 END CAP (LEFT)
67001027 67001027 END CAP (RIGHT)
67004741 67004741 ENERGY TAG
12002051 12002051 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
W11177593 W11177593 FEET-LVLNG
67004380 67004380 FRAME, CRISPER
12658901WQ 12658901WQ FREEZER DOOR (W/ INSULATION) (WHITE)
WPW10289690 WPW10289690 FRONT COVER
W10815413 W10815413 FUNNEL
12918001 12918001 FUNNEL, FILL TUBE
W11451451 W11451451 GASKET
W10856123 W10856123 GASKET
WPW10443311 WPW10443311 GASKET ASSEMBLY
WPW10443309 WPW10443309 GASKET ASSEMBLY
B5759649 B5759649 GASKET MC
WPB8381501 WPB8381501 GASKET- DR
12204810 12204810 GLASS, CRISPER
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WP67003849 WP67003849 GRILLE-FRT
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
67005680 67005680 GROMMET (2)
WP61004743 WP61004743 GROMMET- B
WP67002780 WP67002780 GROMMET- F
WP67005140 WP67005140 HANDLE
WP12691001W WP12691001W HANDLE, DOOR (WHITE)
W10130480 W10130480 HARNESS F
67001043 67001043 HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES 16)
67003385 67003385 HARNESS, EVAP. HEATER
13060202 13060202 HARNS-WIRE
WPD7813010 WPD7813010 HARNS-WIRE
WP67002135 WP67002135 HEATER- DE
12465002WD 12465002WD HINGE, BOTTOM (WHITE)
W11689473 W11689473 HINGE- CEN
WP67002085 WP67002085 HOUSING
W11702858 W11702858 HOUSING
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
8003RP 8003RP ICEMAKER INSTALL KIT
WP67006531 WP67006531 INLET VALVE
WPA3223101 WPA3223101 INSERT- PL
67003803 67003803 INSULATION
67003796 67003796 INSULATION, SOUND
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
67001033 67001033 KNOB
12227101 12227101 KNOB, CONTROL
67002512 67002512 KNOB, FRONT
W11685757 W11685757 LABEL
67002690 67002690 LADDER, SIDE
12435806 12435806 LADDER- CE
W11679940 W11679940 LIGHT BULB
67002685 67002685 LOGO
WP12476002 WP12476002 MODULE- FZ
W11613295 W11613295 MOTOR-COND
WP2220214 WP2220214 NAMEPLATE
W10192026 W10192026 OWNERS MANUAL
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67001928 WP67001928 PAN, CRISPER (2)
WP67001255 WP67001255 PAN-ICE
WP2218127K WP2218127K PAN-MEAT
67001045 67001045 PANEL, FZ CONTROL
67007018 67007018 PIN, BOTTOM HINGE
WP67006744 WP67006744 PIN- CENTE
12479901 12479901 PLATE COV
10712401 10712401 PLUG
WPA3076901 WPA3076901 PLUG, BUTTON
W10709784 W10709784 PLUG-HNDLE
M0310343 M0310343 PLUG-HOLE
350942 350942 PRIMER
12646501 12646501 RACK, ICE
12052502 12052502 RACK, WINE
67001138 67001138 REFRIGERATOR DOOR (W/ INSULATION) (WHITE)
WP12690501 WP12690501 RETAINER, DOOR
WP67005149 WP67005149 ROLLER
10481001 10481001 ROLLER (4)
WP12580304 WP12580304 ROLLER ASSEMBLY
WP681249 WP681249 SCREW
W10709798 W10709798 SCREW
WP67004954 WP67004954 SCREW
12992301 12992301 SCREW
WP67006908 WP67006908 SCREW
W10709795 W10709795 SCREW
WPW10348409 WPW10348409 SCREW
WP33001882 WP33001882 SCREW
WP489128 WP489128 SCREW
WP489349 WP489349 SCREW
WP98165 WP98165 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
71003131 71003131 SCREW
12846902 12846902 SCREW (2)
M0216705 M0216705 SCREW (2)
67006692 67006692 SCREW (4)
67006564 67006564 SCREW (8)
67006425 67006425 SCREW (9)
12226401 12226401 SEAL CRIS
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
67002691 67002691 SHELF, FREEZER
67002686 67002686 SHELF, GLIDE (3)
67002687 67002687 SHELF, MEATKEEPER
WPM0274057 WPM0274057 SHIM- NON
12575309 12575309 SHROUD
67002777 67002777 SHROUD, EVAPORATOR
W11447232 W11447232 SOCKET
WP10972101 WP10972101 SPACER- IC
350930 350930 SPRAY
8201769 8201769 START-DEV
W10613606 W10613606 START-DEV
12968202W 12968202W STOP, DOOR (WHITE)
WP12227302WD WP12227302WD SUPPORT
12831101 12831101 SWEEP-WATER VALVE
W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
W10169671 W10169671 TECH SHEET
67001034 67001034 TENSIONER, BELT
833938 833938 TERMINAL
WP67003426 WP67003426 THERMOSTAT
WP67001036 WP67001036 TIMER- DEF
WP1117510 WP1117510 TORX KEY
WP841180A WP841180A TRAY
W11337775 W11337775 TRAY, DRIP
WP67001279 WP67001279 TRAY- DAIR
10688093 10688093 TRIM, CRISPER
67002682 67002682 TRIM, HANDLE (WHITE)
WPB5705307 WPB5705307 TUBE
12866904 12866904 TUBE
67001066 67001066 TUBE, DRAIN
WP978025 WP978025 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
