Model Image
Manufacturer

Whirlpool

Model Number

GBD279PVQ03

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10438752 WPW10438752 ASSEMBLY, CONTROL ENCLOSURE
W10401226 W10401226 ASSEMBLY, DOOR GLASS (WHITE)
W10123223 W10123223 BACK, CONTROL
4455529 4455529 BASE, CHASSIS
WPW10245259 WPW10245259 BLOCK-TERM

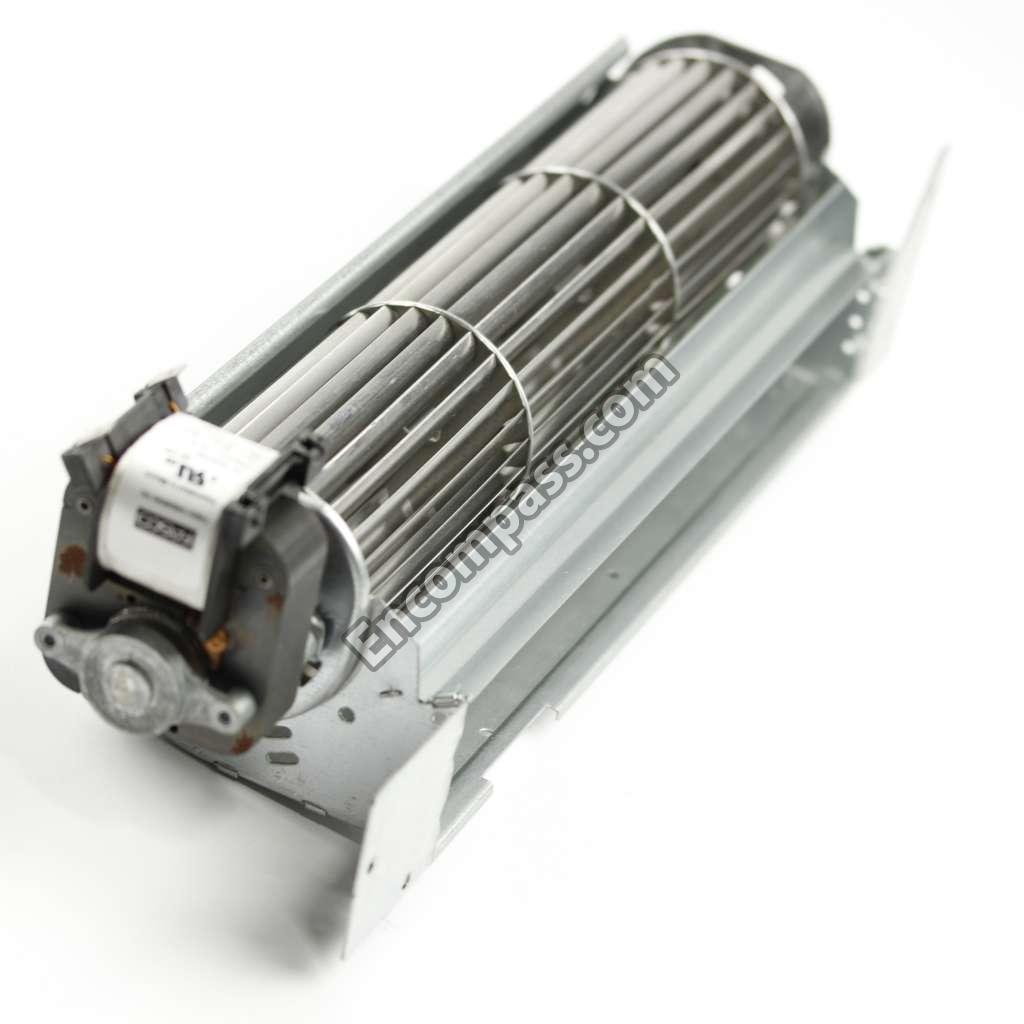

WPW10016550 WPW10016550 BLOWER
WPW10176670 WPW10176670 BLOWER
4455804 4455804 BRACKET, HANDLE (LEFT)
4455803 4455803 BRACKET, HANDLE (RIGHT)
4452152 4452152 BRACKET, MOUNTING BOTTOM VENT TRIM
WP9759229 WP9759229 BRKT-MNTG
WP9759230 WP9759230 BRKT-MNTG
8303119 8303119 BRKT-MNTG
W10212364 W10212364 BRKT-MNTG
8302390 8302390 BRKT-SUPRT
W10105790 W10105790 BUMPER
4448520 4448520 BUMPER, DOOR
4448982 4448982 BUTTON, PLUG
4451605 4451605 CAP, SPACER
4448664 4448664 CLAMP
WP98997 WP98997 CLIP
4450953 4450953 CONDUIT, DOUBLE

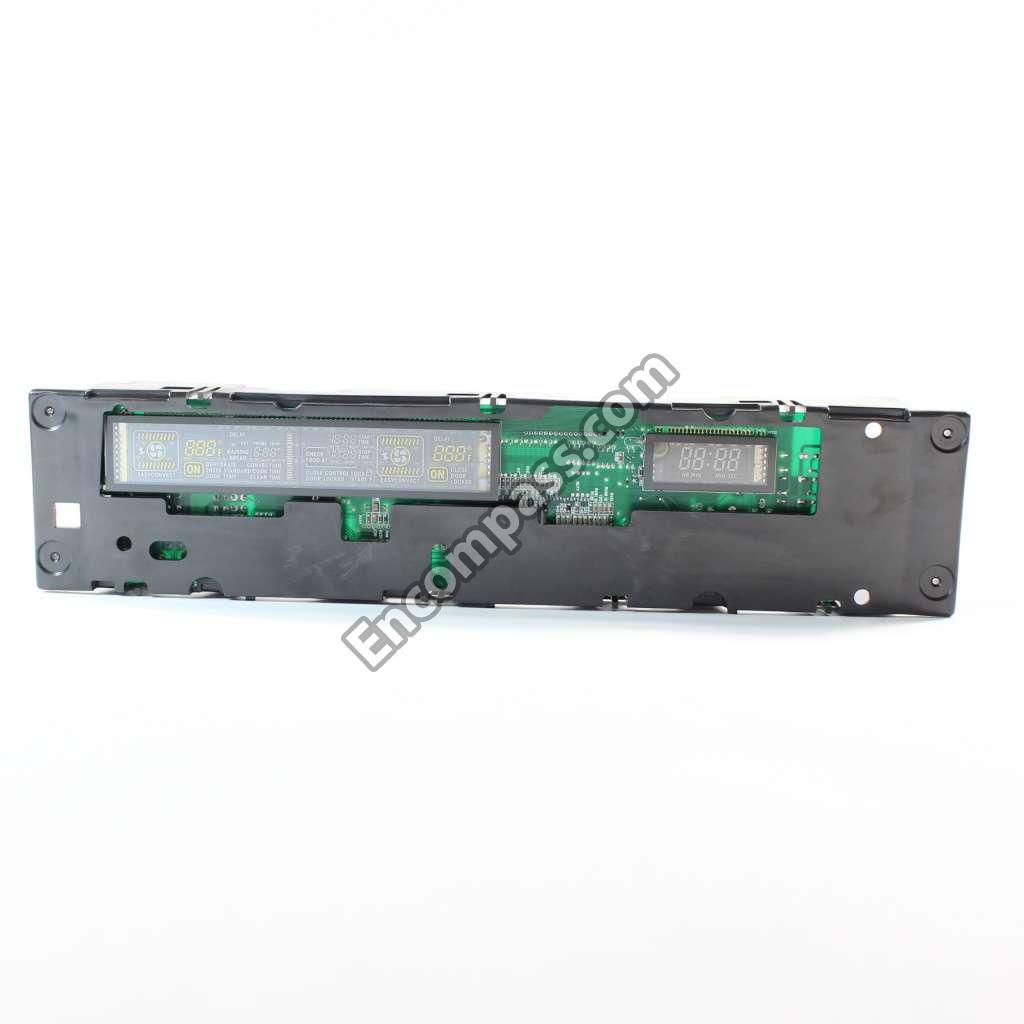

WP8301848 WP8301848 CONTROL BOARD
WP8302844 WP8302844 CONTROL PANEL
4450039 4450039 COVER, HIDDEN BAKE TRAY ACCESS
4452366 4452366 COVER, TOP FRONT
4450550 4450550 COVER, TOP REAR
WPW10160821 WPW10160821 COVER-FAN
WP4451747 WP4451747 COVER-REAR
W10161109 W10161109 COVER-REAR
9760676 9760676 DEFLCTR-VT
W10145009 W10145009 DEFLCTR-VT
WPW10195934 WPW10195934 DOOR DOOR LATCH
WP9760571 WP9760571 DOOR HINGE
WP9760572 WP9760572 DOOR HINGE
4455177 4455177 ELBOW, VENT BOTTOM
4455178 4455178 ELBOW, VENT TOP
WP9760769 WP9760769 ELEMENT

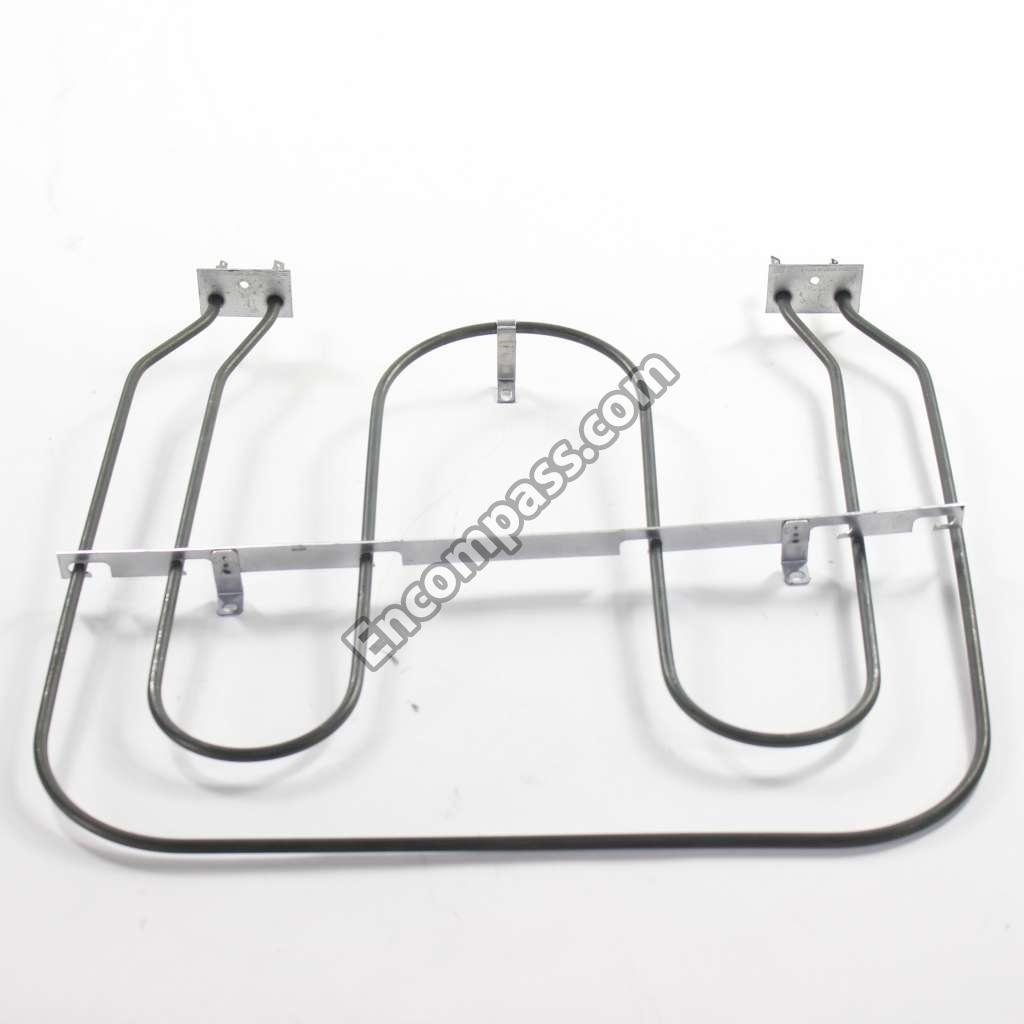

WPW10207398 WPW10207398 ELMNT-BAKE

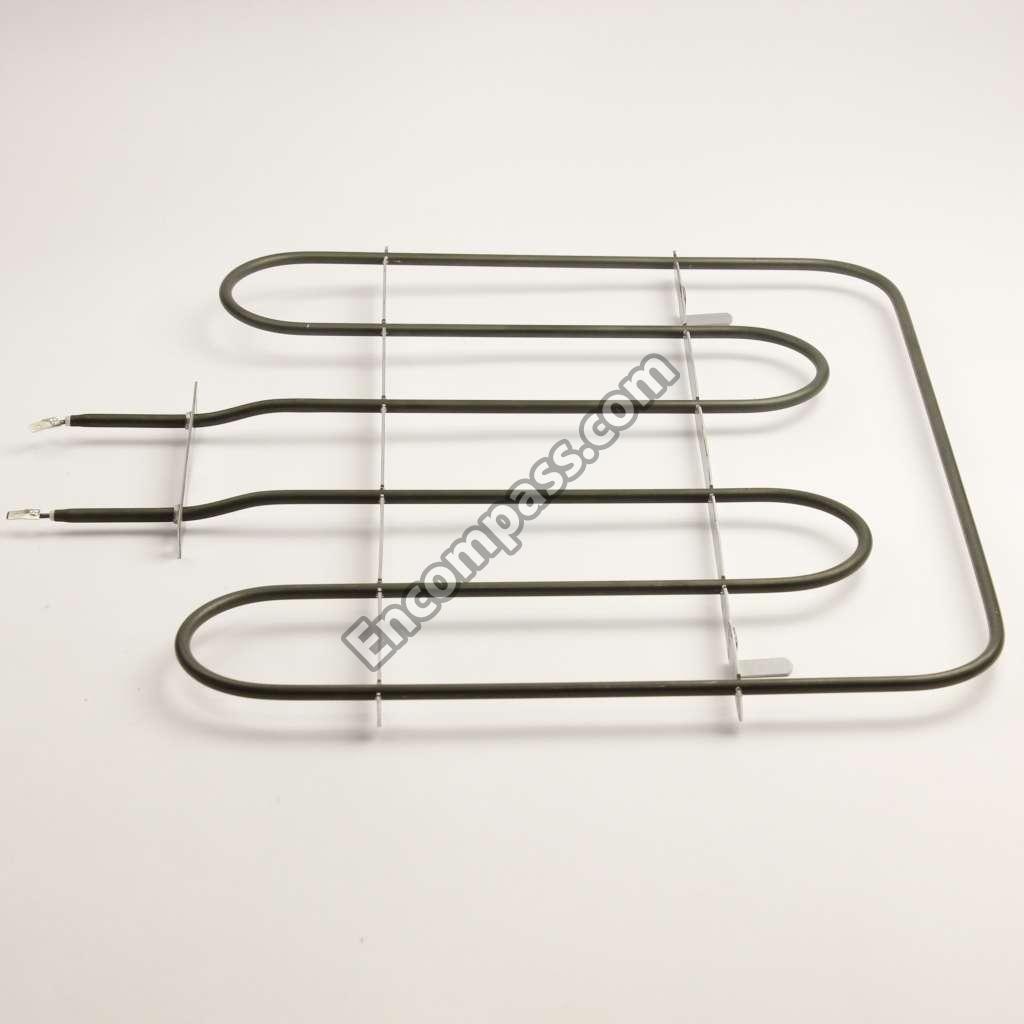

WPW10207400 WPW10207400 ELMNT-BROL
W10758272 W10758272 FAN-CONVCT
W10130370 W10130370 FRAME-FRNT
WP4455381 WP4455381 GASKT-DOOR
WP9759227 WP9759227 GLASS DOOR
WPW10200757 WPW10200757 GLASS DOOR
WP4449253 WP4449253 GLASS DOOR
WP9759224 WP9759224 GLASS, INNER
WP4448444 WP4448444 GROMMET
8301909 8301909 HARNS-WIRE
W10179652 W10179652 HARNS-WIRE
WP4455606 WP4455606 HINGE-RECV
WP4455605 WP4455605 HINGE-RECV

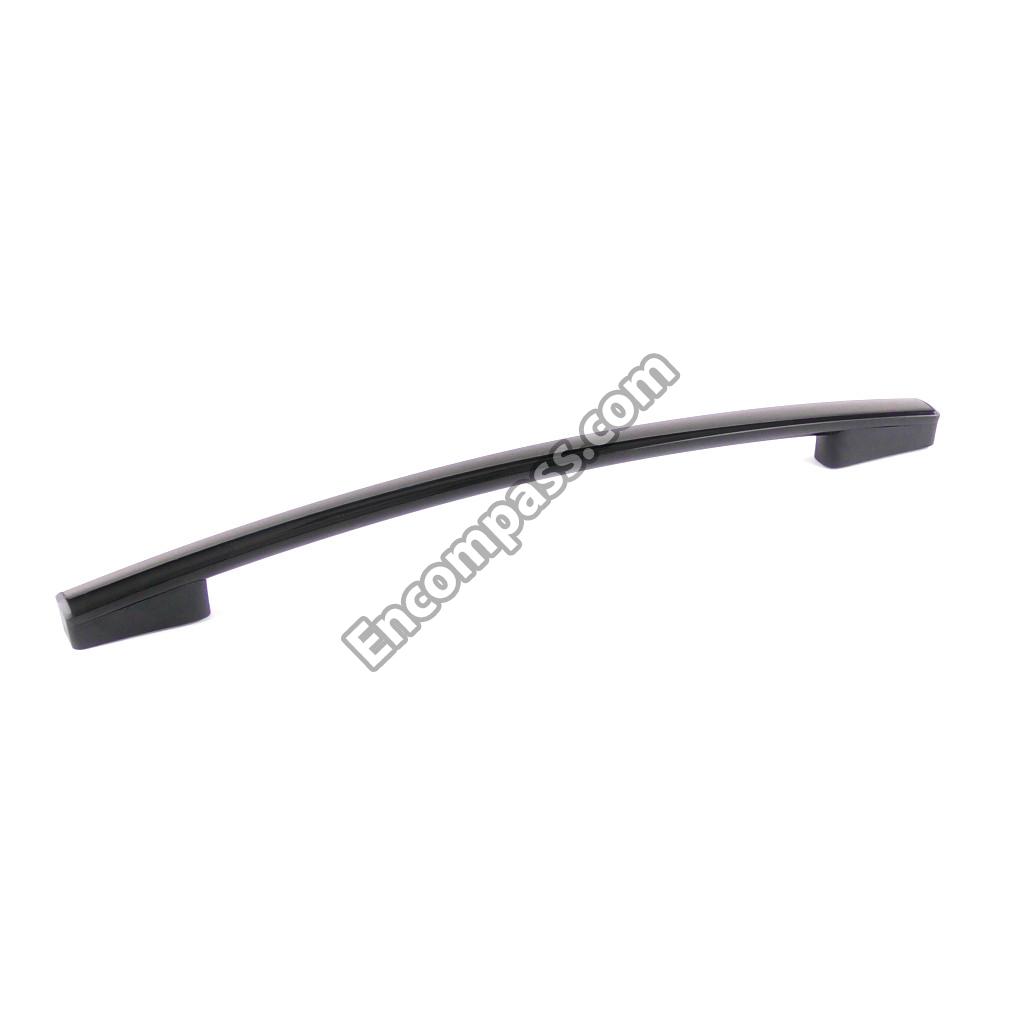

W10169802 W10169802 HNDLE-DOOR
W10169804 W10169804 HNDLE-DOOR
4457288 4457288 INST.INSERT
W10075750 W10075750 INSTALLATION INST.(BI-LINGUAL)
W10192049 W10192049 INSTALLATION INSTRUCTIONS
WP4450364 WP4450364 INSULATION, BACK
4451721 4451721 INSULATION, DOOR
4449315 4449315 INSULATION, WRAP
4452400 4452400 LEAD, GROUND STRAP
W10169756 W10169756 LENS-LIGHT
WPW10169757 WPW10169757 LIGHT BULB
WPW10307114 WPW10307114 LIGHT-OVEN
N_P N_P LINER, OVEN (NOT SERVICEABLE)
WP8303699 WP8303699 LINER-DOOR
W10794022 W10794022 MOTOR-FAN

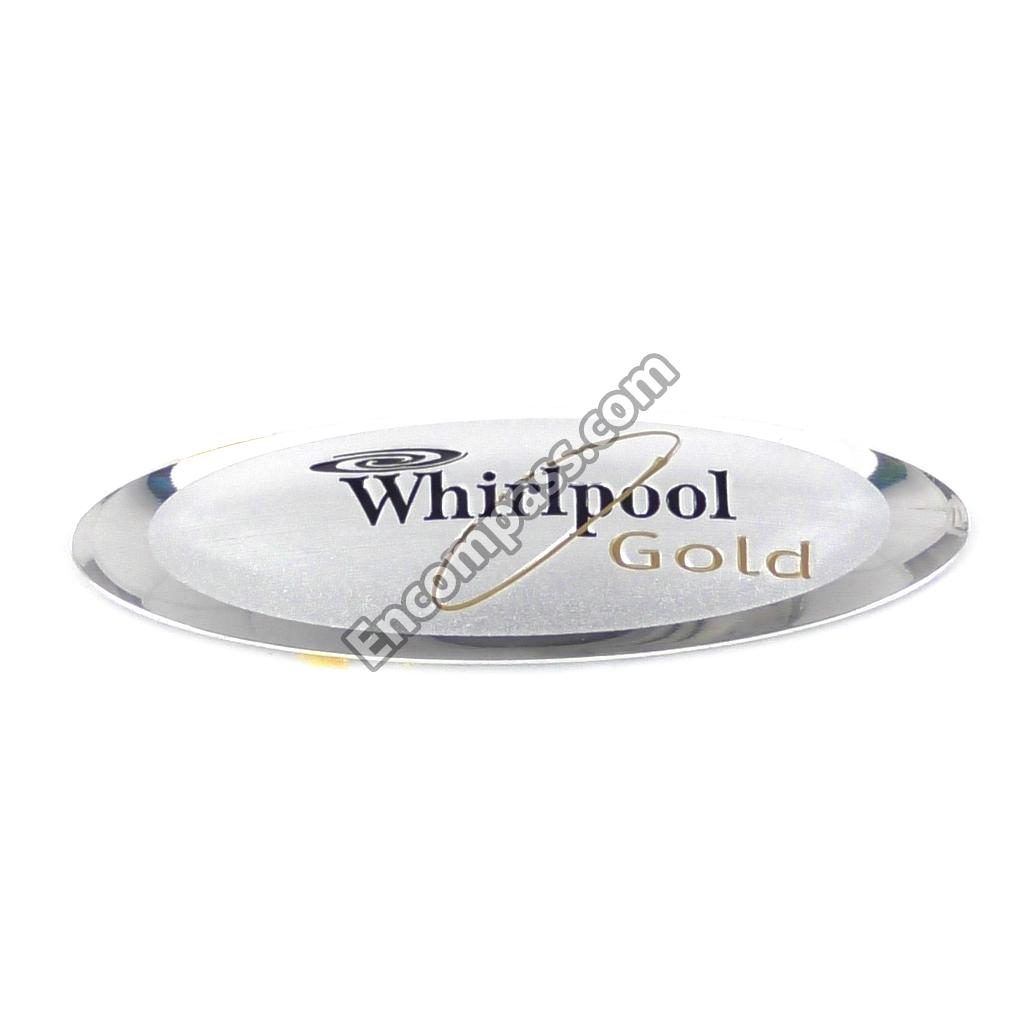

W10175320 W10175320 NAMEPLATE
WP7103P027-60 WP7103P027-60 NUT
WPW10116349 WPW10116349 NUT
WP8302845 WP8302845 PANEL, CONTROL (WHITE)
8302348 8302348 PANEL-VENT
4455191 4455191 PLATE, BLOWER
WP4448715 WP4448715 RACK, OVEN
WP8302793 WP8302793 RAIL-MTG
8302794 8302794 RAIL-MTG
WP9759242 WP9759242 RANGE THERMOSTAT
WP4448933 WP4448933 RETAINER
W10756285 W10756285 RETAINER
W10318997 W10318997 RETAINER
4457131 4457131 RETAINER, GLASS
9762761 9762761 SAFER COOKING TIPS (ENGLISH
W10065852 W10065852 SAFER COOKING TIPS (FRENCH)
WP4448950 WP4448950 SCREW
WP4449040 WP4449040 SCREW
WP4449154 WP4449154 SCREW
WPW10292297 WPW10292297 SCREW
WP4449809 WP4449809 SCREW
4449748 4449748 SCREW
W10214562 W10214562 SCREW
4450800 4450800 SCREW, GROUND
4452325 4452325 SEAL, PANO
W10491987 W10491987 SEAL-FOAM
WPW10131825 WPW10131825 SENSOR
4457113 4457113 SHEILD, HEAT-BOTTOM
4457102 4457102 SHEILD, HEAT-TOP
W10782197 W10782197 SIDE, CHASSIS
W10790240 W10790240 SIDE, CONTROL TOP (LEFT)
W10755214 W10755214 SIDE, CONTROL TOP (RIGHT)
4452490 4452490 SPACER, FOAM
4449845 4449845 SUPPORT, BRACKET
4451477 4451477 SUPPORT, INSULATION
4451761 4451761 SUPPORT, WIRING
WP4451985 WP4451985 SUPPRESSOR

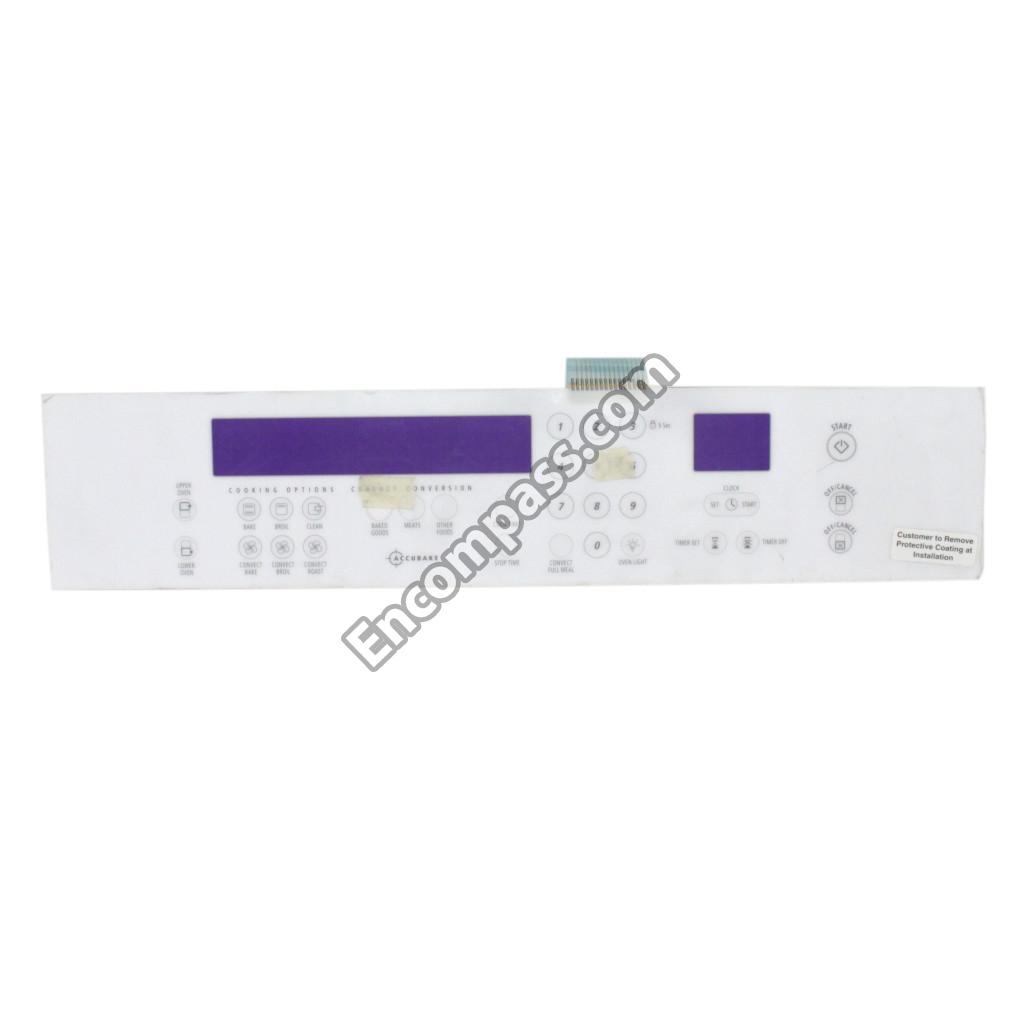

W10172118 W10172118 SWTCH-MEMB
W10172119 W10172119 SWTCH-MEMB
W10185219 W10185219 TECH SHEET
4455864 4455864 TOP, CHASSIS
WP9760587 WP9760587 TRANSFORMR
4455036 4455036 TRAY, HIDDEN BAKE

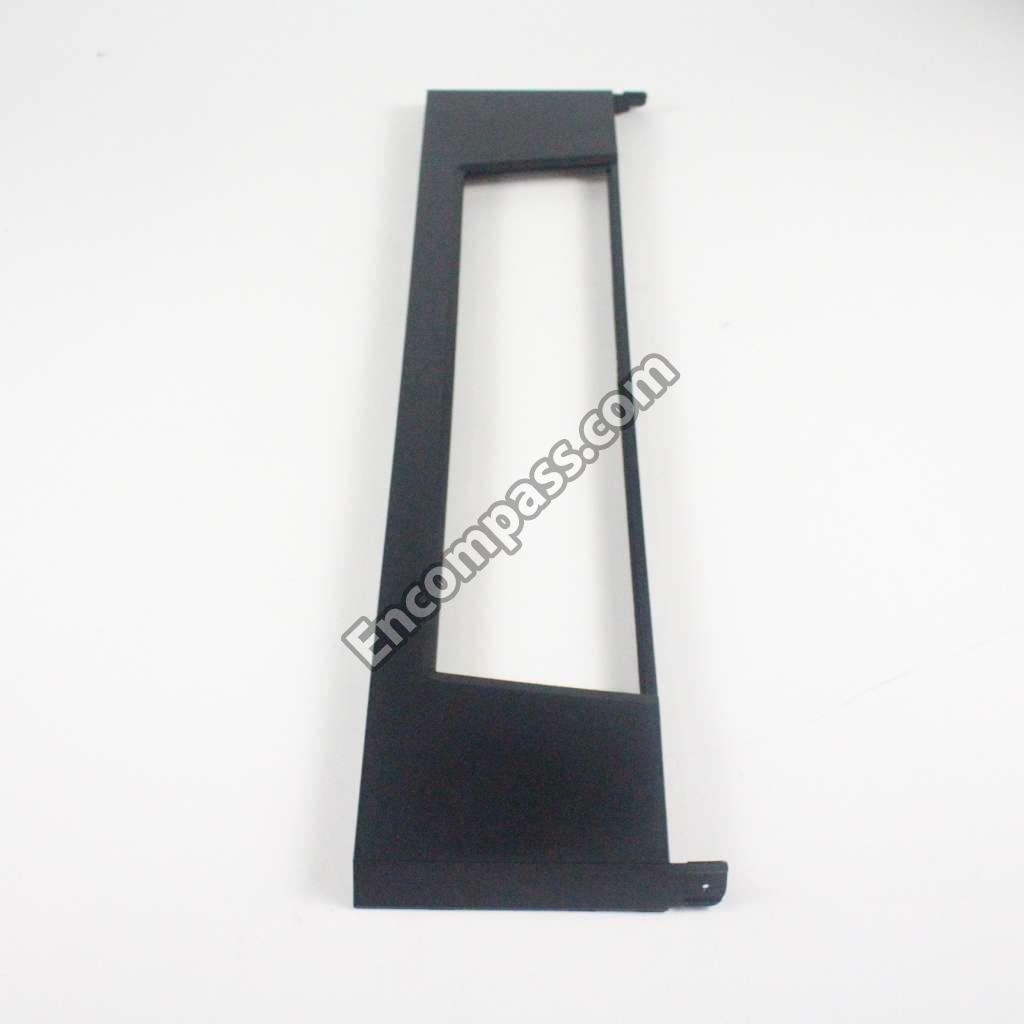

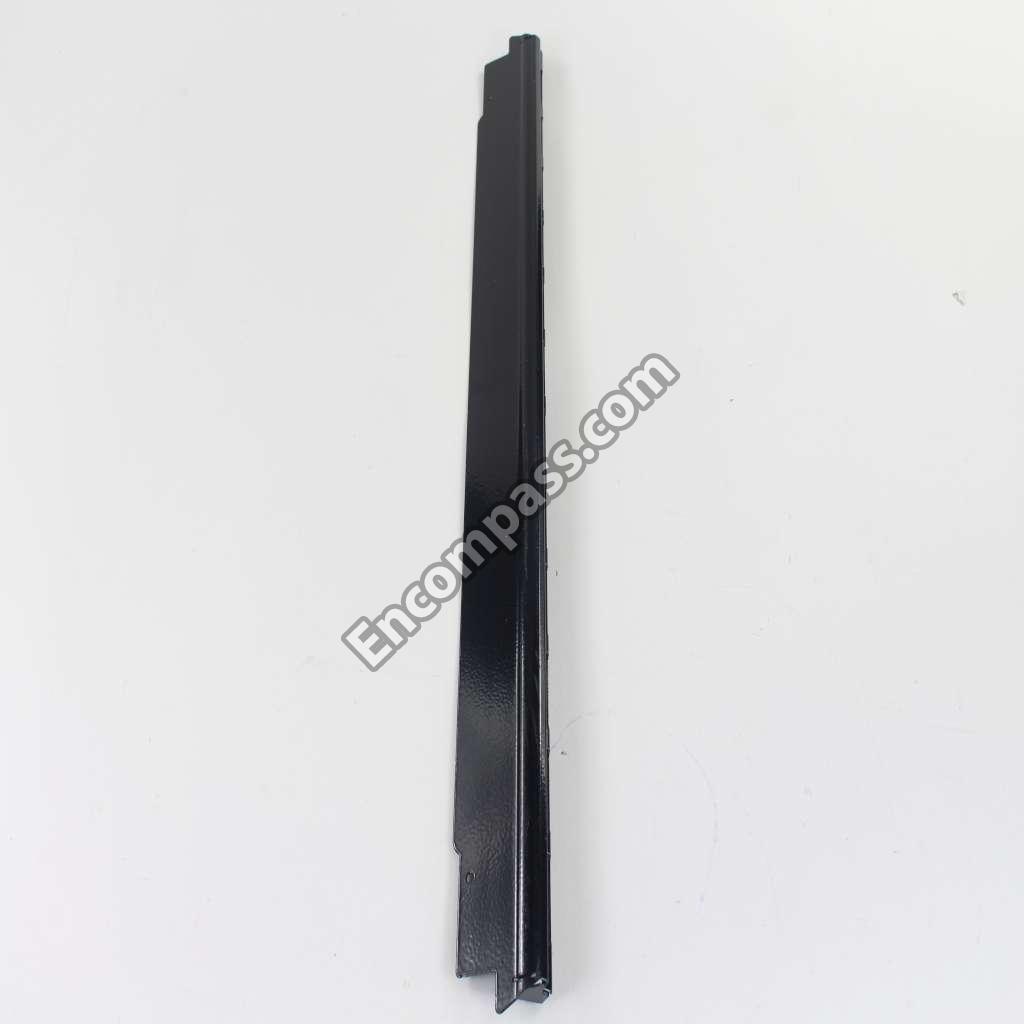

WPW10207684 WPW10207684 TRIM
WPW10339502 WPW10339502 TRIM
WPW10339500 WPW10339500 TRIM
WPW10339499 WPW10339499 TRIM
WPW10339501 WPW10339501 TRIM
4452266 4452266 TRIM, CENTER VENT
WPW10172172 WPW10172172 TRIM, CONTROL PANEL (BLACK)
W10172173 W10172173 TRIM-PANEL
W10861715 W10861715 TUBE-VENT
W10192042 W10192042 USE & CARE GUIDE
4455807 4455807 VENT, DEFLECTOR (BLACK)
4451759 4451759 VENT, EXHAUST
8303498 8303498 VENT-CNTRL
