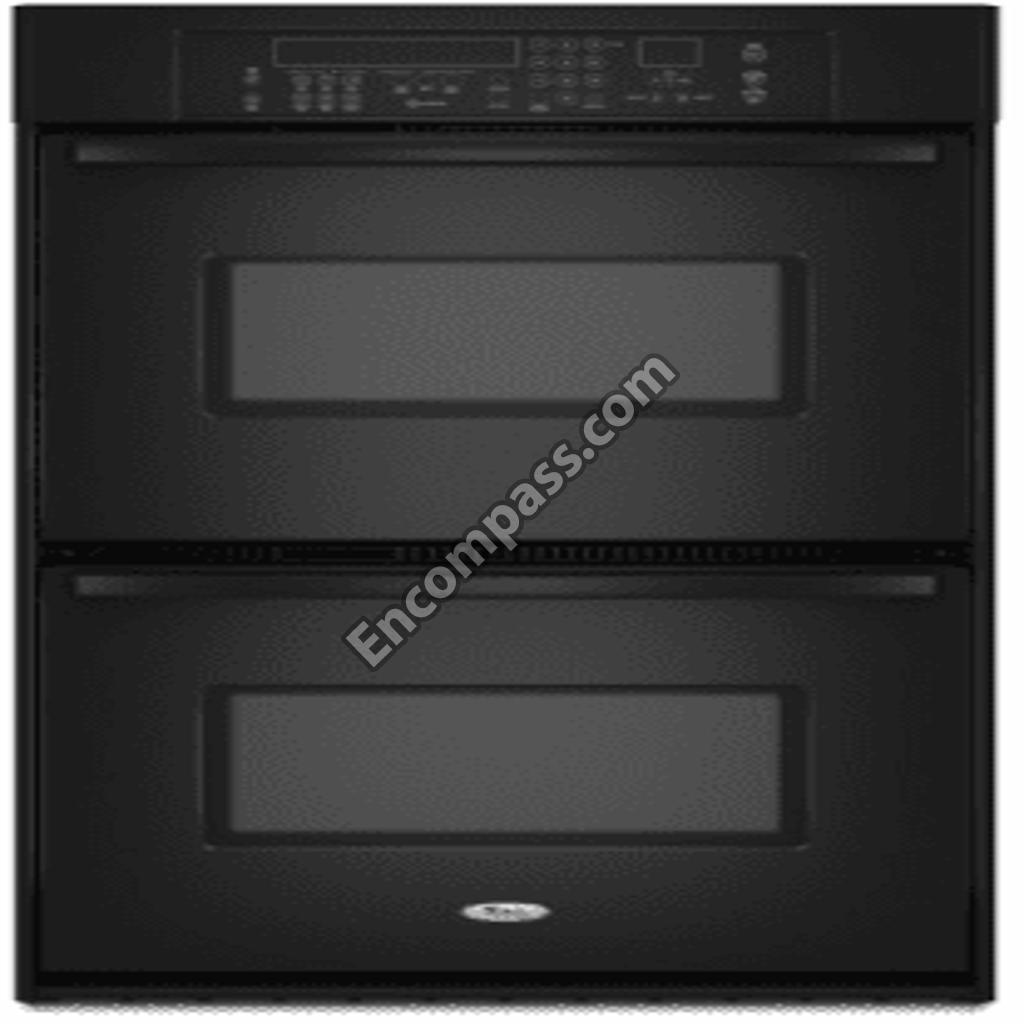

Model Image
Manufacturer

Whirlpool

Model Number

GBD309PVB02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 Whirlpool ADHESIVE
591014 591014 Whirlpool ADHESIVE LOCTITE (1/3 OZ.)
WPW10438752 WPW10438752 Whirlpool ASSEMBLY, CONTROL ENCLOSURE
W10123223 W10123223 Whirlpool BACK, CONTROL
WPW10222959 WPW10222959 Whirlpool BACKER, CONTROL PANEL
WPW10245259 WPW10245259 Whirlpool BLOCK-TERM
WPW10176670 WPW10176670 Whirlpool BLOWER
WPW10016550 WPW10016550 Whirlpool BLOWER
9759713 9759713 Whirlpool BOTTM-MAIN
4455804 4455804 Whirlpool BRACKET, HANDLE (LEFT)
4455803 4455803 Whirlpool BRACKET, HANDLE (RIGHT)
4452152 4452152 Whirlpool BRACKET, MOUNTING BOTTOM VENT TRIM
WP9759229 WP9759229 Whirlpool BRKT-MNTG
WP9759230 WP9759230 Whirlpool BRKT-MNTG
8303119 8303119 Whirlpool BRKT-MNTG
8302390 8302390 Whirlpool BRKT-SUPRT
W10105790 W10105790 Whirlpool BUMPER
4448520 4448520 Whirlpool BUMPER, DOOR
4451605 4451605 Whirlpool CAP, SPACER
4448664 4448664 Whirlpool CLAMP
WP98997 WP98997 Whirlpool CLIP
4450953 4450953 Whirlpool CONDUIT, DOUBLE
WP8301848 WP8301848 Whirlpool CONTROL BOARD
WP8302848 WP8302848 Whirlpool CONTROL PANEL
WP8302849 WP8302849 Whirlpool CONTROL PANEL
4450039 4450039 Whirlpool COVER, HIDDEN BAKE TRAY ACCESS
WPW10160821 WPW10160821 Whirlpool COVER-FAN
WP4451747 WP4451747 Whirlpool COVER-REAR
W10161110 W10161110 Whirlpool COVER-REAR
WP4452367 WP4452367 Whirlpool COVER-TOP
9760677 9760677 Whirlpool DEFLCTR-VT
WP9760889 WP9760889 Whirlpool DOOR DOOR LATCH
WPW10169801 WPW10169801 Whirlpool DOOR HANDLE
WPW10169798 WPW10169798 Whirlpool DOOR HANDLE (STAINLESS)
WP9760575 WP9760575 Whirlpool DOOR HINGE
WP9760574 WP9760574 Whirlpool DOOR HINGE
WP9760573 WP9760573 Whirlpool DOOR HINGE
WP9760576 WP9760576 Whirlpool DOOR HINGE
4455177 4455177 Whirlpool ELBOW, VENT BOTTOM
4455178 4455178 Whirlpool ELBOW, VENT TOP
WP9760769 WP9760769 Whirlpool ELEMENT
WPW10207398 WPW10207398 Whirlpool ELMNT-BAKE
WPW10207400 WPW10207400 Whirlpool ELMNT-BROL
W10758272 W10758272 Whirlpool FAN-CONVCT
WPW10115831 WPW10115831 Whirlpool FRAME-FRNT
W11675844 W11675844 Whirlpool GASKET-OVN
WP9759225 WP9759225 Whirlpool GLASS DOOR
WP9759228 WP9759228 Whirlpool GLASS DOOR
WPW10200754 WPW10200754 Whirlpool GLASS DOOR
WPW10200755 WPW10200755 Whirlpool GLASS DOOR
W10401225 W10401225 Whirlpool GLASS DOOR
WP4449259 WP4449259 Whirlpool GLASS DOOR
WP4448444 WP4448444 Whirlpool GROMMET
8301909 8301909 Whirlpool HARNS-WIRE
W10179652 W10179652 Whirlpool HARNS-WIRE
WP4455605 WP4455605 Whirlpool HINGE-RECV
WP4455606 WP4455606 Whirlpool HINGE-RECV
W10169803 W10169803 Whirlpool HNDLE-DOOR
4457288 4457288 Whirlpool INSTALL- INSTR BOTTOM TRIM
W10192049 W10192049 Whirlpool INSTALLATION INSTRUCTIONS
W10075750 W10075750 Whirlpool INSTR, INSTALLER BI-LINGUAL
WP4451722 WP4451722 Whirlpool INSULATION
W11684730 W11684730 Whirlpool INSULATION
WP4450365 WP4450365 Whirlpool INSULATION, BACK
4452400 4452400 Whirlpool LEAD, GROUND STRAP
W10169756 W10169756 Whirlpool LENS-LIGHT
WPW10169757 WPW10169757 Whirlpool LIGHT BULB
WPW10307114 WPW10307114 Whirlpool LIGHT-OVEN
N_P N_P Whirlpool LINER, OVEN (NOT SERVICEABLE)
WP9759413 WP9759413 Whirlpool LINER-DOOR
W10794022 W10794022 Whirlpool MOTOR-FAN
W10175320 W10175320 Whirlpool NAMEPLATE
WP7103P027-60 WP7103P027-60 Whirlpool NUT
WP112432 WP112432 Whirlpool NUT
WPW10116349 WPW10116349 Whirlpool NUT
WP4450118 WP4450118 Whirlpool NUT
WP261869 WP261869 Whirlpool PAINT CW
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 Whirlpool PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
8302349 8302349 Whirlpool PANEL-VENT
4448982 4448982 Whirlpool PLUG, BUTTON
WPW10179152 WPW10179152 Whirlpool RACK-OVEN
WP8302793 WP8302793 Whirlpool RAIL-MTG
8302794 8302794 Whirlpool RAIL-MTG
WP9759242 WP9759242 Whirlpool RANGE THERMOSTAT
WPW10158497 WPW10158497 Whirlpool RETAINER
WP4457132 WP4457132 Whirlpool RETAINER
WP4448933 WP4448933 Whirlpool RETAINER
W10205117 W10205117 Whirlpool RETAINER, GLASS CLIP (BLACK)
4450864 4450864 Whirlpool RETAINER,GLASS CLIP (WHITE)
WP4448950 WP4448950 Whirlpool SCREW
WP4449743 WP4449743 Whirlpool SCREW
WP3400832 WP3400832 Whirlpool SCREW
WP4449154 WP4449154 Whirlpool SCREW
WP4449040 WP4449040 Whirlpool SCREW
WP4449809 WP4449809 Whirlpool SCREW
W11684512 W11684512 Whirlpool SCREW
4450800 4450800 Whirlpool SCREW, GROUND
W10491987 W10491987 Whirlpool SEAL-FOAM
WPW10131825 WPW10131825 Whirlpool SENSOR
4455191 4455191 Whirlpool SERVICE PLATE
4457114 4457114 Whirlpool SHEILD, HEAT-BOTTOM
WP4457104 WP4457104 Whirlpool SHEILD, HEAT-TOP
W10782197 W10782197 Whirlpool SIDE, CHASSIS
W10790240 W10790240 Whirlpool SIDE, CONTROL TOP (LEFT)
W10755214 W10755214 Whirlpool SIDE, CONTROL TOP (RIGHT)
350930 350930 Whirlpool SPRAY
261900 261900 Whirlpool SPRAY
4449845 4449845 Whirlpool SUPPORT, BRACKET
4451478 4451478 Whirlpool SUPPORT, INSULATION
4451761 4451761 Whirlpool SUPPORT, WIRING
WP4451985 WP4451985 Whirlpool SUPPRESSOR
W10172118 W10172118 Whirlpool SWTCH-MEMB
W10172119 W10172119 Whirlpool SWTCH-MEMB
W10185219 W10185219 Whirlpool TECH SHEET
9762761 9762761 Whirlpool TIPS, SAFE COOK (ENGLISH)
W10065852 W10065852 Whirlpool TIPS, SAFE COOK (FRENCH)
WP4450551 WP4450551 Whirlpool TOP-CABNT
8303099 8303099 Whirlpool TOP-OVEN
WP9760587 WP9760587 Whirlpool TRANSFORMR
WP4455037 WP4455037 Whirlpool TRAY-BAKE
WPW10207689 WPW10207689 Whirlpool TRIM
W10151131A W10151131A Whirlpool TRIM
WPW10339499 WPW10339499 Whirlpool TRIM
WPW10339500 WPW10339500 Whirlpool TRIM
WPW10339501 WPW10339501 Whirlpool TRIM
WPW10339502 WPW10339502 Whirlpool TRIM
W10145003A W10145003A Whirlpool TRIM
4452267 4452267 Whirlpool TRIM, CENTER VENT
W10145002A W10145002A Whirlpool TRIM, SIDELEFT (STAINLESS)
WPW10172168 WPW10172168 Whirlpool TRIM-PANEL
WPW10172165 WPW10172165 Whirlpool TRIM-PANEL
WPW10172167 WPW10172167 Whirlpool TRIM-PANEL
W10861715 W10861715 Whirlpool TUBE-VENT
W10192042 W10192042 Whirlpool USE & CARE GUIDE
W10145009 W10145009 Whirlpool VENT, DEFLECTOR (WHITE)
4451759 4451759 Whirlpool VENT, EXHAUST
8303497 8303497 Whirlpool VENT-CNTRL
