Model Image
Manufacturer

Whirlpool

Model Number

GBE26GC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
312045E 312045E BACKER, OVEN DOOR
Y0310654 Y0310654 BACKGUARD FRAME 8`` X 30`` FB
Y0311039 Y0311039 BACKGUARD SUPPORT-L.H.
Y0311038 Y0311038 BACKGUARD SUPPORT-RH
Y02331026B Y02331026B BASE-BKGD, 30`` W/HOLES
WP8203546 WP8203546 BLOCK-TERM
311003V 311003V BODY SIDE AVOCADO
311003D 311003D BODY SIDE HARVEST
Y0088832 Y0088832 BOTTOM WIRE COVER SUPPORT
WPW10196406 WPW10196406 BOWL-DRIP
WPW10196405 WPW10196405 BOWL-DRIP
Y02068200 Y02068200 BUMPER-RUBBER 1/4``
Y0088788 Y0088788 BUMPERRUBBER 1/4
Y0088635 Y0088635 CAGE, OVEN LIGHT
Y0311034 Y0311034 CLOCK BRACKET
M0335314 M0335314 CONNECTOR
Y0088833 Y0088833 COVER WIRE
311014E 311014E COVER, REAR BURNER BOX
WPY07409600 WPY07409600 ELEMENT- B
86742 86742 FRAME, OVEN DOOR NLA
Y0310477 Y0310477 GLASS, BACKGUARD 8``
Y0088797 Y0088797 GLASS,OVEN DR 29``X 14 13/16``
Y0310818 Y0310818 HANDLE SPACER, PLASTIC (J)
Y0057315 Y0057315 HANDLE, DOOR (J)
0088782 0088782 HINGE, MAIN TOP
Y07489700 Y07489700 HINGE, OVEN DOOR
88806 88806 HOLD DOWN RING (J)
31975801 31975801 INSULATION, WRAPPER

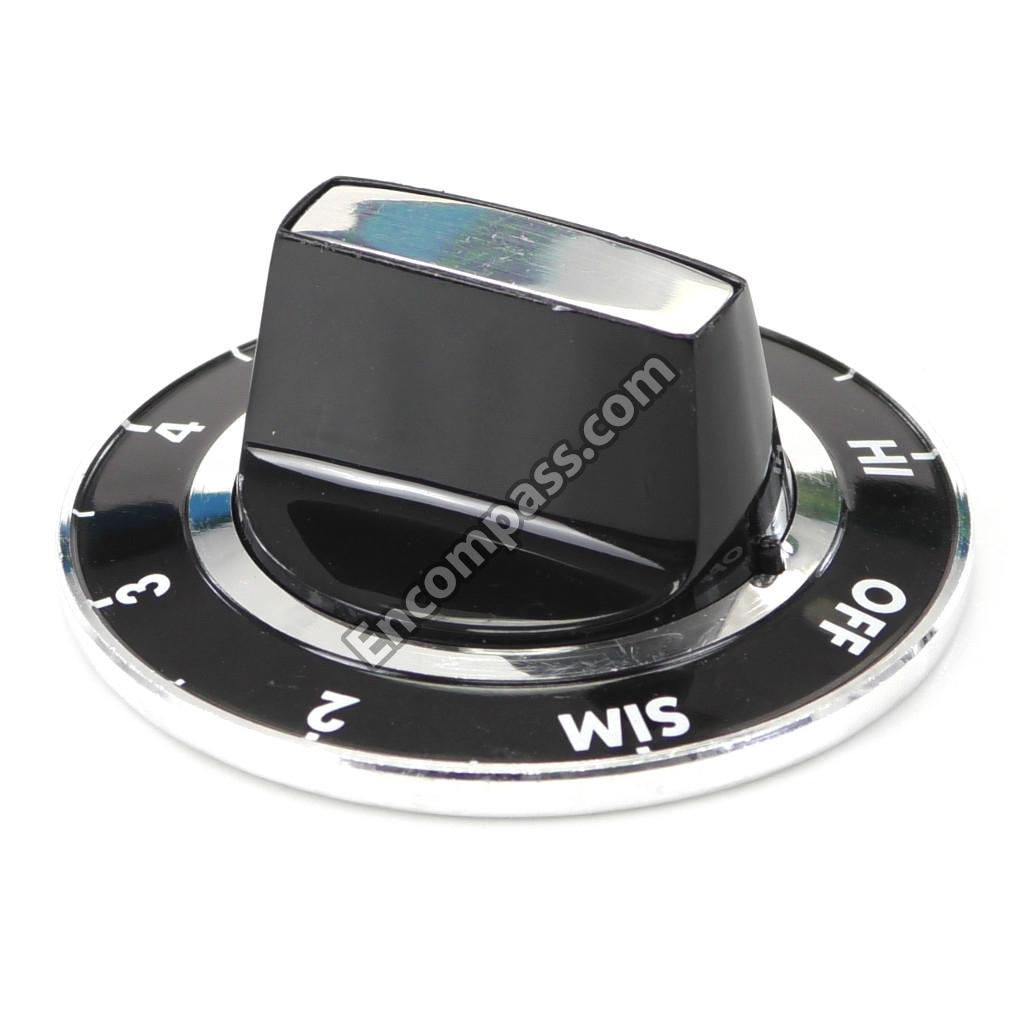

WP4179304 WP4179304 KNOB
Y0055020 Y0055020 KNOB, CLOCK
0086943 0086943 KNOB, THERMOSTAT
Y0062362 Y0062362 LEG, LEVELING
8009 8009 LIGHT BULB
Y0088777 Y0088777 LIGHT, INDICATOR
0088640 0088640 LIGHT, PILOT
88898CG 88898CG LINER, OVEN BOTTOM
88897CG 88897CG LINER, OVEN SIDE
Y0088752 Y0088752 MAIN BACK
88751CG 88751CG MAIN FRONT 30``
Y086931W Y086931W MAIN TOP, 30`` (WHITE)
086931L 086931L MAIN TOP, ALMOND
Y086931A Y086931A MAIN TOP, AVOCADO
086931C 086931C MAIN TOP, COFFEE
Y086931H Y086931H MAIN TOP, HARVEST
0310838 0310838 NAMEPLATE, GLENWOOD
56011CG 56011CG NLAMBURNER B
311031X 311031X OVEN BACKLINER
311030E 311030E OVEN BACKLINER
88818CX 88818CX OVEN BOTTOM LINER CONTINOUS CL
Y0088812 Y0088812 OVEN DOOR HANDLE, 18``
88070CX 88070CX OVEN DR BACKER, CONT CLN STRT
Y0088671 Y0088671 OVEN RACK
88813CX 88813CX OVEN SIDE LINER
310031X 310031X OVEN TOP LINER CONTINUOUS CLEA
310030E 310030E OVEN TOP LINER PORCELAIN
310535V 310535V PANEL STORAGE DRAWER AVOCADO
310535C 310535C PANEL STORAGE DRAWER COFFEE
311003C 311003C PANEL, SIDE
310535L 310535L PANEL, STORAGE DRAWER
310535W 310535W PANEL, STORAGE DRAWER
310535D 310535D PANEL, STORAGE DRAWER
311003N 311003N PANEL,BODY SIDE (AL)
311041 311041 PANEL-RIGHT WITH KNOCKOUT SECT
0088654 0088654 RAIL, BASE
330031 330031 RECEPTACLE
0055047 0055047 SCREW
Y00000000 Y00000000 SEE NOTE ROLLER
86935CG 86935CG SHIELD, SWITCH COVER
0088779 0088779 SHOULDER SCREW
Y0088571 Y0088571 SNAP-IN TEE NUT
Y0316385 Y0316385 SOCKET, OVEN LIGHT
Y0310537 Y0310537 STORAGE DRAWER
56090P 56090P STRAP, SEAL
Y06533800W Y06533800W SUB 311003W, PANEL-SIDE, WHITE
Y0088126 Y0088126 SUB 88647,WINDOW ASSEMBLY DOOR
0310837 0310837 SUNRAY LABEL
0087023 0087023 SUPPORT ROD
0310321 0310321 SUPPORT, FULL GLASS DR {J}
0088824 0088824 SUPPORT, GLASS PANEL{J}
Y0088820 Y0088820 SUPPORT, OVEN BOTTOM INSUL.
0056477 0056477 SUPPORT, REAR, VERTICAL {J}
0057312 0057312 SWITCH, INFINITE
Y07625800 Y07625800 SWITCH- OV
0088758 0088758 THERMO-ELECT.
0052744 0052744 TOE PANEL (J)
56069 56069 TOP DOOR SEAL
Y0310523 Y0310523 TRACK
0310522 0310522 TRACK, LOWER L.H.
0310518 0310518 TRACK, UPPER L.H. (ELEC)
0310519 0310519 TRACK, UPPER R.H. (ELEC)
Y0056015 Y0056015 TUBE, OVEN VENT
0310664 0310664 USE 07621903F
0052742 0052742 VERTICAL SUP. (J)
311011E 311011E WIRE CHANNEL
Y0088817 Y0088817 WIRE CHANNEL SUPPORT
0310441 0310441 X CLOCK
