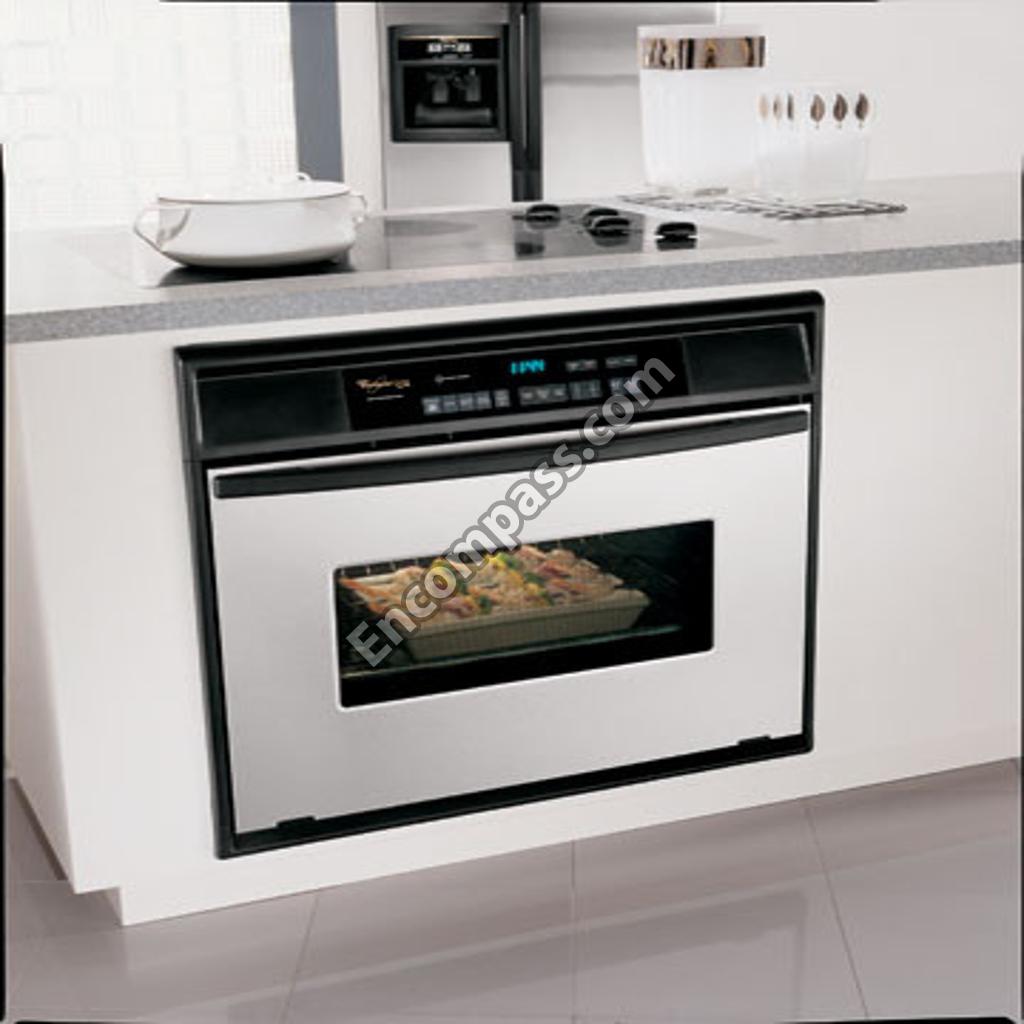

Model Image
Manufacturer

Whirlpool

Model Number

GBS307PDS12

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4452121 4452121 (TRIM, SIDE (LEFT HAND) (BISCUIT)
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
4452234 4452234 BACK, CHASSIS
W10123223 W10123223 BACK, CONTROL
WP8203546 WP8203546 BLOCK-TERM
WPW10176670 WPW10176670 BLOWER
9759713 9759713 BOTTM-MAIN
WP4450813 WP4450813 BRACKET, HANDLE
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
4448520 4448520 BUMPER, DOOR
4452165 4452165 CAMERA LENS, LIGHT
4451605 4451605 CAP, SPACER
4448664 4448664 CLAMP
WP4450952 WP4450952 CONDUIT
WP8302994 WP8302994 CONTROL BOARD
WP8300447 WP8300447 CONTROL PANEL ASSEMBLY. W/MEMBRANE SWITCH (BLACK MODEL)
WP8300446 WP8300446 CONTROL PANEL ASSEMBLY. W/MEMBRANE SWITCH (WHITE MODEL)
4449237 4449237 COOKBOOK CONV.
WPW10160821 WPW10160821 COVER-FAN
WP4451747 WP4451747 COVER-REAR
WP4452367 WP4452367 COVER-TOP
4457117 4457117 DEFLECTOR (BTM)
WPW10195934 WPW10195934 DOOR DOOR LATCH
WP4448854 WP4448854 DOOR HANDLE (BLACK MODEL)
4448855 4448855 DOOR HANDLE (WHITE MODEL)
WP9760573 WP9760573 DOOR HINGE
WP9760574 WP9760574 DOOR HINGE
WP9760571 WP9760571 DOOR HINGE
WP9760572 WP9760572 DOOR HINGE
4455177 4455177 ELBOW, VENT BOTTOM
4455178 4455178 ELBOW, VENT TOP
WPW10207397 WPW10207397 ELEMENT
WP9760771 WP9760771 ELMNT-BROL
WP4452226 WP4452226 FAN-CONVCT
9759060 9759060 FRAME-FRNT
4451034 4451034 GASKET, CONTROL PANEL
W11675844 W11675844 GASKET-OVN
WP9759228 WP9759228 GLASS DOOR
WP9759641 WP9759641 GLASS DOOR
WP9759074 WP9759074 GLASS DOOR
WP9759639 WP9759639 GLASS DOOR
WP9759225 WP9759225 GLASS DOOR
WP4449259 WP4449259 GLASS DOOR
9759640 9759640 GLASS, DOOR FRONT (BISCUIT)
WP3195996 WP3195996 GRID-PAN
WP4448444 WP4448444 GROMMET
8301399 8301399 HARNS-WIRE
WP4455606 WP4455606 HINGE-RECV
WP4455605 WP4455605 HINGE-RECV
8300651 8300651 INSTALLATION INSTRUCTIONS
8301928 8301928 INSTALLATION INSTRUCTIONS, M/W TRIM KIT
8302333 8302333 INSTALLATION/ UNDERCOUNTER
WP4451722 WP4451722 INSULATION
W11684730 W11684730 INSULATION
WP4450365 WP4450365 INSULATION, BACK
WP4173175 WP4173175 LIGHT BULB
WP9759413 WP9759413 LINER-DOOR
WP4451583 WP4451583 MOTOR-FAN
WP112432 WP112432 NUT
WP4452227 WP4452227 NUT
WP4450118 WP4450118 NUT
4452368 4452368 OVEN LIGHT ASSEMBLY
100000 100000 OVEN PARTS
9759322 9759322 PAD, RACK
WP261869 WP261869 PAINT CW
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10123240 W10123240 PAN, BROILER
W10737569 W10737569 PAN-BROILR
8300445 8300445 PANL-CNTRL
814381 814381 PIN-DOOR
WPW10179152 WPW10179152 RACK-OVEN
W10758127 W10758127 RACK-OVEN
814371 814371 RAIL-MTG
814372 814372 RAIL-MTG
WP9759243 WP9759243 RANGE THERMOSTAT
WP4457132 WP4457132 RETAINER
WP4448933 WP4448933 RETAINER
W10205117 W10205117 RETAINER, CLIP (BLACK MODEL)
4450864 4450864 RETAINER, CLIP (WHITE MODEL)
3191638 3191638 SAFER COOKING TIPS
WP4448950 WP4448950 SCREW
WP4450038 WP4450038 SCREW
WP4449745 WP4449745 SCREW
WP4449746 WP4449746 SCREW
WP4449743 WP4449743 SCREW
WP4449154 WP4449154 SCREW
WP4449040 WP4449040 SCREW
W11233072 W11233072 SCREW
WP4449809 WP4449809 SCREW
WP4449041 WP4449041 SCREW
WP8281236 WP8281236 SCREW
W11684512 W11684512 SCREW
WP3400832 WP3400832 SCREW
4450800 4450800 SCREW, GROUND
8300820 8300820 SEAL, DOOR TOP
W10491987 W10491987 SEAL-FOAM
WPW10131825 WPW10131825 SENSOR
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
W10782197 W10782197 SIDE, CHASSIS
W10790240 W10790240 SIDE, CONTROL TOP (LEFT)
W10755214 W10755214 SIDE, CONTROL TOP (RIGHT)
4452222 4452222 SPACER, HARNESS
350930 350930 SPRAY
261900 261900 SPRAY
4449845 4449845 SUPPORT, BRACKET
4451478 4451478 SUPPORT, INSULATION
4451761 4451761 SUPPORT, WIRING
WP4451985 WP4451985 SUPPRESSOR
8301758 8301758 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
8303099 8303099 TOP, CHASSIS
WP4450551 WP4450551 TOP-CABNT
WP4448477 WP4448477 TRIM
4452415 4452415 TRIM, BOTTOM (BISCUIT)
4448478 4448478 TRIM, BOTTOM (WHITE MODEL)
4450847 4450847 TRIM, SIDE (LEFT HAND) (BLACK MODEL)
4450848 4450848 TRIM, SIDE (LEFT HAND) (WHITE MODEL)
4452120 4452120 TRIM, SIDE (RIGHT HAND) (BISCUIT)
4450844 4450844 TRIM, SIDE (RIGHT HAND) (BLACK MODEL)
4450845 4450845 TRIM, SIDE (RIGHT HAND) (WHITE MODEL)
W10861715 W10861715 TUBE-VENT
8300609 8300609 USE & CARE GUIDE
4448549 4448549 VENT, CONTROL PANEL
4451759 4451759 VENT, EXHAUST
242831 242831 WIRE
242827 242827 WIRE
242825 242825 WIRE
242823 242823 WIRE
242828 242828 WIRE (12 GA. 150 C BLACK)
242829 242829 WIRE (12 GA. 150 C RED)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242826 242826 WIRE (14 GA. 150 C WHITE)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242832 242832 WIRE (14 GA. 200 C YELLOW)
