Model Image
Manufacturer

Whirlpool

Model Number

GC1SHAXMQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4210463RW 4210463RW ACCESSORY PARTS, MAINTENANCE BRUSH FOR DRYERS AND REFRIGERATORS
8206758 8206758 AIR DIFFUSER COVER
8206768 8206768 AIR DUCT FREEZER
8206766 8206766 AIR DUCT, UPPER
WPW10152858 WPW10152858 ARM-DISPSR
WPW10152859 WPW10152859 ARM-DISPSR
WP2180259 WP2180259 ARM-DISPSR
WP627843 WP627843 ARM-EJECTR
W10297244 W10297244 ARM-STRIPR
WP2198574 WP2198574 AUGER-ICE
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
8206734 8206734 BASKET-FZR
8206736 8206736 BASKET-FZR
8206740 8206740 BASKET-FZR
8206671 8206671 BI-METAL, DEFROST
WP627985 WP627985 BIMETL-DEF
2257020 2257020 BLADE, FIXED
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
2257021 2257021 BLADE, STIRRING
WP2169142 WP2169142 BLADE-FAN
2198602 2198602 BLOCK-BLAD
WP2179343 WP2179343 BODY-CNTRL
8206675 8206675 BOLT
WP2212322 WP2212322 BRACKET
WP2198641 WP2198641 BRACKET
8206761 8206761 BRACKET
8206722 8206722 BRACKET
8206748 8206748 BRACKET
8206779 8206779 BRACKET, CONTROL
2198655 2198655 BRACKET, MOTOR
4392899 4392899 BRUSH TOUCH-UP KIT (BISCUIT/BISQUE)
WP80051 WP80051 BRUSH TOUCH-UP KIT (GRAPHITE)
WP22002263 WP22002263 BULB-LIGHT
8206707 8206707 BUSHING
WP2315403 WP2315403 BUTTON-BIN
100000 100000 CABINET (NOT A SERVICEABLE PART)
WP2182179 WP2182179 CAM-DOOR
WP2302848 WP2302848 CAMERA LENS, LIGHT
WP2186494B WP2186494B CAP-FILTER
WP2186494W WP2186494W CAP-FILTER
8206665 8206665 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
8206809 8206809 CLAMP
8206810 8206810 CLAMP, TUBE
WP2315522 WP2315522 CLIP
WP2161324 WP2161324 CLIP
WP2195051 WP2195051 CLIP
WP2194719 WP2194719 CLIP
WP1108439 WP1108439 CLIP
2155547 2155547 CLIP
2161330 2161330 CLIP, HEATER
2215823 2215823 CLIP-AIR, DUCT
8206700 8206700 COMPARTMENT DOOR
W10309990 W10309990 COMPRESSOR
8206690 8206690 CONDENSER
8206724 8206724 CONNECTOR
8206811 8206811 CONNECTOR
8201667 8201667 CONTROL BOARD
8206815 8206815 CORD-POWER
WP2220458 WP2220458 COUPLING
WP2220457 WP2220457 COUPLING
2198626 2198626 COVER
2255460 2255460 COVER
8206805 8206805 COVER
8206760 8206760 COVER
8206790 8206790 COVER
8206796 8206796 COVER
8206778 8206778 COVER
8206791 8206791 COVER, CENTER PAN
2206314 2206314 COVER-EVAP
8206769 8206769 COVER-EVAP
8206669 8206669 COVER-FRNT
8206686 8206686 COVER-TERM
8206813 8206813 COVER-TERM
8206674 8206674 COVER-UNIT
WP628356 WP628356 CUP-FILL
8206789 8206789 DEFLECTOR
WP2216112 WP2216112 DIFFUSER
2256015 2256015 DOOR LATCH, BIN
WPW10307490 WPW10307490 DOOR TRIM
8206771 8206771 DOOR, ICE
8206742 8206742 DOOR, ICE
8206685 8206685 DOR-FIP BL
8206732 8206732 DOR-FIP BL
8206731 8206731 DOR-FIP SS
8206753 8206753 DOR-FIP SS
8206770 8206770 DOR-FIP WH
8206718 8206718 DOR-FIP WH
8206687 8206687 DRIER-TUBE
W10136387A W10136387A EGG-CONTNR
8171358 8171358 ENAMEL, GRAPHITE
8206801 8206801 ENERGY GUIDE (ENGLISH)
8206803 8206803 ENERGY GUIDE (SERVICE & WIRING SHEET)
8206802 8206802 ENERGY GUIDE (SPANISH)
8206756 8206756 ESCUTCHEON, MEAT PAN CONTROL
WP2188823 WP2188823 EVAPORATOR
2199954 2199954 EXTENSION
8206767 8206767 FAN GROMMET
WP8206672 WP8206672 FAN MOTOR
8206765 8206765 FAN SCROLL
8206677 8206677 FILLER
8206783 8206783 FILLER, WRAPPER (BLACK)
EDR5RXD1 EDR5RXD1 FILTER
WP4373559 WP4373559 FITTING
8206774 8206774 FITTING
WPW10289690 WPW10289690 FRONT COVER

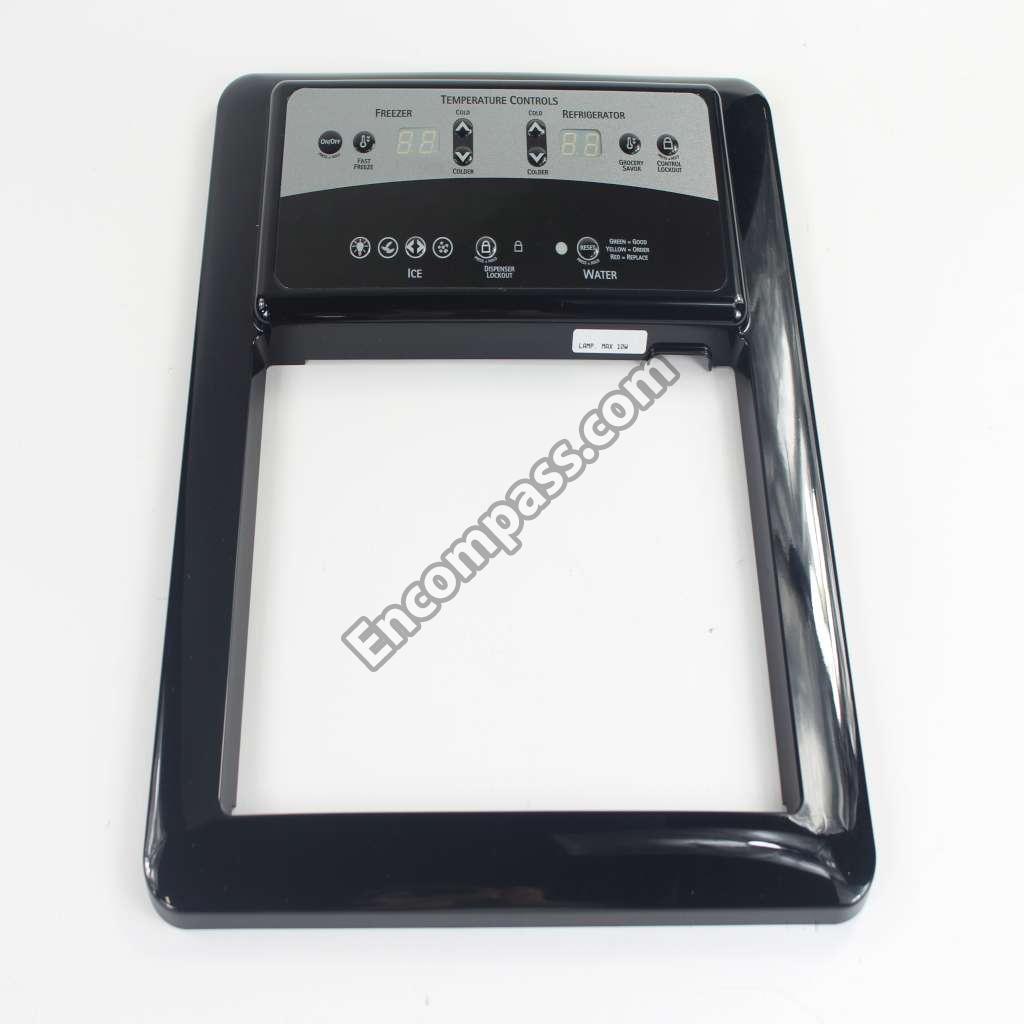

WP8206775 WP8206775 FRONT COVER ASSEMBLY (INCLUDES USER CONTROL BOARD) (BLACK)
2203007 2203007 FRONT ROLLER (2)
8206733 8206733 FRONT, BASKET
4388500 4388500 GASKET
WP2155789 WP2155789 GASKET
8206812 8206812 GASKET
8206781 8206781 GASKET
8206709 8206709 GASKET-FIP
8206712 8206712 GASKET-FIP
8206720 8206720 GASKET-FIP
8206719 8206719 GASKET-FIP
WP542638 WP542638 GREASE
8206692 8206692 GRILLE
8206782 8206782 GRILLE
8206773 8206773 GRILLE
8206772 8206772 GRILLE, OVERFLOW (WHITE)
WP2163786 WP2163786 GROMMET
WP4387558 WP4387558 GROMMET
WP2180224 WP2180224 GUIDE-ICE
8206711 8206711 HANDLE
8206710 8206710 HANDLE
8206776 8206776 HARNS-WIRE
8206814 8206814 HARNS-WIRE
8206816 8206816 HARNS-WIRE
2149294 2149294 HEAT SHIELD AND DRAIN PAN
WP2323198 WP2323198 HEATER
8206784 8206784 HINGE COVER (FC) (BLACK)
8206681 8206681 HINGE COVER (FC) (WHITE)
8206785 8206785 HINGE COVER (RC) (BLACK)
8206680 8206680 HINGE COVER (RC) (WHITE)
8206678 8206678 HINGE-DOOR
8206679 8206679 HINGE-DOOR
8206682 8206682 HINGE-DOOR
8206683 8206683 HINGE-DOOR
WP2212369 WP2212369 HOLDER
8206684 8206684 HOLDER, ADJUSTMENT
WP2199840 WP2199840 HOUSING
8206818 8206818 HOUSING, LIGHT
WP2195914 WP2195914 HOUSING-IM
2198646 2198646 ICE BIN
W10823377 W10823377 ICE DOR KT
W10683548 W10683548 ICE-CONTNR
2198597 2198597 ICEMAKER
876029 876029 INSULATION
876370 876370 INSULATION
8206691 8206691 INSULATOR, CONDENSER
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
8206749 8206749 LIGHT BULB
8206755 8206755 LIGHT CAMERA LENS
2315058 2315058 LITERATURE ENERGY GUIDE (OWNERS MANUAL)
8201651 8201651 LOUVER-CAB
2220407 2220407 MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
WP2252129 WP2252129 MOTOR
8206673 8206673 MOTOR-COND
W10190935 W10190935 MOTOR-MODL
WP2213265 WP2213265 NAMEPLATE
4318011 4318011 NUT
WP627018 WP627018 NUT
WP2187145 WP2187145 OVERLOAD
WP8206668 WP8206668 P.C. BOARD, MAIN CONTROL
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
8206787 8206787 PAN-CRISPR
8206786 8206786 PAN-MEAT
8206788 8206788 PAN-MEAT
WP2196195 WP2196195 PIN-DOOR
2163787 2163787 PIN-HITCH
8206716 8206716 PLUG, HANDLE (TOP)
8206717 8206717 PLUG-HNDLE
350942 350942 PRIMER
W10920279 W10920279 RELAY-STRT
WP2262181 WP2262181 RELAY-STRT
WP2256126 WP2256126 RESERVOIR
WP2155590 WP2155590 RETAINER
8206704 8206704 RETAINER
8206705 8206705 RETAINER
489229 489229 ROLL PIN
2203008 2203008 ROLLER-CAB
489136 489136 SCREW
W11233072 W11233072 SCREW
WP3196175 WP3196175 SCREW
WP3400906 WP3400906 SCREW
WP8281163 WP8281163 SCREW
WP3400065 WP3400065 SCREW
WP8281164 WP8281164 SCREW
WP489478 WP489478 SCREW
WP489464 WP489464 SCREW
WP8281227 WP8281227 SCREW
2198671 2198671 SCREW
3400514 3400514 SCREW
W10759522 W10759522 SCREW
WP681249 WP681249 SCREW
8206676 8206676 SCREW
8281162 8281162 SCREW
8533917 8533917 SCREW (2)
WP2198628 WP2198628 SEAL
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
WP2188917 WP2188917 SHAFT
8206743 8206743 SHELF BIN (LOWER)
8206794 8206794 SHELF BIN (UPPER)
8206737 8206737 SHELF, LOWER
8206738 8206738 SHELF, SLIDE OUT UPPER
8206797 8206797 SHELF-GLAS
8206798 8206798 SHELF-GLAS
8206754 8206754 SHIELD, WIRING
WP2212365 WP2212365 SLEEVE
W11661094 W11661094 SLEEVE
8206750 8206750 SLIDE
8206751 8206751 SLIDE
2182757 2182757 SLIDE MEAT PAN CONTROL
8206795 8206795 SLIDE, HUMIDITY CONTROL
2180200 2180200 SOCKET
8206762 8206762 SOCKET
WP1119005 WP1119005 SPACER
WP1119007 WP1119007 SPACER
350930 350930 SPRAY
8171357 8171357 SPRAY
WPW10224328 WPW10224328 SPRING
W10852956 W10852956 SPRING
WP2198608 WP2198608 SPRING
WP2196207 WP2196207 STUD-SHELF
W11223328 W11223328 STUD-SHELF
WP2196483 WP2196483 STUD-SHELF
8206714 8206714 SUPPORT
4388358 4388358 SUPPORT KIT (CONTAINS RIGHT AND LEFT)
8206713 8206713 SUPPORT, HANDLE (WHITE)
8206715 8206715 SUPPORT, INNER HANDLE
8206759 8206759 SUPPORT, SENSOR
8206666 8206666 SWITCH
WP4387911 WP4387911 SWITCH
WP2162361 WP2162361 SWTCH-MICR
W11238399 W11238399 TAPE
833938 833938 TERMINAL
8206667 8206667 THERMISTOR
8206693 8206693 THIMBLE
8206723 8206723 THIMBLE-TOP
WP1117510 WP1117510 TORX KEY
8206744 8206744 TRACK
8206745 8206745 TRACK
8206689 8206689 TRAY-EVAP
8206741 8206741 TRIM
8206739 8206739 TRIM
8206799 8206799 TRIM
8206735 8206735 TRIM, BASKET
8206757 8206757 TRIM, LIGHT CAMERA LENS
8206701 8206701 TRIM-DOOR
8206721 8206721 TRIM-DOOR
8206792 8206792 TRIM-PAN
8206793 8206793 TRIM-PAN
8206708 8206708 TRIM-SHELF
8206807 8206807 TUBE-WATER
WP978025 WP978025 VALVE
8206808 8206808 VALVE
876764 876764 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
4318046 4318046 VALVE-INLT
WP2212370 WP2212370 WASHER
WP2198661 WP2198661 WASHER
WP489235 WP489235 WASHER
WP2320524 WP2320524 WATER TUBE
W11496481 W11496481 WATER TUBE
