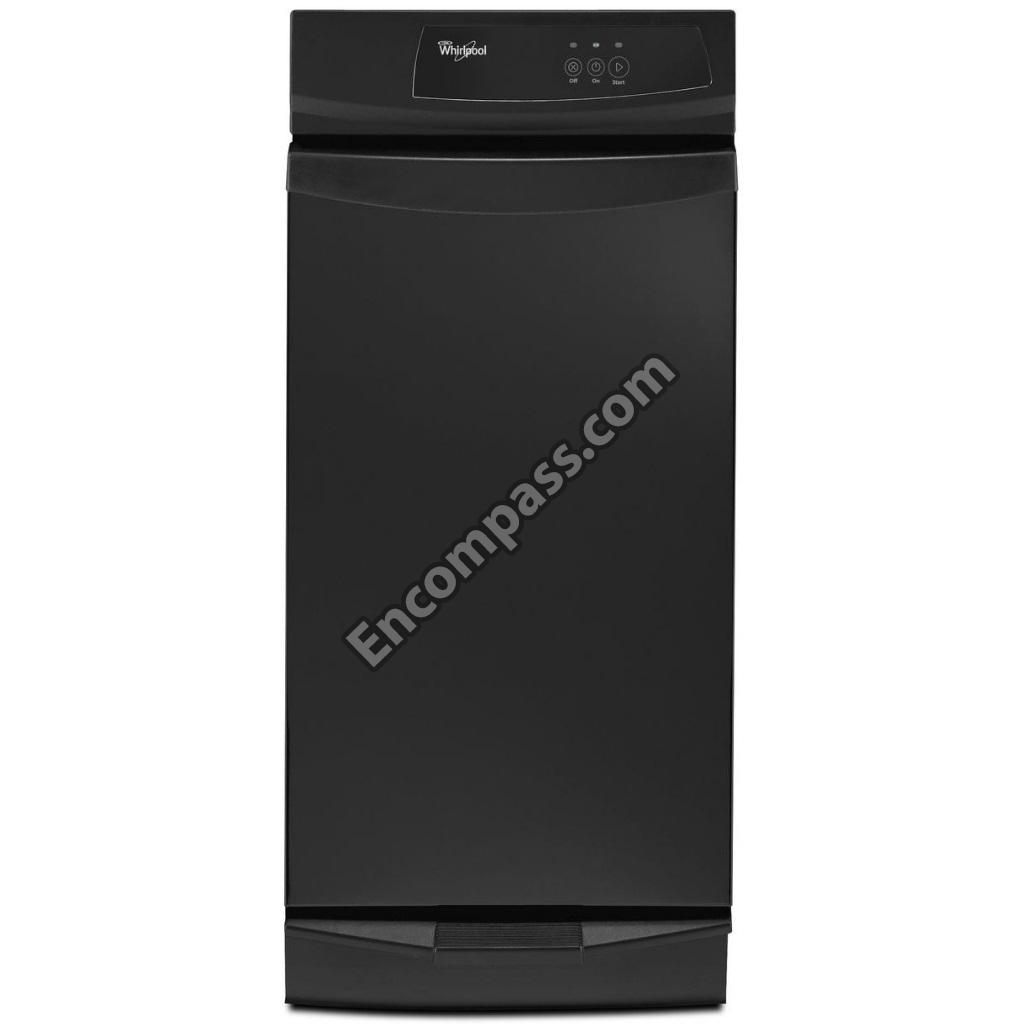

Model Image
Manufacturer

Whirlpool

Model Number

GC900QPPB3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10165295BU W10165295BU "BAG, TRASH (15"" PLASTIC) (12 BOXES OF 15 PACK)"
9871600 9871600 15 COMPAC
9871383 9871383 15 COMPAC
9871125 9871125 ACTUATOR
WP279368 WP279368 ADHESIVE
775668 775668 ANGLE
W10165295RP W10165295RP BAG 15 PAK
882652 882652 BAG 48 PAK
W10165294RB W10165294RB BAG 60 PAK
675186 675186 BAG, TRASH (15`` PLASTIC) (12 PACK)
WP9871602 WP9871602 BEARING
882688 882688 BEARING
775481 775481 BEARING
W10917043 W10917043 BEARING
WP8204624 WP8204624 BOLT
W11684541 W11684541 BRACKET
9870118A 9870118A BRACKT-KIT
9870125 9870125 BRCKT-PRCT
W11705838 W11705838 BUTTON-PLG
WP9870913 WP9870913 CABINT
9870921 9870921 CABINT
WP9870775 WP9870775 CAP-PWRSCR
13030RP 13030RP CARRIER, BAG
780477 780477 CHAIN-DRIVEE
WP776036 WP776036 CLIP
W11679168 W11679168 CLIP
WPW10451276 WPW10451276 CONTAINER
W10540354 W10540354 DEODORANT
W10540355 W10540355 DEODORANT
9872166L 9872166L DEODORIZER BLOCK (LAVENDER)
9872166LG 9872166LG DEODORIZER BLOCK (LEMONGROVE)
675379 675379 DOOR LATCH ASSEMBLY
W11736462 W11736462 ESCUTCHEON
9872039W 9872039W ESCUTCHEON
WPW10001130 WPW10001130 FEET-LVLNG
N_P N_P FRAME (NOT A SERVICEABLE PART)
882699 882699 GEAR-DRIVE
675351 675351 GREASE 4 OZ. (USE ON POWER SCREW AND RAM PRESSURE PADS)
WP777328 WP777328 GUARD
W10917704 W10917704 GUARD
WP776395 WP776395 GUIDE-LTCH
WP9872040B WP9872040B HANDLE
9872040W 9872040W HANDLE
WP777108 WP777108 HANDLE-BAG
W10830512 W10830512 HARNS-WIRE
776941 776941 HUB-POWERSCR
W11050447 W11050447 INSERT
W11690155 W11690155 INSERT
WP4155141 WP4155141 KNOB-SWICH
775665 775665 LATCH-PLT
W10439651 W10439651 MOTOR-DRIVE
WP777383 WP777383 NUT
WP776356 WP776356 NUT
WP776338 WP776338 NUT
777850 777850 NUT
4154842 4154842 NUT, POWER SCREW
WP9870163 WP9870163 NUT-POWER
4392901 4392901 PAINT, SPRAY 13 OZ. (BISCUIT)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4892899 4892899 PAINT, TOUCH-UP 1/2 OZ. (BISCUIT)
WP780437 WP780437 PAN-BOTTOM
WP9871311 WP9871311 PANEL
WP9871309 WP9871309 PANEL
4396298 4396298 PANEL, CONTAINER FRONT/HANDLE (BISCUIT/BISCUIT)
4396296 4396296 PANEL, CONTAINER FRONT/HANDLE (BLACK/BLACK)
4396299 4396299 PANEL, CONTAINER FRONT/HANDLE (COBALT BLUE/SST.)
4396300 4396300 PANEL, CONTAINER FRONT/HANDLE (EMPIRE RED/SST.)
9871805 9871805 PANEL, CONTAINER FRONT/HANDLE (MAJESTIC YELLOW W/SST. HANDLE)
4396297 4396297 PANEL, CONTAINER FRONT/HANDLE (WHITE/WHITE)
9872013 9872013 PANEL-BACK
WP9870444 WP9870444 PANEL-INER
WP9871031 WP9871031 PEDAL-FOOT
W11679165 W11679165 PEDAL-FOOT
W11705836 W11705836 PIN
WP454512 WP454512 PIN-SPRING
779121 779121 PLATE-BRNG
775676 775676 PLATE-CORD
776327 776327 PLATE-MTR
9870356 9870356 PLATE-SWCH
9871161 9871161 PLATE-SWCH
4151479 4151479 PLUG, HOLE (WHITE)
W11696573 W11696573 RAM
285777 285777 RELIEF-STR
W11705833 W11705833 RETAINER
WP489399 WP489399 SCREW
WP780263 WP780263 SCREW
WP3196175 WP3196175 SCREW
W11233072 W11233072 SCREW
WP488234 WP488234 SCREW
WP59002061 WP59002061 SCREW
WP486754 WP486754 SCREW
WP489478 WP489478 SCREW
WP3351614 WP3351614 SCREW
WPW10139210 WPW10139210 SCREW
777849 777849 SCREW
WPW10451272 WPW10451272 SCREW-POWR
9870867 9870867 SHIELD
WP9870975 WP9870975 SLIDE
9870976 9870976 SLIDE
W10917246 W10917246 SLIDE-RAM
350956 350956 SPRAY
350930 350930 SPRAY
285006 285006 SPRAY
WP777180 WP777180 SPRING
775736 775736 SPRING
W11679164 W11679164 SPROCKET
WP9870037 WP9870037 STOP-RAM
882694 882694 STUD
WP4387911 WP4387911 SWITCH
WP777811 WP777811 SWITCH-DIR
W10813586 W10813586 SWITCH-OFF
777380 777380 SWITCH-OFF
W11243179 W11243179 SWITCH-SAF
9871829 9871829 SWITCH-SAF
9871923 9871923 TECH SHEET
WP9870865 WP9870865 TOP
9871008 9871008 TOP
882763 882763 TRIM-FRONT
WP72107 WP72107 TUCHUP
8171571 8171571 TUCHUP
8171651 8171651 TUCHUP
8171652 8171652 TUCHUP
8171653 8171653 TUCHUP
9872208 9872208 USE & CARE GUIDE
WP777332 WP777332 WASHER
W11214485 W11214485 WASHER
776035 776035 WASHER
W11023674 W11023674 WHEEL-LVLR
242825 242825 WIRE
299885 299885 WIRE
242820 242820 WIRE, 25` ROLL (BLACK 14 GA.)
10875 10875 WIRE, 25` ROLL (BLUE 16 GA.)
47261 47261 WIRE, 25`` ROLL (BLACK 12 GA.)
47263 47263 WIRE, 25`` ROLL (WHITE 12 GA.)
242826 242826 WIRE, 25`` ROLL (WHITE 14 GA.)
