Model Image
Manufacturer

Whirlpool

Model Number

GCRE750

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
560029 560029 ADJUSTABLE LEG
560315 560315 BACK PANEL
560277 560277 BACK PANEL
560250 560250 BACK PANEL
560863 560863 BACKGUARD, GLASS
560586 560586 BAFFLE
74003033 74003033 BALLAST
560258 560258 BASE SUPPORT-LEFT
560257 560257 BASE SUPPORT-RIGHT
WPW10245259 WPW10245259 BLOCK-TERM
560008 560008 BOLT
560838 560838 BOTTOM, BURNER BOX
WPW10196406 WPW10196406 BOWL-DRIP
WPW10196405 WPW10196405 BOWL-DRIP
W10196406RW W10196406RW BOWL-DRIP
6E35801645 6E35801645 BOX TERMINAL
560160 560160 BRACE-MAIN FRONT
560159 560159 BRACKET FOR BURNER BOX
560308 560308 BRACKET FOR CONSOLE
560184 560184 BRACKET FOR DOOR SPRING
560173 560173 BRACKET FOR HINGE-LEFT
560172 560172 BRACKET FOR HINGE-RIGHT
560185 560185 BRACKET FOR OVEN LIGHT
560188 560188 BRACKET FOR TOP
560155 560155 BRACKET, LIGHT SOCKET-LEFT
560154 560154 BRACKET, LIGHT SOCKET-RIGHT
560169 560169 BRACKET-TERMINAL BLOCK
560441 560441 BRACKET-WIRE HARNESS
550272 550272 BURNER BOX KIT
560194 560194 BUSHING - WIRE HARNESS
560578 560578 CAPILLARY CLIP
550080 550080 CATALYTIC BURNER
560191 560191 CLIP
560112 560112 CLIP FOR CAPILLARY TUBE
560176 560176 CLIP-CAPILLARY TUBE
560174 560174 CLIP-KNOB TO LEVER
560175 560175 CLIP-MULLION ELEMENT
560411 560411 CLIP-ROD TO LOCK ASSEMBLY
560178 560178 CLIP-ROD TO SOLENOID
550149 550149 CLOCK ASSEMBLY
560377 560377 CLOCK SUPPORT
550531 550531 CLOCK-AUTOMATIC
560312L 560312L CONSOLE PANEL-ALMOND
560312M 560312M CONSOLE PANEL-HARVEST WHEAT
560312 560312 CONSOLE PANEL-WHITE
550480 550480 CONTROL KNOB
550053 550053 CONTROL SWITCH-HEAT ELEMENT
550141 550141 CONTROL SWITCH-OVEN SELECTO
550179 550179 CONTROL SWITCH-OVEN TEMP
560272 560272 COVER FOR DOOR HINGE
560271 560271 COVER FOR DOOR LOCK
560270 560270 COVER FOR INSULATION
560171 560171 COVER FOR LIGHT SOCKET
560594 560594 COVER FOR WIRE
560177 560177 COVER-TERMINAL BLOCK
550192 550192 DOOR CATCH
560845 560845 DOOR HANDLE
560857 560857 DOOR LATCH PLATE (TRIM FRONT)
550081 550081 DOOR LOCK ASSEMBLY
560065 560065 DOOR TRIM LATCH PLATE
550077 550077 DRAWER
550078L 550078L DRAWER PANEL-ALMOND
550078M 550078M DRAWER PANEL-HARVEST WHEAT
550078 550078 DRAWER PANEL-WHITE
550370 550370 ELEMENT KIT, BROIL
WP7406P043-60 WP7406P043-60 ELEMENT- B
560310 560310 END CAP-LEFT
560309 560309 END CAP-RIGHT
560858 560858 END, DOOR TRIM
560584 560584 EXTENSION FOR DOOR BAFFLE
560524 560524 FOAM TAPE - 87 INCHES
560443 560443 FRAME
560254 560254 FRAME FOR DRAWER
560372 560372 FRAME FOR OVEN
560179 560179 GASKET FOR OVEN LIGHT
560180 560180 GASKET FOR SOLENOID
560181 560181 GASKET FOR VENT BOX
560588 560588 GLASS - INNER DOOR
560182 560182 GLASS CAMERA LENS FOR OVEN LIGHT
560589 560589 GLASS FOR OVEN DOOR-CENTER
550317 550317 GLASS WITH FRAME ASSEMBLY
560861 560861 GLASS, OVEN DOOR OUTSIDE
560165 560165 GROUND LUG
560071 560071 HANDLE FOR DOOR
560253 560253 HEAT DEFLECTOR
561133 561133 HINGE ASSEMBLY, OV DOOR LF
561132 561132 HINGE ASSEMBLY, OV DOOR RT
550222 550222 HINGE SUPPORT-LEFT
550223 550223 HINGE SUPPORT-RIGHT
550030 550030 INDICATOR LIGHT
550029 550029 INDICATOR LIGHT
550126 550126 INDICATOR LIGHT-125 VOLT
550318 550318 INNER DOOR LINER
550316 550316 INNER DOOR PANEL
560098 560098 INSULATION
560093 560093 INSULATION
560087 560087 INSULATION
560351 560351 INSULATOR FOR SWITCH
560183 560183 INSULATOR FOR SWITCH
560348 560348 KNOB FOR CLOCK
560274 560274 KNOB FOR LEVER
550185 550185 KNOB FOR OVEN SELECTOR
550181 550181 KNOB FOR OVEN TEMPERATURE
12500065 12500065 KNOB KIT
560825 560825 KNOB, CLOCK
560859 560859 KNOB, DOOR LOCK
550527 550527 KNOB, SELECTOR SWITCH
WP95292 WP95292 LAMP-FLUOR
560079 560079 LEVER FOR DOOR LOCK
8009 8009 LIGHT BULB
WP22002263 WP22002263 LIGHT BULB
560163 560163 LINK FOR DOOR SPRING
530087 530087 LOCK WASHER
550198 550198 MULLION ELEMENT
560017 560017 NUT
560015 560015 NUT
560470 560470 NUT
M0282009 M0282009 NUT
560822 560822 NUT, SWITCH
560023 560023 NUT-BRACE
560020 560020 NUT-BURNER BOX
560012 560012 NUT-CLOCK TO SUPPORT
560018 560018 NUT-SWITCH TO CONSOLE
550528 550528 OVEN CONTROL KNOB
560452 560452 PACKING-MAIN TOP
560067 560067 PANEL FOR CONSOLE
550319L 550319L PANEL-ALMOND
550319M 550319M PANEL-HARVEST WHEAT
550319 550319 PANEL-WHITE
550246 550246 POWER CORD - 4 FT.
550248 550248 POWER CORD - 5 FT.
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WPW10282492 WPW10282492 RACK-OVEN
330031 330031 RECEPTACLE
550130 550130 RESISTOR
560313 560313 RETAINER FOR GLASS PANEL
560276 560276 RETAINER FOR OVEN LIGHT
560275 560275 RETAINER FOR OVEN LIGHT
560852 560852 RETAINER, GLASS
560186 560186 ROD-LOCK ASSM TO SOLENOID
550274 550274 ROLLER REPAIR KIT
560161 560161 RUBBER BUMPER
560038 560038 SCREW
560528 560528 SCREW
560049 560049 SCREW
560058 560058 SCREW
560052 560052 SCREW
560060 560060 SCREW
560059 560059 SCREW
WP74004005 WP74004005 SCREW
WP4159193 WP4159193 SCREW
WP7101P126-60 WP7101P126-60 SCREW
560041 560041 SCREW
560585 560585 SCREW
560053 560053 SCREW
560051 560051 SCREW
560050 560050 SCREW
560036 560036 SCREW
560064 560064 SCREW
WP355214 WP355214 SCREW
560031 560031 SCREW
WPW10068250 WPW10068250 SCREW
560035 560035 SCREW-FRAME TO INNER DOOR
560039 560039 SCREW-INNER DOOR LINING
550090 550090 SEAL FOR DOOR
560376 560376 SHIELD-OVEN BOTTOM
560256L 560256L SIDE PANEL-ALMOND
560256M 560256M SIDE PANEL-HARVEST WHEAT
560256 560256 SIDE PANEL-WHITE
550049 550049 SOCKET FOR LIGHT-LEFT
550050 550050 SOCKET FOR LIGHT-RIGHT
WP74003387 WP74003387 SOCKT-LITE
550055 550055 SOLENOID FOR DOOR LOCK KIT
12001735 12001735 SPACER
560192 560192 SPACER
560591 560591 SPACER FOR DOOR GLASS
560461 560461 SPACER PAD FOR CONSOLE
560187 560187 SPRING FOR OVEN DOOR
560595 560595 SPRING FOR OVEN DOOR
560262 560262 SUPPORT BRACKET-LEFT
560261 560261 SUPPORT BRACKET-RIGHT
560278 560278 SUPPORT FOR INSULATION
560359 560359 SUPPORT-BROIL ELEMENT

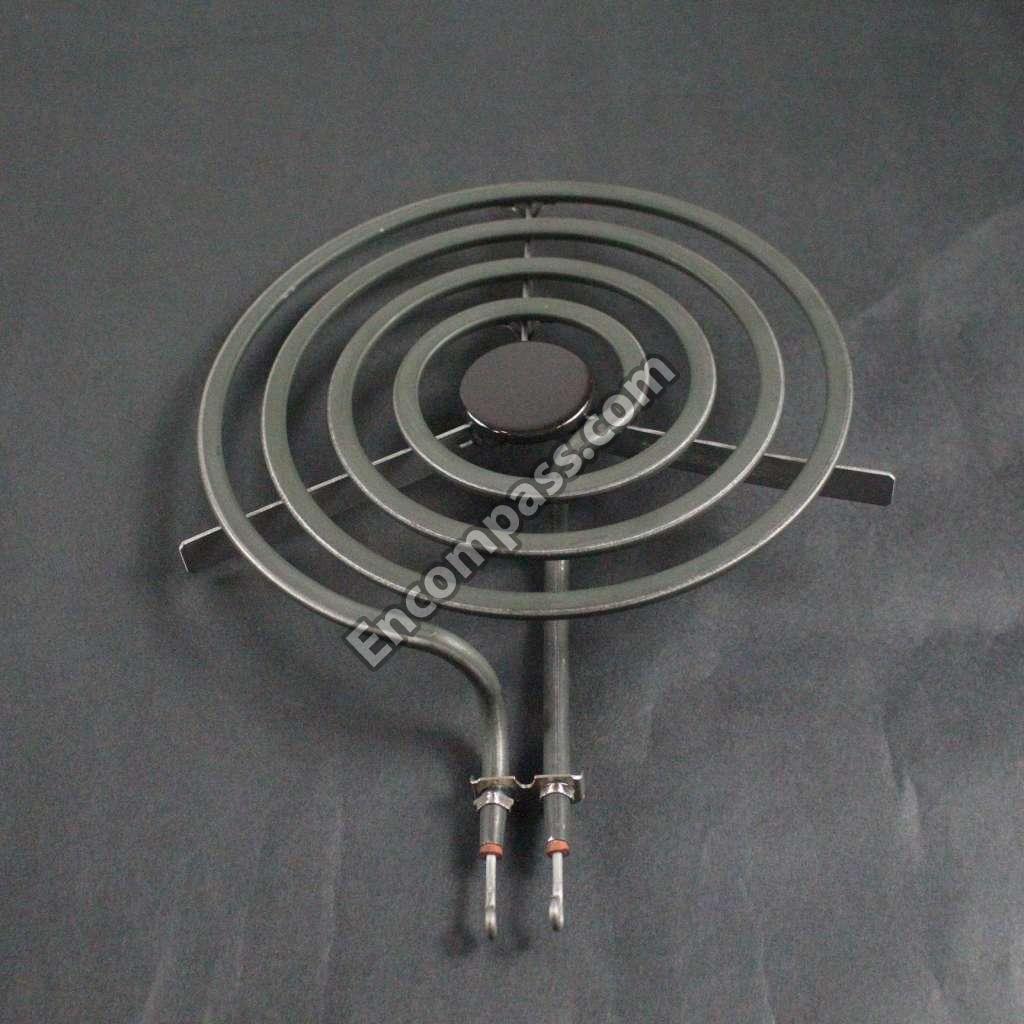

WPY04100166 WPY04100166 SURFACE ELEMENT
WPY04100165 WPY04100165 SURFACE ELEMENT
550369 550369 SWITCH FOR DOOR LOCK
550057 550057 SWITCH FOR DOOR LOCK
WP74008246 WP74008246 SWITCH FOR OVEN LIGHT
550024 550024 SWITCH FOR OVEN LIGHT
560436 560436 SWITCH PLATE
550526 550526 SWITCH, FLUORESCENT LIGHT
550423 550423 THERMOSTAT
560587 560587 TOP OUTER BAFFLE
560263L 560263L TOP-ALMOND
560263M 560263M TOP-HARVEST WHEAT
560263 560263 TOP-WHITE
560260 560260 TRACK FOR DRAWER-LEFT
560259 560259 TRACK FOR DRAWER-RIGHT
560850 560850 TRIM BACKGUARD, TOP
560081 560081 TRIM COVER FOR CONSOLE
560350 560350 TRIM FOR CONSOLE PANEL
560375 560375 TRIM FOR CONSOLE-LOWER
560298 560298 TRIM FOR DOOR
560264 560264 TRIM FOR END PANEL
560189 560189 TRIM FOR OVEN
560266 560266 TRIM FOR TOP-LEFT
560265 560265 TRIM FOR TOP-RIGHT
560851 560851 TRIM, BACKGUARD GLASS
560193 560193 TUBING SPACER
550054 550054 VENT ASSEMBLY
560190 560190 WASHER
560463 560463 WASHER
560462 560462 WASHER
560460 560460 WIRE CONNECTOR
