Model Image
Manufacturer

Whirlpool

Model Number

GDE313

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
306668M 306668M *NLA*M*DOOR- HA
306663 306663 *NLA*MANUAL, USE & CARE
307104M 307104M *NLA*TOP COVER ASSEMBLY
314184 314184 BACK UP PLATE
33001106 33001106 BACK, TUMBLER (W/SEAL)
33001012 33001012 BAFFLE (SHORT)
33001004 33001004 BAFFLE- TA
WPY312959 WPY312959 BELT
400008 400008 BLOCK, TERMINAL
Y303836 Y303836 BLOWER WHE
314177 314177 BRACKET FOR START SWITCH
Y312904 Y312904 BRACKET T
WP694419 WP694419 BUZZER-ADJ
305302M 305302M CABINET-HARVEST WHEAT
215164 215164 CAP FOR KNOB
WP312967 WP312967 CLAMP
301548 301548 CLAMP, GROUND (W/SCREW)
WPY303881 WPY303881 CLIP AND I
Y313910 Y313910 CLIP DOOR
Y310376 Y310376 CLIP WIRE
WPY015825 WPY015825 CLIP- MOTO
305193M 305193M CONSOLE-HARVEST WHEAT
306535 306535 CONTROL PANEL
Y312853 Y312853 COVER FOR
Y312895 Y312895 COVER FOR BLOWER----NA
Y312951 Y312951 COVER, ACCESS
314846 314846 COVER, BLOWER HOUSING
Y312905 Y312905 COVER, TERMINAL
313915 313915 COVER, THREAD
WP306604 WP306604 CUT-OFF- T
WPY304475 WPY304475 CYCLING TH
33001230 33001230 DOOR HINGE
313908M 313908M DOOR PANEL-HARVEST WHEAT
314077 314077 DOOR SEAL
Y313911 Y313911 DOOR STRIK
304579M 304579M DOOR-HARVEST WHEAT
W10410999 W10410999 DRIVE MOTOR
12001541 12001541 DRUM ROLLER/WASHER ASSEMBLY.
33001108 33001108 DRYER TUMBLER, W/O BAFFLES
W10116793 W10116793 ELEMENT
WPY313538 WPY313538 ELEMENT
214816 214816 END CAP F
214815 214815 END CAP F/CONTROL PANEL-LH
Y303442 Y303442 EXHAUST DUCT ASSEMBLY.
214894 214894 FASTENER, END CAP
WP22001650 WP22001650 FASTENER-
215075 215075 FASTENERC
W10176519 W10176519 FEET-LVLNG
WPY314137 WPY314137 FOOT- RUBB
304595M 304595M FRONT PANEL-HARVEST WHEAT
33001231 33001231 FRONT- TUM
204807 204807 GRNDWIRE
Y313795 Y313795 GUIDE FOR
WPY303404 WPY303404 HEATER ASY
Y313576 Y313576 HEATER CHA
Y313575 Y313575 HEATER CHAMBER, TOP
304124 304124 HEATER SHIELD
WP303896 WP303896 HI-LIMIT T
WPY312893 WPY312893 HOUSING, BLOWER
WP6-3033630 WP6-3033630 IDLER ARM
Y303945 Y303945 IDLER SPRING ASSEMBLY
Y303362 Y303362 INLET DUCT ASSEMBLY - DE
306676 306676 INNER DOOR WITH KNOB
305835 305835 INNER DOOR WITH KNOB & SCRE
Y313927 Y313927 INSTRUCTION LABEL
WPY313270 WPY313270 INSULATOR FOR HEATER ELEMEN
306508 306508 KIT-BEARNG
303942 303942 KNOB AND SCREW
314421 314421 KNOB FOR TIMER
214519 214519 LABEL, ELECTRICAL INSTRUCTION
306436 306436 LATCH-DOOR
241982 241982 LIGHT-IND
Y313796 Y313796 LINT SEAL
211194 211194 LOCK WASHER
306536 306536 MAIN WIRE HARNESS
WP112432 WP112432 NUT
WP62739 WP62739 NUT
W10155650 W10155650 NUT, 1/4-28 X
WP33001443 WP33001443 NUT- HEX
306657 306657 OUTLET DUCT & GRID
Y312964 Y312964 OUTLET DUCT - OUTER HALF
214897 214897 PAD CONTR
214872 214872 PALNUT, END CAP
WP6-3037050 WP6-3037050 PULLEY
WP6-3051850 WP6-3051850 PULLEY, MOTOR (W/SET SCREW)
WP303396 WP303396 RANGE THERMOSTAT
Y312890 Y312890 RETAINER
W10116752 W10116752 RETAINER-
WP354987 WP354987 RING-E
WP9703438 WP9703438 RING-RETNR
WP210720 WP210720 RIVET
WP33001003 WP33001003 SCREEN
WP33002917 WP33002917 SCREW
WPY310759 WPY310759 SCREW
313764 313764 SCREW
W10850756 W10850756 SCREW
W11164114 W11164114 SCREW
WP489483 WP489483 SCREW
WPY014874 WPY014874 SCREW
WPY313561 WPY313561 SCREW
WPW10116751 WPW10116751 SCREW
WP1163839 WP1163839 SCREW
WP488234 WP488234 SCREW
WPW10139210 WPW10139210 SCREW
204439 204439 SCREW
WP400021-1 WP400021-1 SCREW
Y314062 Y314062 SCREW
WP90767 WP90767 SCREW
204445 204445 SCREW FA
213007 213007 SCREW, CABINET
210932 210932 SCREW, NO.8 X 9/16 CTSK
314286 314286 SEAL FOR F
WPY312901 WPY312901 SEAL- BLOW
WP33313541 WP33313541 SEAL- TUMB
WP314820 WP314820 SEAL- TUMB
Y053241 Y053241 SET SCREW
WP6-3129480 WP6-3129480 SHAFT
WP315772 WP315772 SLEEVE
WPW10116756 WPW10116756 SPACER
410490 410490 SPRING WI
Y312184 Y312184 STRAP, GROUND
312897 312897 SUPPORT, MOTOR
Y303879 Y303879 SWITCH MO
Y303877 Y303877 SWITCH, MOTOR
306207 306207 SWITCH, MOTOR START-PROD.
WP306533 WP306533 SWITCH- PU
W10169313 W10169313 SWITCH-DOR
Y304596 Y304596 TERMINAL I

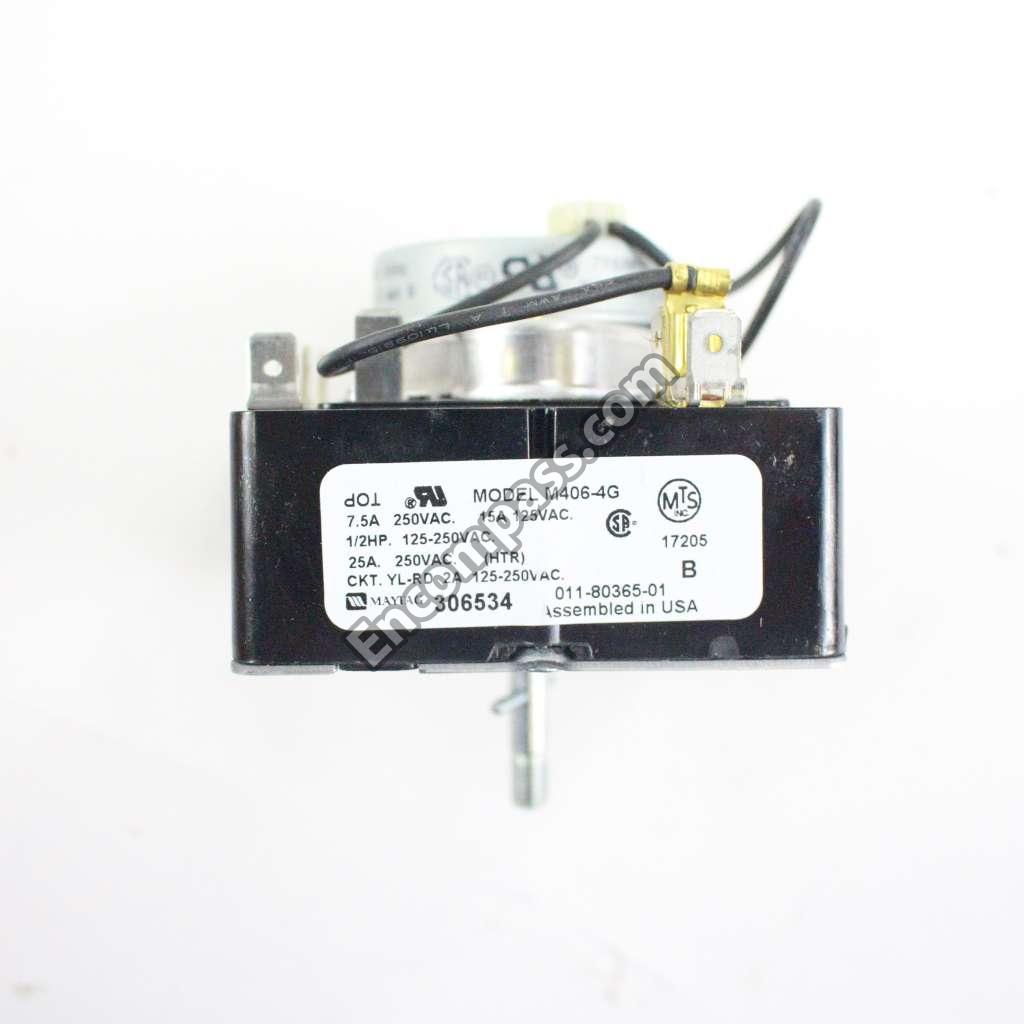

WP306534 WP306534 TIMER
314422 314422 TIMER DIAL INDICATOR
305187 305187 TUMBLER
314154 314154 TUMBLER BAFFLE - SHORT
306670 306670 TUMBLER FRONT----NA
Y303361 Y303361 TV STAND ASSEMBLY.
Y313907 Y313907 TWIN FASTE
WP312535 WP312535 WASHER
WP314158 WP314158 WASHER
WPY312527 WPY312527 WASHER
310557 310557 WASHER
WP311093 WP311093 WASHER- 7
WPY311270 WPY311270 WASHER- TE
WP311155 WP311155 WIRE
901220 901220 WIRE GROU
205810 205810 WIRE GROU
306822 306822 WIRE HARNE
WPY304693 WPY304693 WIRE HARNESS
306816 306816 WIRE HARNESS
306542 306542 WIRE HARNESS - CANADA
210745 210745 WIRE TERMINAL
