Model Image
Manufacturer

Whirlpool

Model Number

GEC9858EZ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP691581 WP691581 ACTUATOR, SWITCH
350956 350956 ALMOND
WP72107 WP72107 ALMOND
WPW10113136 WPW10113136 BAFFLE-DRM
WP3387242 WP3387242 BEARING & SEAL
661570 661570 BELT, DRIVE
WP3397659 WP3397659 BLOCK-TERM
W10802681 W10802681 BOX
8271318 8271318 BRACKET
3393471 3393471 BRACKET, HEATER
W10837240 W10837240 BRACKET, IDLER
WP3387118 WP3387118 BRACKET, MOTOR
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
W11299300 W11299300 BULKHEAD
697563 697563 BULKHEAD, FRONT
693152 693152 BUMPER
WP694419 WP694419 BUZZER
280051 280051 CABINET
280052 280052 CABINET
3358529 3358529 CAP, END (L.H.) (ALMOND)
3358514 3358514 CAP, END (R.H.) (ALMOND)
279570 279570 CATCH, DOOR
WP660658 WP660658 CLAMP
WP297092 WP297092 CLIP
WP3394427 WP3394427 CLIP
WP3395536 WP3395536 CLIP
3388600 3388600 CLIP, LINT DUCT
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
3395683 3395683 CONNECTOR, (MOTOR)
3401144 3401144 CONNECTOR, (PTS RELAY)
3391885 3391885 CONNECTOR, EDGE
3397269 3397269 CONNECTOR, TIMER
WPW10476828 WPW10476828 CONTROL, ELECTRONIC
WPW10354249 WPW10354249 COVER
279780 279780 COVER
3393904 3393904 COVER, TERMINAL BLOCK
677818L 677818L DIY
WP697221 WP697221 DOOR
697222 697222 DOOR, FRONT (ALMOND)
W11222846 W11222846 DOOR, LINT SCREEN
280079 280079 DOOR, REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279787 279787 DRIVE MOTOR
W10545924 W10545924 DRUM
8066086 8066086 DRUM HOLE PLUG
WP3387911 WP3387911 DUCT-AIR
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE, SENSOR
285846 285846 ENDCAP
W10470674 W10470674 EXHAUST KIT
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
3391931 3391931 GRILLE, OUTLET
LIT3406077 LIT3406077 GUIDE, USE & CARE
WP3977746 WP3977746 HANDLE, DOOR (ALMOND)
WP348721 WP348721 HANDLE, DOOR (WHITE)
3976486 3976486 HARNESS, ELECTRIC
WP3387747 WP3387747 HEATER ELEMENT
WP387402 WP387402 HINGE, CONSOLE (2)
WP3387559 WP3387559 HINGE, DOOR (L.H.)
WP3387560 WP3387560 HINGE, DOOR (R.H.)
WP8544363 WP8544363 HOUSING
W11129408 W11129408 HOUSNG-OUT
LIT3397629 LIT3397629 INSTRUCTIONS INSTALLATION
279769 279769 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)

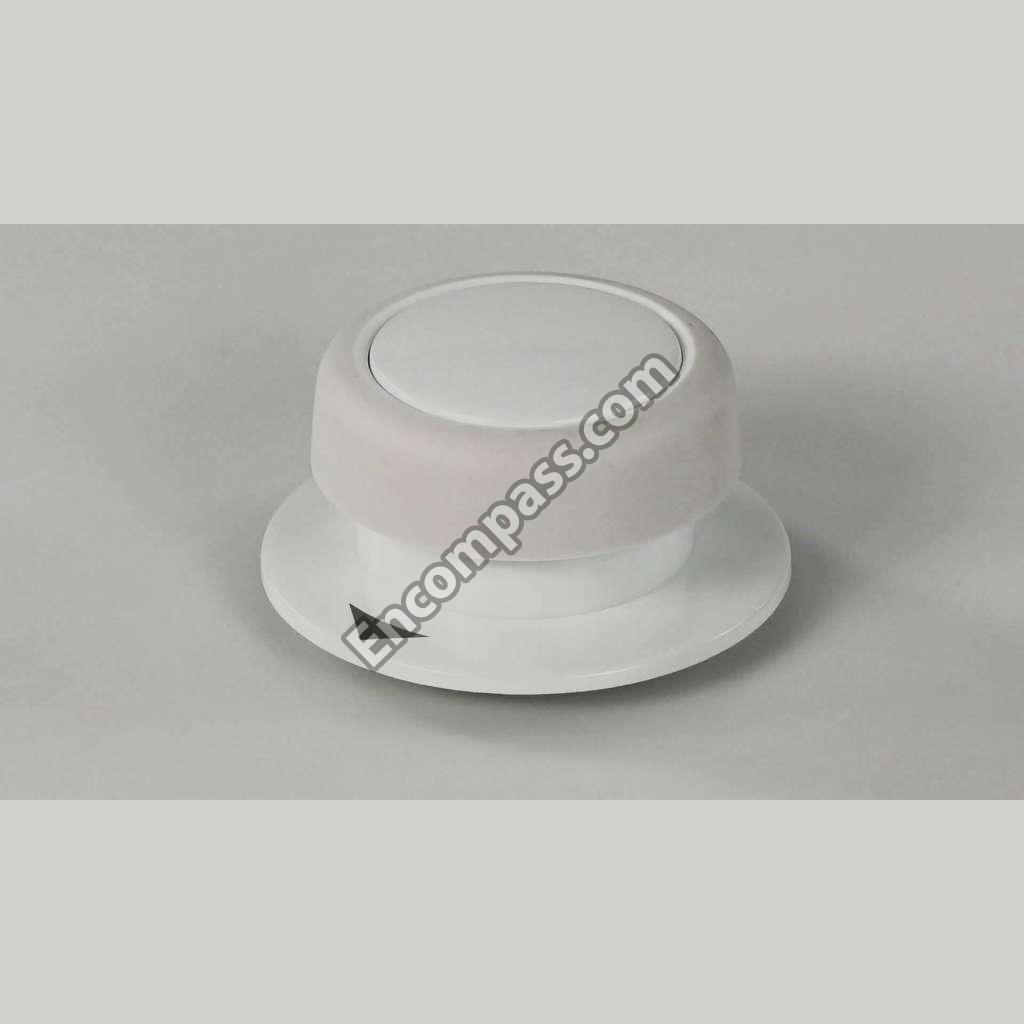

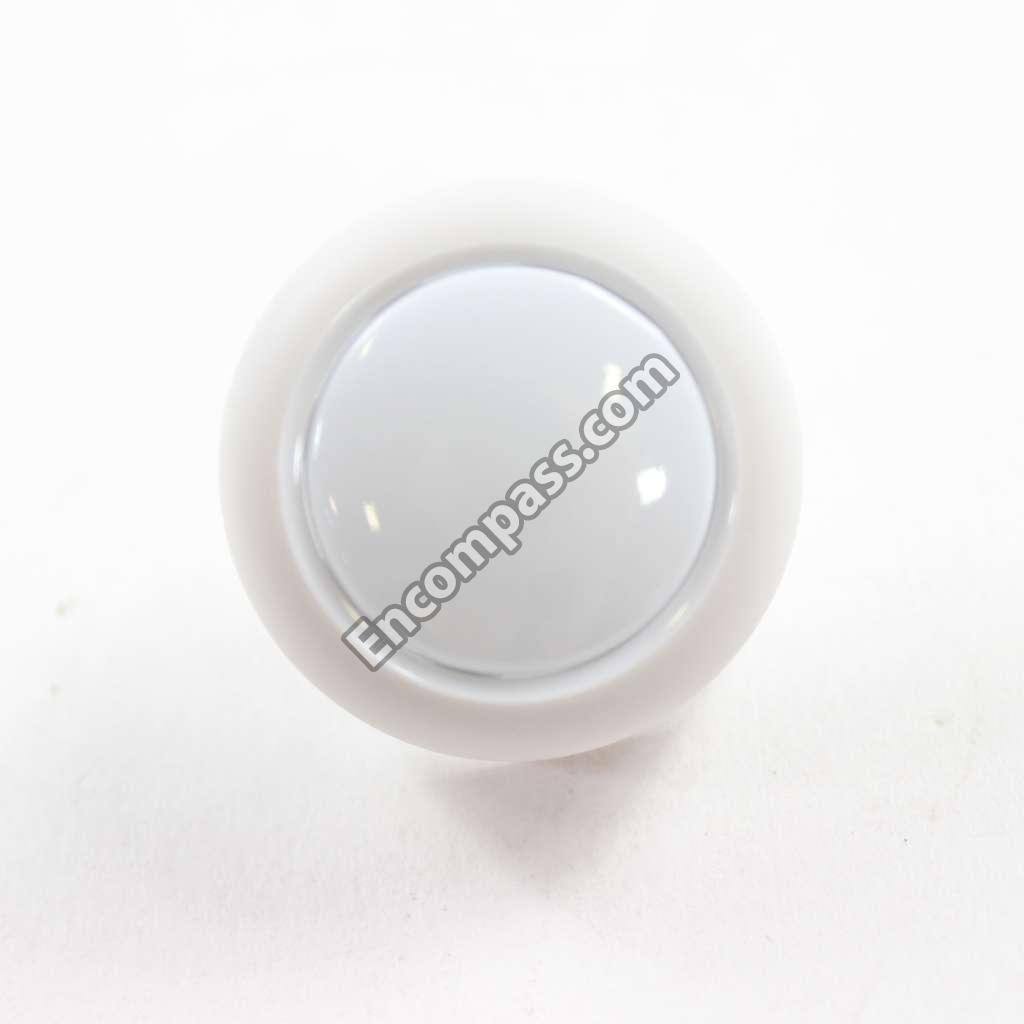

WP3957752 WP3957752 KNOB
WP3957800 WP3957800 KNOB

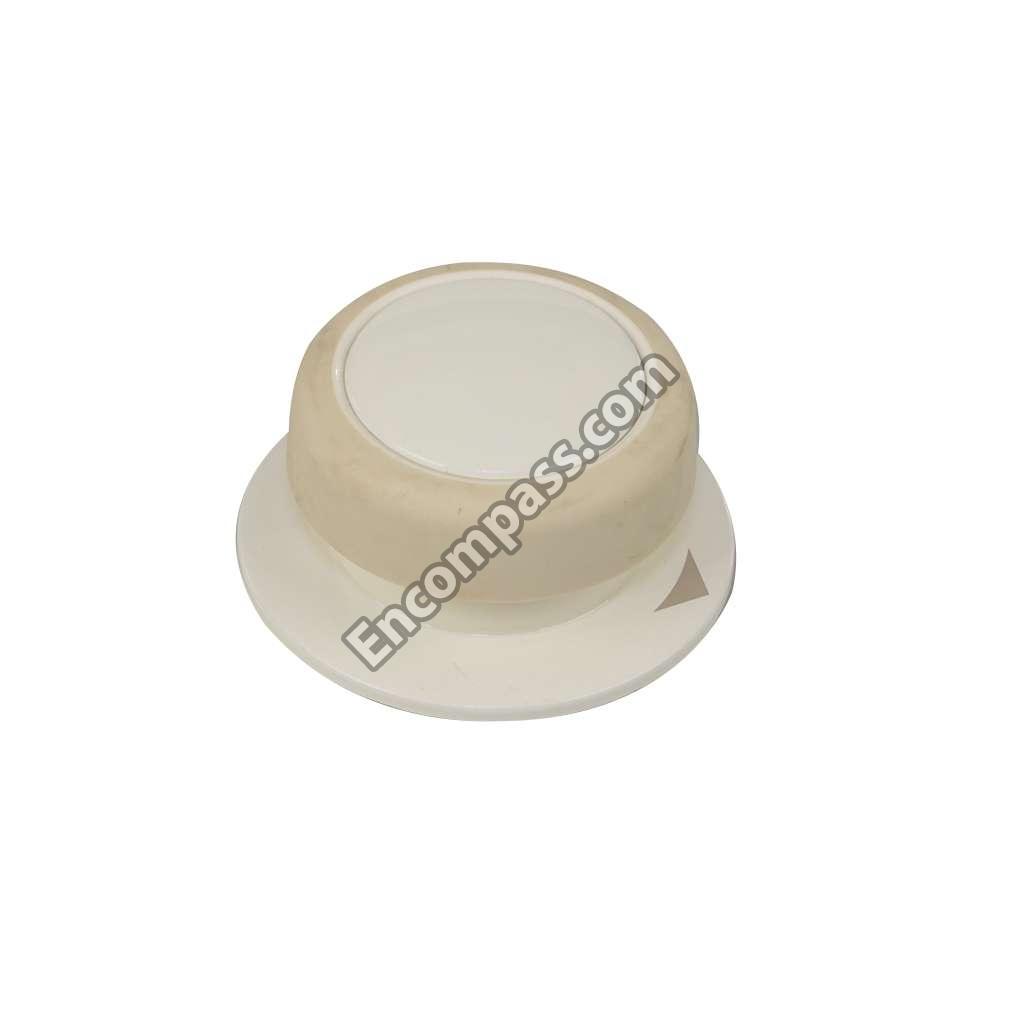

3957753 3957753 KNOB, TIMER (DRYER) (BISCUIT)
LIT3406698 LIT3406698 LABEL, WIRING DIAGRAM
WP3395196 WP3395196 LENS, DRUM LIGHT
WP8066120 WP8066120 LEVER
WP22002263 WP22002263 LIGHT BULB
3390531 3390531 LINT DUCT ASSEMBLY
100000 100000 LITERATURE PARTS
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP3387709 WP3387709 NUT, 3/8-16 (L.H.)
WP357213 WP357213 NUT, PUSH-IN (4)
799344 799344 PAINT
978883 978883 PAINT
279659 279659 PANEL
8271310 8271310 PANEL, CONTROL (WHITE)
3976705 3976705 PANEL, REAR CONSOLE
8271311 8271311 PANEL-CNTL
WP8563747 WP8563747 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
279936 279936 PIPE-EXHST
WPW10404617 WPW10404617 PLUG
350938 350938 PRIMER, GRAY
W10837625 W10837625 PULLEY, 60 HZ.
279640 279640 PULLEY-IDR
351296 351296 RECEPTACLE
3406964 3406964 REFLECTOR, ASSEMBLY
WP3398094 WP3398094 RELAY, PUSH-TO-START
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
WP3387230 WP3387230 SCREW
WPW10139210 WPW10139210 SCREW
WP488729 WP488729 SCREW
W10850756 W10850756 SCREW
WP3389420 WP3389420 SCREW
WP98129 WP98129 SCREW
WP681414 WP681414 SCREW
WP308685 WP308685 SCREW
WP694091 WP694091 SCREW
WP388326 WP388326 SCREW (PANEL TO TOP)
690372 690372 SCREW, 11-16 X 7/8
WP90767 WP90767 SCREW, 8 A X 3/8
3400859 3400859 SCREW, GROUNDING (8-18 X 7/32)
280114 280114 SEAL
WP697770 WP697770 SEAL
WP8566209 WP8566209 SEAL
W10823582 W10823582 SEAL, DOOR
WP697813 WP697813 SEAL, OUTLET HOUSING
WPW10359271 WPW10359271 SHAFT
WPW10359272 WPW10359272 SHAFT
697699 697699 SHIELD, HEAT
350930 350930 SPRAY (13 OZ.) (WHITE)
WP3394986 WP3394986 SPRING
WP3387565 WP3387565 SPRING, DOOR (2)
WPW10446781 WPW10446781 SPRING, IDLER
WPW10314173 WPW10314173 SUPPORT
3396236 3396236 SWITCH, CLEAN-TOUCH
3403970 3403970 SWITCH, CLEAN-TOUCH (ALMOND)
W10820036 W10820036 SWITCH-LID
279782 279782 SWITCH-PLG
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
WP94614 WP94614 TERMINAL, FEMALE
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
WP3390719 WP3390719 THERMAL FUSE
WP3390291 WP3390291 THERMOSTAT (250 F) (121C)
WP3387134 WP3387134 THERMOSTAT, INTERNAL BIAS
WP3391018 WP3391018 TIE-WIRE

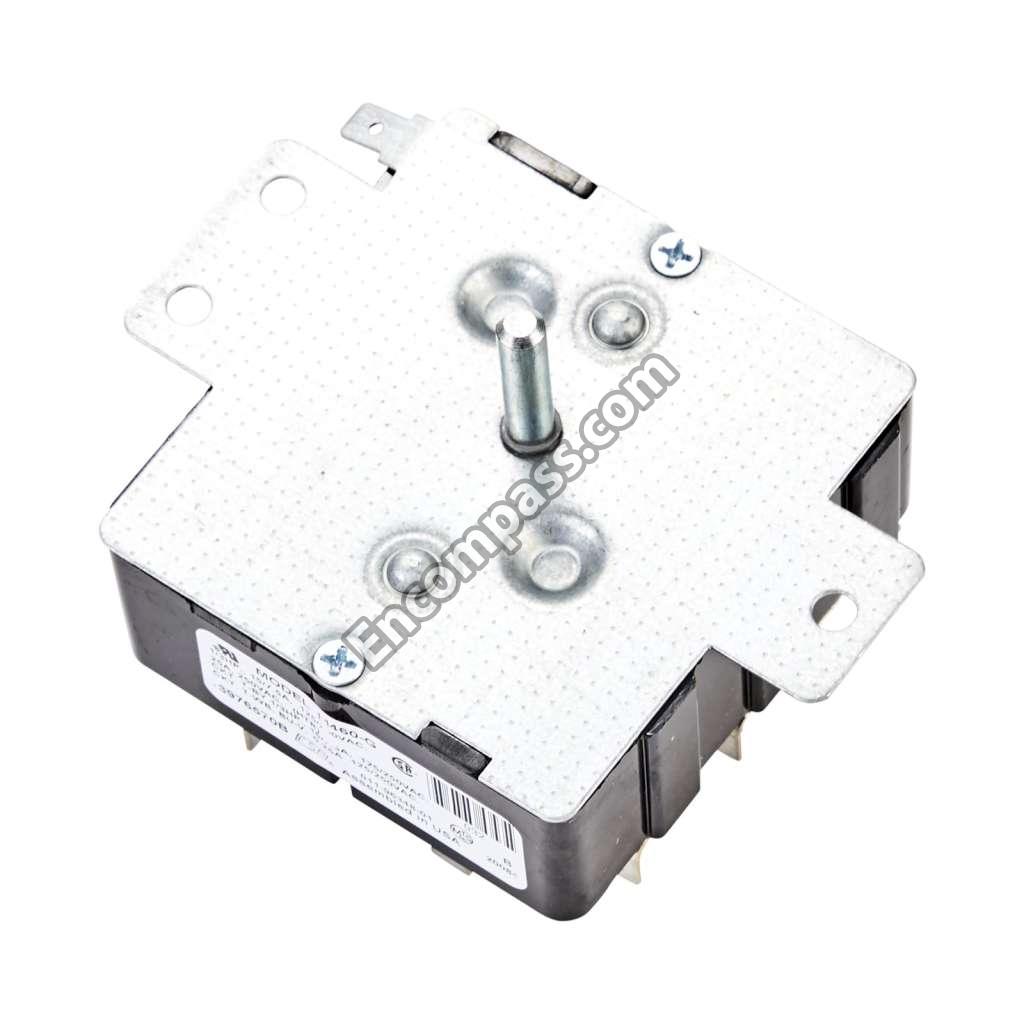

WP3976570 WP3976570 TIMER, 60HZ.
WP3406797 WP3406797 TOEPNL
3406798 3406798 TOEPNL AL
3976483 3976483 TOP (ALMOND)
3976482 3976482 TOP (WHITE)
WPW10512946 WPW10512946 TRI-RING (4)
697228 697228 UPPER FRONT PANEL (ALMOND)
WPW10121334 WPW10121334 WASHER
W11236646 W11236646 WASHER, SUPPORT
WP697772 WP697772 WHEEL, BLOWER
3393840 3393840 WIRE
3394081 3394081 WIRE, BELT SWITCH
3401670 3401670 WIRE, JUMPER (BLACK)
3395521 3395521 WIRE, JUMPER (BLACK)
3398948 3398948 WIRE, JUMPER (BROKEN BELT SWITCH)
3395522 3395522 WIRE, JUMPER (BROWN)
3401667 3401667 WIRE, JUMPER (WHITE)
3401666 3401666 WIRE, JUMPER (YELLOW)
