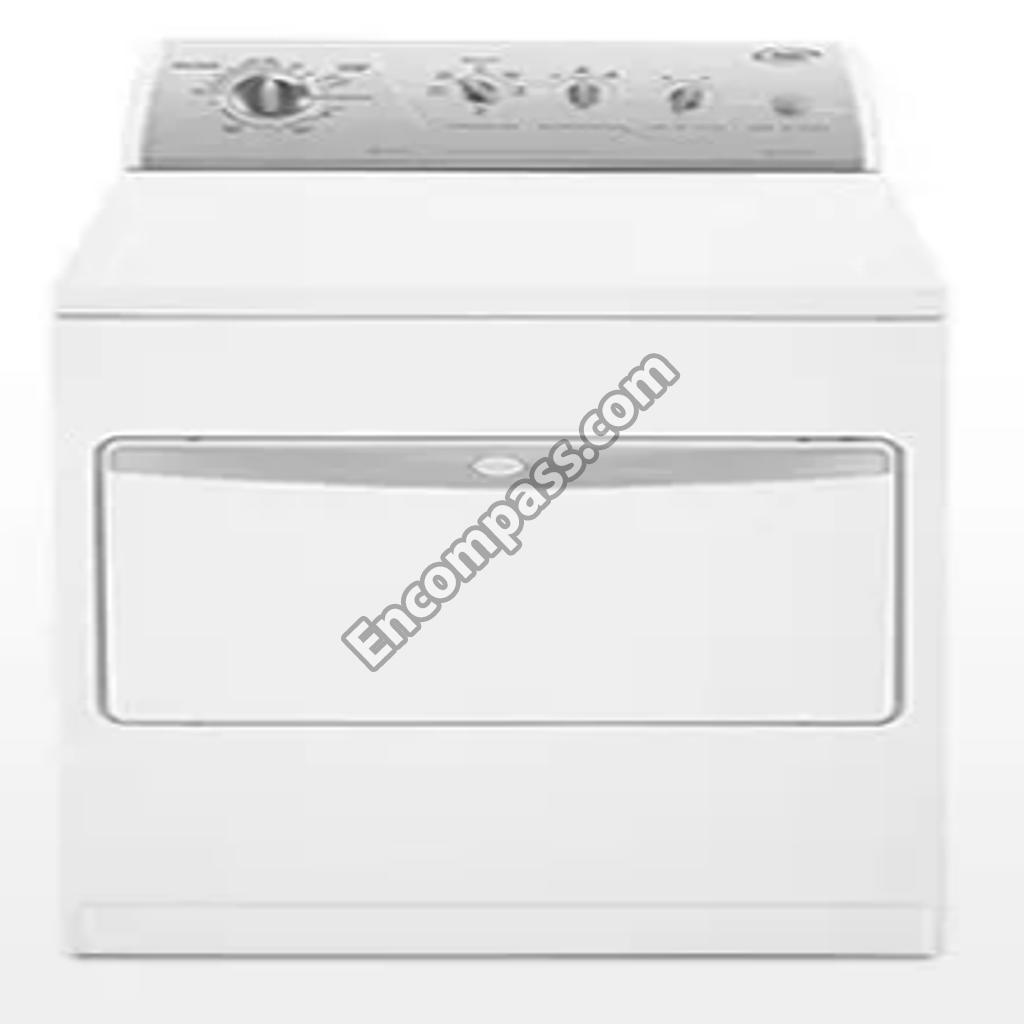

Model Image
Manufacturer

Whirlpool

Model Number

GEQ9800PW2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10545923 W10545923 ASSEMBLY, DRUM
WPW10113136 WPW10113136 BAFFLE-DRM
WP3387118 WP3387118 BASE
661570 661570 BELT
WP3397659 WP3397659 BLOCK-TERM
W10802681 W10802681 BOX
8066099 8066099 BRACKET
8544897 8544897 BRACKET
W10837240 W10837240 BRACKET
3977373 3977373 BRACKET, DRUM LIGHT
W11299301 W11299301 BULKHEAD
WP697557 WP697557 BULKHEAD
693152 693152 BUMPER
WP694419 WP694419 BUZZER-ADJ
8527931 8527931 CABINET
8563991 8563991 CABINET
W11417441 W11417441 CABINET
W11226088 W11226088 CAMERA LENS
279964 279964 CAP, END (R.H.) (BLACK)
WP660658 WP660658 CLAMP
W11684573 W11684573 CLIP
WP3394427 WP3394427 CLIP
WP8536939 WP8536939 CLIP
WP297092 WP297092 CLIP
WP8066208 WP8066208 CLIP
3936144 3936144 CONNECTOR
3395683 3395683 CONNECTOR (MOTOR)
3347243 3347243 CONNECTOR 6-CIRCUIT
3401144 3401144 CONNECTOR, (PTS RELAY)
3391885 3391885 CONNECTOR, EDGE
3397269 3397269 CONNECTOR, TIMER
WPW10476828 WPW10476828 CONTROL BOARD
WPW10354249 WPW10354249 COVER
WPW10119283 WPW10119283 COVER-TERM
677818L 677818L DIY
8563724 8563724 DOOR
8521939 8521939 DOOR
W11222846 W11222846 DOOR
WP3387560 WP3387560 DOOR HINGE
WP3387559 WP3387559 DOOR HINGE
279570 279570 DOOR LATCH
WP8521938 WP8521938 DOOR, FRONT (WHITE)
280079 280079 DOOR, REAR
279787 279787 DRIVE MOTOR
8212450A 8212450A DRY RACK
WP3387911 WP3387911 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE
WP3387747 WP3387747 ELEMENT
W10820038 W10820038 ENDCAP
279965 279965 ENDCAP
49621 49621 FEET-LVLNG
100000 100000 FOLLOWING MAY BE PURCHASED DO-IT-YOURSELF REPAIR MANUALS
WP3392519 WP3392519 FUSE-THRML
W11086603 W11086603 GRILL-OUT
8578190 8578190 GUIDE, USE & CARE
3978791 3978791 HANDLE, DOOR (BLACK)
WP3979727 WP3979727 HANDLE, DOOR (GREY)
3979726 3979726 HANDLE, DOOR (SAGE)
8576516 8576516 HARNESS, ELECTRIC
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
8578230 8578230 INSTRUCTIONS INSTALLATION
4392067 4392067 KIT, DRYER REPAIR
279769 279769 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WP8544957 WP8544957 KNOB
WP8544958 WP8544958 KNOB
WP8544941 WP8544941 KNOB
W10810477 W10810477 KNOB, CONTROL (3) (BISCUIT)
WP8544937 WP8544937 KNOB, CONTROL (3) (SILVER)
WP8066120 WP8066120 LEVER
WP22002263 WP22002263 LIGHT BULB
8533990 8533990 MEDALLION
WP357213 WP357213 NUT
WPW10080210 WPW10080210 NUT
WPW10080190 WPW10080190 NUT
786032 786032 PAINT
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
786020 786020 PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GREY)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
280074 280074 PANEL
279935 279935 PANEL
279659 279659 PANEL
8546000 8546000 PANEL-CNTL
8545999 8545999 PANEL-CNTL
285909 285909 PANEL-REAR
WP8563747 WP8563747 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
279936 279936 PIPE-EXHST
8066086 8066086 PLUG
WPW10404617 WPW10404617 PLUG
279640 279640 PULLEY-IDR
W10837625 W10837625 PULLEY-MTR
WP8318268 WP8318268 RANGE THERMOSTAT
WP3390291 WP3390291 RANGE THERMOSTAT
WP3398094 WP3398094 RELAY-PTS
WP3388229 WP3388229 RETAINER
WPW10512946 WPW10512946 RING
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
W10891954 W10891954 SCREW
WP90767 WP90767 SCREW
WP388326 WP388326 SCREW
WP693995 WP693995 SCREW
WPW10139210 WPW10139210 SCREW
WP488729 WP488729 SCREW
WP3395530 WP3395530 SCREW
W10850756 W10850756 SCREW
WP3389420 WP3389420 SCREW
WP98129 WP98129 SCREW
WP681414 WP681414 SCREW
WP308685 WP308685 SCREW
WP694091 WP694091 SCREW
WPW10109200 WPW10109200 SCREW
W11693756 W11693756 SCREW
WP3387230 WP3387230 SCREW
3400859 3400859 SCREW, 8-18 X 7/32
WP3387242 WP3387242 SEAL
WP697813 WP697813 SEAL
280114 280114 SEAL
WP697770 WP697770 SEAL
W10823582 W10823582 SEAL, DOOR
WPW10359271 WPW10359271 SHAFT
WPW10359272 WPW10359272 SHAFT
8533770 8533770 SHEET, CYCLE FEATURE
W11700522 W11700522 SOCKET
WPW10446781 WPW10446781 SPRING
WP3394986 WP3394986 SPRING
WP3387565 WP3387565 SPRNG-DOOR
WP8568314 WP8568314 STRAP
WPW10314173 WPW10314173 SUPPORT
3405152 3405152 SWITCH, END OF CYCLE
3405154 3405154 SWITCH, WRINKLE SHIELD
WP3406107 WP3406107 SWITCH-DOR
279782 279782 SWITCH-PLG
8528330 8528330 SWTCH-TEMP
WP94614 WP94614 TERMINAL
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS & TINNED (3) (INCLUDES ILLUS. 33)
W11224254 W11224254 TEST KIT
WP3391018 WP3391018 TIE-WIRE
WP3406725 WP3406725 TIMER
8563992 8563992 TOEPNL
WP3406797 WP3406797 TOEPNL
8526025 8526025 TOEPNL
8535849 8535849 TOP
8563988 8563988 TOP
8563990 8563990 TOP
8535848 8535848 TOP (WHITE)
W10470674 W10470674 VENT KIT
WPW10121334 WPW10121334 WASHER
W11236646 W11236646 WASHER
WP697772 WP697772 WHEEL
3393840 3393840 WIRE
3394081 3394081 WIRE, BELT SWITCH
3398948 3398948 WIRE, JUMPER (BROKEN BELT SWITCH)
8541831 8541831 WIRING DIAGRAM
