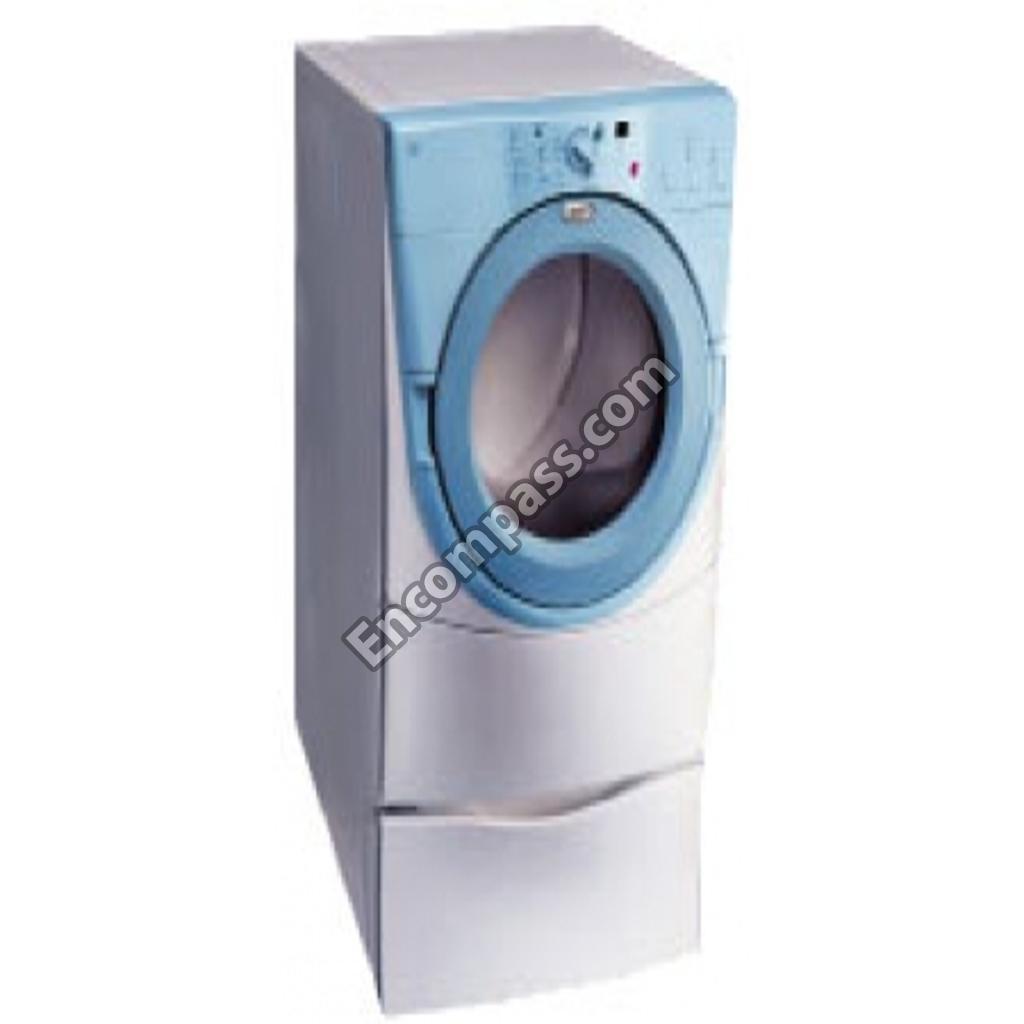

Model Image
Manufacturer

Whirlpool

Model Number

GEW9200LQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10854980 W10854980 BADGE, ASSEMBLY
WPW10113136 WPW10113136 BAFFLE-DRM
WPW10239098 WPW10239098 BASE
WP3387242 WP3387242 BEARING & SEAL
661570 661570 BELT
8519406 8519406 BEZEL, CYCLE
WP3397659 WP3397659 BLOCK-TERM
W10802681 W10802681 BOX
8519271 8519271 BRACKET
8519273 8519273 BRACKET
8066099 8066099 BRACKET
3977373 3977373 BRACKET, DRUM LIGHT
8529539 8529539 BRACKET, HANDLE
W10837240 W10837240 BRACKET, IDLER
8529005 8529005 BRACKET, LINT DUCT
WP3387118 WP3387118 BRACKET, MOTOR
W10118337 W10118337 BRACKET-BULKHEAD UPPER MOUNTING
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
WPW10250634 WPW10250634 BULKHEAD
W11299301 W11299301 BULKHEAD, REAR
8530591 8530591 BUTTON
8530592 8530592 BUTTON
W11226088 W11226088 CAMERA LENS
W10118335 W10118335 CHANNEL BRACKET, REAR BULKHEAD (2)
WP660658 WP660658 CLAMP
WP8181929 WP8181929 CLIP
WP3394427 WP3394427 CLIP
W11295573 W11295573 CLIP
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
W10545924 W10545924 COMPLETE DRUM ASSEMBLY
3395683 3395683 CONNECTOR, (MOTOR)
2203186 2203186 CONNECTOR, 5-CIRCUIT
3936150 3936150 CONNECTOR, 7-CIRCUIT

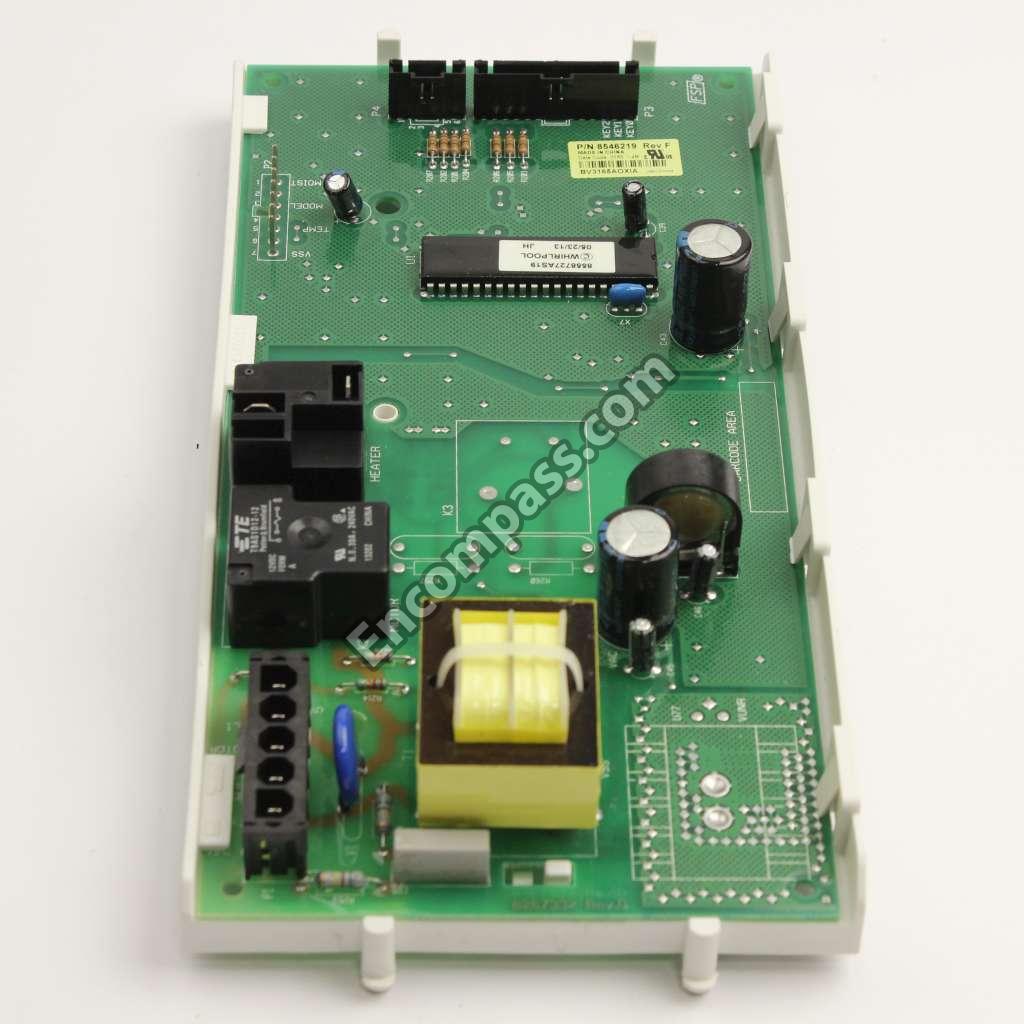

WP8546219 WP8546219 CONTROL BOARD
279780 279780 COVER
WPW10354249 WPW10354249 COVER
8528294 8528294 COVER
8528295 8528295 COVER
8528292 8528292 COVER
3979779 3979779 COVER-HINGE, ROTATING (BISCUIT)
3980084 3980084 COVER-HINGE, ROTATING (PEWTER)
3979777 3979777 COVER-HINGE, STATIONARY (LH) (BISCUIT COVER-HINGE, STATIONARY (RH))
3979778 3979778 COVER-HINGE, STATIONARY (LH) (BISCUIT)
8528290 8528290 COVER-HINGE, STATIONARY (LH) (BLUE)
3980100 3980100 COVER-HINGE, STATIONARY (LH) (PEWTER)
3980083 3980083 COVER-HINGE, STATIONARY (LH) (PEWTER)
8528291 8528291 COVER-HINGE, STATIONARY (LH) (PLATINUM)
8528293 8528293 COVER-HINGE, STATIONARY (LH) (PLATINUM)
WPW10119283 WPW10119283 COVER-TERM
280123 280123 DIVIDER
WP8572960 WP8572960 DOOR
8519309 8519309 DOOR ASSEMBLY (INNER)
3977873 3977873 DOOR ASSEMBLY (OUTER) (BISCUIT)
8541573 8541573 DOOR ASSEMBLY (OUTER) (BLUE)
WP8572962 WP8572962 DOOR ASSEMBLY (OUTER) (PEWTER)
8519419 8519419 DOOR HINGE ASSEMBLY
279570 279570 DOOR LATCH
W11222846 W11222846 DOOR, LINT SCREEN
WP8537883 WP8537883 DRAWER BIN
8538015 8538015 DRAWER FRONT ASSEMBLY (BISCUIT)
8538016 8538016 DRAWER FRONT ASSEMBLY (GRAPHITE)
8538014 8538014 DRAWER FRONT ASSEMBLY (WHITE)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279787 279787 DRIVE MOTOR
8521961 8521961 DRY RACK SUPPORT
WP3387911 WP3387911 DUCT-AIR
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE, SENSOR
W10470674 W10470674 EXHAUST KIT
8528289 8528289 FILLER HANDLE (GREY (LH))
3979772 3979772 FILLER HANDLE (LH) (BISCUIT)
3979771 3979771 FILLER HANDLE (LH) (BISCUIT)
3980101 3980101 FILLER HANDLE (LH) (PEWTER)
3980082 3980082 FILLER HANDLE (LH) (PEWTER)
8528287 8528287 FILLER HANDLE (RH)
WP8563585 WP8563585 FOOT
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
8537871 8537871 FRONT
8537872 8537872 FRONT
8538017 8538017 FRONT
8519227 8519227 FRONT PANEL (WHITE)
W11086603 W11086603 GRILLE, OUTLET

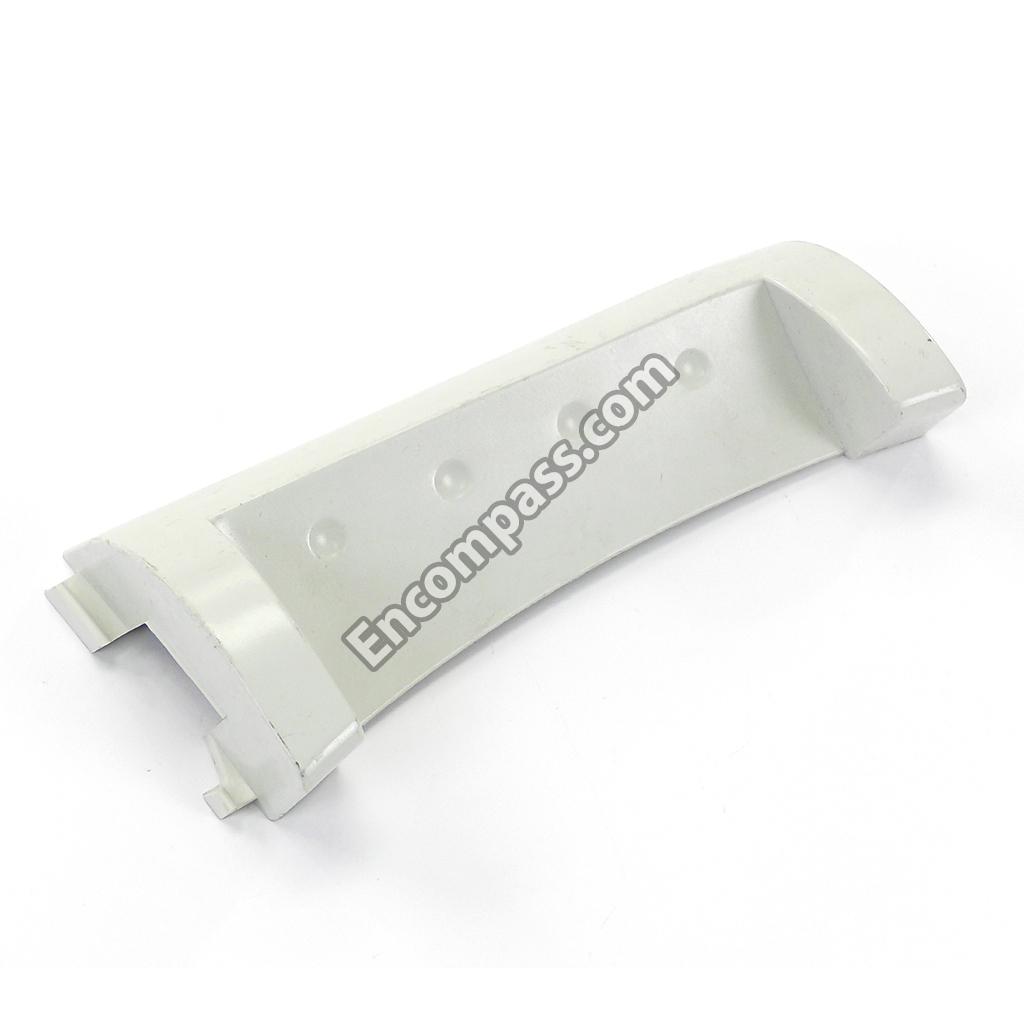

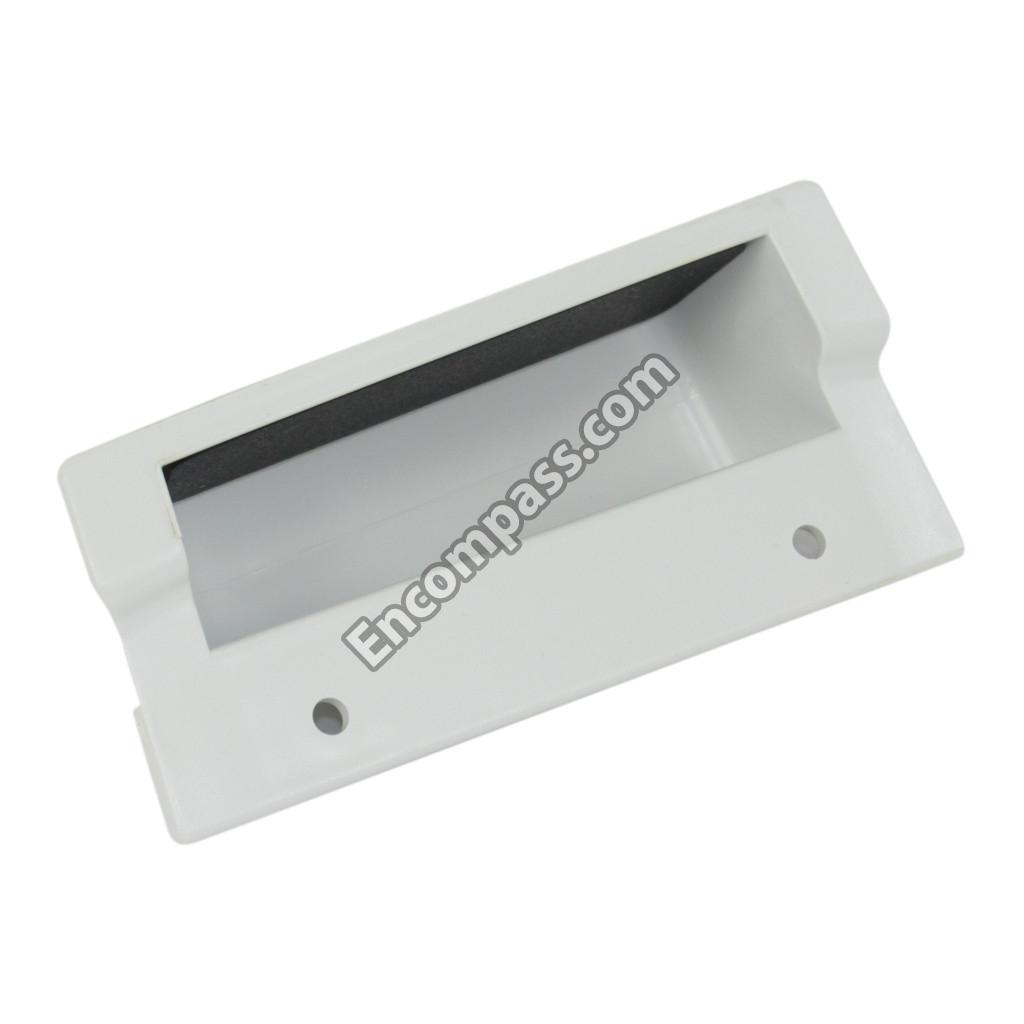

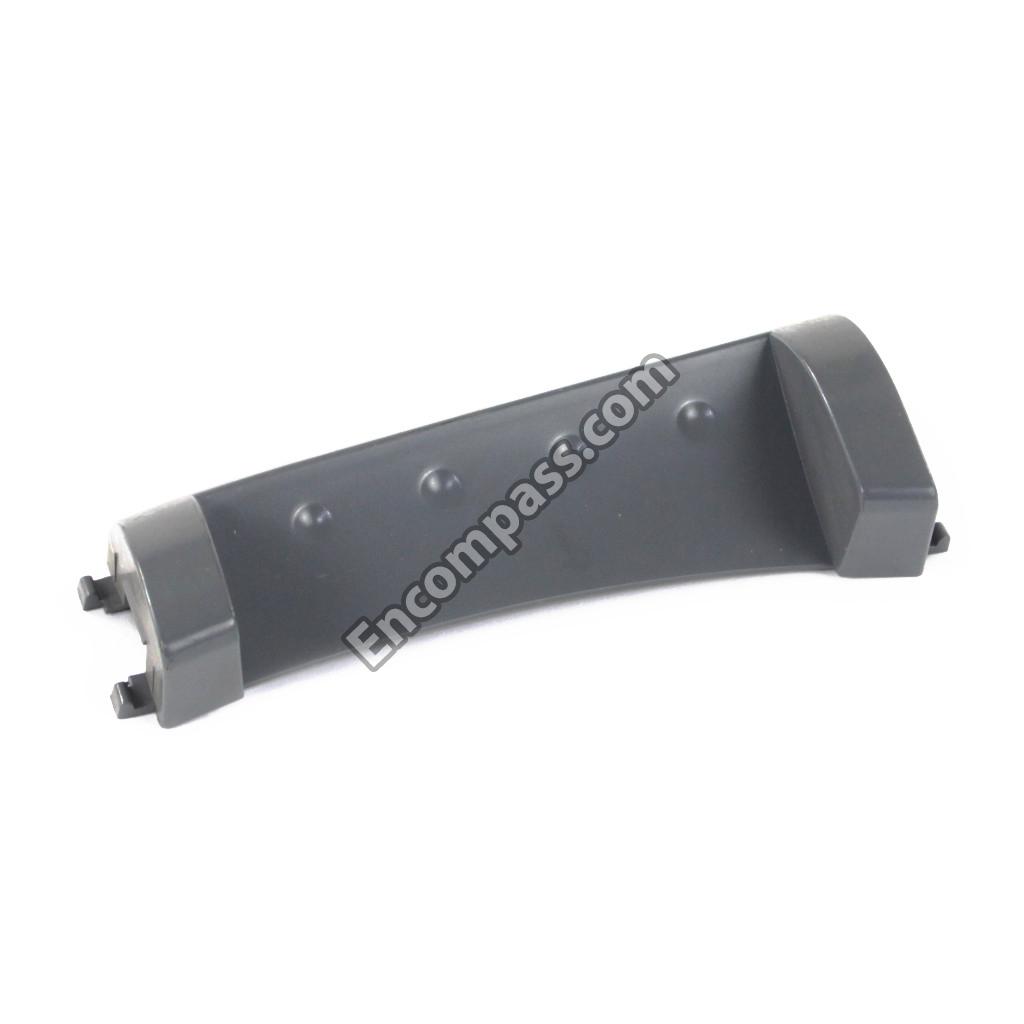

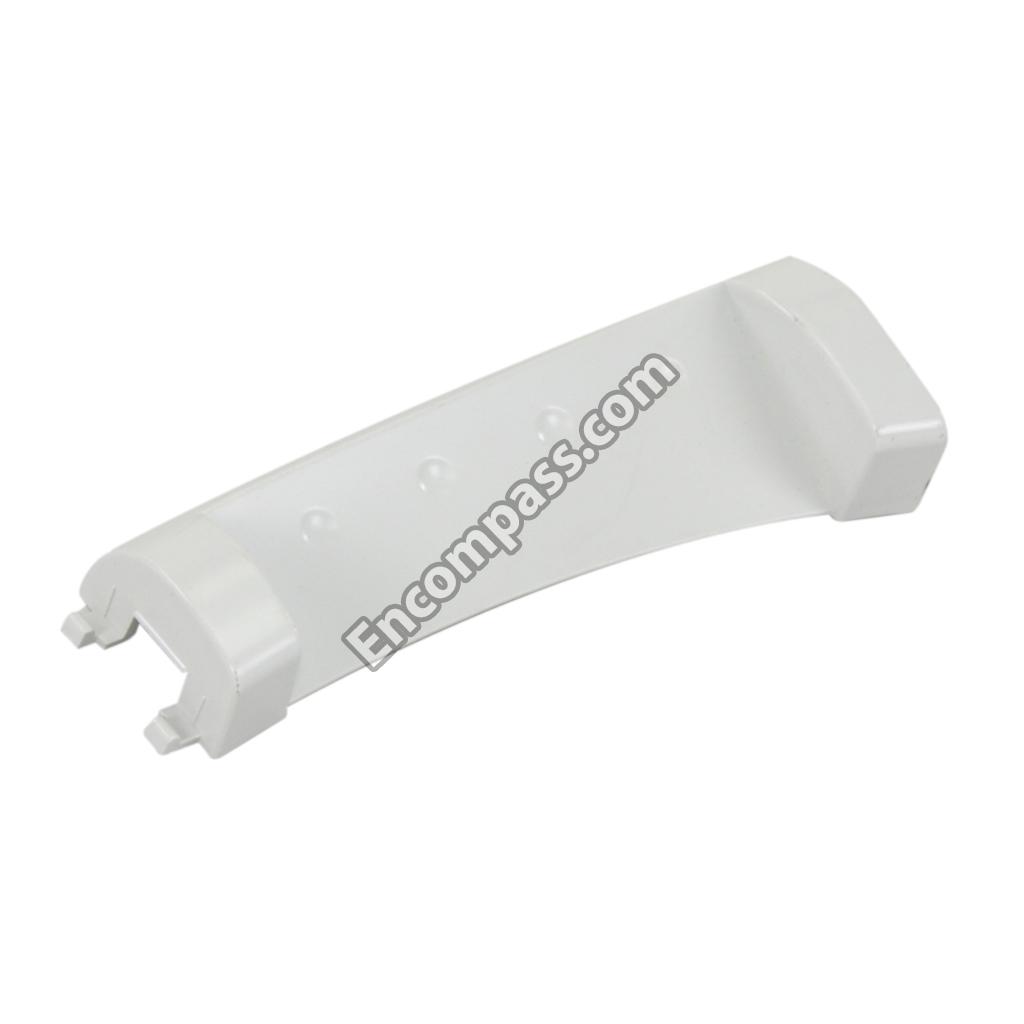

8528286 8528286 HANDLE
8529931 8529931 HANDLE
8529933 8529933 HANDLE
8528288 8528288 HANDLE
8529934 8529934 HANDLE, DOOR ASSEMBLY (GREY (RH))
3979775 3979775 HANDLE, DOOR ASSEMBLY (LH) (BISCUIT HANDLE, DOOR ASSEMBLY (RH))
3979776 3979776 HANDLE, DOOR ASSEMBLY (LH) (BISCUIT)
8529932 8529932 HANDLE, DOOR ASSEMBLY (LH) (GREY HANDLE, DOOR ASSEMBLY (RH))
3980077 3980077 HANDLE, DOOR ASSEMBLY (LH) (PEWTER)
3980210 3980210 HANDLE, DOOR ASSEMBLY (LH) (PEWTER)
WP3406653 WP3406653 HARNESS, SENSOR

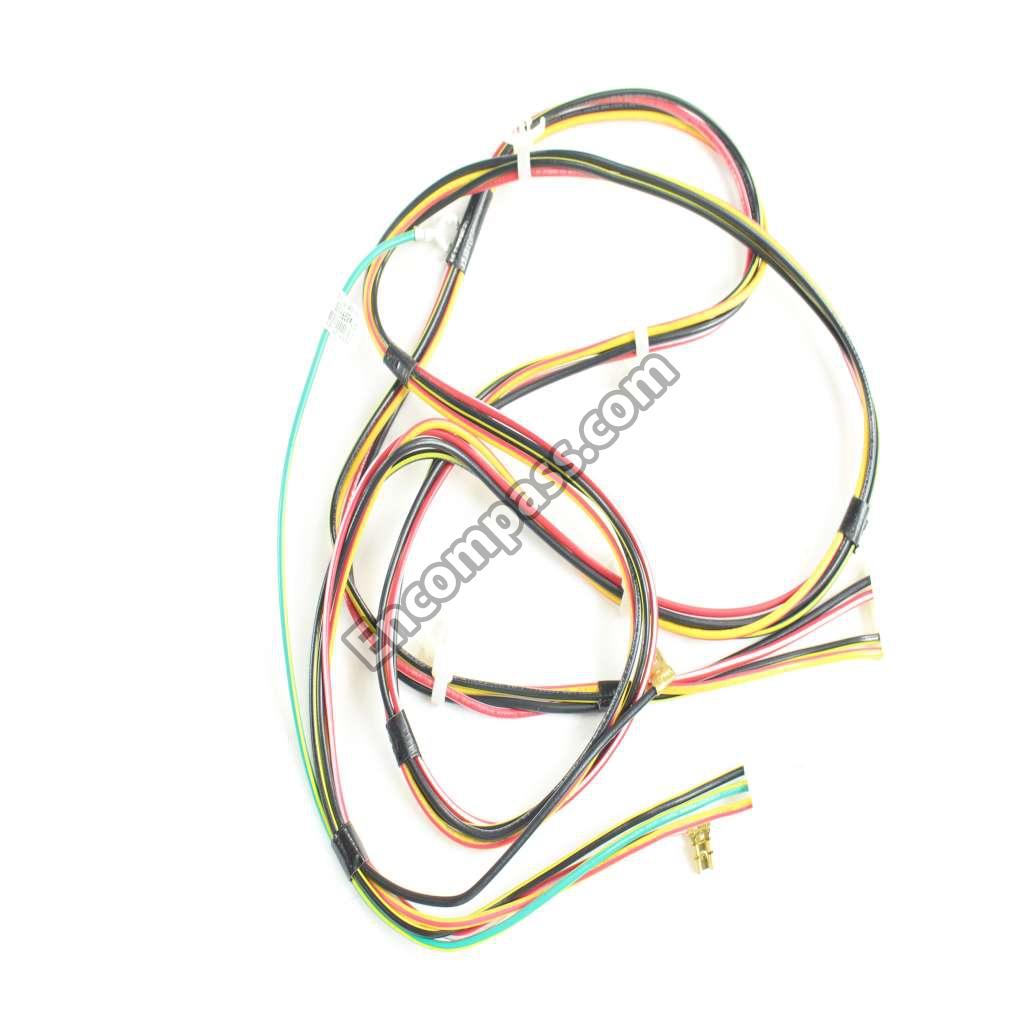

8299925 8299925 HARNS-WIRE
WP8576530 WP8576530 HARNS-WIRE
WP3387747 WP3387747 HEATER ELEMENT
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
3979303 3979303 KIT, DOOR REVERSING (BLUE)
346764A 346764A KIT, HOLD DOWN
8541503 8541503 KIT, STACK ASSEMBLY
279973 279973 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WP8530071 WP8530071 KIT-DOOR

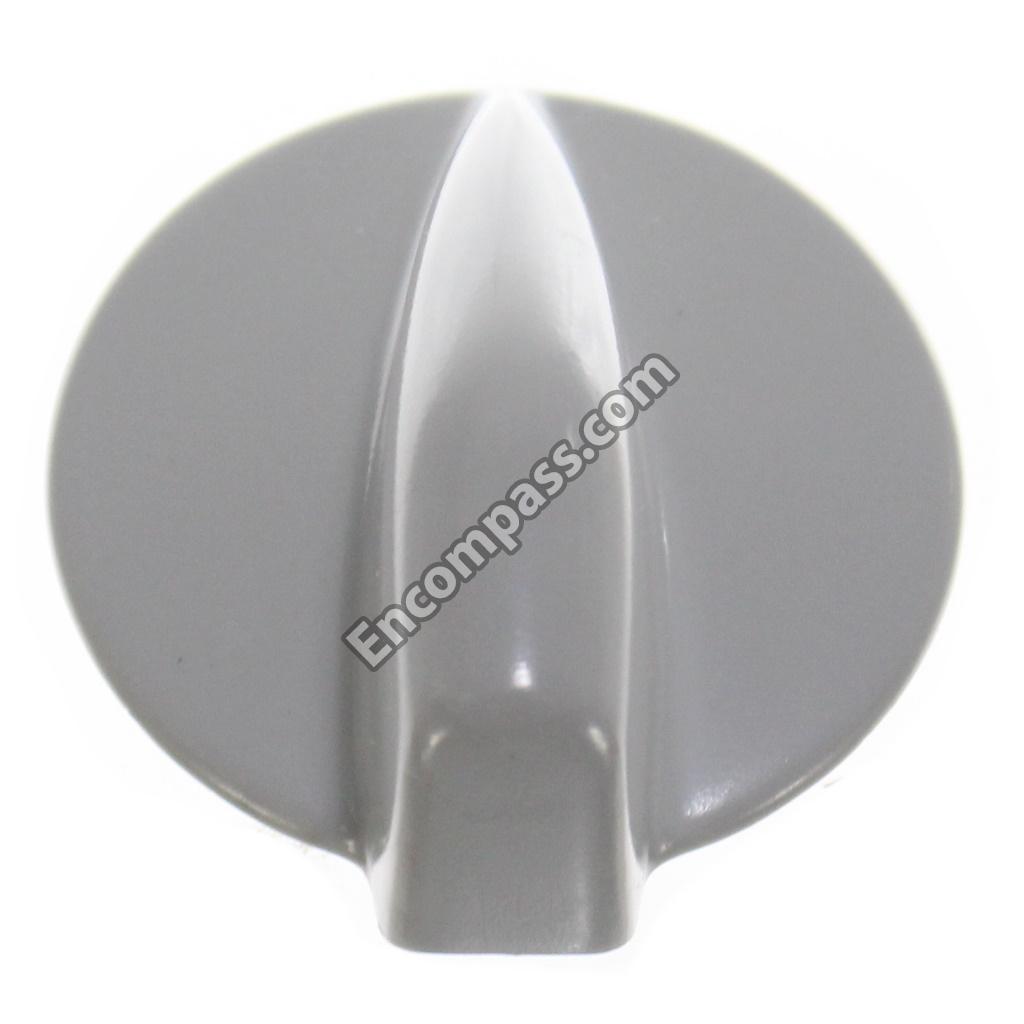

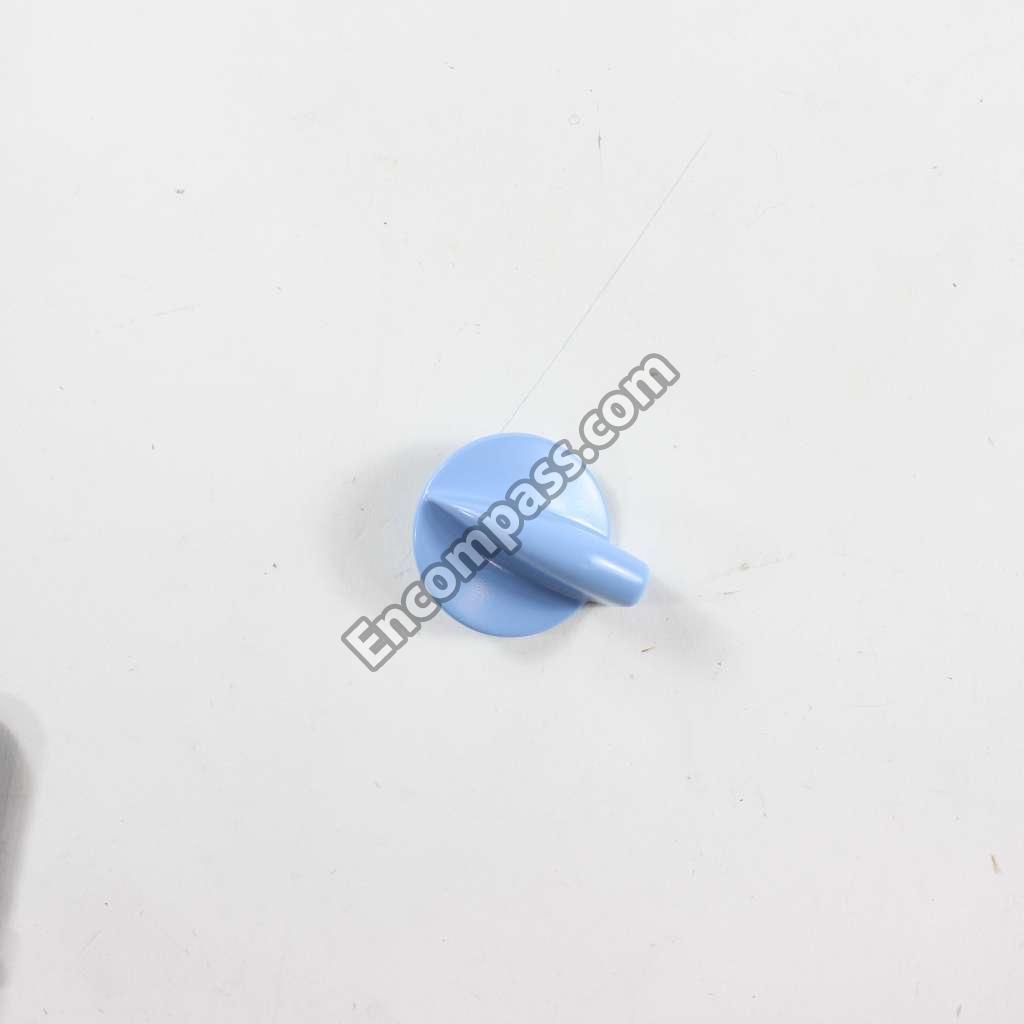

WP8181881 WP8181881 KNOB
WP8182050 WP8182050 KNOB
WP8181859 WP8181859 KNOB
WP8182049 WP8182049 KNOB
WP8066120 WP8066120 LEVER, DOOR SWITCH
WP22002263 WP22002263 LIGHT BULB
8530036 8530036 LINT DUCT ASSEMBLY
LIT8537141 LIT8537141 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT8537342 LIT8537342 LITERATURE PARTS (PARTS LIST)
LIT8541833 LIT8541833 LITERATURE PARTS (TECH SHEET)
LIT8542740 LIT8542740 LITERATURE PARTS (USE & CARE GUIDE)
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP3387709 WP3387709 NUT, 3/8-16 (L.H.)
WP692400 WP692400 NUT, PUSH-IN
100000 100000 OPTIONAL PARTS NOT INCLUDED DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING)
8529930 8529930 PAD
WP8537863 WP8537863 PAD (4)
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
4396175 4396175 PAINT, PRESSURIZED SPRAY (12 OZ.) (PEWTER)
8537853 8537853 PAN
280097 280097 PANEL
280098 280098 PANEL
3980359 3980359 PANEL
W10131287 W10131287 PANEL
3980358 3980358 PANEL
W10131288 W10131288 PANEL
3979788 3979788 PANEL, CONSOLE (BISCUIT)
8530588 8530588 PANEL, CONSOLE (BLUE)
3980188 3980188 PANEL, CONSOLE (PEWTER)
8530587 8530587 PANEL, CONSOLE (PLATINUM)
280036 280036 PANEL-REAR
8564134 8564134 PANL-SOUND
8530072 8530072 PEWTER
WP4396174 WP4396174 PEWTER
279936 279936 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
8530070 8530070 PLATINUM
WP3404413 WP3404413 PLUG
WPW10404617 WPW10404617 PLUG
8066086 8066086 PLUG
8529007 8529007 PLUG
WP3404415 WP3404415 PLUG, HOLE (5) (BISCUIT)
3404417 3404417 PLUG, HOLE (5) (PEWTER)
3936144 3936144 PLUG, TERMINAL
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
350938 350938 PRIMER, GRAY
W10837625 W10837625 PULLEY, 60 HZ.
279640 279640 PULLEY-IDR
8212450A 8212450A RACK-DRY
8529053 8529053 RAMP
4392067 4392067 REPAIR-DYR
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
3400618 3400618 SCREW
WP1163283 WP1163283 SCREW
WP3388228 WP3388228 SCREW
WPW10109200 WPW10109200 SCREW
WPW10139210 WPW10139210 SCREW
WP681414 WP681414 SCREW
WP308685 WP308685 SCREW
WP98129 WP98129 SCREW
WP3389420 WP3389420 SCREW
W10850756 W10850756 SCREW
WP488787 WP488787 SCREW
WP488729 WP488729 SCREW
W10850046 W10850046 SCREW
WPW10346892 WPW10346892 SCREW
WP3387230 WP3387230 SCREW
8281225 8281225 SCREW
WP355515 WP355515 SCREW (4)
486146 486146 SCREW, 10-24 X 1/2
WP90767 WP90767 SCREW, 8 A X 3/8
3400826 3400826 SCREW, 8-18 X 3/4
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP8566209 WP8566209 SEAL
WP697770 WP697770 SEAL
280114 280114 SEAL
WP697813 WP697813 SEAL, OUTLET HOUSING
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
WP8578394 WP8578394 SLIDE
W11700522 W11700522 SOCKET, ASSEMBLY
350930 350930 SPRAY (13 OZ.) (WHITE)
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING, IDLER
WPW10314173 WPW10314173 SUPPORT

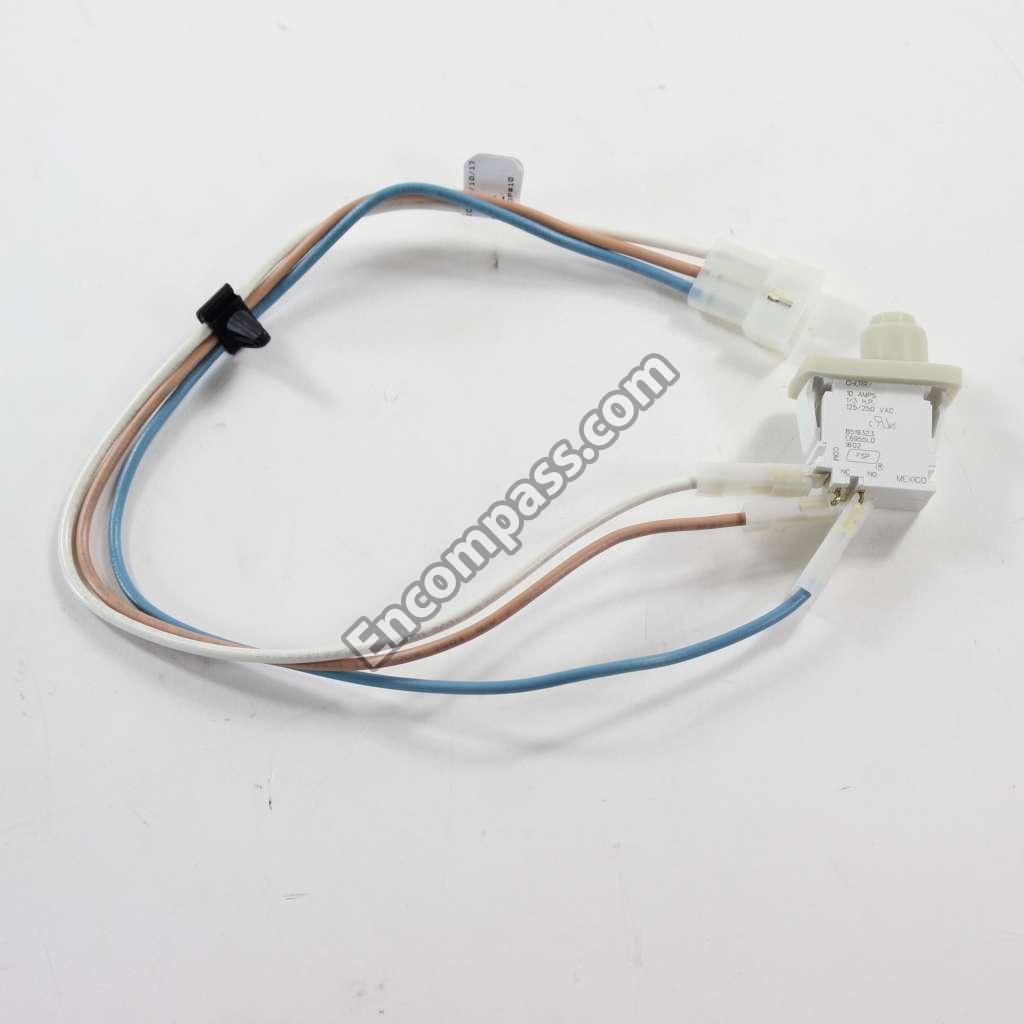

WP8283288 WP8283288 SWITCH, DOOR
279782 279782 SWITCH-PLG
WP596797 WP596797 TERMINAL
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
WP94614 WP94614 TERMINAL, FEMALE
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
WP3392519 WP3392519 THERMAL FUSE
WP8577274 WP8577274 THERMISTOR
WP3391914 WP3391914 THERMOSTAT 295~ (146~C)
3980095 3980095 TOE, PANEL (PEWTER)
8519233 8519233 TOE, PANEL (WHITE)
8519234 8519234 TOEPNL
WPW10117263 WPW10117263 TOP
3980357 3980357 TOP
3979307 3979307 TOP
WPW10512946 WPW10512946 TRI-RING (4)
8529526 8529526 TRIM
8533766 8533766 TRIM
8533769 8533769 TRIM
8529525 8529525 TRIM
8529527 8529527 TRIM
3979783 3979783 TRIM & CLIP ASSEMBLY (LH) (BISCUIT)
3980088 3980088 TRIM & CLIP ASSEMBLY (LH) (PEWTER)
8533767 8533767 TRIM & CLIP ASSEMBLY (LOWER)
8558684 8558684 TRIM & CLIP ASSEMBLY (LOWER) (BISCUIT)
8533768 8533768 TRIM & CLIP ASSEMBLY (LOWER) (BISCUIT)
3979784 3979784 TRIM & CLIP ASSEMBLY (RH) (BISCUIT)
3980090 3980090 TRIM & CLIP ASSEMBLY (RH) (PEWTER)
8529528 8529528 TRIM & CLIP ASSEMBLY (RH) (PLATINUM)

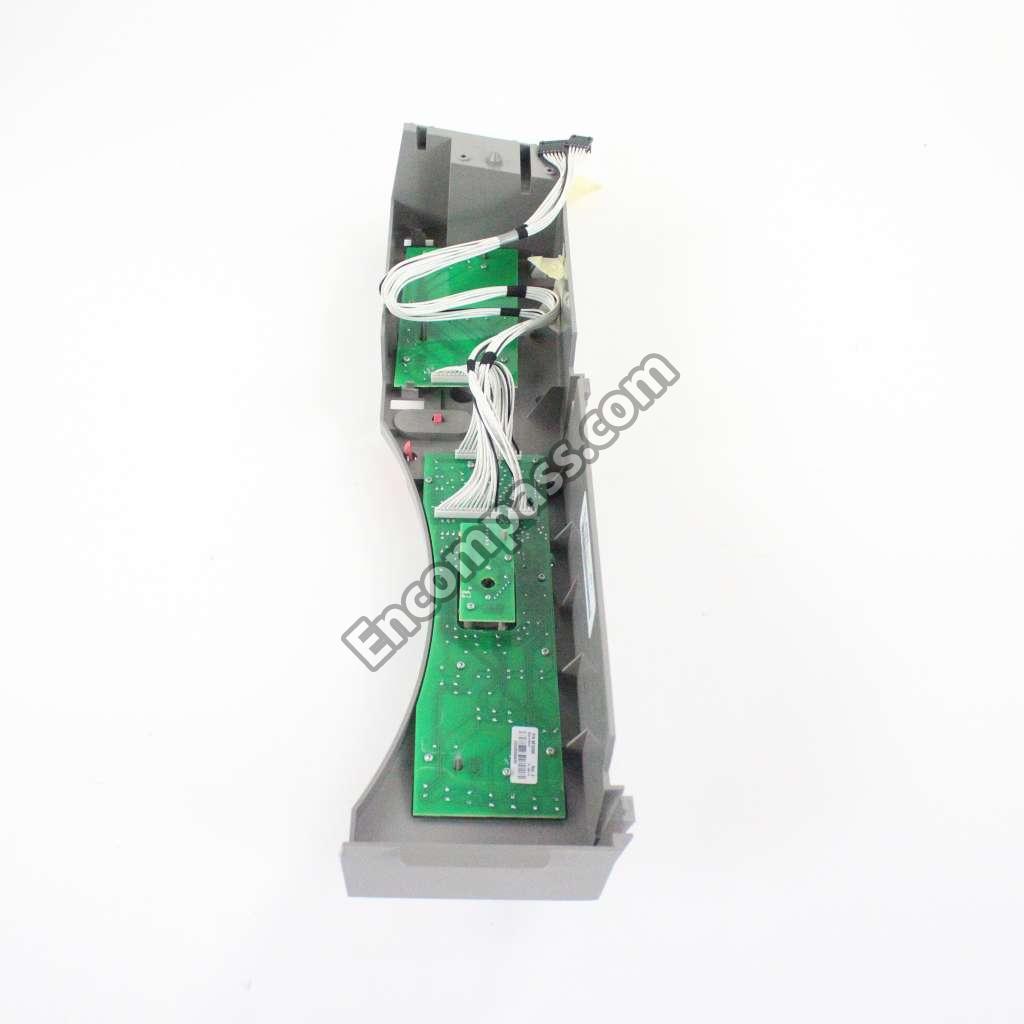

WP8530589 WP8530589 USER INTERFACE
W10838692 W10838692 USER INTERFACE (BISCUIT)
8530590 8530590 USER INTERFACE (BLUE)
3980189 3980189 USER INTERFACE (PEWTER)
WPW10121334 WPW10121334 WASHER
W11236646 W11236646 WASHER, SUPPORT
WP697772 WP697772 WHEEL, BLOWER
3394081 3394081 WIRE, BELT SWITCH
3398948 3398948 WIRE, JUMPER (BROKEN BELT SWITCH)
