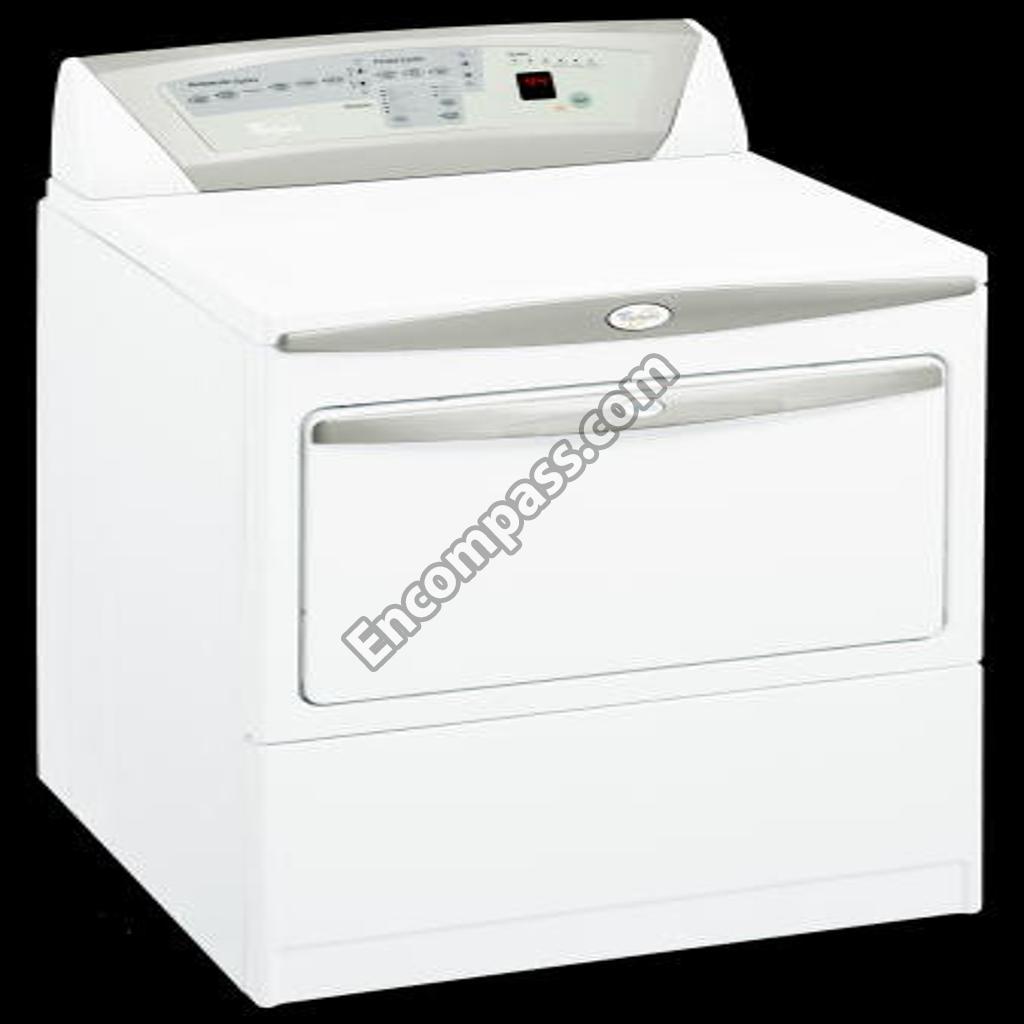

Model Image
Manufacturer

Whirlpool

Model Number

GEW9868KQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10545923 W10545923 ASSEMBLY, DRUM
WPW10113136 WPW10113136 BAFFLE-DRM
WP3387242 WP3387242 BEARING & SEAL
661570 661570 BELT
WP3397659 WP3397659 BLOCK-TERM
W10802681 W10802681 BOX
8066099 8066099 BRACKET
8299690 8299690 BRACKET, CONTROL
3977373 3977373 BRACKET, DRUM LIGHT
3393471 3393471 BRACKET, HEATER
W10837240 W10837240 BRACKET, IDLER
WP3387118 WP3387118 BRACKET, MOTOR
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
WP697557 WP697557 BULKHEAD
W11299301 W11299301 BULKHEAD, REAR
3979259 3979259 CABINET
8527931 8527931 CABINET
W11417441 W11417441 CABINET
W11226088 W11226088 CAMERA LENS
8299683 8299683 CAP, END (L.H.) (WHITE)
8299686 8299686 CAP, END (R.H.) (WHITE)
WP660658 WP660658 CLAMP
WP3394427 WP3394427 CLIP
WP297092 WP297092 CLIP
3388600 3388600 CLIP, LINT DUCT
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
2203186 2203186 CONNECTOR
3936144 3936144 CONNECTOR (3-CIRCUIT)
3395683 3395683 CONNECTOR, (MOTOR)
3936150 3936150 CONNECTOR, 7-CIRCUIT

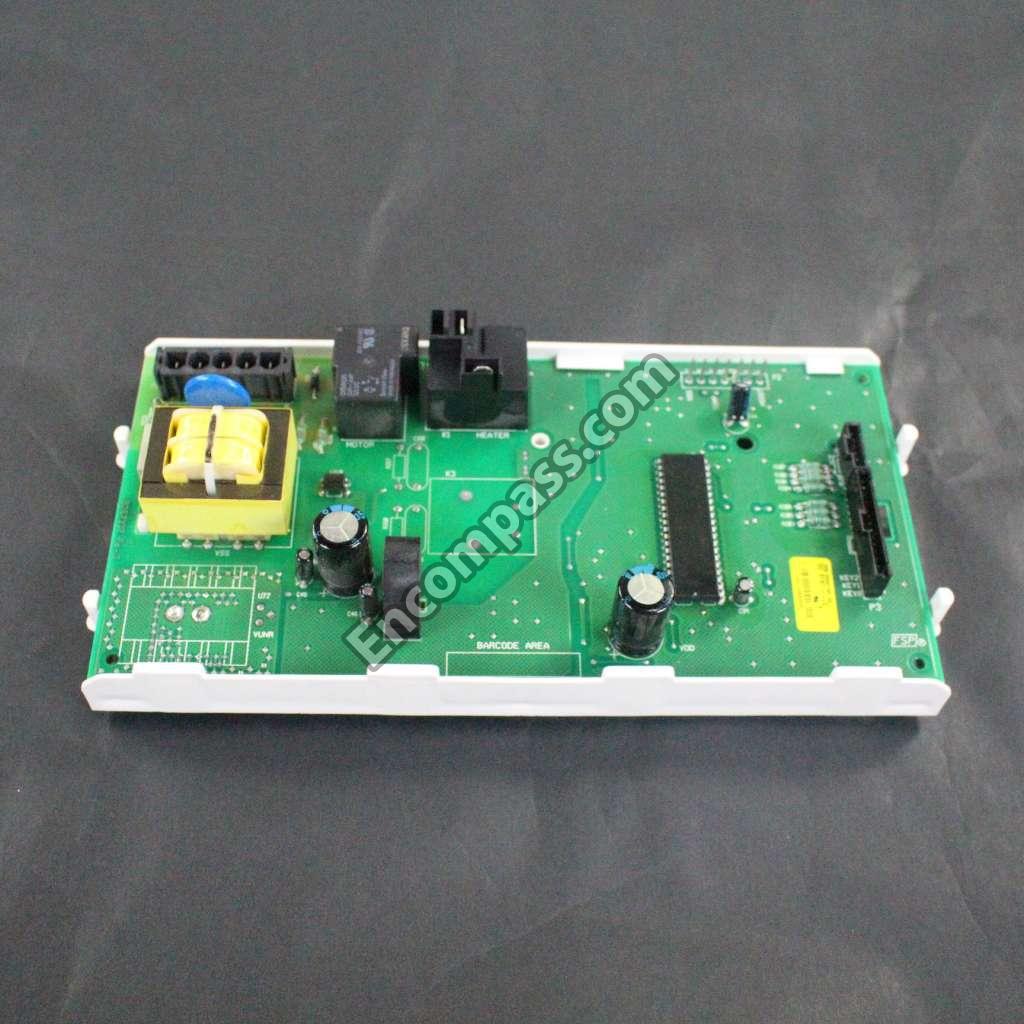

8566150 8566150 CONTROL BOARD
279780 279780 COVER
WPW10354249 WPW10354249 COVER
WPW10119283 WPW10119283 COVER-TERM
677818L 677818L DIY
8521939 8521939 DOOR
279570 279570 DOOR LATCH
WP8521936 WP8521936 DOOR, FRONT (PEWTER)
WP8521938 WP8521938 DOOR, FRONT (WHITE)
W11222846 W11222846 DOOR, LINT SCREEN
280079 280079 DOOR, REAR
WP3406107 WP3406107 DOOR, SWITCH ASSEMBLY
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279787 279787 DRIVE MOTOR
8212450A 8212450A DRY RACK
WP3387911 WP3387911 DUCT-AIR
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE, SENSOR
8299684 8299684 ENDCAP
8299685 8299685 ENDCAP
8299687 8299687 ENDCAP
8299688 8299688 ENDCAP
W10470674 W10470674 EXHAUST KIT
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
W11086603 W11086603 GRILLE, OUTLET
8521932 8521932 HANDLE
8521931 8521931 HANDLE
WP3406653 WP3406653 HARNESS, SENSOR
8529975 8529975 HARNS-WIRE
WP3387747 WP3387747 HEATER ELEMENT
WP3387559 WP3387559 HINGE, DOOR (L.H.)
WP3387560 WP3387560 HINGE, DOOR (R.H.)
WP8544363 WP8544363 HOUSING
W11129408 W11129408 HOUSNG-OUT
279769 279769 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WP8066120 WP8066120 LEVER
WP22002263 WP22002263 LIGHT BULB
8530036 8530036 LINT DUCT ASSEMBLY
LIT8528148 LIT8528148 LITERATURE PARTS (GUIDE, USE & CARE)
LIT3979171 LIT3979171 LITERATURE PARTS (INSTRUCTIONS INSTALLATION)
LIT3979716 LIT3979716 LITERATURE PARTS (LABEL, WIRING DIAGRAM)
LIT3979621 LIT3979621 LITERATURE PARTS (TECH SHEET)
8316751 8316751 MEDALLION
8521943 8521943 MEDALLION
8521944 8521944 MEDALLION ASSEMBLY (PEWTER)
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP3387709 WP3387709 NUT, 3/8-16 (L.H.)
WP357213 WP357213 NUT, PUSH-IN (4)
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
279659 279659 PANEL
279972 279972 PANEL
279935 279935 PANEL
WP3978825 WP3978825 PANEL, CONSOLE (INCLUDES KEYSWITCH) (PEARL)
WP3978826 WP3978826 PANEL, CONSOLE (INCLUDES KEYSWITCH) (PEWTER)
285906 285906 PANEL-REAR
4396175 4396175 PEWTER
WP4396174 WP4396174 PEWTER
279936 279936 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
WPW10404617 WPW10404617 PLUG
8066086 8066086 PLUG
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
350938 350938 PRIMER, GRAY
W10837625 W10837625 PULLEY, 60 HZ.
279640 279640 PULLEY-IDR
4392067 4392067 REPAIR-DYR
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
WPW10109200 WPW10109200 SCREW
WPW10139210 WPW10139210 SCREW
WP694091 WP694091 SCREW
WP308685 WP308685 SCREW
WP681414 WP681414 SCREW
WP98129 WP98129 SCREW
WP488729 WP488729 SCREW
WP3389420 WP3389420 SCREW
W10850756 W10850756 SCREW
WP3395530 WP3395530 SCREW
WP693995 WP693995 SCREW
WP304231 WP304231 SCREW
WP3387230 WP3387230 SCREW
3400073 3400073 SCREW, 10-24 X 5/16
WP90767 WP90767 SCREW, 8 A X 3/8
3400826 3400826 SCREW, 8-18 X 3/4
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP8566209 WP8566209 SEAL
WP697770 WP697770 SEAL
280114 280114 SEAL
W10823582 W10823582 SEAL, DOOR
WP697813 WP697813 SEAL, OUTLET HOUSING
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
697699 697699 SHIELD, HEAT
W11700522 W11700522 SOCKET, ASSEMBLY
350930 350930 SPRAY (13 OZ.) (WHITE)
WP3394986 WP3394986 SPRING
WP3387565 WP3387565 SPRING, DOOR (2)
WPW10446781 WPW10446781 SPRING, IDLER
WP8568314 WP8568314 STRAP
WPW10314173 WPW10314173 SUPPORT
279782 279782 SWITCH-PLG
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
WP94614 WP94614 TERMINAL, FEMALE
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
W11224254 W11224254 TEST KIT
WP3390719 WP3390719 THERMAL FUSE
WP8577274 WP8577274 THERMISTOR
WP3390291 WP3390291 THERMOSTAT (250 F) (121C)
WP3391018 WP3391018 TIE-WIRE
3979260 3979260 TOEPNL
WP3406797 WP3406797 TOEPNL
8526025 8526025 TOEPNL
3979256 3979256 TOP
3979257 3979257 TOP
3979258 3979258 TOP
WPW10512946 WPW10512946 TRI-RING (4)
WPW10121334 WPW10121334 WASHER
W11236646 W11236646 WASHER, SUPPORT
WP697772 WP697772 WHEEL, BLOWER
3394081 3394081 WIRE, BELT SWITCH
3398948 3398948 WIRE, JUMPER (BROKEN BELT SWITCH)
