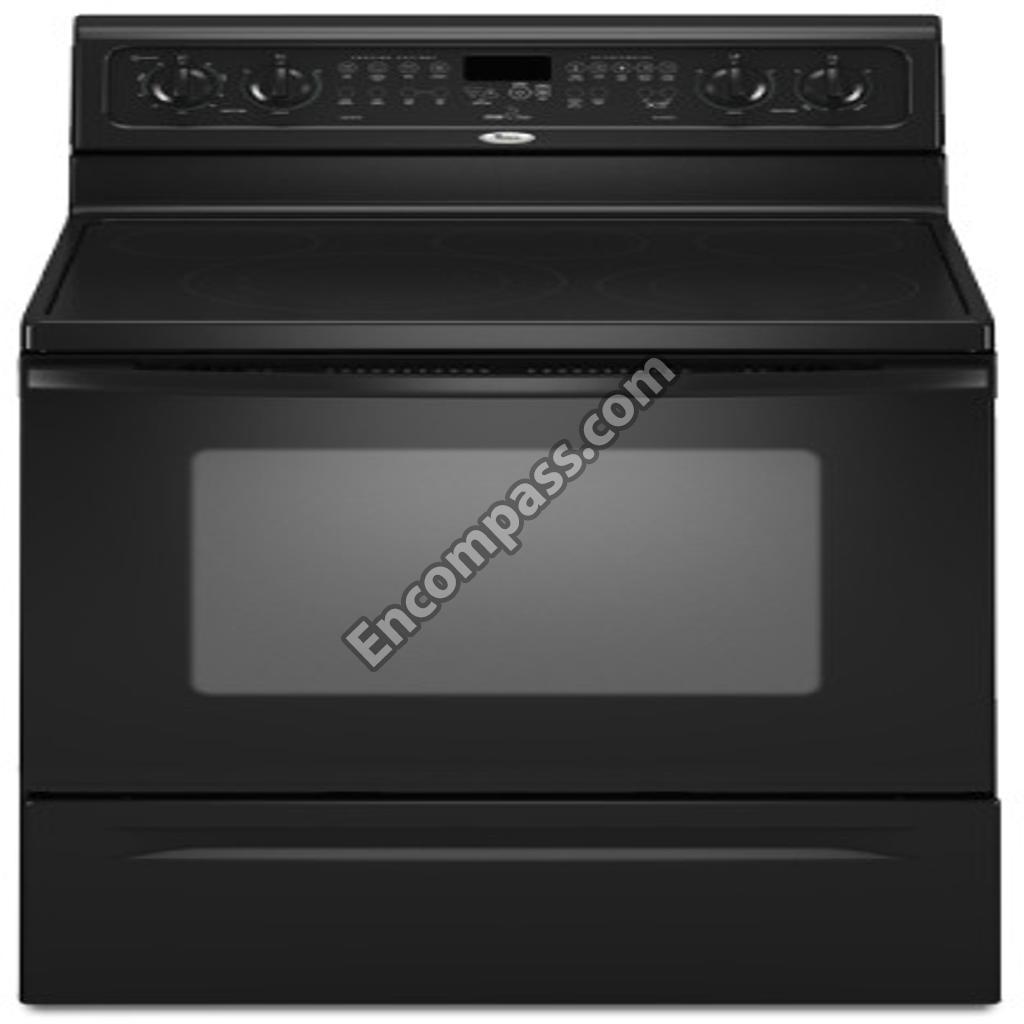

Model Image
Manufacturer

Whirlpool

Model Number

GFE461LVB0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
WPW10245259 WPW10245259 BLOCK-TERM
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
WPW10462912 WPW10462912 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
W11502236 W11502236 BRKT-SUPRT
W10404688 W10404688 BRKT-SUPRT
W10355051 W10355051 CLEANER, COOKTOP
WP8273564 WP8273564 CLIP
9761517 9761517 CLIP
W10137382 W10137382 CLIP
W10183541 W10183541 CLIP
3196200 3196200 CLIP, SPRING (2)
WPW10308315 WPW10308315 CONTROL BOARD
WPW10201509 WPW10201509 CONTROL PANEL
W10651915 W10651915 COOK TOP
W10651914 W10651914 COOKTOP
W10238009 W10238009 COOKTOP
W10134126 W10134126 COVER
WPW10326122 WPW10326122 COVER-BLCK
WPW10134124 WPW10134124 COVER-FAN
WP8272473 WP8272473 COVER-REAR
9757029 9757029 COVER-REAR
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
W10817434 W10817434 DOOR HANDLE
WPW10323589 WPW10323589 DOOR HANDLE
WPW10144883 WPW10144883 DOOR HANDLE
WPW10299227 WPW10299227 DOOR HINGE
WPW10299224 WPW10299224 DOOR HINGE
WP8523177 WP8523177 DOOR TRIM
WP8523175 WP8523175 DOOR TRIM
WP8523178 WP8523178 DOOR TRIM
W10761018 W10761018 DOOR TRIM
WP8523167 WP8523167 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
W10761014 W10761014 DOOR TRIM
8184858 8184858 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
WP8523173 WP8523173 DOOR TRIM
WPW10282465 WPW10282465 DRAWER FRONT (STAINLESS)
W10296838 W10296838 DRAWR-UTIL
WP9760769 WP9760769 ELEMENT
WP9755770 WP9755770 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL
WPW10583047 WPW10583047 ELMNTBROL
W11219370 W11219370 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11230611 W11230611 ENDCAP-PNL
W11230612 W11230612 ENDCAP-PNL
W10758272 W10758272 FAN-CONVCT
W11582241 W11582241 FAN-CONVCT
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WP3196548 WP3196548 FUSE-THRML
W11542153 W11542153 GASKT-DOOR
WPW10118454 WPW10118454 GLASS DOOR
WPW10118455 WPW10118455 GLASS DOOR
WPW10330077 WPW10330077 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
WPW10118456 WPW10118456 GLASS, OUTER DOOR (BISCUIT)
WP8053334 WP8053334 GLIDE-DRWR
WPW10114344 WPW10114344 GLIDE-DRWR
W10465644 W10465644 HARNS-WIRE
W10273582 W10273582 HARNS-WIRE
W10273595 W10273595 HARNS-WIRE
W10256889 W10256889 HARNS-WIRE
W11134592 W11134592 HARNS-WIRE
W10157270 W10157270 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
W10323590 W10323590 HNDLE-DOOR
WP3149404 WP3149404 INFINITE CONTROL SWITCH
WPW10149355 WPW10149355 INFINITE CONTROL SWITCH
W10252706 W10252706 INSTRUCTIONS, INSTALLATION
WPW10278991 WPW10278991 INSULATION
WPW10208653 WPW10208653 INSULATION
W10326347 W10326347 INSULATION
W11684918 W11684918 INSULATION
W10646923 W10646923 INSULATOR
W10155337 W10155337 KNOB
W10155338 W10155338 KNOB
W10154955 W10154955 KNOB
8009 8009 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
WPW10224758 WPW10224758 MEMBRANE SWITCH
W11548755 W11548755 NUT
WP7103P027-60 WP7103P027-60 NUT
W10200354 W10200354 OWNERS MANUAL
799344 799344 PAINT
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10170526 W10170526 PAN
WPW10201508 WPW10201508 PANEL, BACKGUARD (BISCUIT)
WPW10201510 WPW10201510 PANEL, BACKGUARD (STAINLESS STEEL)
WPW10201507 WPW10201507 PANEL, BACKGUARD (WHITE)
W11230476 W11230476 PANEL-DRWR
W11230488 W11230488 PANEL-DRWR
W11219377 W11219377 PANEL-DRWR
WPW10162245 WPW10162245 PANEL-SIDE
WPW10575396 WPW10575396 PANEL-SIDE
W10162246 W10162246 PANEL-SIDE
WP3195060 WP3195060 PIN-COOKTP
W11520287 W11520287 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
W10450380 W10450380 RETAINER
W10465685 W10465685 RETAINER
W10134121 W10134121 RETAINER
W10134125 W10134125 RETAINER
WP3196813 WP3196813 RIVET
WP3196814 WP3196814 RIVET
9757239 9757239 ROD-DOOR
W10078380 W10078380 ROD-LATCH
9762761 9762761 SAFER COOKING TIPS
9761301 9761301 SCREEN
W11244557 W11244557 SCREW
WPW10031790 WPW10031790 SCREW
W10491985 W10491985 SCREW
W10817436 W10817436 SCREW
WP3196174 WP3196174 SCREW
WP3400016 WP3400016 SCREW
W10777162 W10777162 SCREW
WP3196154 WP3196154 SCREW
WP3196175 WP3196175 SCREW
3196172 3196172 SCREW
W11169708 W11169708 SCREW
WPW10067840 WPW10067840 SCREW
WP4449809 WP4449809 SCREW
WP3400832 WP3400832 SCREW
WP3400882 WP3400882 SCREW
W11233072 W11233072 SCREW
WP3196557 WP3196557 SCREW
WP3196170 WP3196170 SCREW
3196166 3196166 SCREW (WHITE)
3400964 3400964 SCREW, GROUND
WPW10181986 WPW10181986 SENSOR
W10134247 W10134247 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
WPW10225448 WPW10225448 SPRING
W10823727 W10823727 SURFACE ELEMENT
W11171119 W11171119 SURFACE ELEMENT
WP9762851 WP9762851 SURFACE ELEMENT
W11517959 W11517959 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W10224757 W10224757 SWTCH-MEMB
W10198585 W10198585 TECH SHEET
9757143 9757143 TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
9757142 9757142 TEMPLATE-ANTI TIP
W10183712 W10183712 TRAY-BAKE
WPW10310922 WPW10310922 TRIM-VENT
W10817433 W10817433 TRIM-VENT
WPW10310923 WPW10310923 TRIM-VENT
WPW10134285 WPW10134285 TUBE-VENT
