Model Image
Manufacturer

Whirlpool

Model Number

GGW9878JQ2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

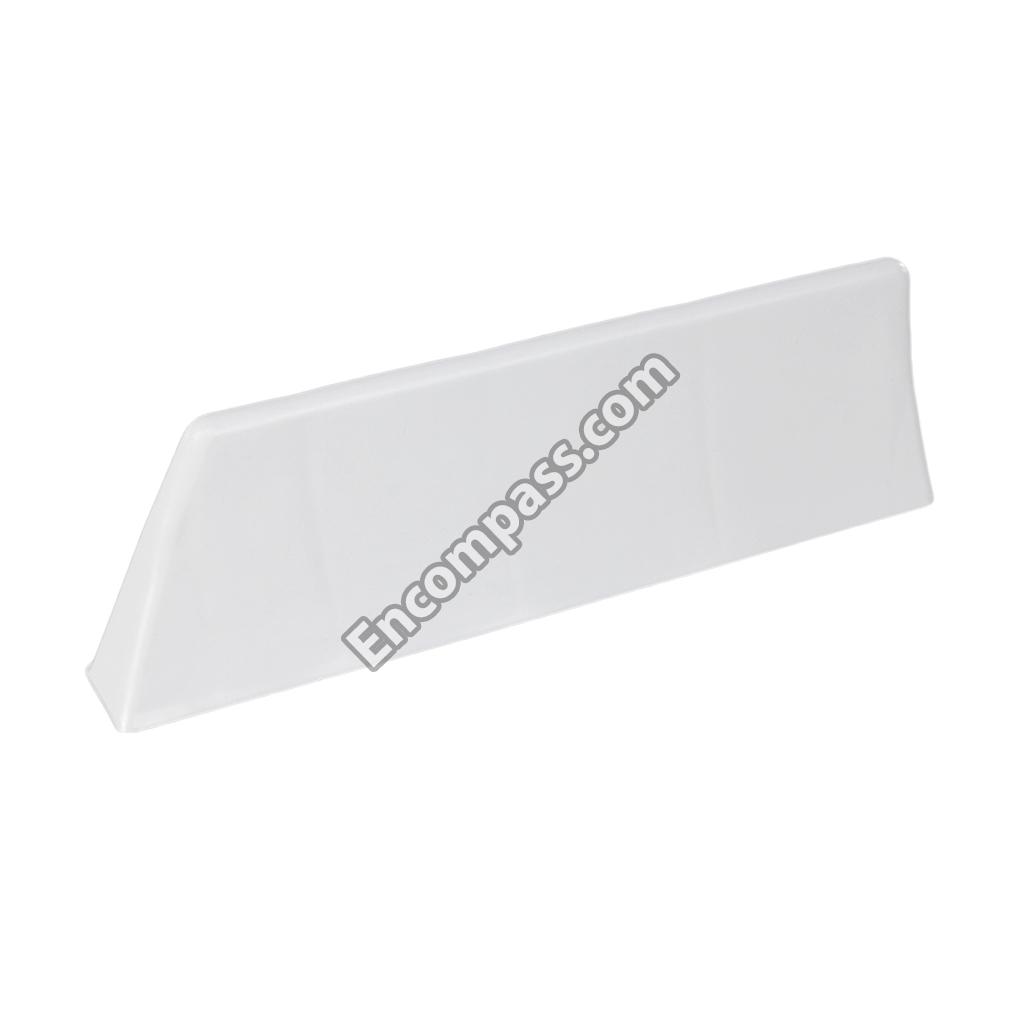

WP3403636 WP3403636 BAFFLE, DRUM (SHORT) (1)
WP692490 WP692490 BAFFLE, DRUM (WIDE)

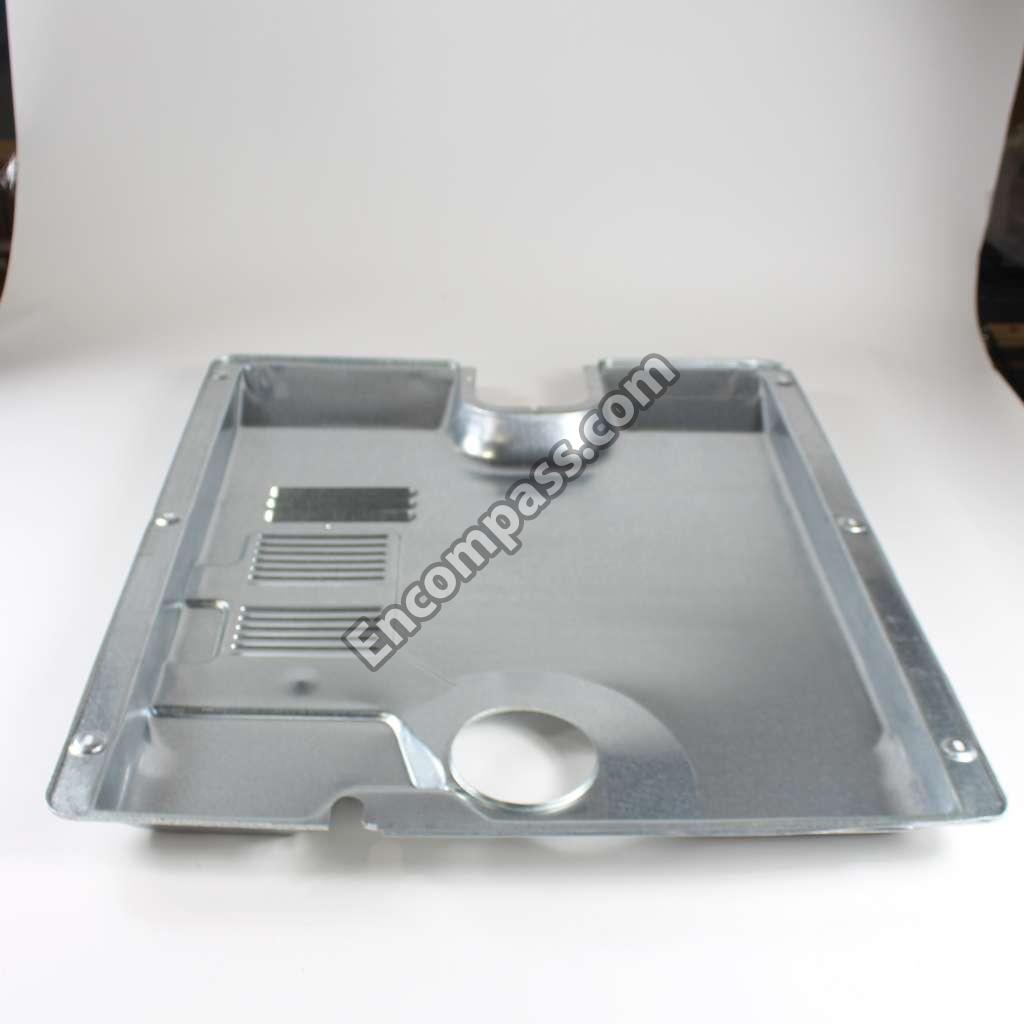

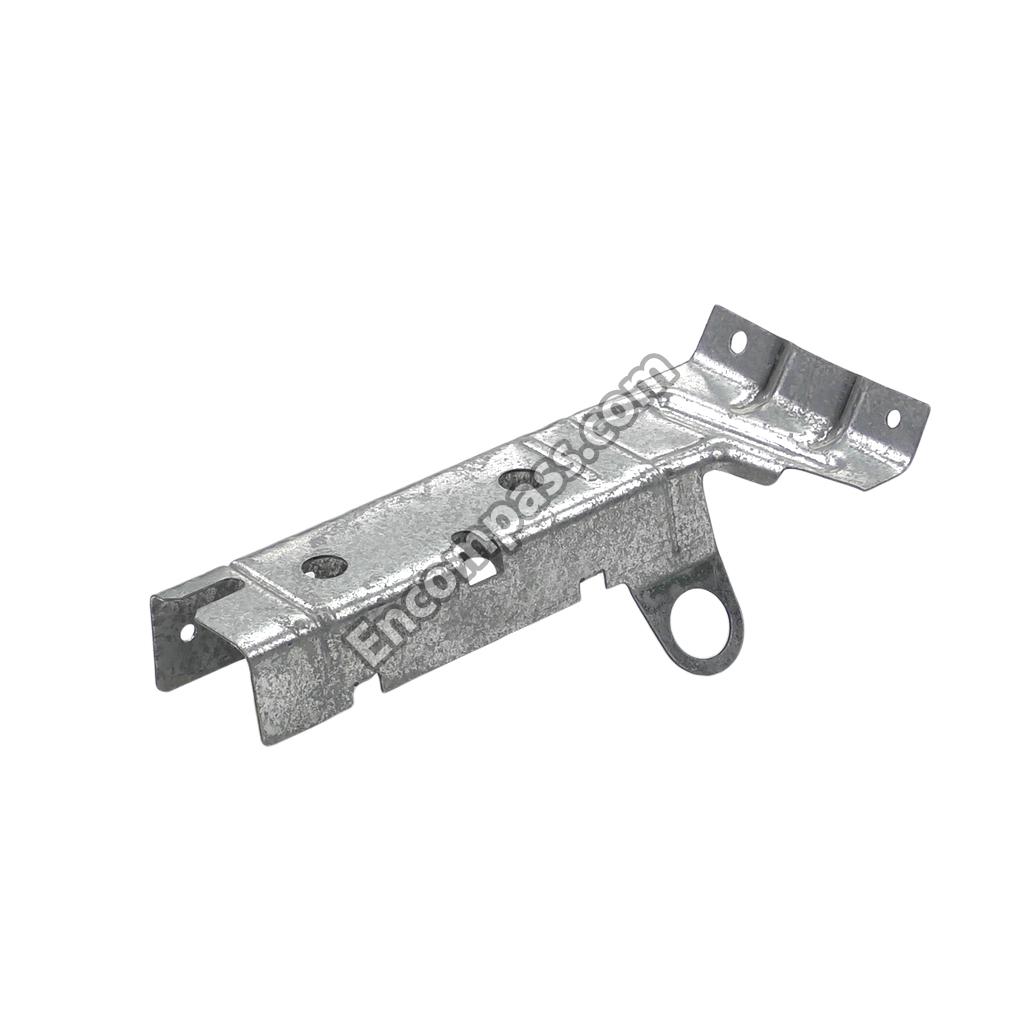

693986 693986 BASE, BURNER
WP348780 WP348780 BASE, MOTOR
341241 341241 BELT, DRIVE
3400500 3400500 BOLT, 5/16-18 X 3/4
279980 279980 BOX

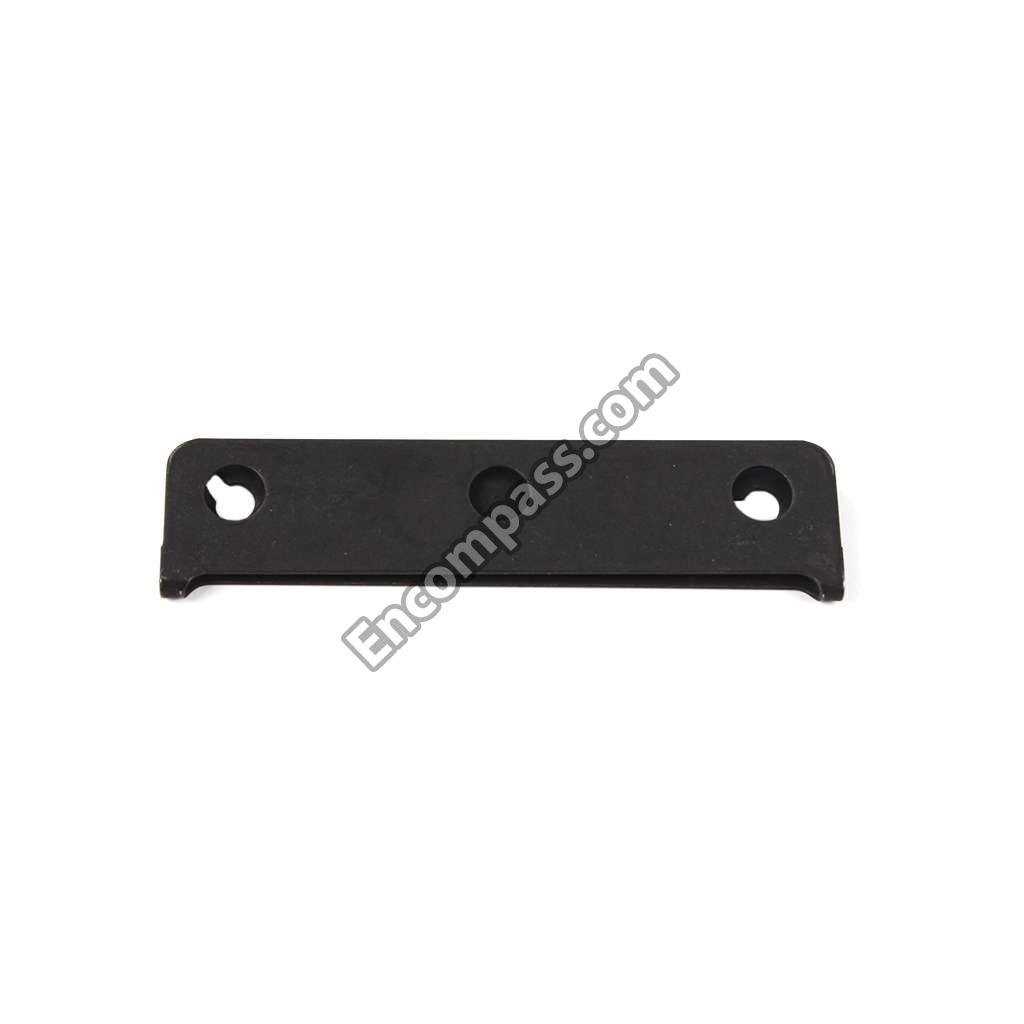

WP694298 WP694298 BRACKET
W11684613 W11684613 BRACKET
W11398682 W11398682 BRACKET, BULKHEAD CHUTE
694538 694538 BRACKET, COIL
3977373 3977373 BRACKET, DRUM LIGHT
W11035878 W11035878 BRNG&SEAL

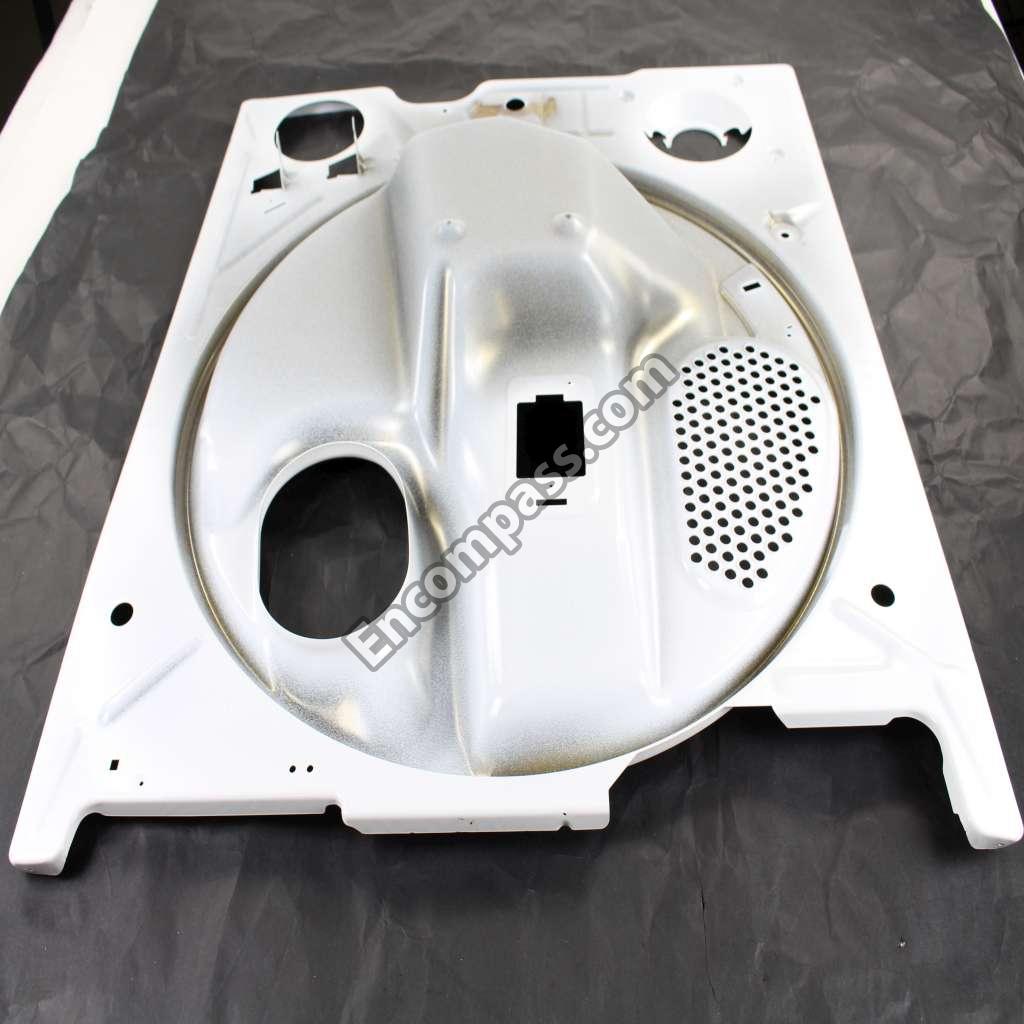

W10828905 W10828905 BULKHEAD
WP17258 WP17258 BUMPER
WP693140 WP693140 BURNER

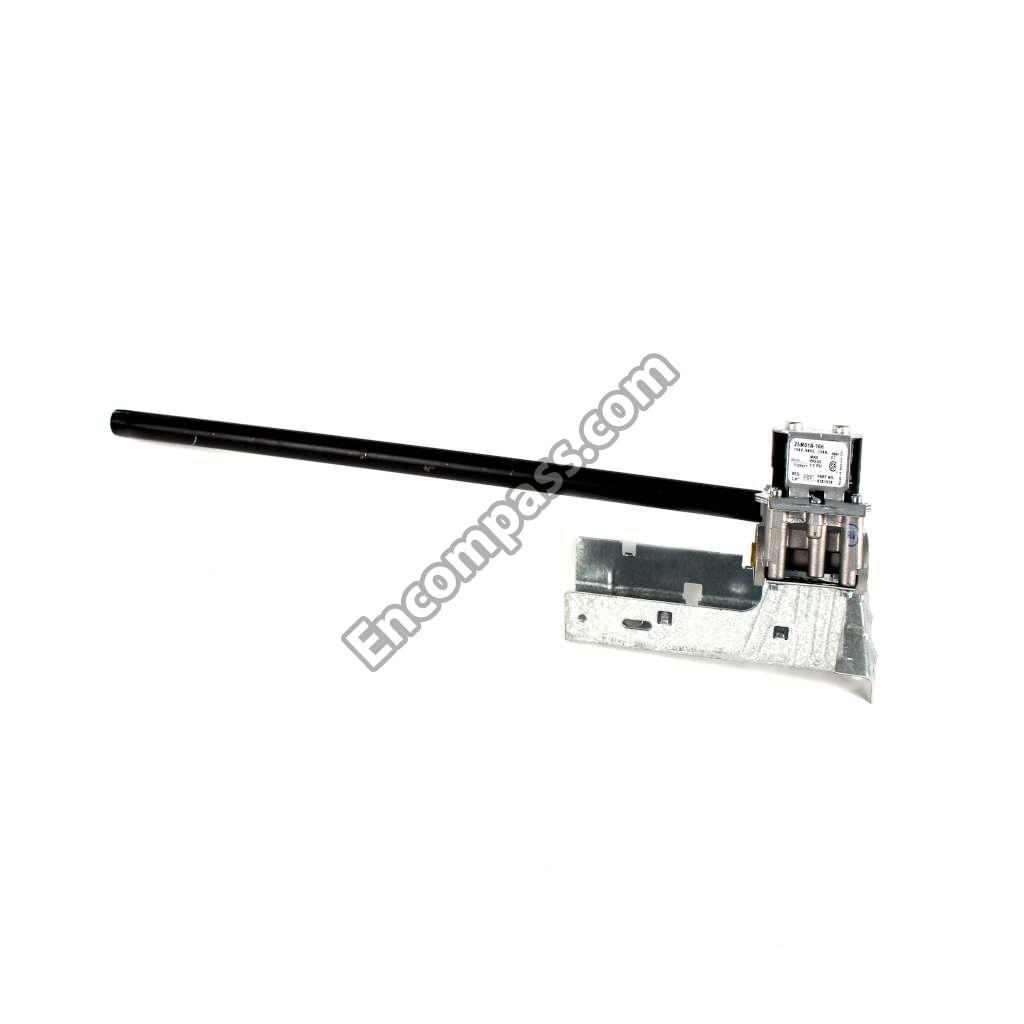

W10823508 W10823508 BURNER-GAS
8533643 8533643 CABINET
3977306 3977306 CABINET (BISCUIT)
W11226088 W11226088 CAMERA LENS
WP3389441 WP3389441 CATCH, DOOR

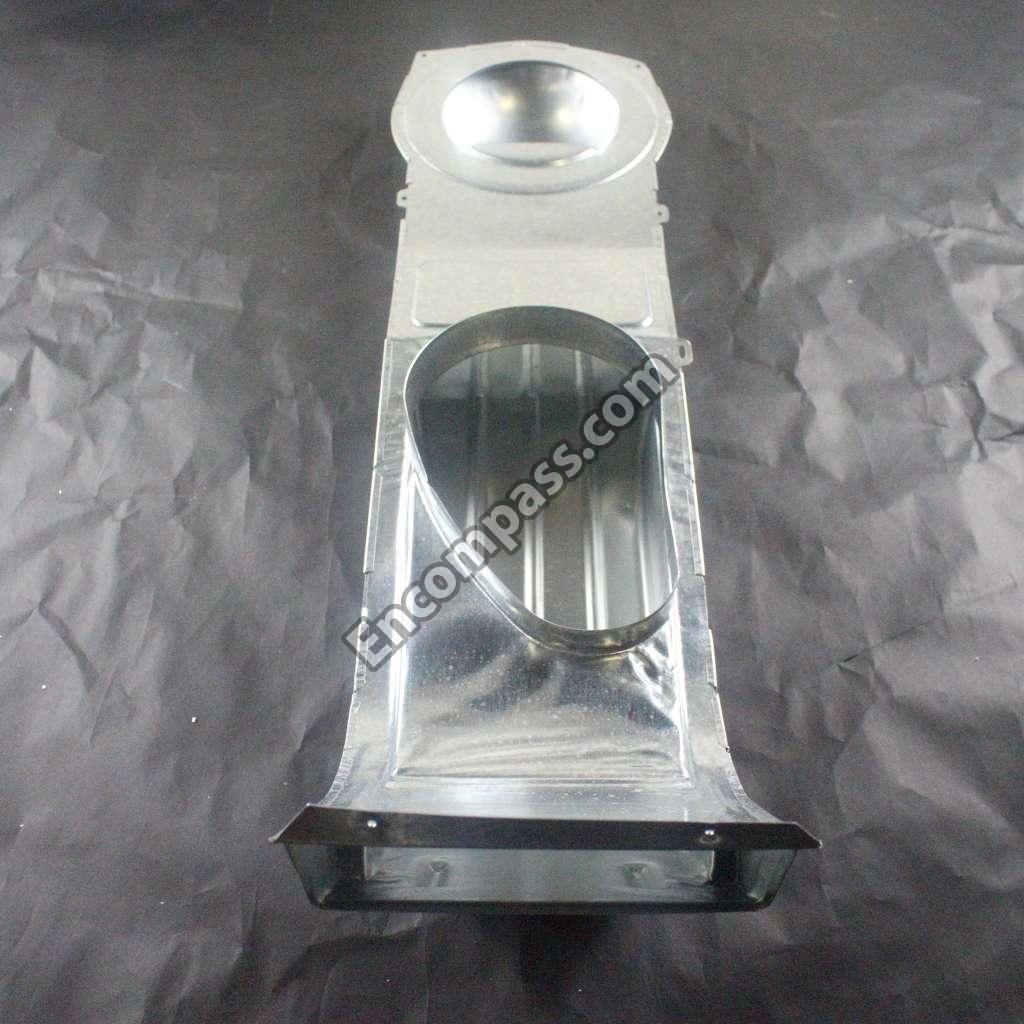

W11117429 W11117429 CHUTE

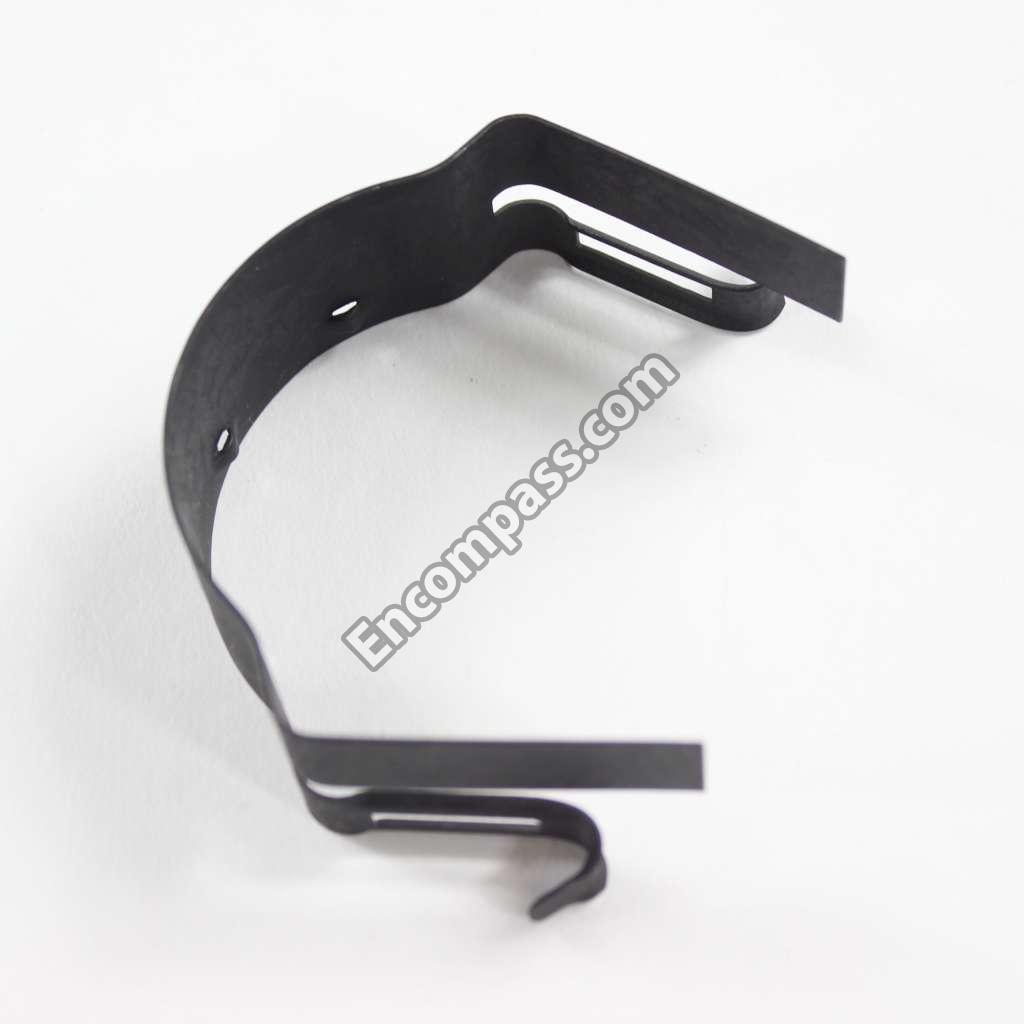

WP660658 WP660658 CLAMP
WP3404162 WP3404162 CLAMP
341029 341029 CLAMP, PIPE
279771 279771 CLIP
279220 279220 CLIP
WP3394427 WP3394427 CLIP
WP98234 WP98234 CLIP (2)
W11252547 W11252547 CLIP, HINGE
W10854425 W10854425 CLIP, TOE PANEL
279834 279834 COIL, 60 HZ. (2 TERMINAL) MAIN)
3936144 3936144 CONNECTOR
WP3403498 WP3403498 CONNECTOR
3347243 3347243 CONNECTOR 6-CIRCUIT
3395683 3395683 CONNECTOR, (MOTOR)
WP3403499 WP3403499 CONNECTOR, 2 POSITION
3397269 3397269 CONNECTOR, TIMER
WPW10116566 WPW10116566 CONTROL BOARD

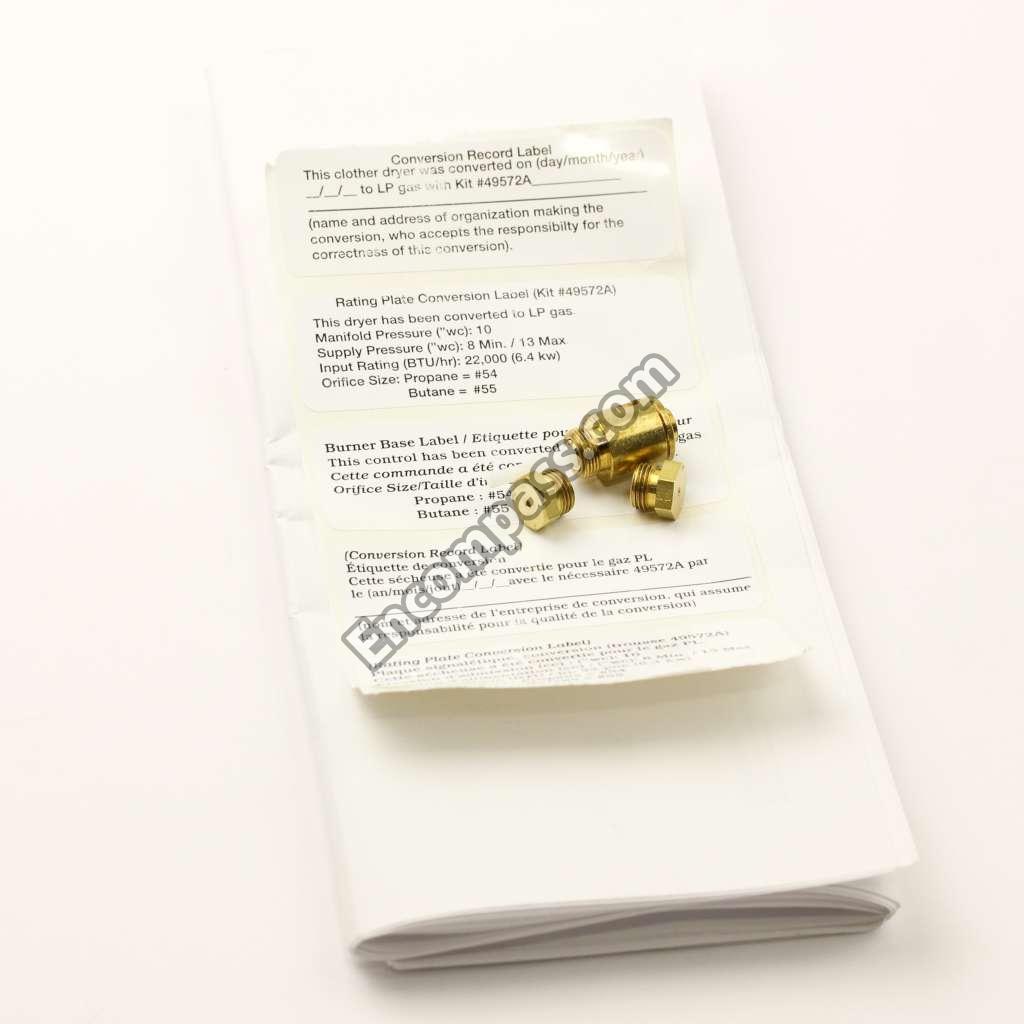

49572A 49572A CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
WP8283378 WP8283378 COVER, LINT SCREEN
WP8283380 WP8283380 COVER, LINT SCREEN (BISCUIT)
W11736322 W11736322 COVER, TERMINAL BLOCK
677818L 677818L DIY
279570 279570 DOOR LATCH
WP3393549 WP3393549 DOOR, FRONT
WP3977241 WP3977241 DOOR, FRONT (BISCUIT)
WP695737 WP695737 DOOR, REAR
WP3406107 WP3406107 DOOR, SWITCH ASSEMBLY
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
279827 279827 DRIVE MOTOR

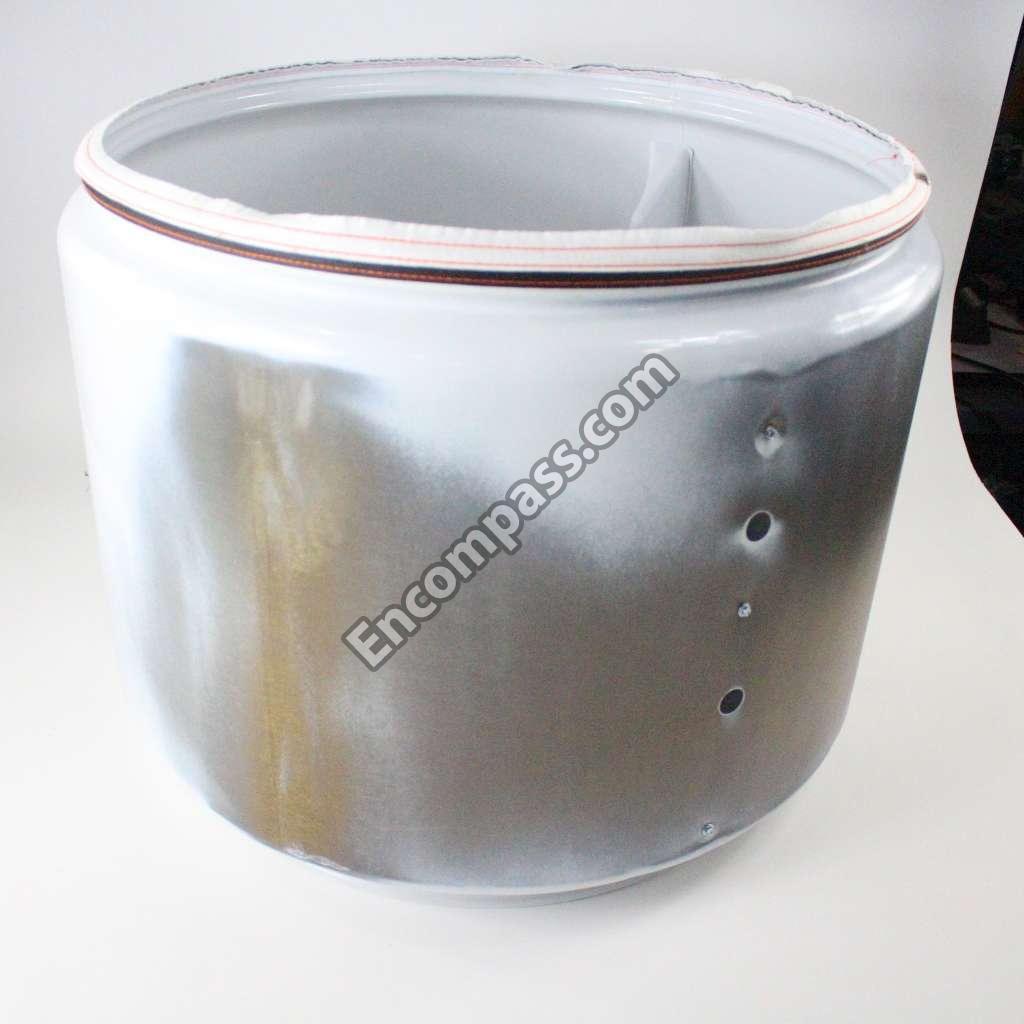

W10899578 W10899578 DRUM ASSEMBLY

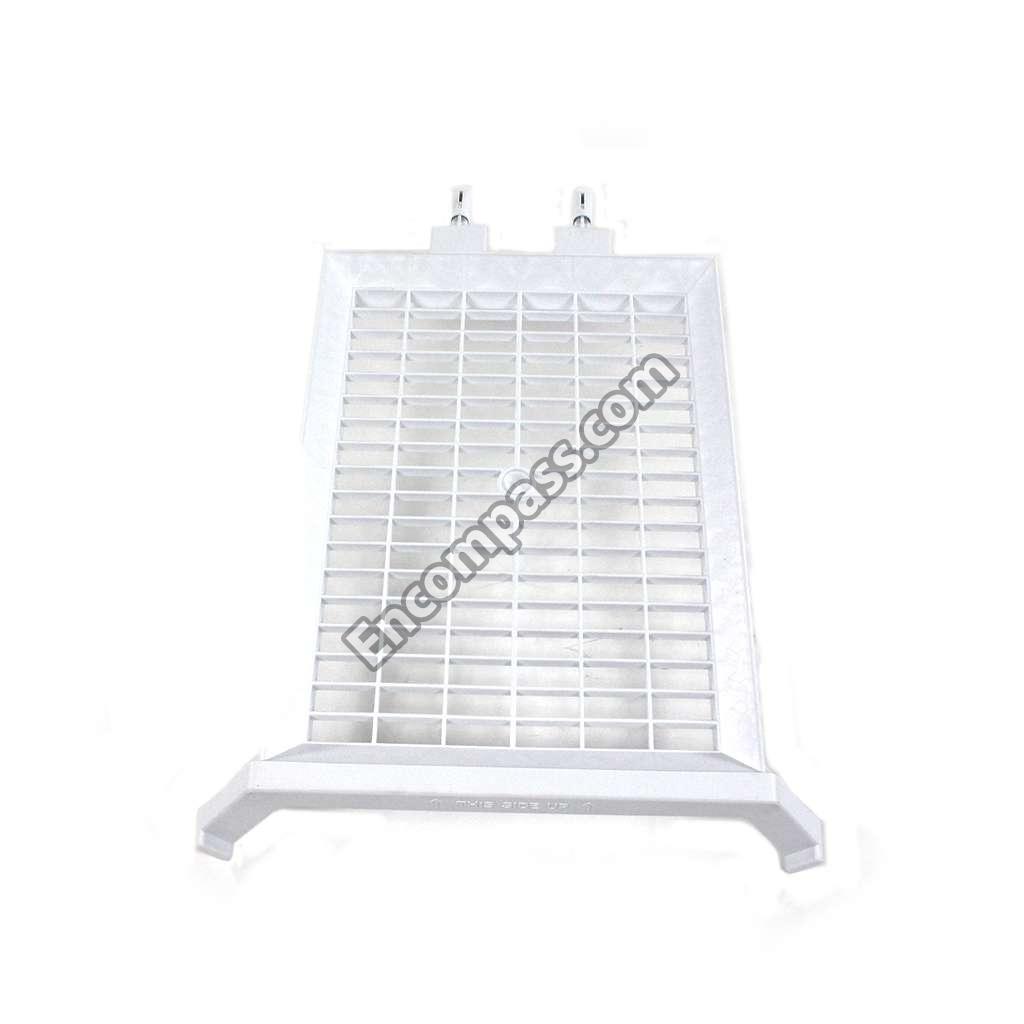

3406839 3406839 DRY RACK ASSEMBLY
279965 279965 ENDCAP
W10820038 W10820038 ENDCAP
WP90296 WP90296 FASTENER, FLAT (2)
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
WP8066049 WP8066049 FUNNEL

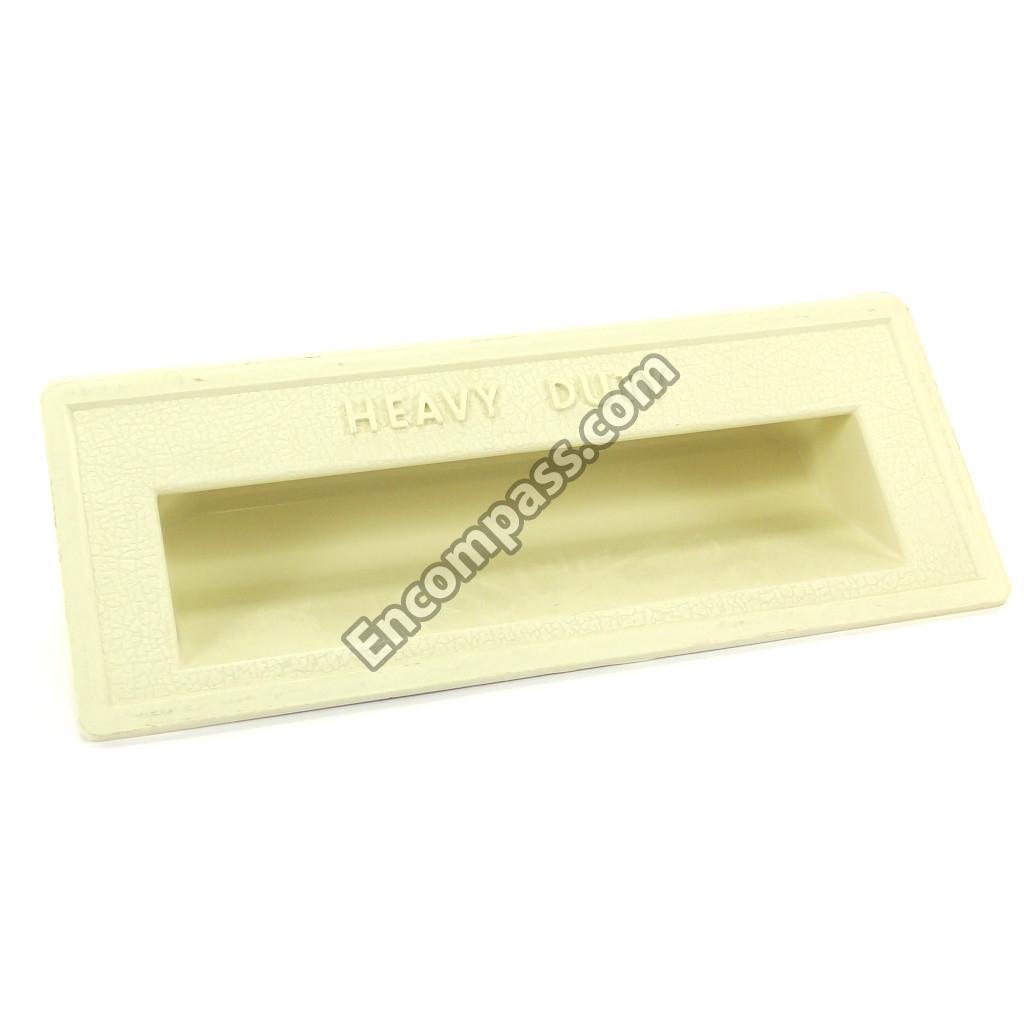

3977242 3977242 HANDLE, DOOR (BISCUIT)

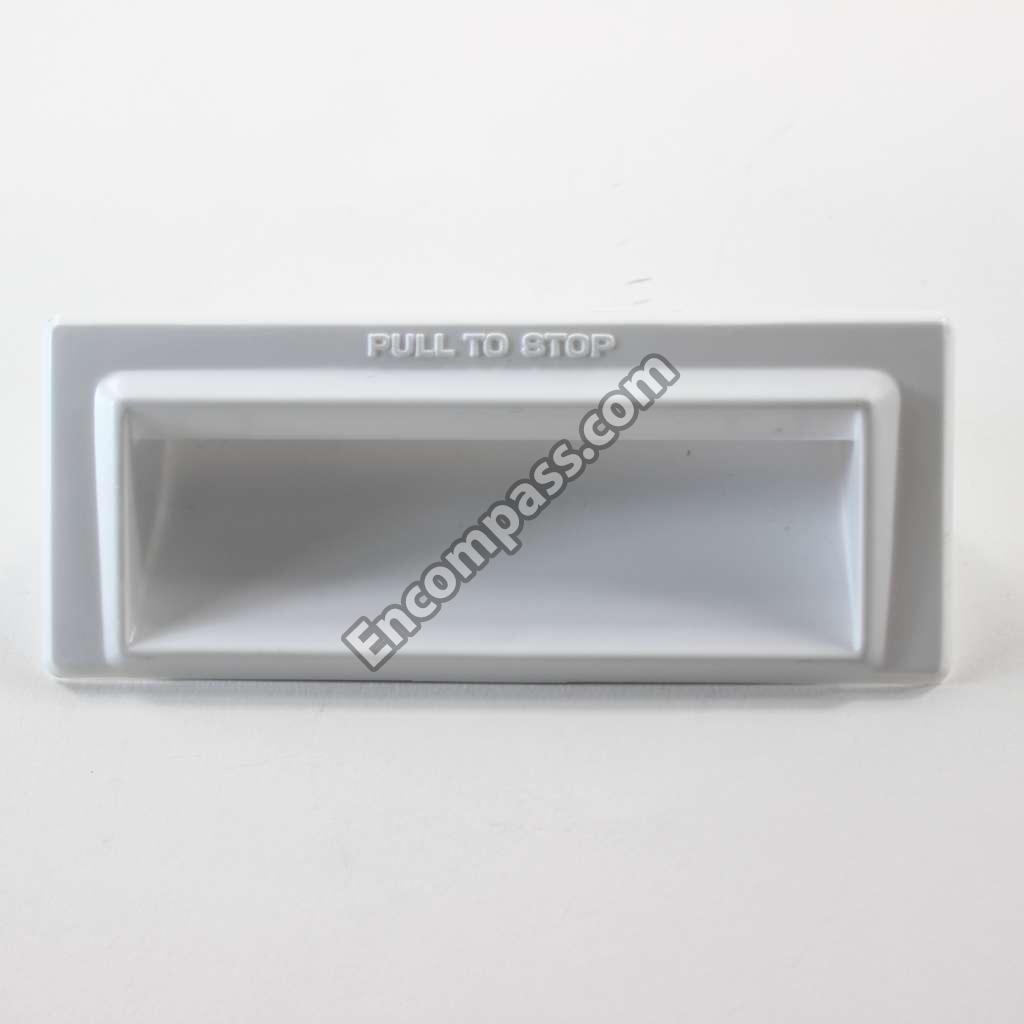

WP348721 WP348721 HANDLE, DOOR (WHITE)
8299900 8299900 HARNS-WIRE
8283281 8283281 HARNS-WIRE
WPW10044470 WPW10044470 HINGE, (RH)
WP8066057 WP8066057 HINGE, L.H.
WPW10044480 WPW10044480 HINGE, LINT LID (L.H.)
WP8066056 WP8066056 HINGE, R.H.

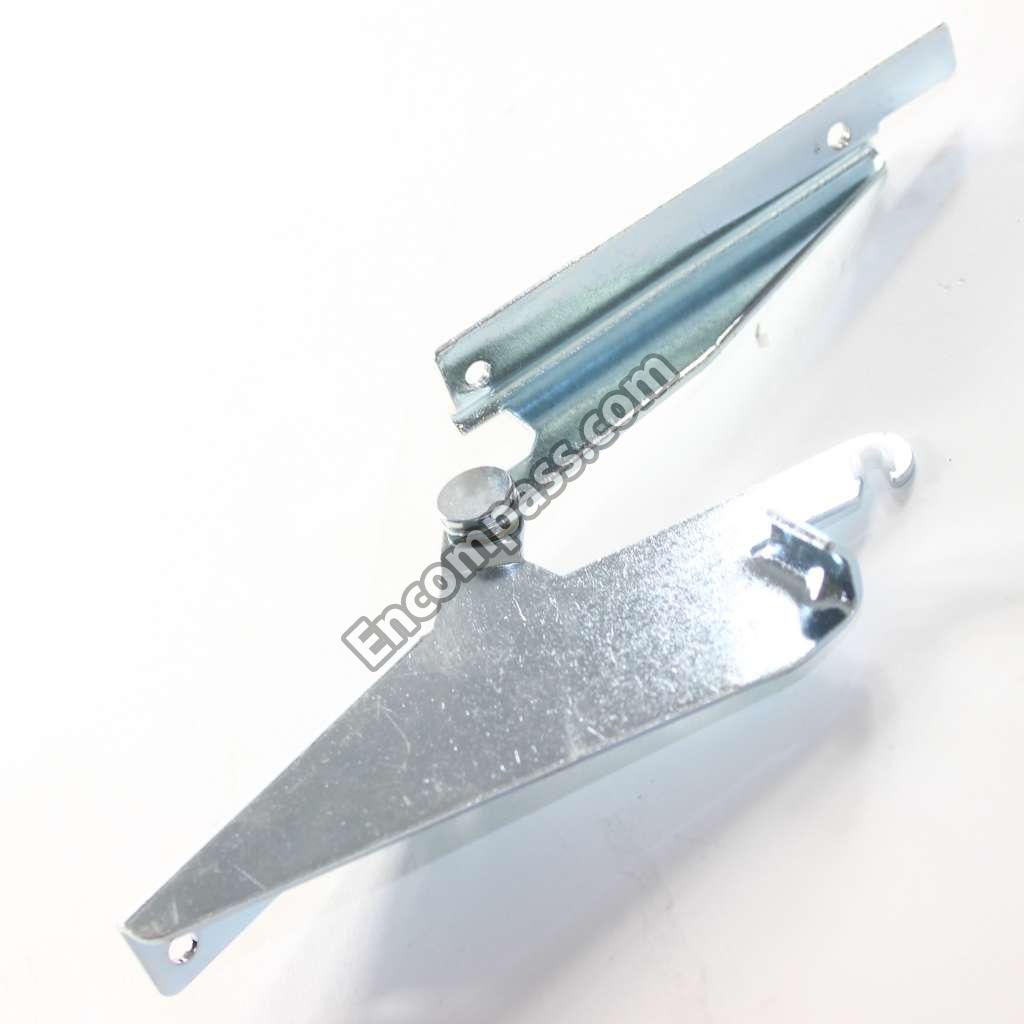

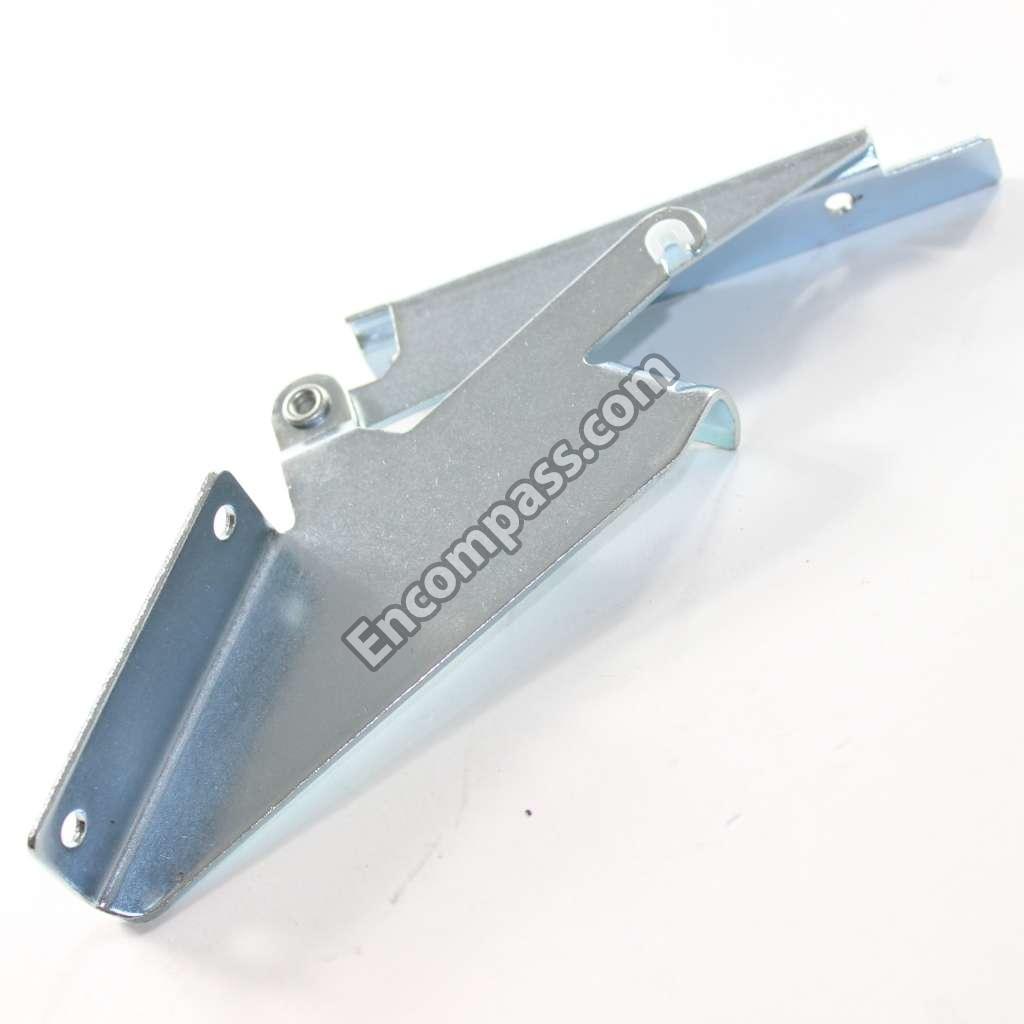

WP8066217 WP8066217 HINGE, TOP (2))
8557385 8557385 HOUSING, BLOWER
279311 279311 IGNITOR
4392065 4392065 KIT, DRYER REPAIR
346764A 346764A KIT, HOLD-DOWN (GAS DRYER MOBIL HOME INSTALLATION)
WP3957755 WP3957755 KNOB
WP3957754 WP3957754 KNOB
WP3957799 WP3957799 KNOB
8271349 8271349 KNOB, PUSH TO START (BISCUIT)
8271418 8271418 KNOB, PUSH TO START (BISCUIT)

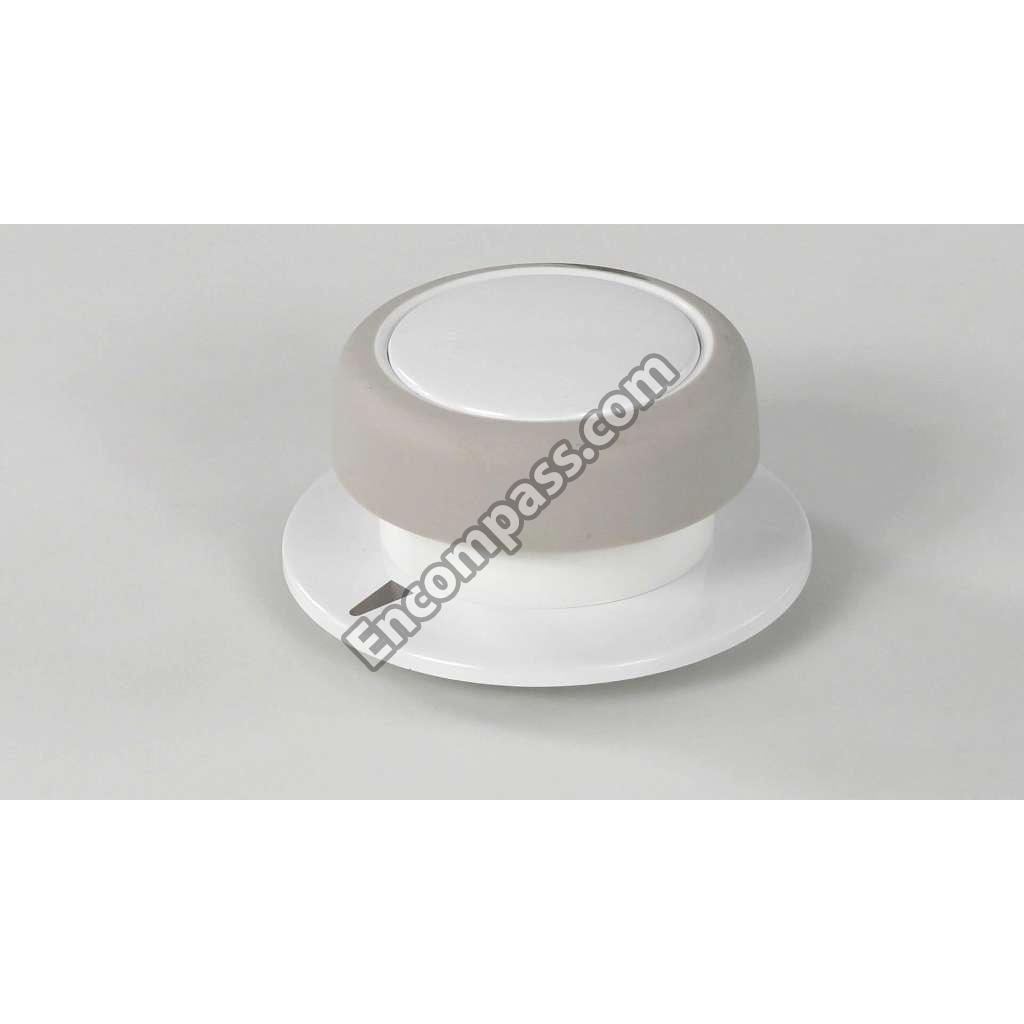

3957804 3957804 KNOB, PUSH-TO-START

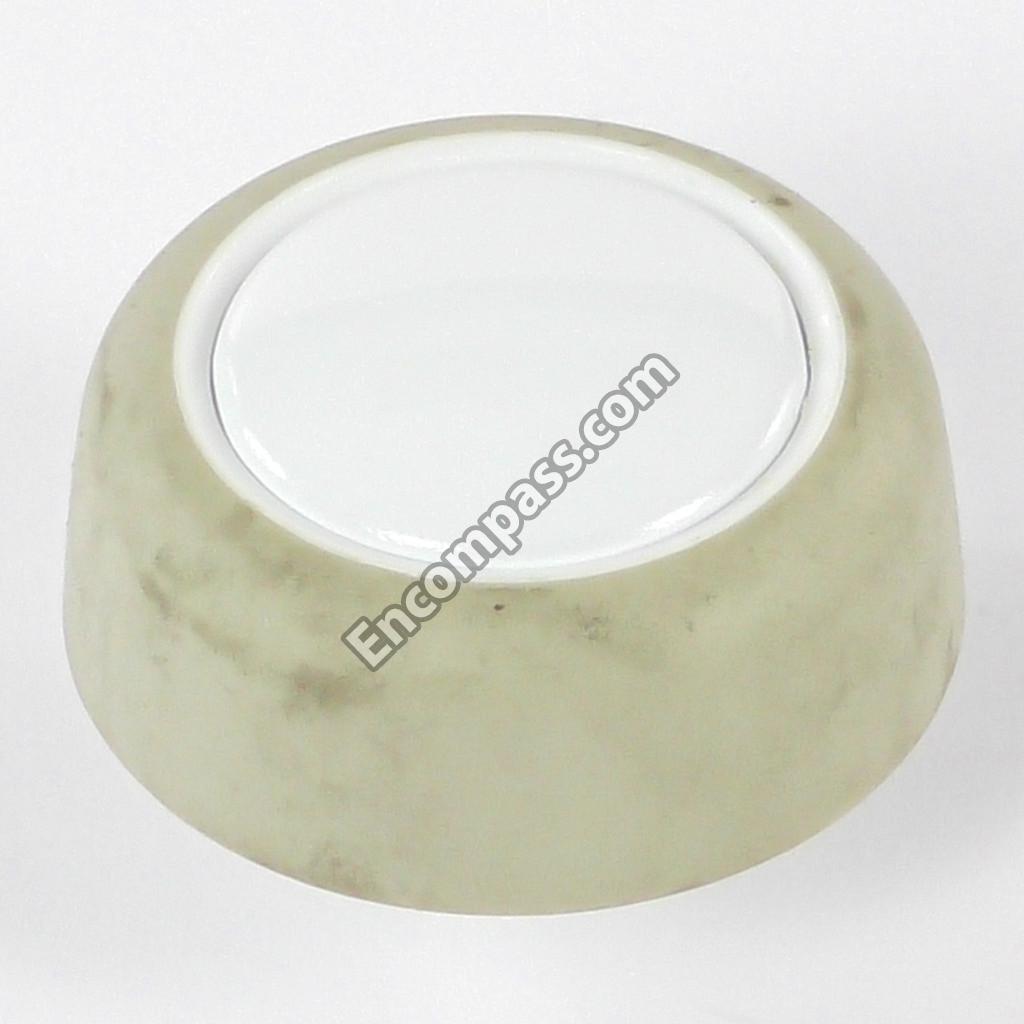

3957797 3957797 KNOB, PUSH-TO-START (BISCUIT)
WP694424 WP694424 LEAK LIMITER
WP22002263 WP22002263 LIGHT BULB
LIT3978906 LIT3978906 LITERATURE PARTS (INSTALLATION INSTRUCTIONS)
LIT8532037 LIT8532037 LITERATURE PARTS (TECH SHEET)
LIT8318245 LIT8318245 LITERATURE PARTS (USE & CARE GUIDE)
LIT3406666 LIT3406666 LITERATURE PARTS (WIRING DIAGRAM)
WP18776 WP18776 LOCK
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP357213 WP357213 NUT, PUSH-IN (4)

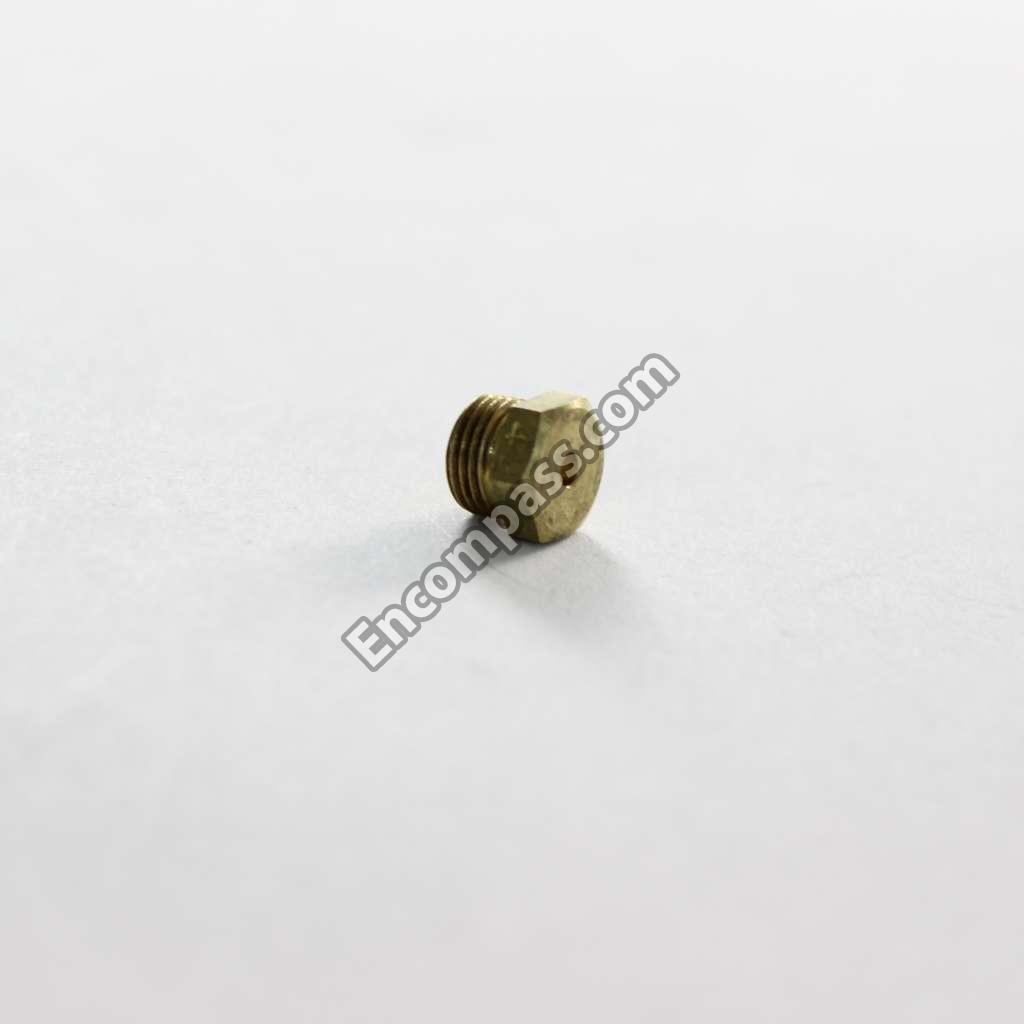

WP234826 WP234826 ORIFICE, BURNER (TYPE 1)
WP229742 WP229742 ORIFICE, BURNER (TYPE 4 (PROPANE))
WP234868 WP234868 ORIFICE, BURNER (TYPE 4 (PROPANE))
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))

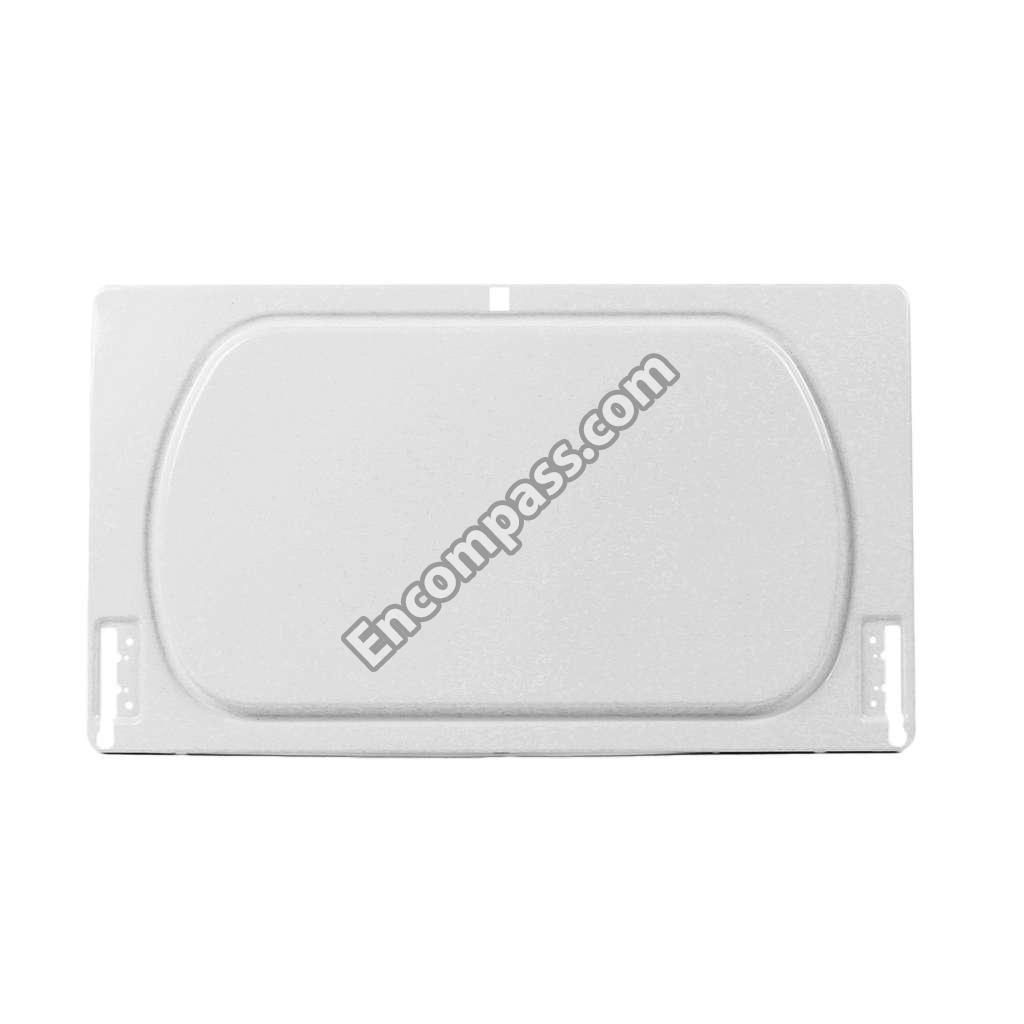

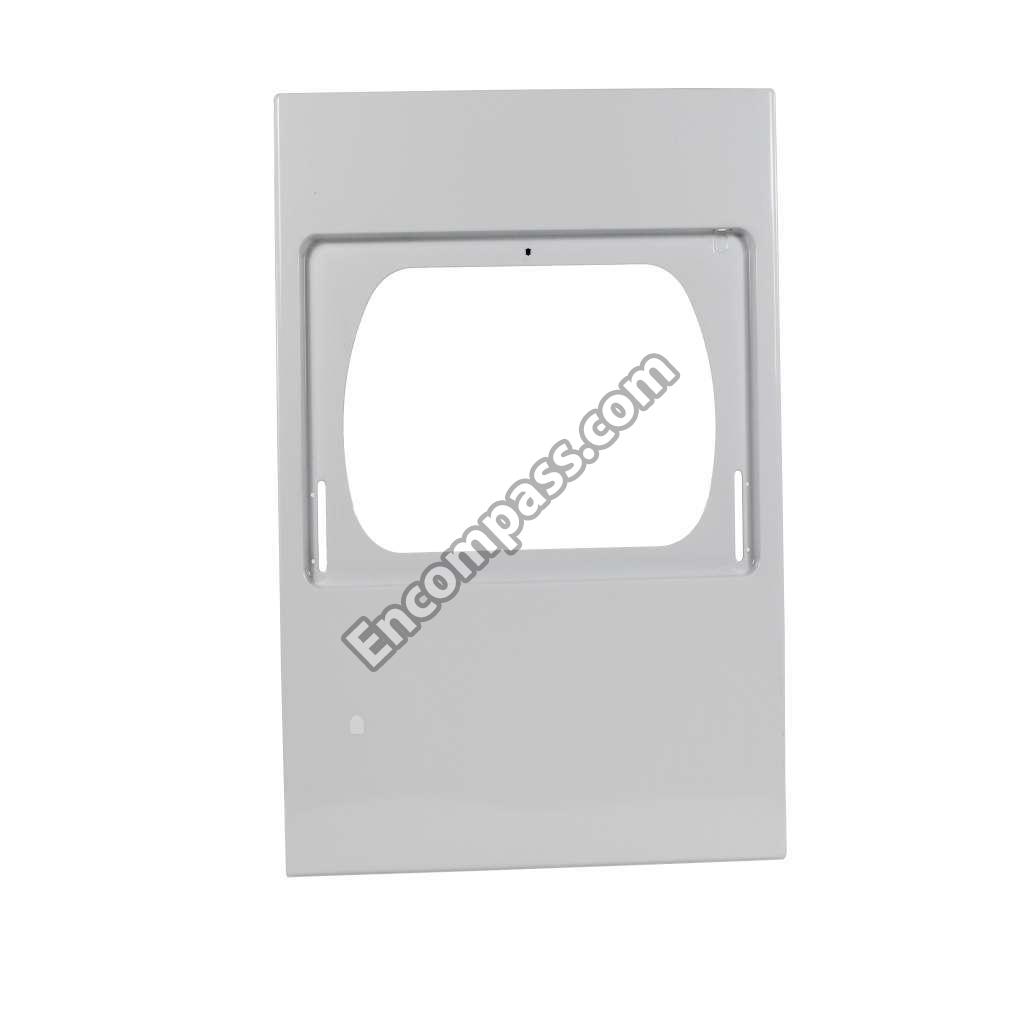

279890 279890 PANEL
3977833 3977833 PANEL, CONTROL (BISCUIT)
3977832 3977832 PANEL, CONTROL (WHITE)

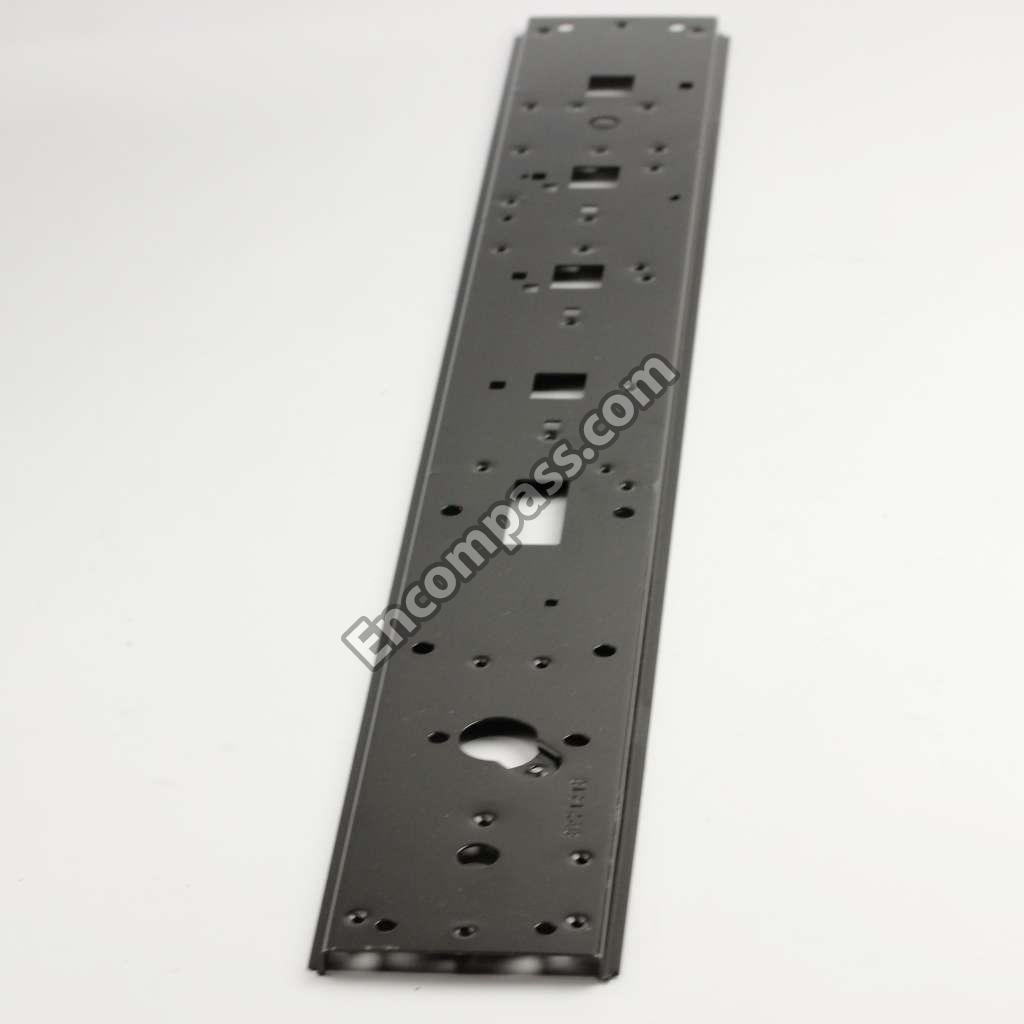

W10103406 W10103406 PANEL, REAR CONSOLE
280043 280043 PANEL-REAR
W10295523 W10295523 PIPE PLUG
8066086 8066086 PLUG
717252 717252 PLUG, 2-WAY TERMINAL
WP3394978 WP3394978 PLUG, FRONT PANEL (BISCUIT)
WP3394975 WP3394975 PLUG, FRONTPANEL (WHITE)
W11222083 W11222083 POWER CORD

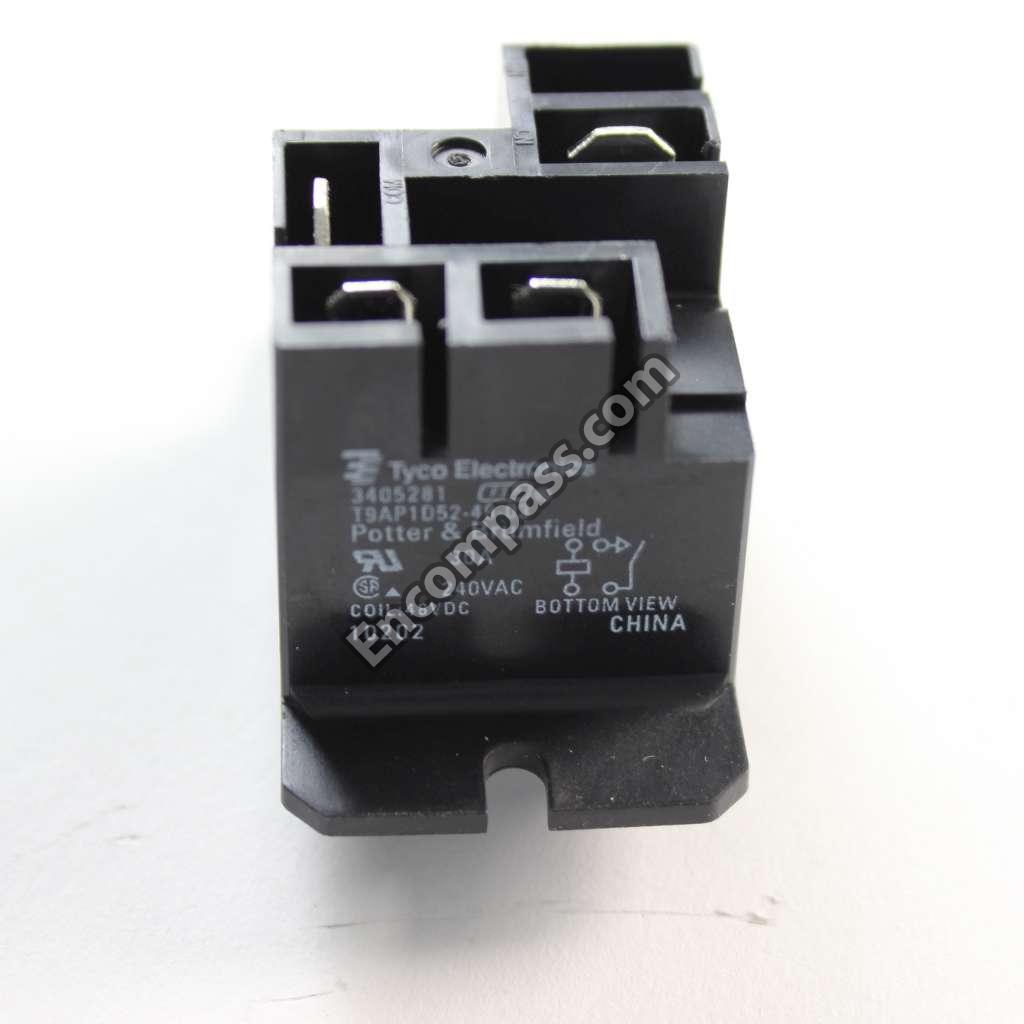

WP3405281 WP3405281 POWER RELAY (2)
350938 350938 PRIMER, GRAY
WP8066184 WP8066184 PULLEY, MOTOR
WP691366 WP691366 PULLEY-IDR
WP338906 WP338906 RADIANT, SENSOR
279441 279441 RING, BEARING

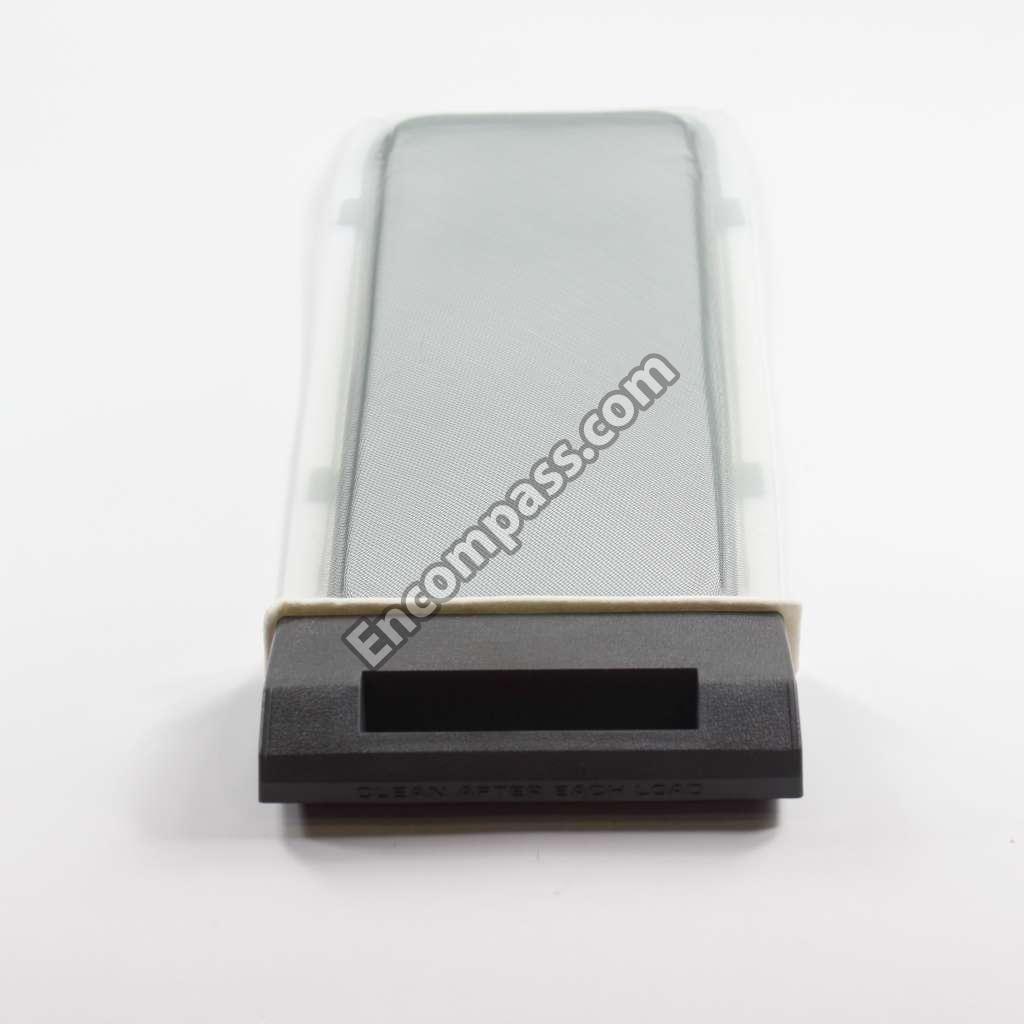

WP349639 WP349639 SCREEN, LINT
WPW10366705 WPW10366705 SCREW
WPW10109200 WPW10109200 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
WP694091 WP694091 SCREW
WP308685 WP308685 SCREW
WP3395530 WP3395530 SCREW
W10850756 W10850756 SCREW
WPW10139210 WPW10139210 SCREW
WP681414 WP681414 SCREW
W11693756 W11693756 SCREW
WP693995 WP693995 SCREW
WP388326 WP388326 SCREW (PANEL TO TOP)
WP3388228 WP3388228 SCREW 6-20 X 3/8

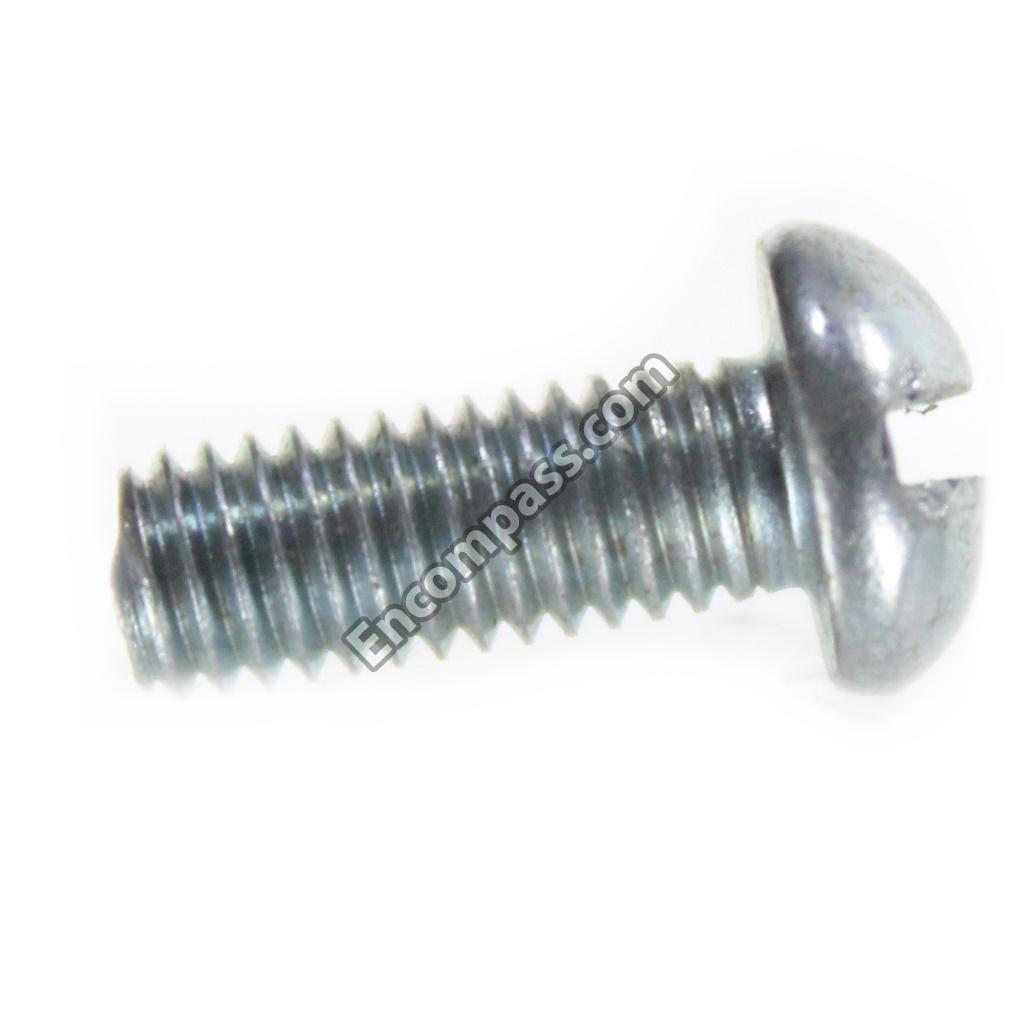

486146 486146 SCREW, 10-24 X 1/2
WP90767 WP90767 SCREW, 8 A X 3/8
694421 694421 SCREW, BRACKET MOUNTING (8-32 X 1/2) (2)
3400859 3400859 SCREW, GROUNDING
WP694423 WP694423 SCREW, REGULATOR ADJUSTMENT
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)

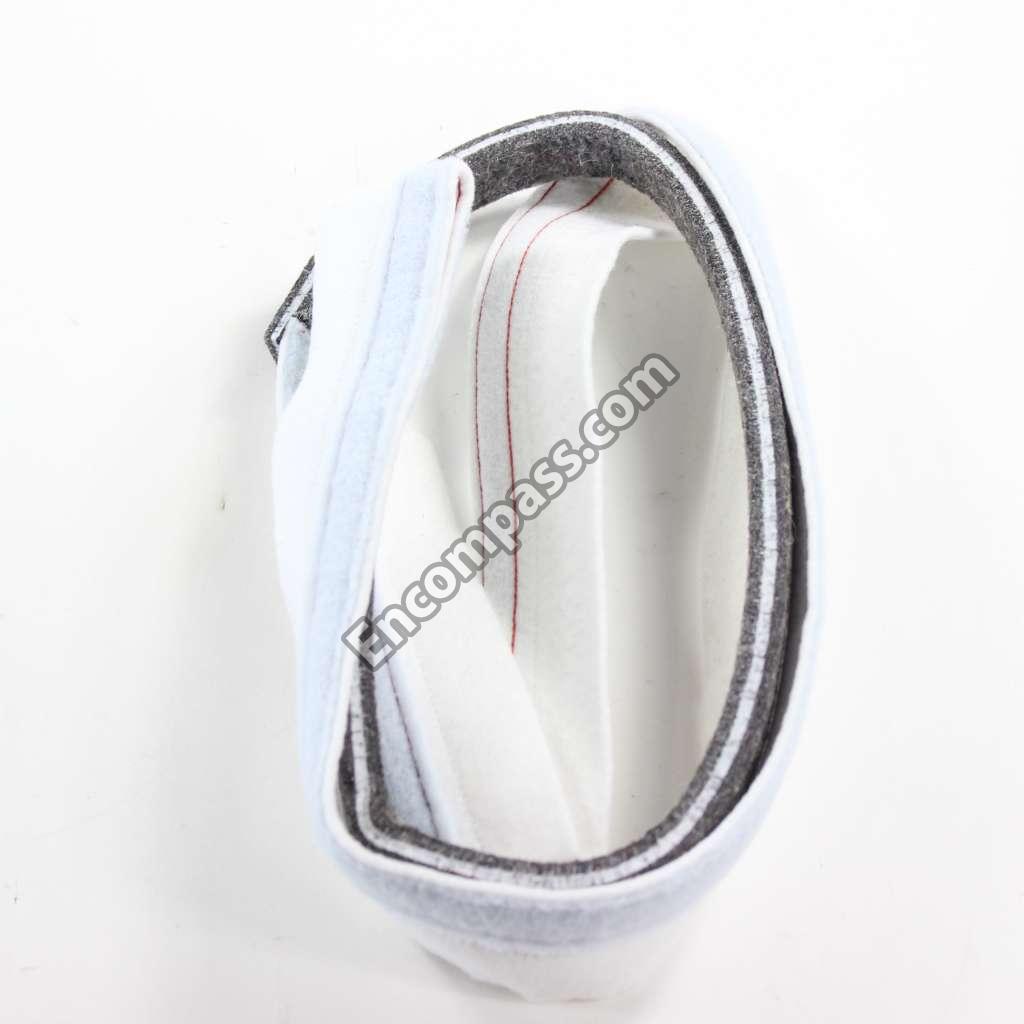

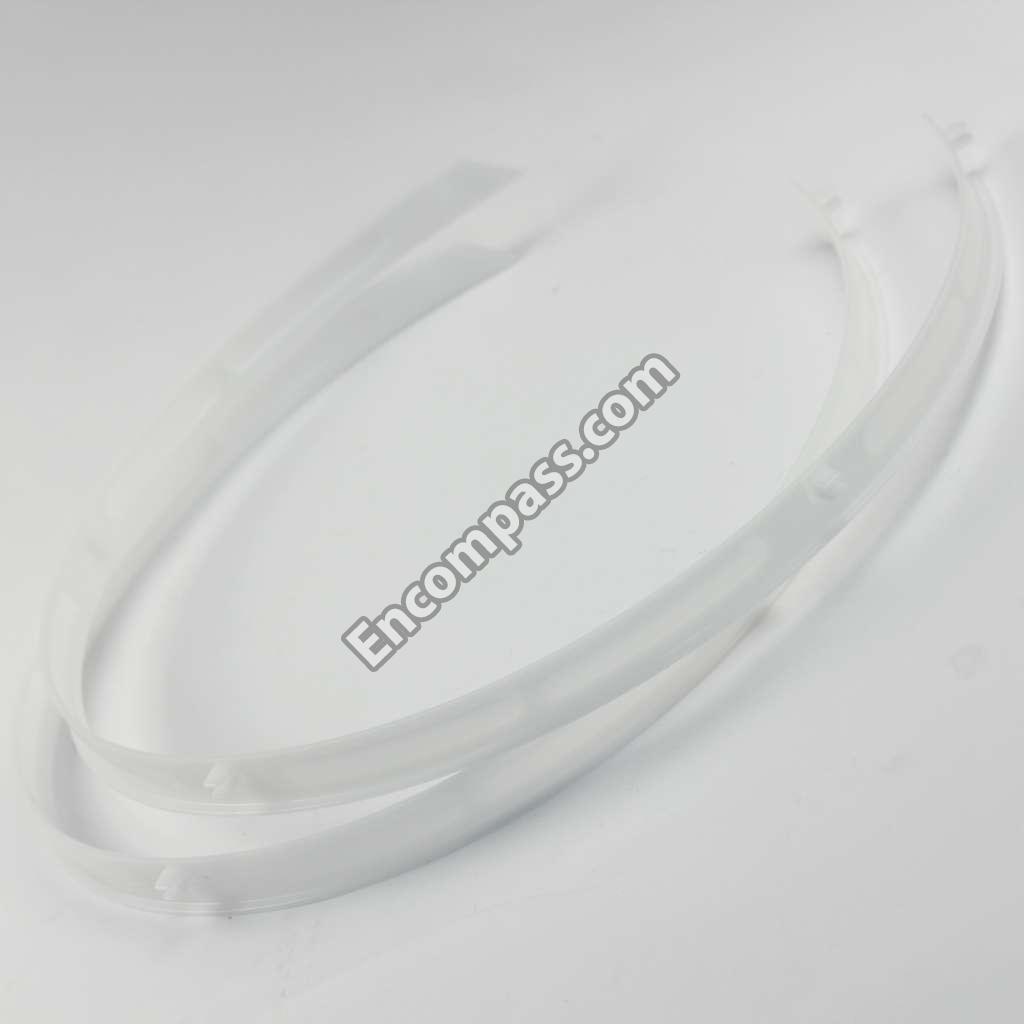

W10612022 W10612022 SEAL
279740 279740 SEAL & BEARING ASSEMBLY
WP339956 WP339956 SEAL FOAM
WP3394196 WP3394196 SEAL, BLOWER
W10906683 W10906683 SEAL, DOOR
W11415783 W11415783 SEAL, LINT CHUTE

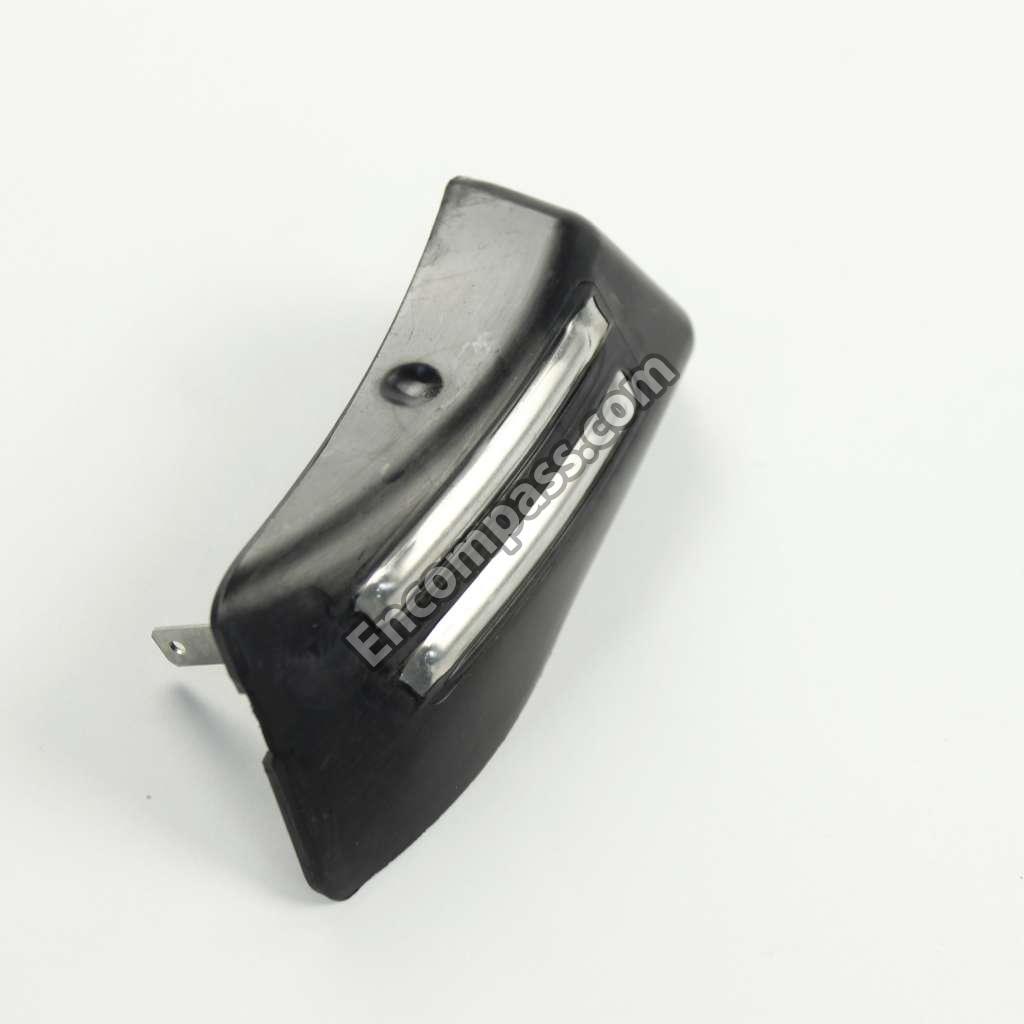

W10816105 W10816105 SENSOR
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER (L.H.)
W11233063 W11233063 SHIELD
W11700522 W11700522 SOCKET, ASSEMBLY
350930 350930 SPRAY (13 OZ.) (WHITE)

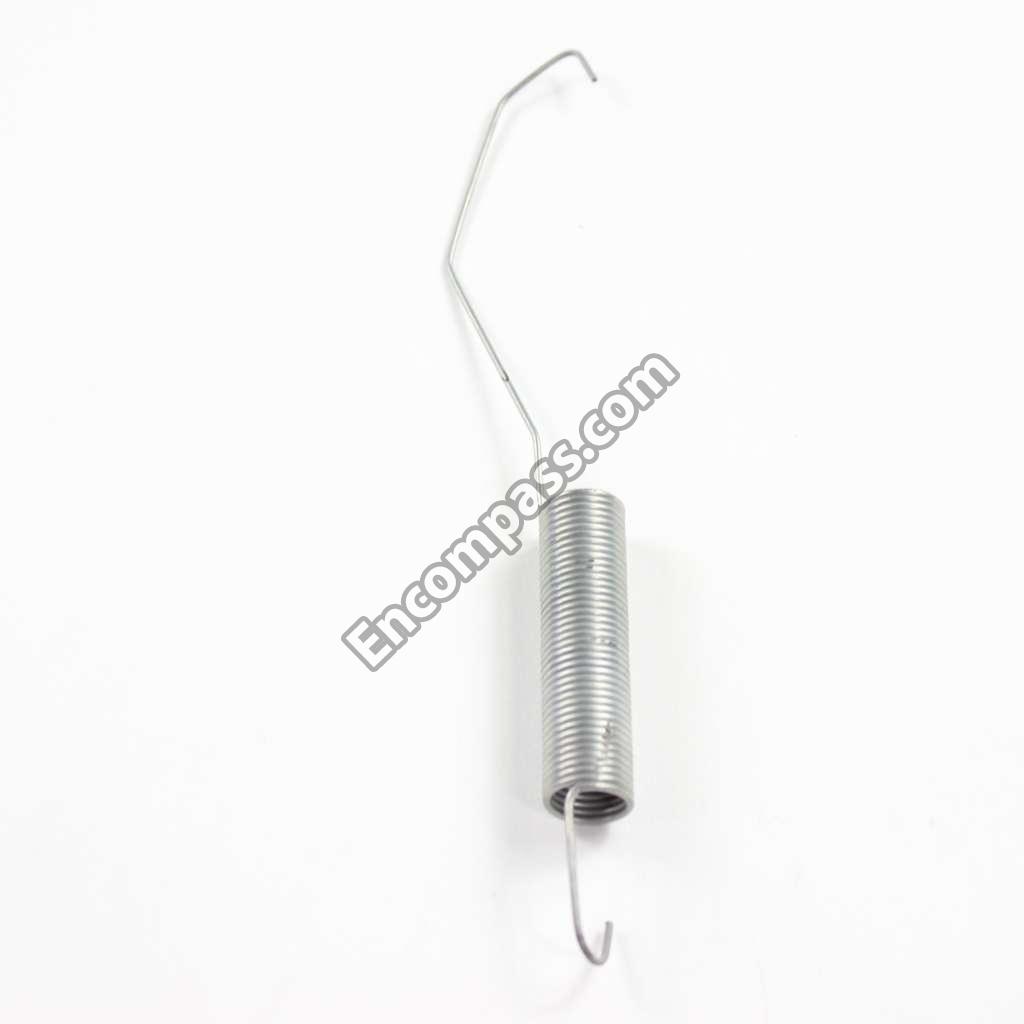

WPW10041960 WPW10041960 SPRING, DOOR (2) PANEL (2)
WP694422 WP694422 SPRING, REGULATOR ADJUSTMENT
349241T 349241T SUPPORT
8299970 8299970 SWITCH

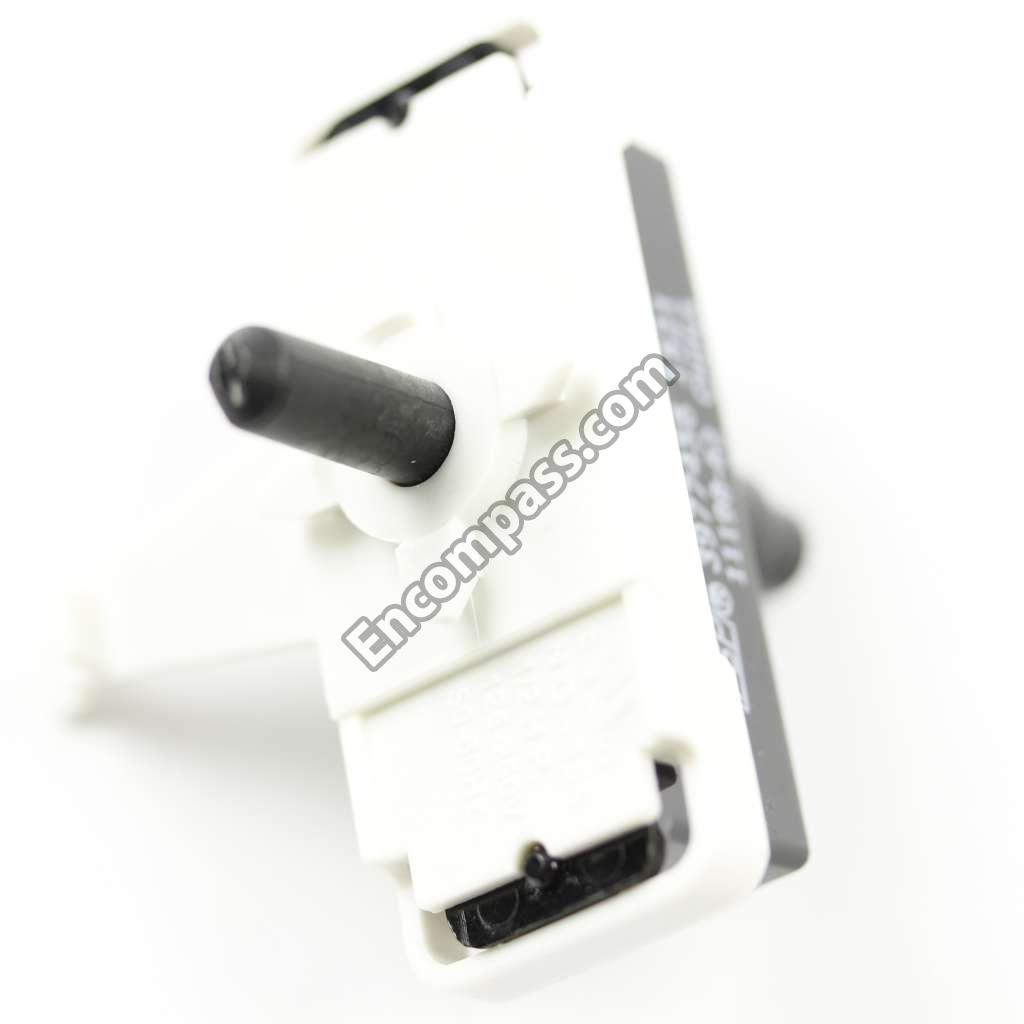

WP3977456 WP3977456 SWITCH, PUSH-TO-START
3405151 3405151 SWITCH, SIGNAL
3405152 3405152 SWITCH, WRINKLE SHIELD
WP94614 WP94614 TERMINAL, FEMALE

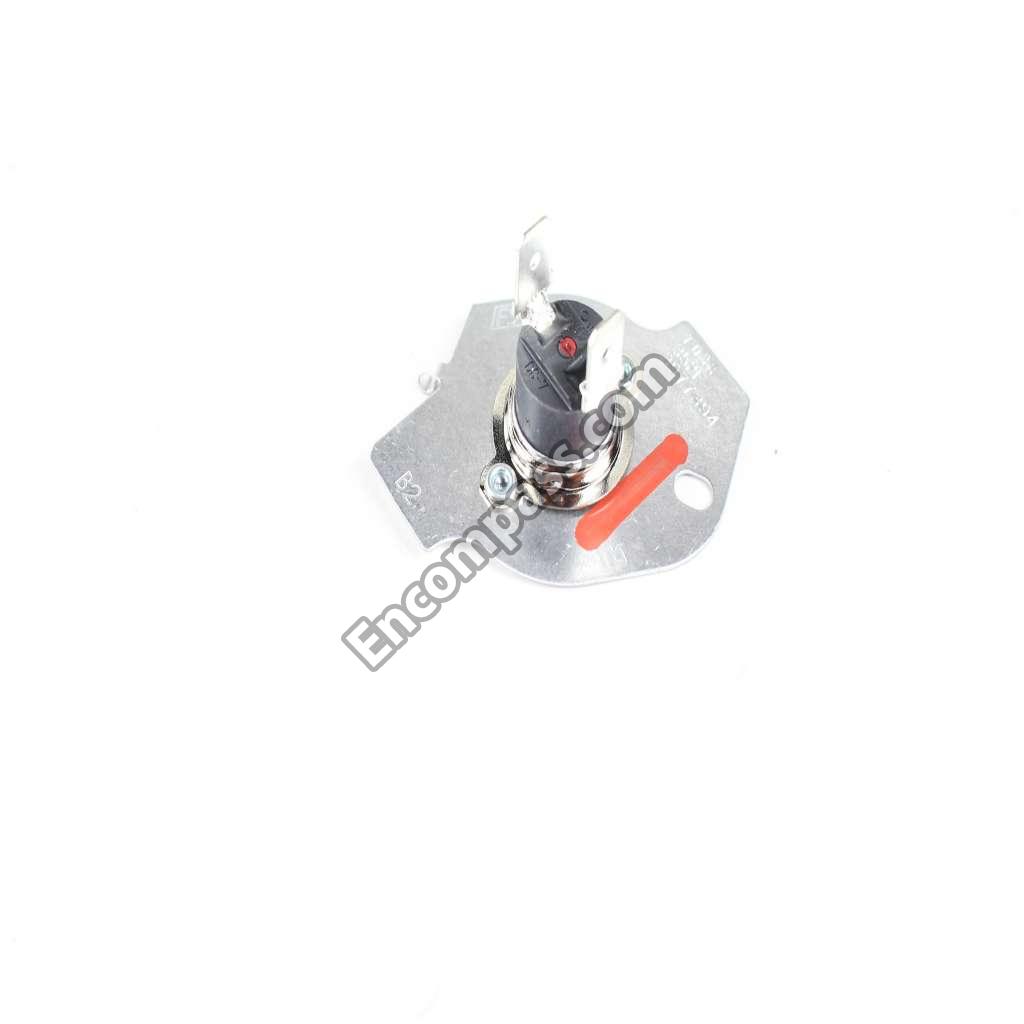

W11050897 W11050897 THERMAL CUT-OFF (INCLUDES ILLUS. 15)
WP3390719 WP3390719 THERMAL FUSE
WP8577274 WP8577274 THERMISTOR

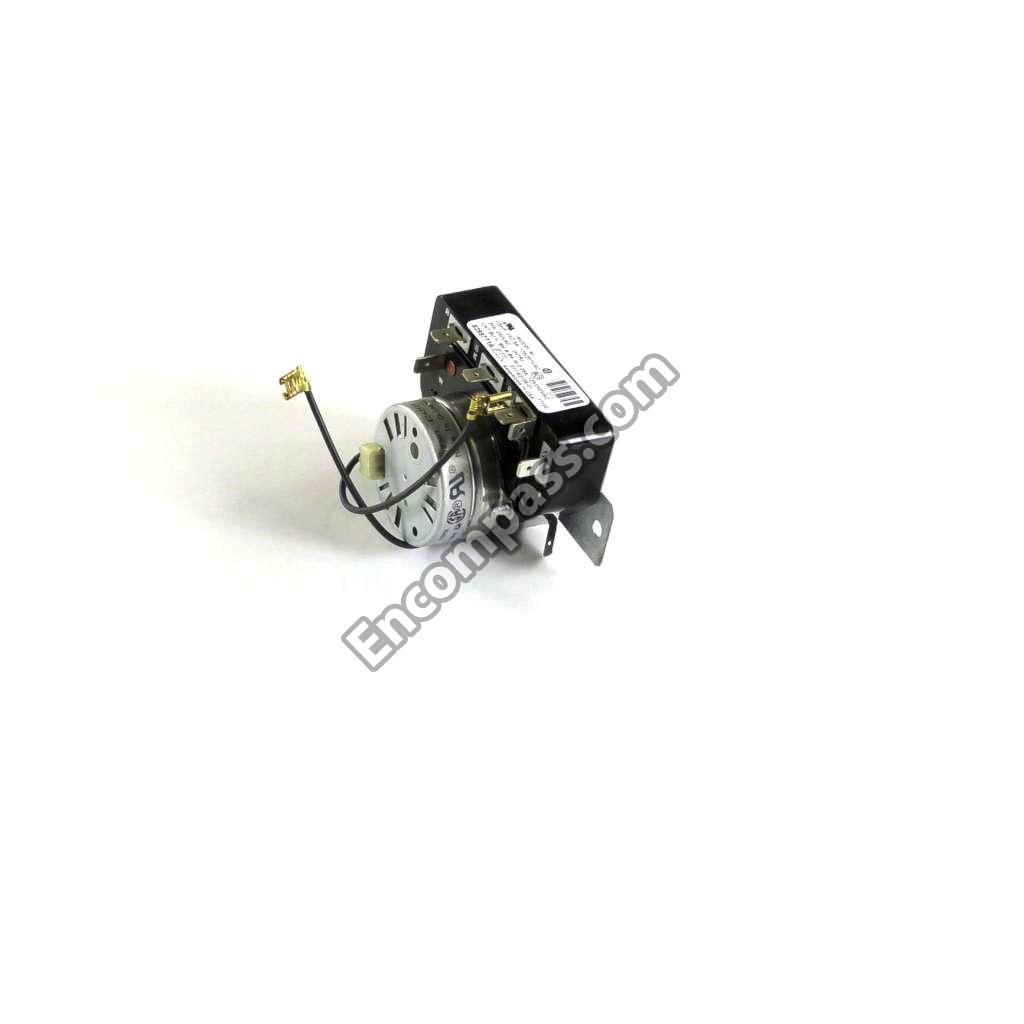

WP8299771 WP8299771 TIMER ASSEMBLY (60 HZ.)
WP8521918 WP8521918 TOP
WP8521920 WP8521920 TOP (BISCUIT)
WPW10512946 WPW10512946 TRI-RING (4)

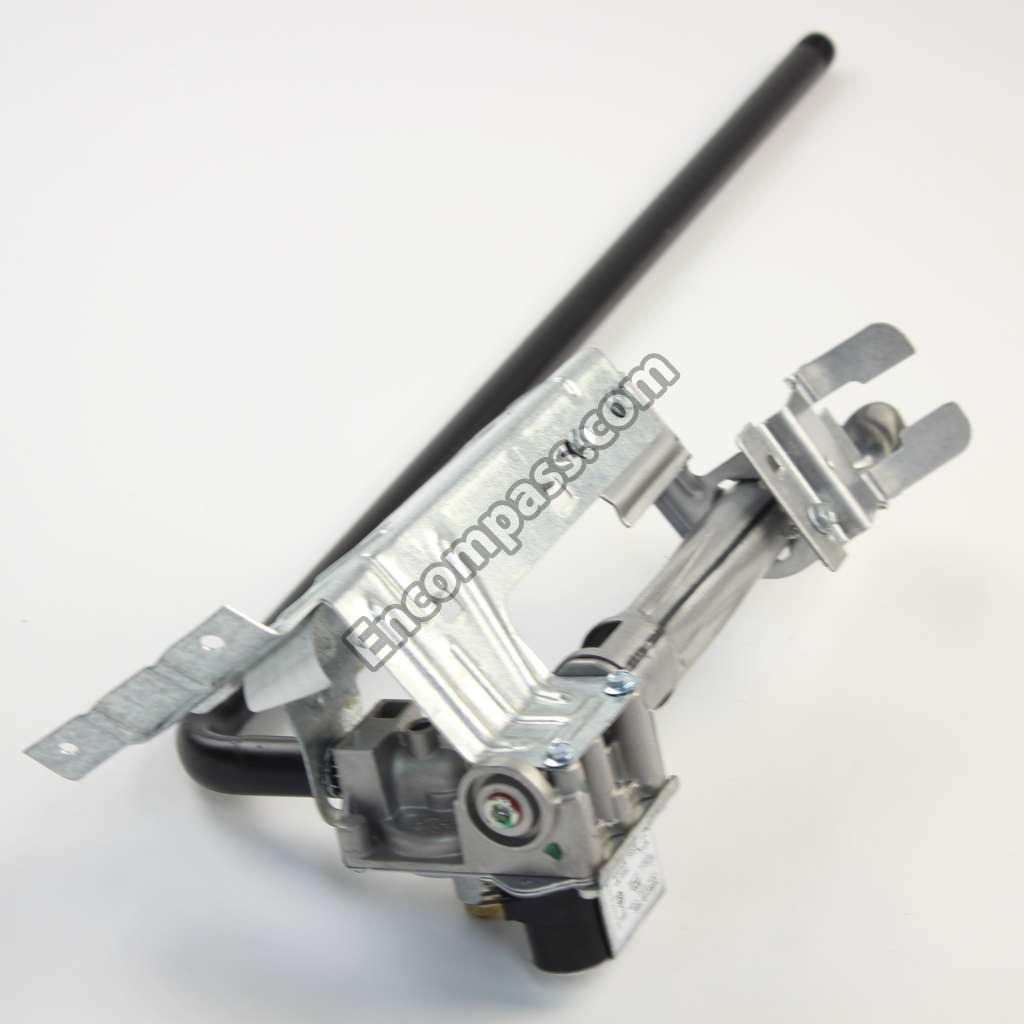

WP8318277 WP8318277 VALVE, 60 HZ. (INCLUDES PIPE & ILLUS. 7)
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL, BLOWER (INCLUDES ILLUS. NO. 19)
WP3401707 WP3401707 WIRE
