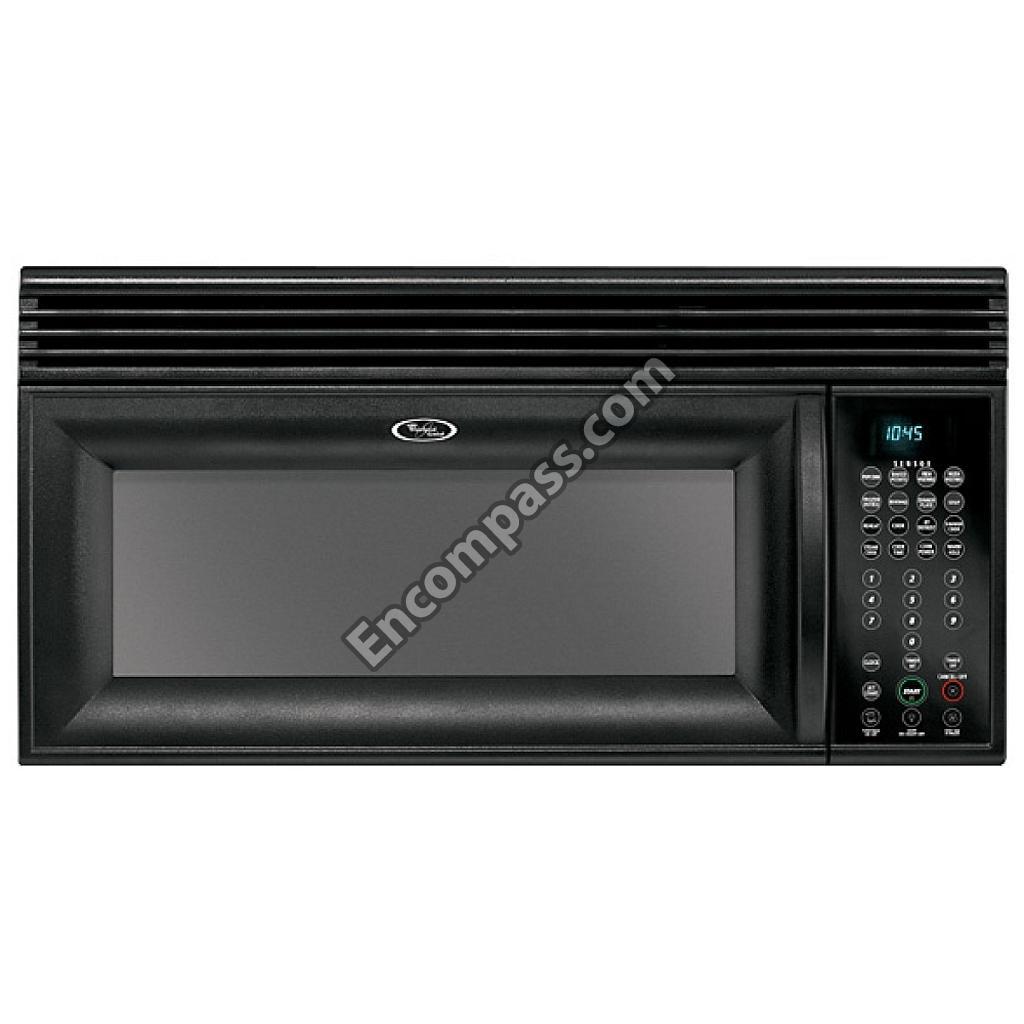

Model Image
Manufacturer

Whirlpool

Model Number

GH4155XPB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8205061 8205061 BASE
8185212 8185212 BASE
8183821 8183821 BRACKET, CONTROL
100000 100000 BRACKET, FAN (NOT SERVICED)
8184311 8184311 BRKT-CPCTR
8206334 8206334 BRKT-MOUNT
8204653 8204653 BRKT-THERM
8183824 8183824 CAM-PLATE
W10850446 W10850446 CAPACTR-MG
8169664 8169664 CASE, OUTER (BISCUIT)
8185033 8185033 CATCH
8169705 8169705 CONNECTOR
8205792 8205792 CONNECTOR
8183726 8183726 CONTROL BOARD
8205640 8205640 CORD, POWER
8184604 8184604 COVER, INLET INCLUDES NAILS AND BUSHINGS
4393756 4393756 COVER, TERMINAL
8184150 8184150 COVER-PLT
8169545 8169545 COVR-CHOKE
8169635 8169635 CUSHION
W10843943 W10843943 DAMPER
8184638 8184638 DEFLECTOR, AIR
W11256462 W11256462 DIODE
4393913 4393913 DOOR LATCH, DOOR
8205327 8205327 DOOR/MW
8205328 8205328 DOOR/MW
8205329 8205329 DOOR/MW
8185107 8185107 DOOR/MW
8185108 8185108 DOOR/MW
8185109 8185109 DOOR/MW
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
8185083 8185083 DUCT-AIR
8171338 8171338 FILLER KIT-BISCUIT
8206624 8206624 FILTER
6800 6800 FILTER
6802A 6802A FILTR-GRSE
W11707984 W11707984 FUSE-THRML
8169564 8169564 GLASS, LAMP
8183948 8183948 GRILL-VENT
8183851 8183851 GRILL-VENT
8183852 8183852 GRILL-VENT
8204929 8204929 GUIDE, COOKING (LABEL)
8205045 8205045 GUIDE-AIR
4393782 4393782 HANDLE, DOOR (BLACK)
4393777 4393777 HANDLE, DOOR (WHITE)
8205947 8205947 HARDWARE, INSTALLATION
8205843 8205843 HARNS-WIRE
8205846 8205846 HARNS-WIRE
8205847 8205847 HARNS-WIRE
8205844 8205844 HARNS-WIRE
8205635 8205635 HARNS-WIRE
8205845 8205845 HARNS-WIRE
8183741 8183741 HINGE-DOOR
8183742 8183742 HINGE-DOOR
8169642 8169642 HNDLE-DOOR
W10117908 W10117908 HOLDER, FUSE
8183946 8183946 HOUSING
8184624 8184624 HOUSNG-BLW
8205932 8205932 HOUSNG-LMP
8169539 8169539 HOUSNG-LMP
8184745 8184745 HOUSNG-LMP
8183731 8183731 INSTALLATION INSTRUCTIONS
8205572 8205572 INTERLOCK
8169319 8169319 LATCH
8183823 8183823 LID-FAN
8206232A 8206232A LIGHT BULB
WP8533914 WP8533914 LOCKWASHER
W10245183 W10245183 MICROWAVE MAGNETRON
WP8205208 WP8205208 MOTOR, FAN
8185211 8185211 MOTOR, FAN
W10642989 W10642989 MOTOR, TURNTABLE
8184581 8184581 MOTOR-STIR
WP8206174 WP8206174 MOUNT-CBNT
W10841143 W10841143 NAILS/BUSHINGS (5 OF EACH)
8184404 8184404 NUT
W10903187 W10903187 PANEL-DOOR
8205325 8205325 PANEL-DOOR
8205326 8205326 PANEL-DOOR
8205332 8205332 PANL-CNTRL
8205330 8205330 PANL-CNTRL
8205331 8205331 PANL-CNTRL
8171336 8171336 PANL-FILLR
8171337 8171337 PANL-FILLR
W10197496 W10197496 PLATE
8204657 8204657 PLATE
8204658 8204658 PLATE
8169697 8169697 PLATE, DAMPER
8204674 8204674 PLATE, DAMPER
8205830 8205830 PLATE, HINGE
8205393 8205393 RACK
8184582 8184582 RANGE THERMOSTAT
8169557 8169557 REFLECTOR
4393688 4393688 REFLECTOR, LAMP
8169320 8169320 RING-E
W11252182 W11252182 RING-TURN
8169318 8169318 ROD-REL
WP8169704 WP8169704 SCREW
4393832 4393832 SCREW
WP8181660 WP8181660 SCREW
4393838 4393838 SCREW
4393839 4393839 SCREW
W11380570 W11380570 SCREW
W10841091 W10841091 SCREW
4393346 4393346 SCREW
8169474 8169474 SCREW
8169478 8169478 SCREW
8169479 8169479 SCREW
8206446 8206446 SENSOR, HUMIDITY
WP8184485 WP8184485 SHIELD
8204754 8204754 SHIELD
8184129 8184129 SPACER
8184109 8184109 SPACER
8169374 8169374 SPRING
8169438 8169438 SPRING
8184633 8184633 STIRRER SHAFT/BLADE
8204662 8204662 SUPPORT
8206566 8206566 SWITCH, MICRO (3)
8205611 8205611 TECH SHEET
8205926 8205926 TEMPLATE
8183743 8183743 TEMPLATE
8183703 8183703 THERMOSTAT
8183697 8183697 THRMST-FIX
8183698 8183698 THRMST-FIX
WPW10136726 WPW10136726 TRANSFORMER, H.V.
4393799 4393799 TURNTABLE
8204919 8204919 USE & CARE GUIDE
8204694 8204694 WHEEL, FAN
WP8183825 WP8183825 WHEEL, FAN
8206547 8206547 WRAPER-CAB
8169660 8169660 WRAPER-CAB
