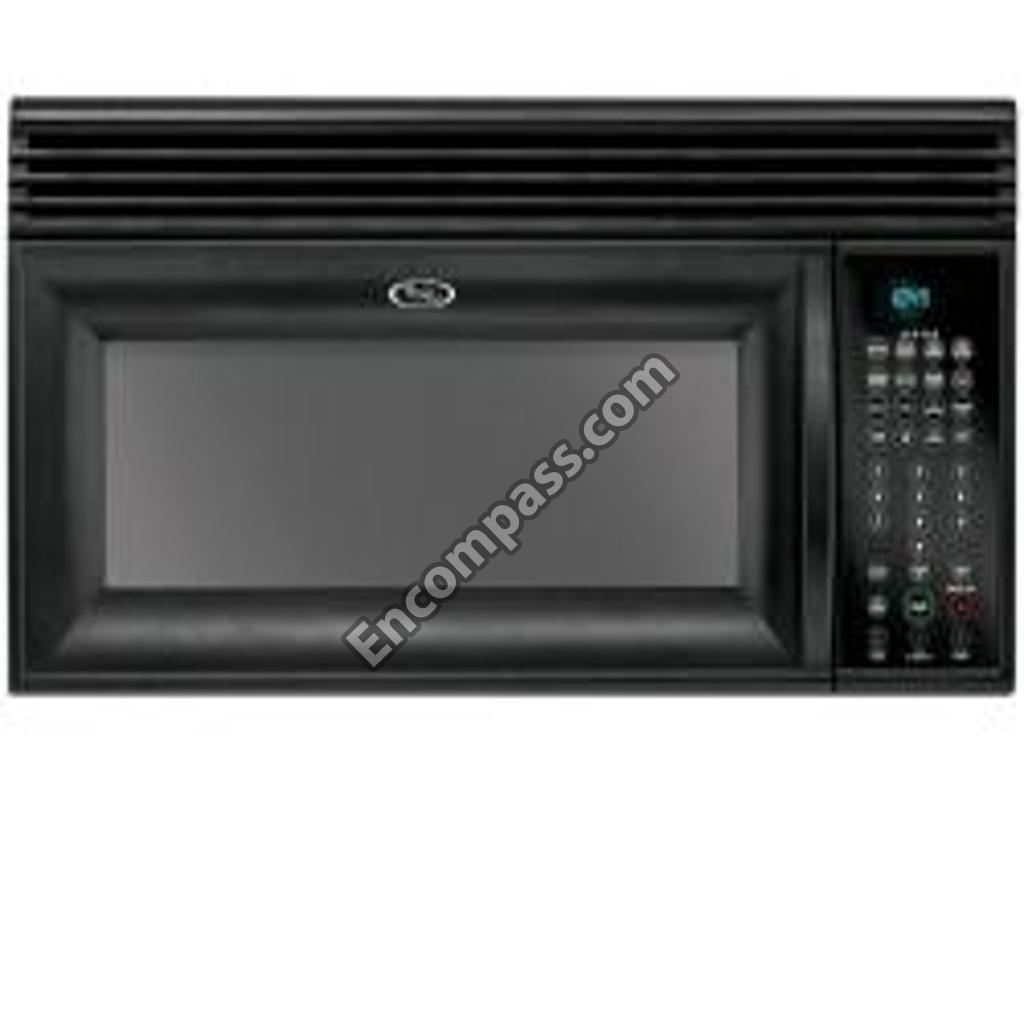

Model Image
Manufacturer

Whirlpool

Model Number

GH4155XPS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8205262RB 8205262RB ACCESSORIES, STEAMER, MICROWAVE
8205061 8205061 BASE
8185212 8185212 BASE
8185109 8185109 BODY, DOOR (INCLUDES FILM) (BLACK)
8183821 8183821 BRACKET, CONTROL
100000 100000 BRACKET, FAN (NOT SERVICED)
8184311 8184311 BRKT-CPCTR
8206334 8206334 BRKT-MOUNT
8204653 8204653 BRKT-THERM
4393709 4393709 CAPACITOR
W10850446 W10850446 CAPACTR-MG
8185033 8185033 CATCH
W10117062 W10117062 CONNECTOR
8169540 8169540 CONNECTOR
8169705 8169705 CONNECTOR
8205640 8205640 CORD, POWER
8183823 8183823 COVER, FAN
8184604 8184604 COVER, INLET INCLUDES NAILS AND BUSHINGS
4393756 4393756 COVER, TERMINAL
8184150 8184150 COVER-PLT
8169635 8169635 CUSHION
W10843943 W10843943 DAMPER
8184638 8184638 DEFLECTOR, AIR
W11256462 W11256462 DIODE, H.V.
8205322 8205322 DOOR, COMPLETE
W10435116 W10435116 DRIVER, TURNTABLE COUPLER
8185083 8185083 DUCT-AIR
6800 6800 FILTER
6802A 6802A FILTER, GREASE
8169545 8169545 FRAME, INNER
W11707984 W11707984 FUSE
8169564 8169564 GLASS, LAMP
8184608 8184608 GRILLE, VENT (BLACK)
8204929 8204929 GUIDE, COOKING (LABEL)
8205045 8205045 GUIDE-AIR
8169738 8169738 HANDLE, DOOR (BLACK)
8205947 8205947 HARDWARE, INSTALLATION
8183741 8183741 HINGE-DOOR
8183742 8183742 HINGE-DOOR
W10117908 W10117908 HOLDER, FUSE
8169539 8169539 HOLDER, LAMP
8204662 8204662 HOOK, RACK (4)
8183946 8183946 HOUSING
8184624 8184624 HOUSNG-BLW
8205932 8205932 HOUSNG-LMP
8184745 8184745 HOUSNG-LMP
8183731 8183731 INSTALLATION INSTRUCTIONS
8205572 8205572 INTERLOCK
4393913 4393913 LATCH, DOOR
8169319 8169319 LATCH, PIVOT
8206232A 8206232A LIGHT BULB
WP8533914 WP8533914 LOCKWASHER
8183726 8183726 MICROCOMPUTER
W10245183 W10245183 MICROWAVE MAGNETRON
WP8205208 WP8205208 MOTOR, FAN
8185211 8185211 MOTOR, FAN
W10642989 W10642989 MOTOR, TURNTABLE
8184581 8184581 MOTOR-STIR
WP8206174 WP8206174 MOUNT-CBNT
W10841143 W10841143 NAILS/BUSHINGS
8184404 8184404 NUT
8205323 8205323 PANEL, CONTROL
8205321 8205321 PANEL-DOOR
8171337 8171337 PANL-FILLR
W10197496 W10197496 PLATE
8204657 8204657 PLATE
8204658 8204658 PLATE
8183824 8183824 PLATE, CAM
8169697 8169697 PLATE, DAMPER
8204674 8204674 PLATE, DAMPER
WP8169704 WP8169704 PLATE, GRILL MISCELLANEOUS (SCREW, TOP MOUNTNG)
8205830 8205830 PLATE, HINGE
8205393 8205393 RACK
8184582 8184582 RANGE THERMOSTAT
8169557 8169557 REFLECTOR
4393688 4393688 REFLECTOR, LAMP
8169320 8169320 RING-E
W11252182 W11252182 RING-TURN
8169318 8169318 ROD-REL
4393832 4393832 SCREW
WP8181660 WP8181660 SCREW
4393838 4393838 SCREW
4393839 4393839 SCREW
4393346 4393346 SCREW
8169479 8169479 SCREW
W10841091 W10841091 SCREW
8169474 8169474 SCREW
W11380570 W11380570 SCREW
8169478 8169478 SCREW
8206446 8206446 SENSOR, HUMIDITY
WP8184485 WP8184485 SHIELD
8204754 8204754 SHIELD
8184129 8184129 SPACER
8184109 8184109 SPACER
8169374 8169374 SPRING
8169438 8169438 SPRING, INTERLOCK
8184633 8184633 STIRRER SHAFT/BLADE
8206566 8206566 SWITCH, MICRO (3)
8204908 8204908 TECH SHEET
8205926 8205926 TEMPLATE
8183697 8183697 THERMOSTAT
8183698 8183698 THERMOSTAT
8183703 8183703 THERMOSTAT
WPW10136726 WPW10136726 TRANSFORMER, H.V.
4393799 4393799 TURNTABLE
8204919 8204919 USE & CARE GUIDE
8183743 8183743 WALL TEMPLATE
8204694 8204694 WHEEL, FAN
WP8183825 WP8183825 WHEEL, FAN
4393861 4393861 WHEEL, PLASTIC
8206547 8206547 WRAPER-CAB
